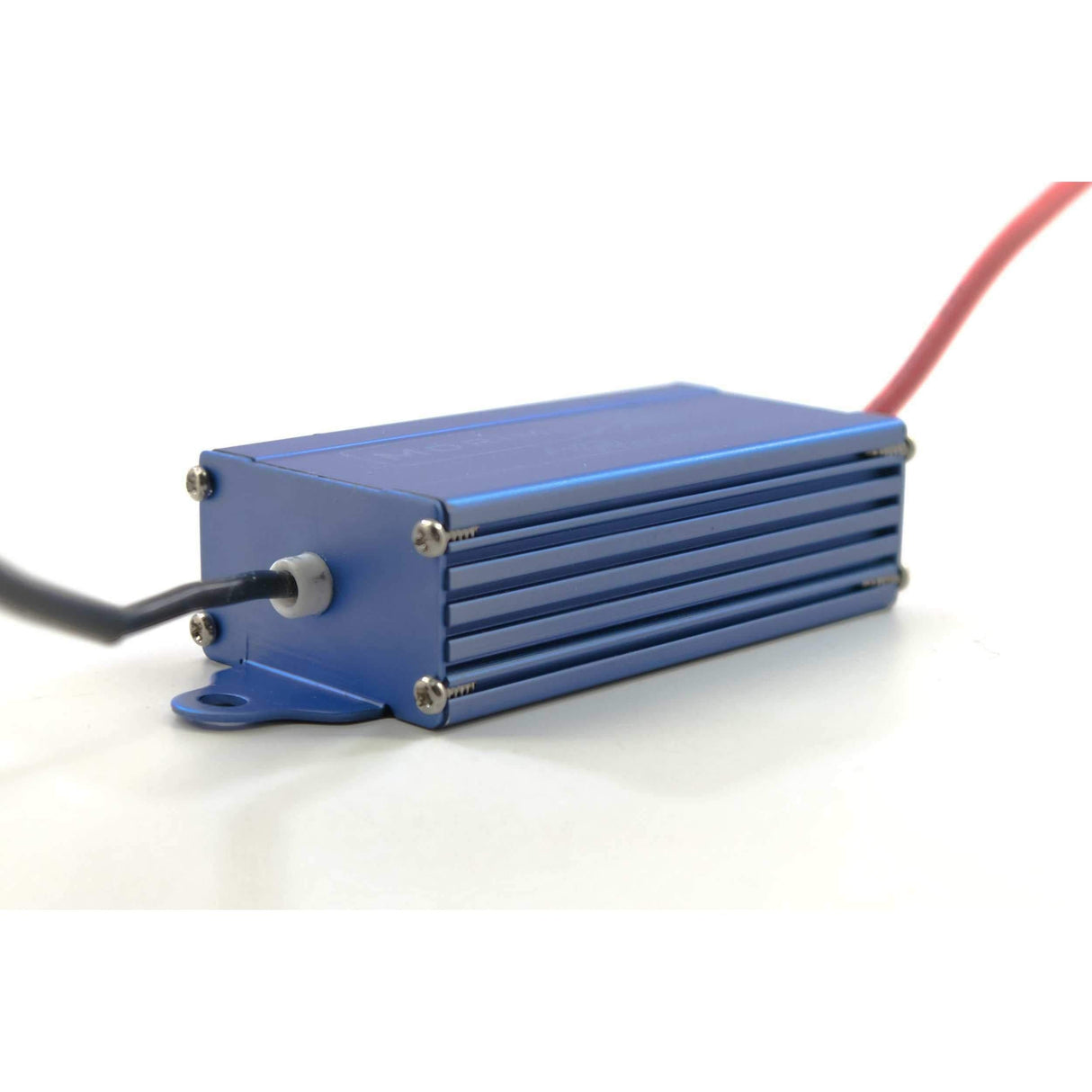

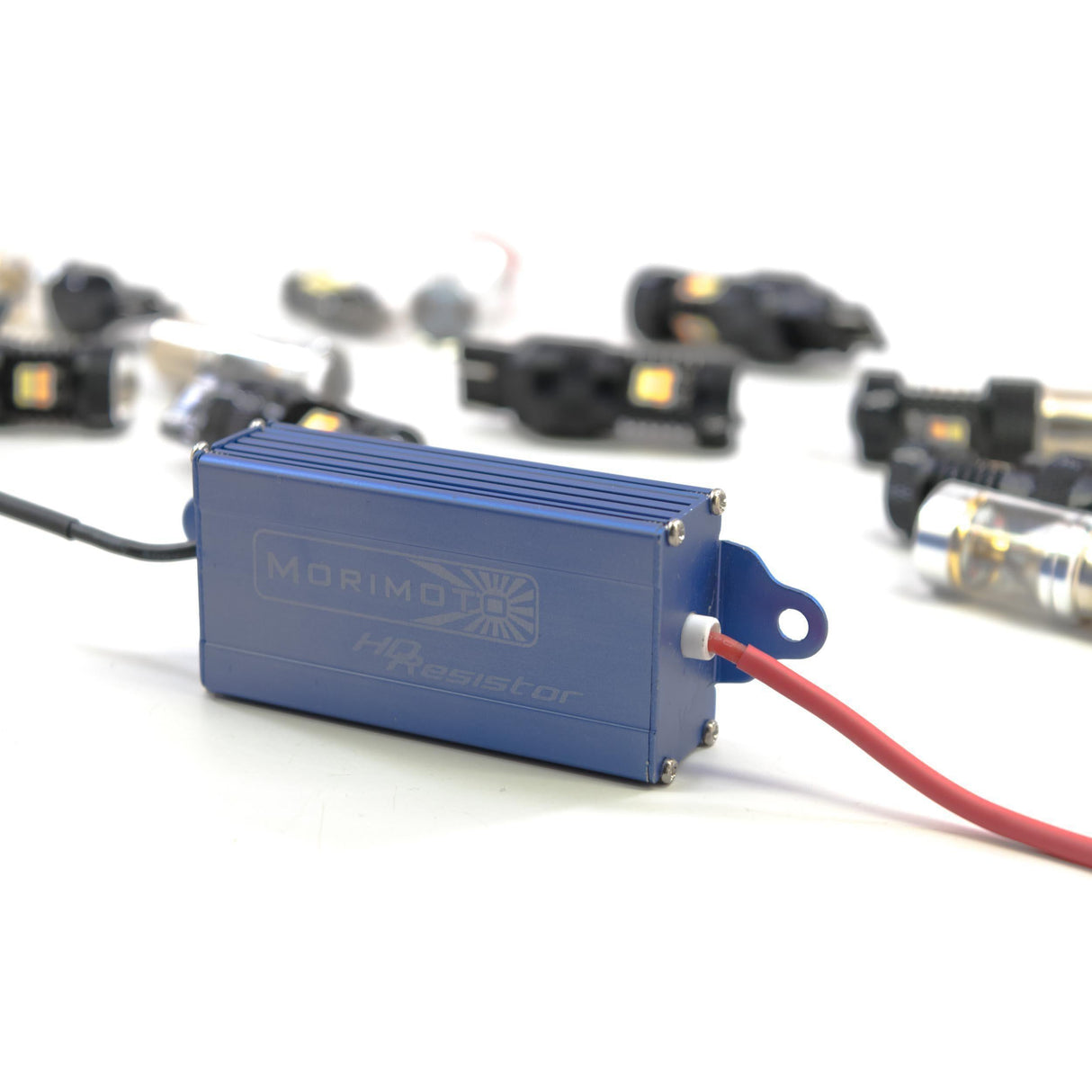

Morimoto Resistor (H2XX)
Purchase to earn 24 Dirty Dollars Learn More
Description
Description
Fits
| LED HyperFlash | Yes |
| EURO CANBUS SYSTEMS | Yes |
| OTHER CANBUS SYSTEMS | Yes |
| 15+ MOPAR CANBUS SYSTEMS | Yes |
As a component that's notorious for getting extremely hot when in use, it's not only careless to use a cheaply made automotive load resistor, it's dangerous. These MUST be mounted to a metal surface, with screws.
The Morimoto HD load resistors are available in a variety of configurations to suit every possible need when it comes to automotive lighting. Whether it's a single LED headlight resistor you need for an LED flasher or to bypass a basic canbus system, a dual resistor for both positive and ground circuits, or the big boy 2015+ Mopar-Spec units (the only ones on the market that actually work for 15+ Mopars)
Part Number: H275
Features
Features
- Integrated mounting points
- Extruded aluminum housing
- 4 gauge wiring exits through ceramic ports to prevent anything from coming into contact with any heated surfaces
Additional Info
Additional Info
| WATTAGE | 40W |
| RESISTANCE | 7.5 ohms |
| INPUT | 9006 Male |
| OUTPUT | Nickel-Plated Ring Terminal Type |
| WIRING | 14ga High-Temp |
| SHELL MATERIAL | Extruded Aluminum |
| FINISH | Anodized/Laser Engraved |
What's Included

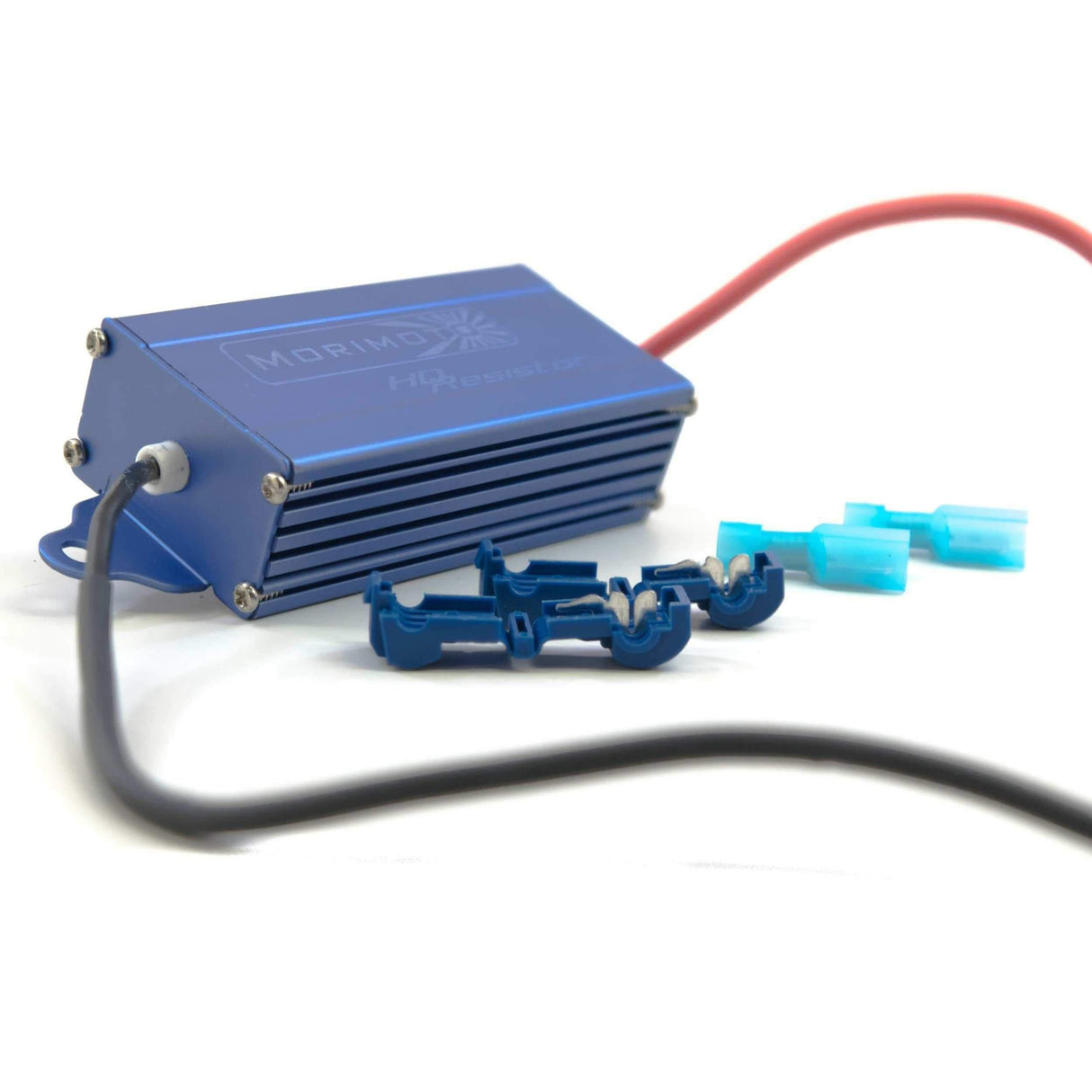

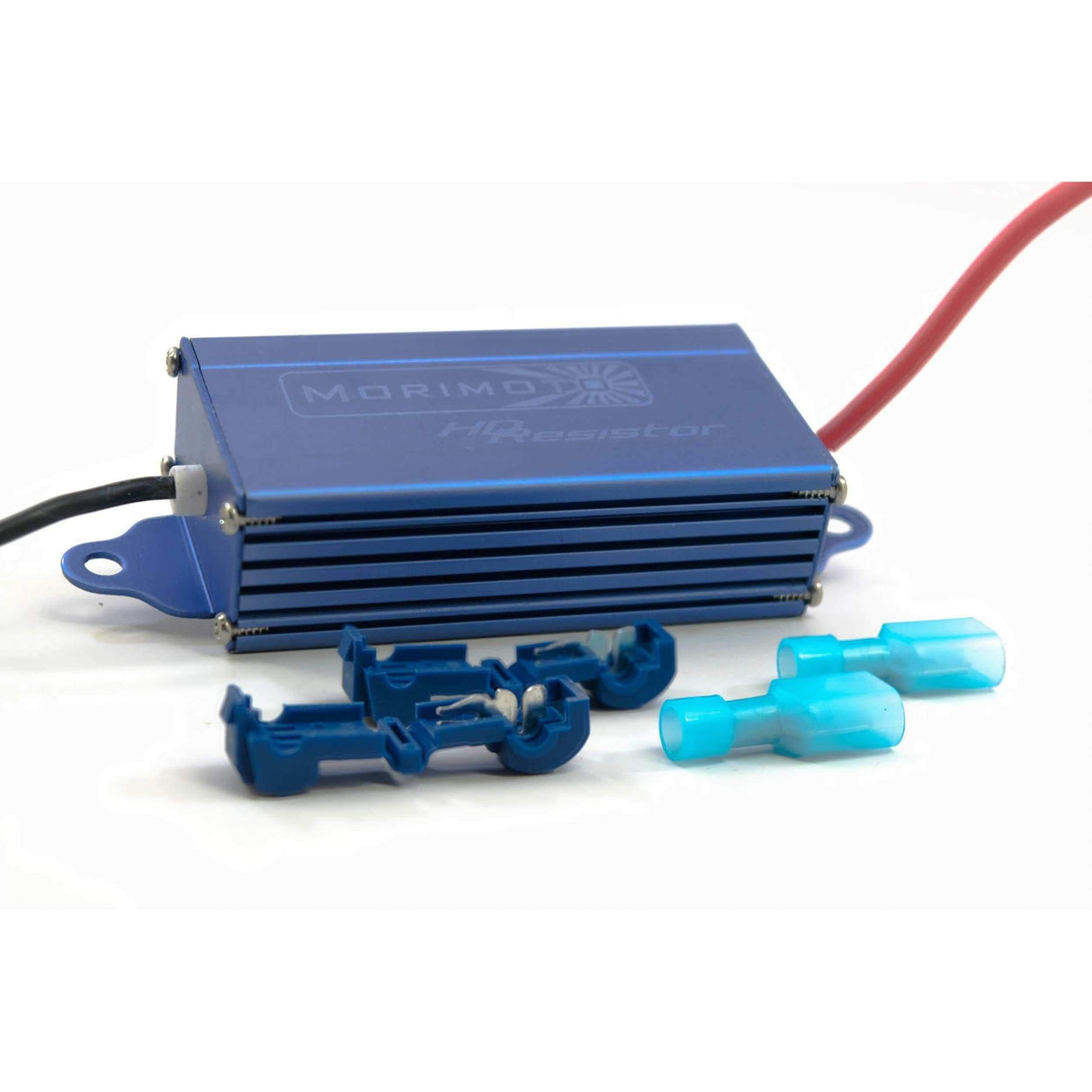

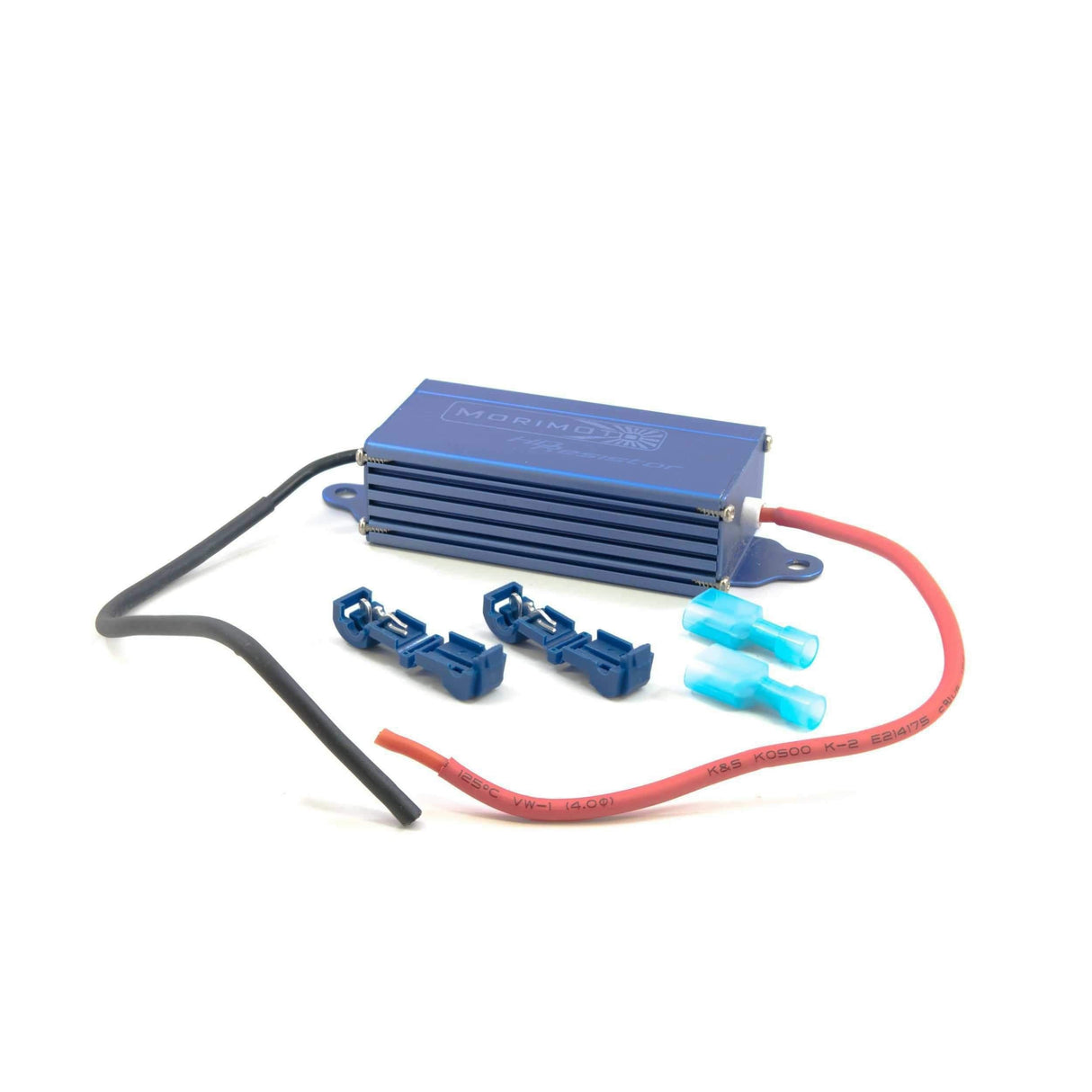

| RESISTOR | 1x Morimoto HD Load Resistor (various configs) |

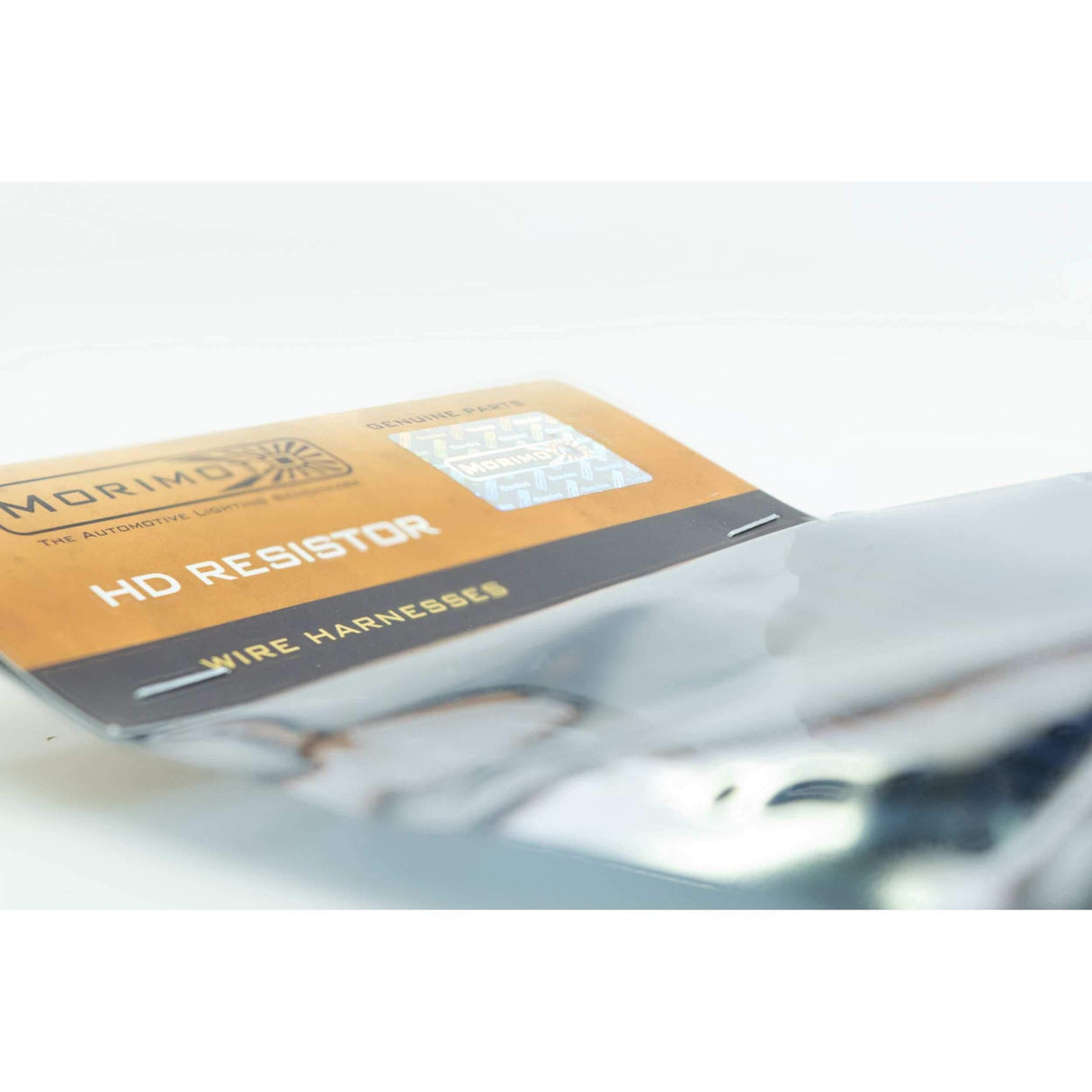

| INSTALL CARD | Reminders About Proper Installation |
| WARRANTY | 2 Years |
