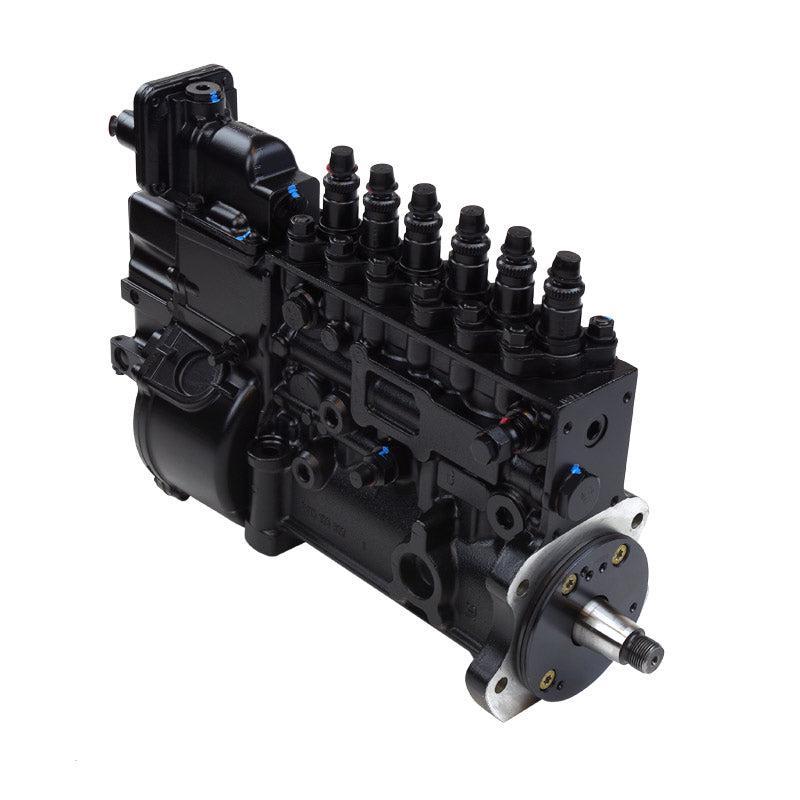

1994-1995 Cummins Reman Injection Pump (Auto) (0402736838SHOSE)

Industrial Injection
Regular price $3,443.04 CAD

This product will automatically bundle the following item:

Purchase to earn 3443  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Remanufactured and performance-calibrated Bosch P7100 injection pump (0402736838SHOSE) for 1994-1995 Dodge Ram 2500/3500 5.9L 12V Cummins auto-trans trucks. Built to deliver a meaningful bump in horsepower and torque over the stock pump while preserving streetable manners at 3100 RPM redline.

Each pump is fully torn down, inspected, and rebuilt with new wear parts. The calibration package installs a #6 cam plate, 4000 RPM governor springs, an upgraded AFC spring, 191 delivery valves, and a new overflow valve. Fueling is set to 320-360cc maximum at 3100 RPM with 18° base timing. The result is a stronger torque curve through the midrange — exactly where towing and daily-drive trucks live — without pushing the auto-trans into territory it can't survive.

Industrial Injection runs each pump on a calibrated test stand before it ships. The "Dragon Fly" designation is II's internal program name for this performance build of the 838-series core.

Features

  • Reman Industrial Injection 838 "Dragon Fly" P7100 Pump
  • Calibrated for 1994-1995 Auto-Trans 5.9L 12V Cummins
  • 320-360cc Max Fuel @ 3100 RPM
  • 18° Base Timing
  • #6 Cam Plate
  • 4000 RPM Governor Springs
  • Upgraded AFC Spring
  • 191 Delivery Valves
  • New Overflow Valve
  • Performance-Calibrated on Test Stand
  • Part Number: 0402736838SHOSE

Notes

  • 1-Year Parts-Only Warranty.
  • Auto-trans calibration — manual-trans trucks should use the 0402736841SHOSE manual variant.
  • For a higher-RPM build (4000 RPM, 370-390cc), step up to the 854 "Dragon Fly" pump (0402736854SHO).
  • Core deposit applies — keep your old pump and return it to recover the deposit.

Questions and Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

Vehicle Fitment - Part No: 0402736838SHOSE


Product Fitment Notes
  • Auto-trans calibration only. Manual-trans trucks use 0402736841SHOSE.
