Description
Fits: Pacbrake air springs w/ pre-existing independent control air system
The Pacbrake HP10098 is an affordable option that allows you to operate your Air Spring/Air Suspension Kits with a pneumatic dash switch(es) that will attach directly to the tank and the air springs. This includes "Independent" inflation which allows inflation and deflation of each air spring individually! So if you are looking to take your towing, hauling, 4x4ing, and all other onboard air management to the next level, this Pacbrake In-Cab Control Kit is what you need!
Part Number: HP10098
Features
- Independent inflation utilizes 2 separate switches, allowing one to inflate/deflate an air spring individually.

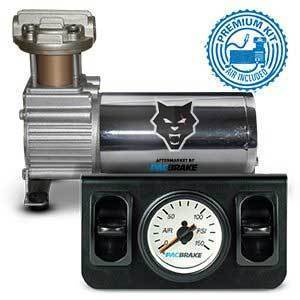

- This dash activation kit featuring the back-lit dual needle gauge is designed to integrate in-cab air spring control with a pre-existing air system.
- Mechanical Gauge & HP325 Compressor

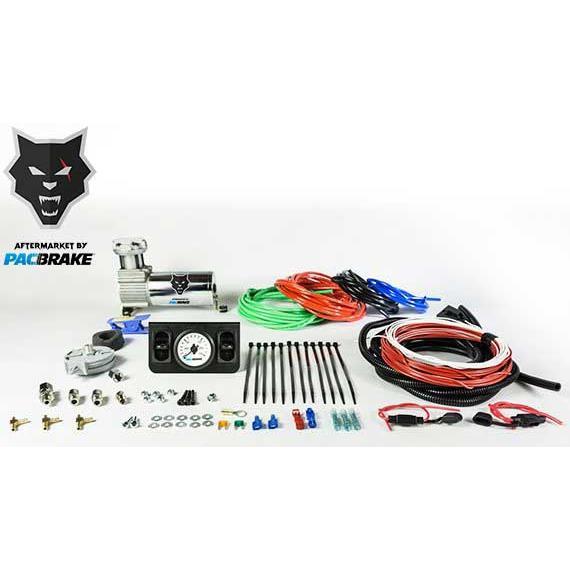

Includes:
- HP325 compressor
- air spring dash switches for independent activation
- pre-built harnesses
- fittings, fasteners and everything required for a complete install
Air Compressor Specifications:
- 12 VDC; 100 percent duty cycle (1 Hour at 100 PSI)
- 1.2 CFM
- 150 PSI max operating pressure
- draws 18 amps
- Air tank options-1/2 gallon air tank (HP10053) or 2 1/2 gallon air tank (HP10050)
Notes
- This is a complete kit with onboard air. If adding an air tank, a pressure switch is required; HP10110 is for 105-135 PSI and HP10111 is for 85-105 PSI
-
Should you decide to add an air tank for stored onboard air, you can do so by adding either Packbrakes ½ gallon air tank kit or 2 ½ gallon air tank kit.
