Panamera Shroud RGB Insert (S263)
Purchase to earn 63 Dirty Dollars Learn More
Description
Description
Fits
| SYSTEM INPUT | +/- 12V |
| CONNECTIONS | JST 4 Pin |
| HEADLIGHTS | Any surfaces within length range (do not cut) |
| MORIMOTO CONTROLLER | XBT Bluetooth (Recommended) |
| PROFILE CONTROLLER | PrismPilot RF |
| OTHER CONTROLLERS | All 4-Wire RGB+ |
| OTHER USES | Not to be used externally |
The automotive aftermarket's best name in LED Lighting and when it comes to upgraded LED DRL Boards, their new tech and it's features make it a no brainer! Fact is that while the rest of the industry is busy sticking their name on a generic or standing still with the same-old same-old; Profile is working hand-in-hand with the industry's experts to produce products with the performance and features that we all expect.

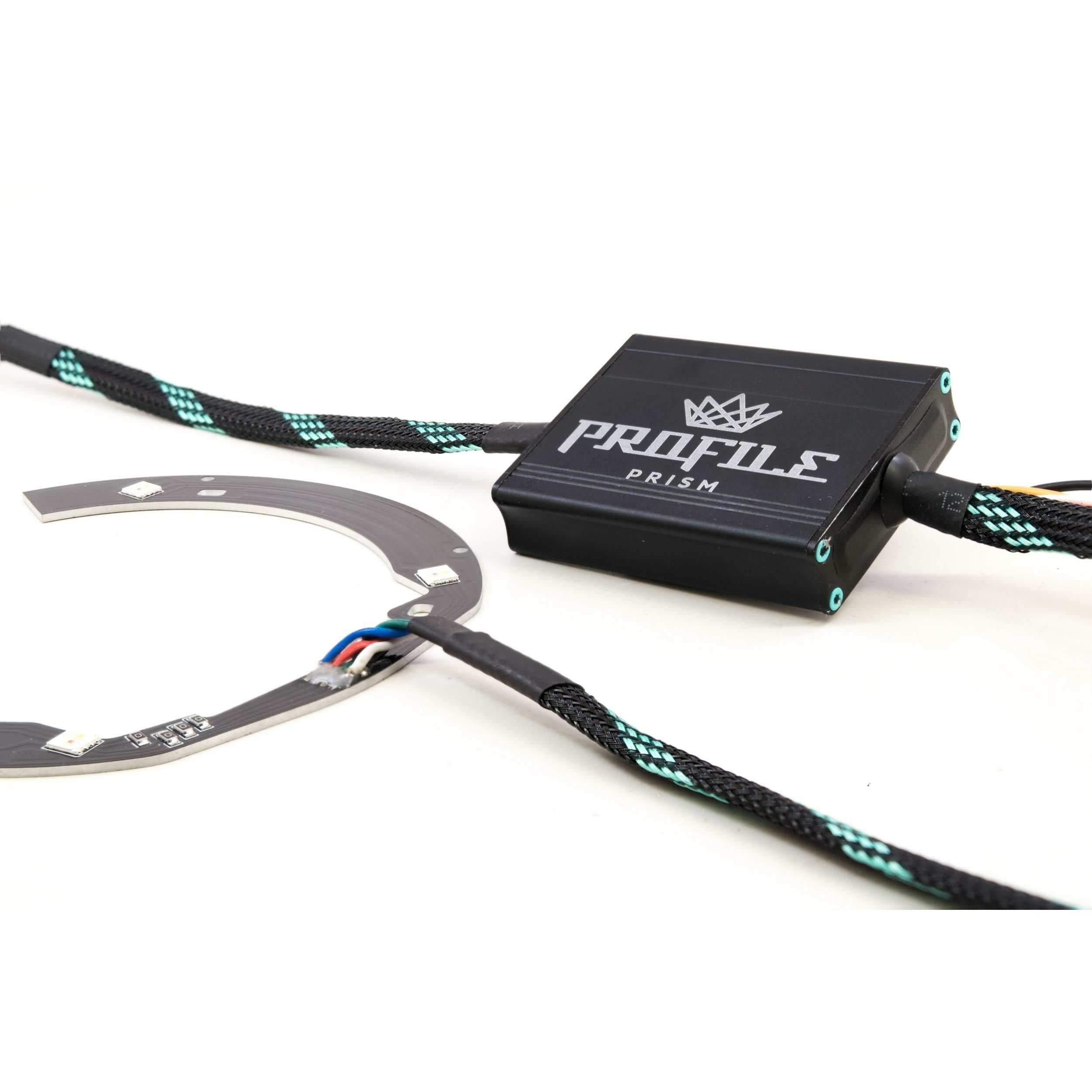

Profile's specially designed drivers have a separate input wire for your turn signal circuit. When triggered, the LED driver will automatically interrupt the RGB/white mode and flash the integrated amber LED chips for a modern switchback turn signal in your DRL position. When the turn signal stops, the RGB or white mode will automatically return to its previous setting.
Part Number: S263
Features
Features
| MODES | Strobe, Flash, Fade |
| PRIMARY FUNCTION | RGB |
| LIGHT SOURCE | Proprietary SMD LED |
| EXPECTED LIFESPAN | 50,000 hours |
| PCB THICKNESS | 3mm (with coating) |
| DRIVER HOUSING | Anodized AL |
| DRIVER PROTECTION | Full internal Potting |
| COLOR WHEN OFF | Neutral White |
What's Included
| LED INSERTS | Profile Pixel (RGB) |
| DRIVERS | 1x Prism |
| OPTIONAL CONTROLLER | 1x XBT Bluetooth or PrismPilot |
| WARRANTY | 3 Years |
Notes
Notes
- First-time users will need to purchase an optional RGBW Controller.
- XBT is required for the Pixel DRL boards, has a killer Iphone/Android Bluetooth app, and three channels, which can be controlled independently
