Universal HP325 Series ½ Gallon Onboard Air Kit (HP10163)


Part Number: HP10163
Sale price$471.05 CAD

This product ships for free to most Canadian locations! Learn more.
(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.

Fits: Universal

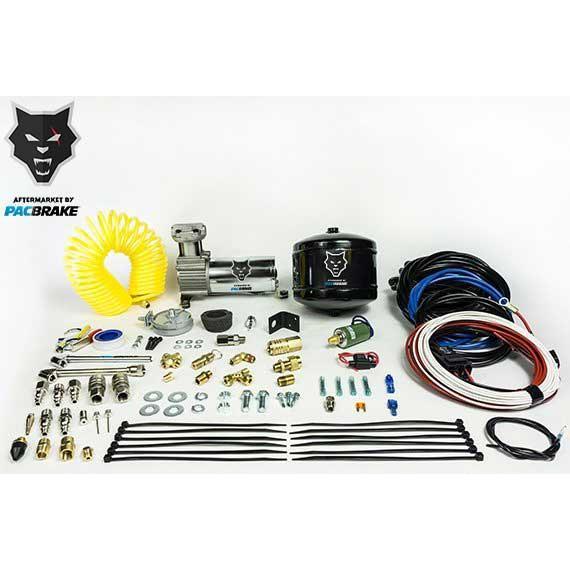

The Pacbrake HP10163 HP325 Series Onboard Air Kit is perfect for utilizing accessories such as Air Horns, Air Lockers, and filling up to 33" tires. This kit consists of an air compressor, ½ gallon air tank, fittings, pressure switch, relay(s), electrical connectors and all the required accessories.

Part Number: HP10163

    • Copper wire wound permanent magnet motor
    • Oil-less design; sealed bearings
    • PTFE piston ring
    • Cast aluminum cylinder head
    • Hard anodized aluminum cylinder and aluminum sleeve


    • HP325 Series 12V DC compressor (Part Number HP10143)
    • ½ Gallon air tank (Part Number C11940)
    • Fittings, pressure switch, relay(s)
    • Electrical connectors and all applicable accessories

    Compressor Specifications:

    • Part Number HP10143 -12 VDC
    • 100 percent (1 Hour at 100 PSI) duty cycle
    • 1/4 HP
    • Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
    • Weight is 5.5 lbs. Air Tank Specifications (C11940)-0.5 gallon capacity
    • 2-1/4 inch NPT ports
    • Rust inhibitor applied to the inside of the tank
    • Max working pressure 150 PSI
    • Size is 6.4 inch x 5.5 inch x 6.5 inch (LxWxH)
    • Weight is 3.4 lbs
    • Welded on mounting brackets
