1998.5-2002 Cummins R5 6 x 0.018 Injector SAC (0432193635-R5)

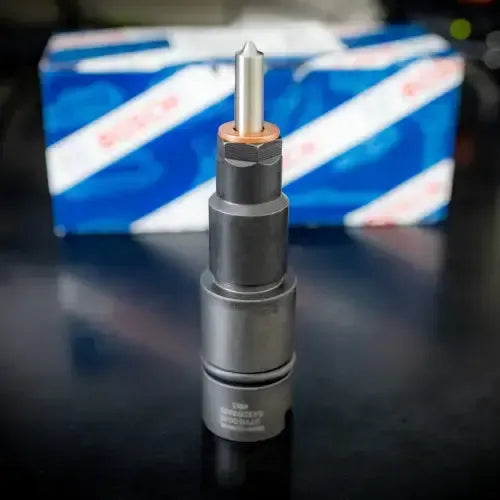

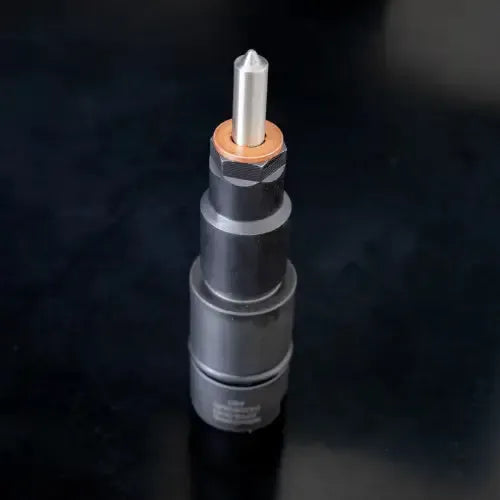

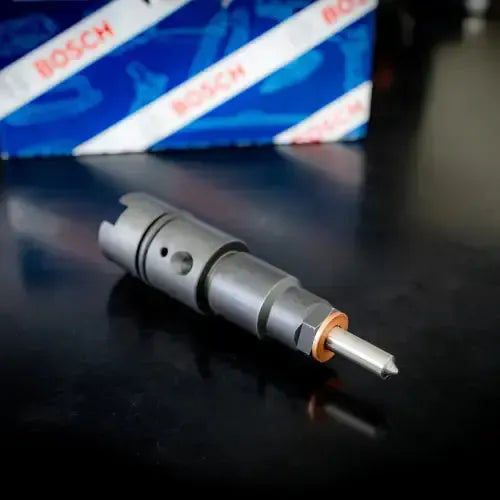

Industrial Injection R5 6 x .018 SAC injector for 1998.5-2002 Dodge Ram 2500/3500 5.9L 24V Cummins. Brand-new (not reman) OE-quality competition injector with a six-hole .018 SAC-style nozzle and 260 BAR pop-off pressure — built to support up to 1000 HP on race-only 24V trucks running upgraded fuel supply.

R-series injectors are stepped by fuel volume and nozzle hole size: R1/R2 for stock-style platforms with stock pump, R3/R4 for mid-range race builds, and R5/R6 for the largest single-rail builds. The R5 lands at the high end of the SAC injector range — pair with adequate lift pump, CP3 (or P-Pump conversion), and tuning to match.

• Brand-New Bosch OE-Quality Construction (Not Reman)
• Six-Hole .018 SAC Spray Pattern
• 260 BAR Pop-Off Pressure
• Supports Up to 1000 HP
• 1-Year Parts-Only Warranty
• No Core Charge
• Part Number: 0432193635-R5

• Race-only. All Industrial Injection Performance Products are not legal for "On-Road," "Off-Road," or "Dual-Use" applications — dedicated competition use only. Compliance with state and federal emission standards is the consumer's responsibility.
• For lighter-duty 24V builds see the 0432193635-R1 (85HP VCO) or 0432193635-R2 (120HP VCO). For larger flow see the R6 6 x .022 (1200HP).
