Fits: 2001-2007 2500, 2500HD, 3500 Silverado Sierra 6.6L V8 Duramax Diesel

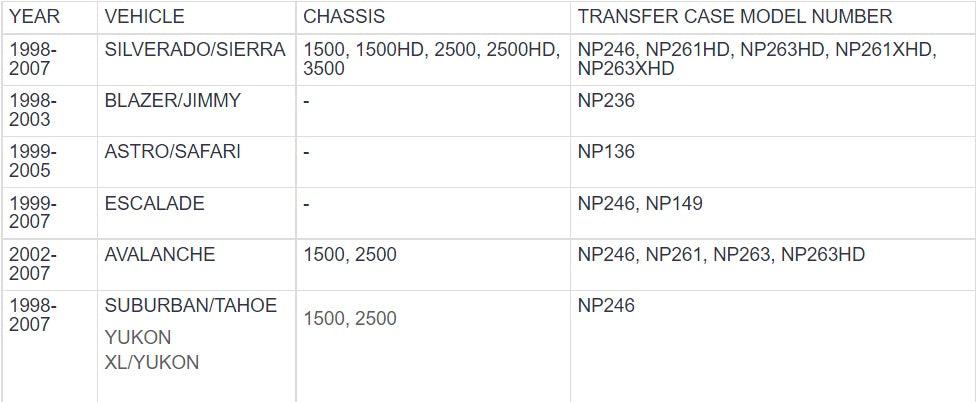

Model Number: NP246, NP261HD, NP263HD, NP261XHD, NP263XHD

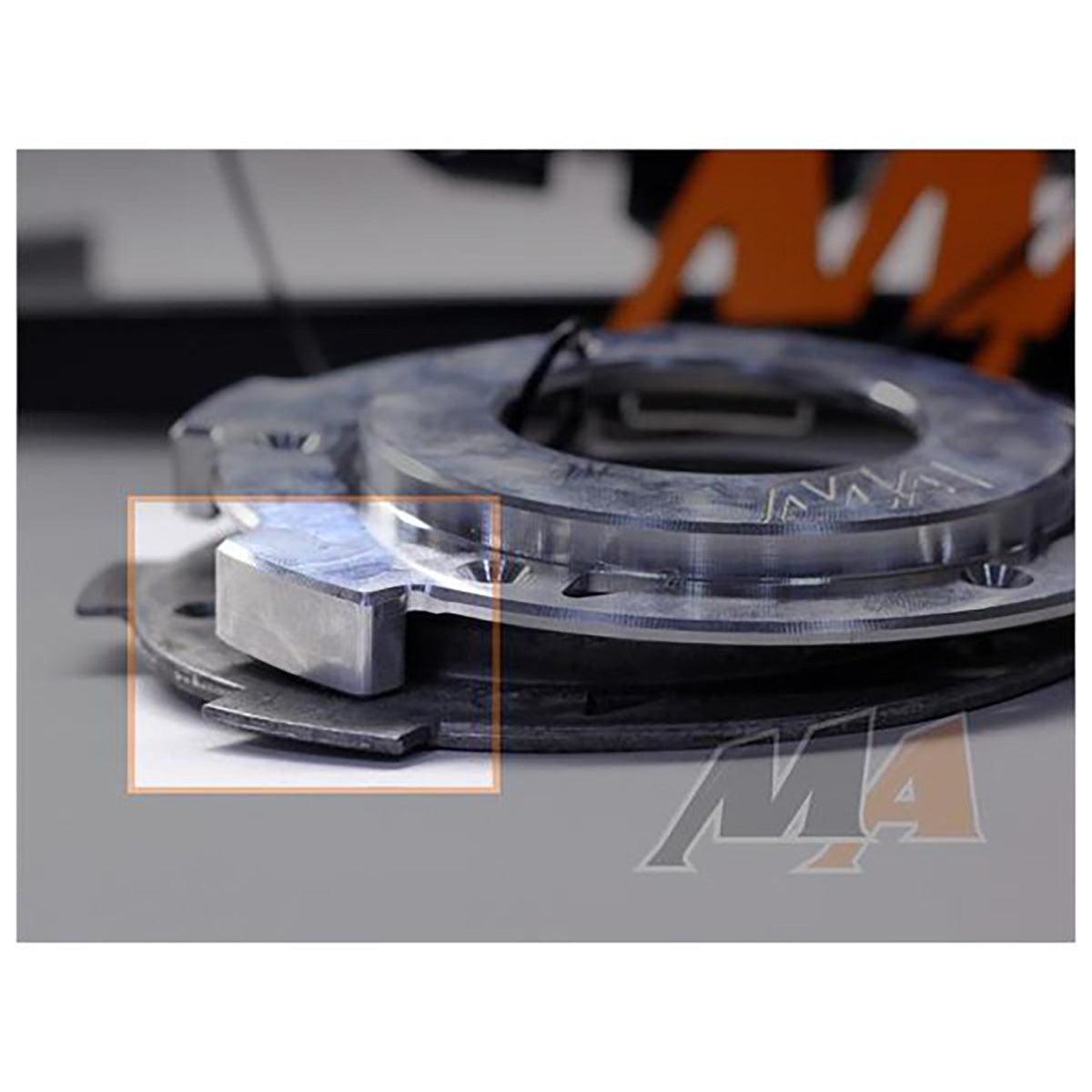

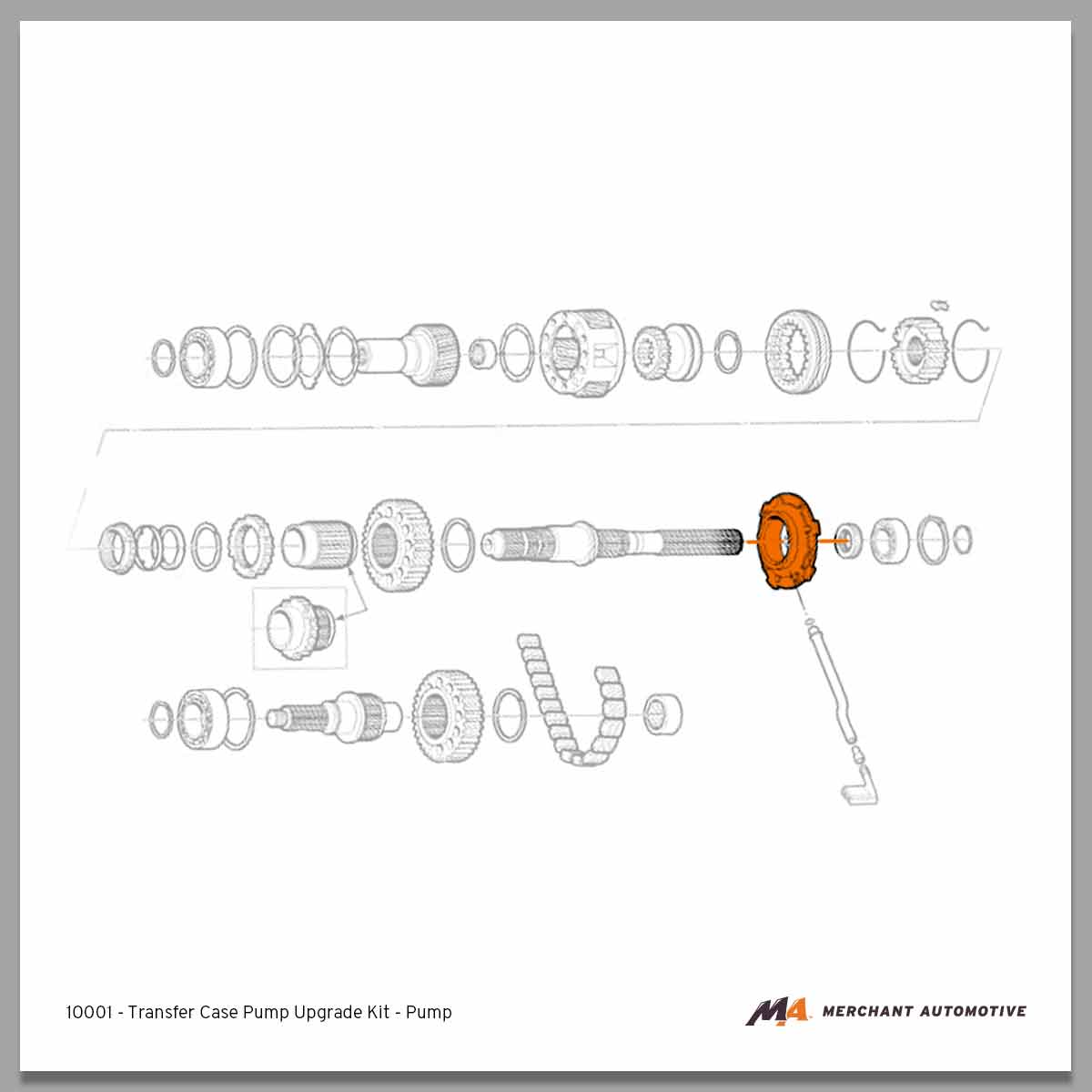

The GM transfer cases use a gear pump inside the case that is driven off the main shaft. The pump forces oil to the planetary as well as the drive sprocket sleeve. Because the pump is driven by the shaft, the housing of the pump must 'float' in the rear housing. There are 5 tabs around the housing that fit into spots in the rear housing to position the pump. Over time, the pump can start to wear on the rear housing. GM installed a spring steel clip in the housing intended to prevent wear but the clip can break and render useless

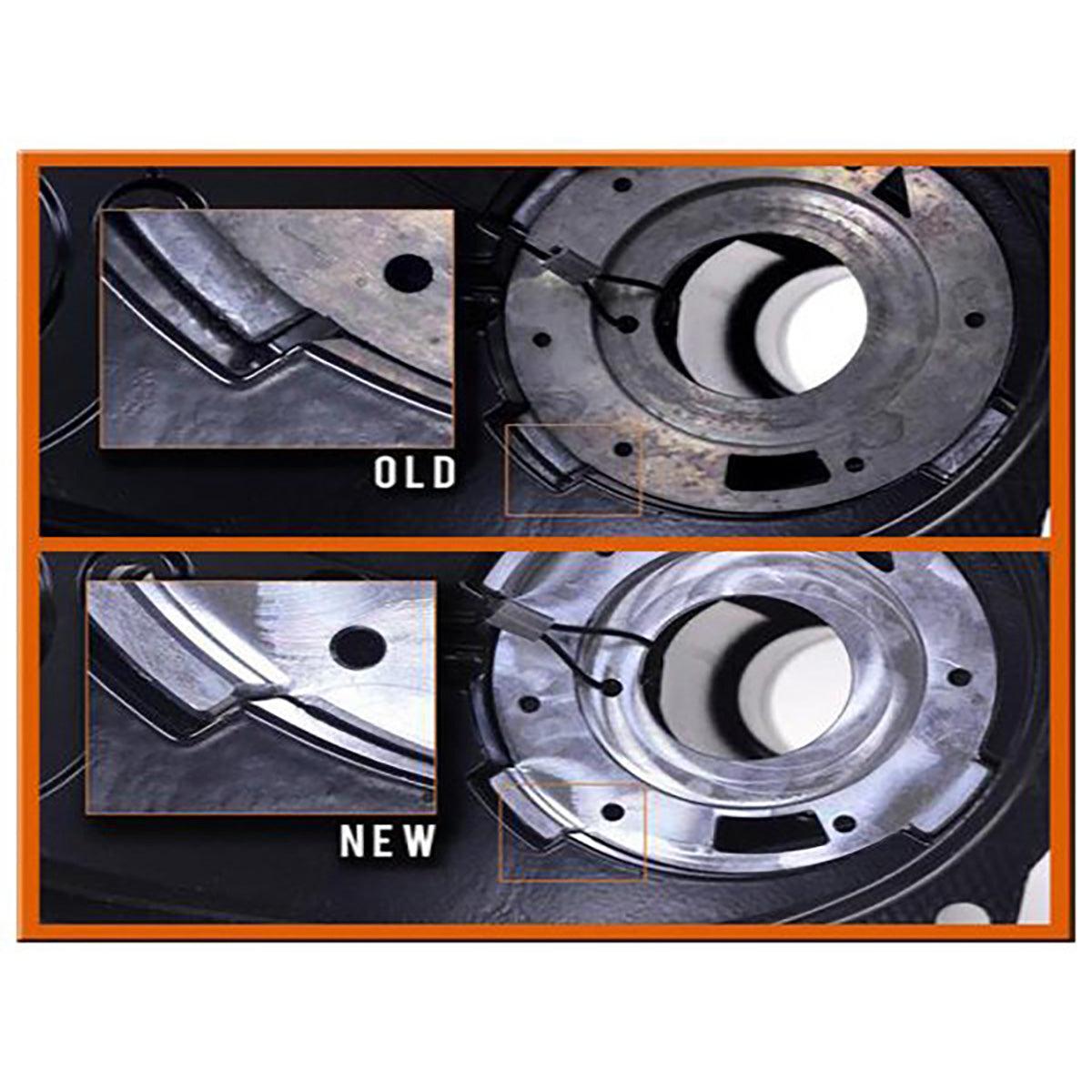

Being that the pump housing is aluminum and is a harder material than the magnesium rear housing, it can wear a hole in the rear housing and cause a very small leak. This leak is high enough in the case that it typically will not leak when the vehicle is not moving and therefore not leaving any drops on the ground. Typically the condition is not found until there is transfer case damage from running the case out of fluid.

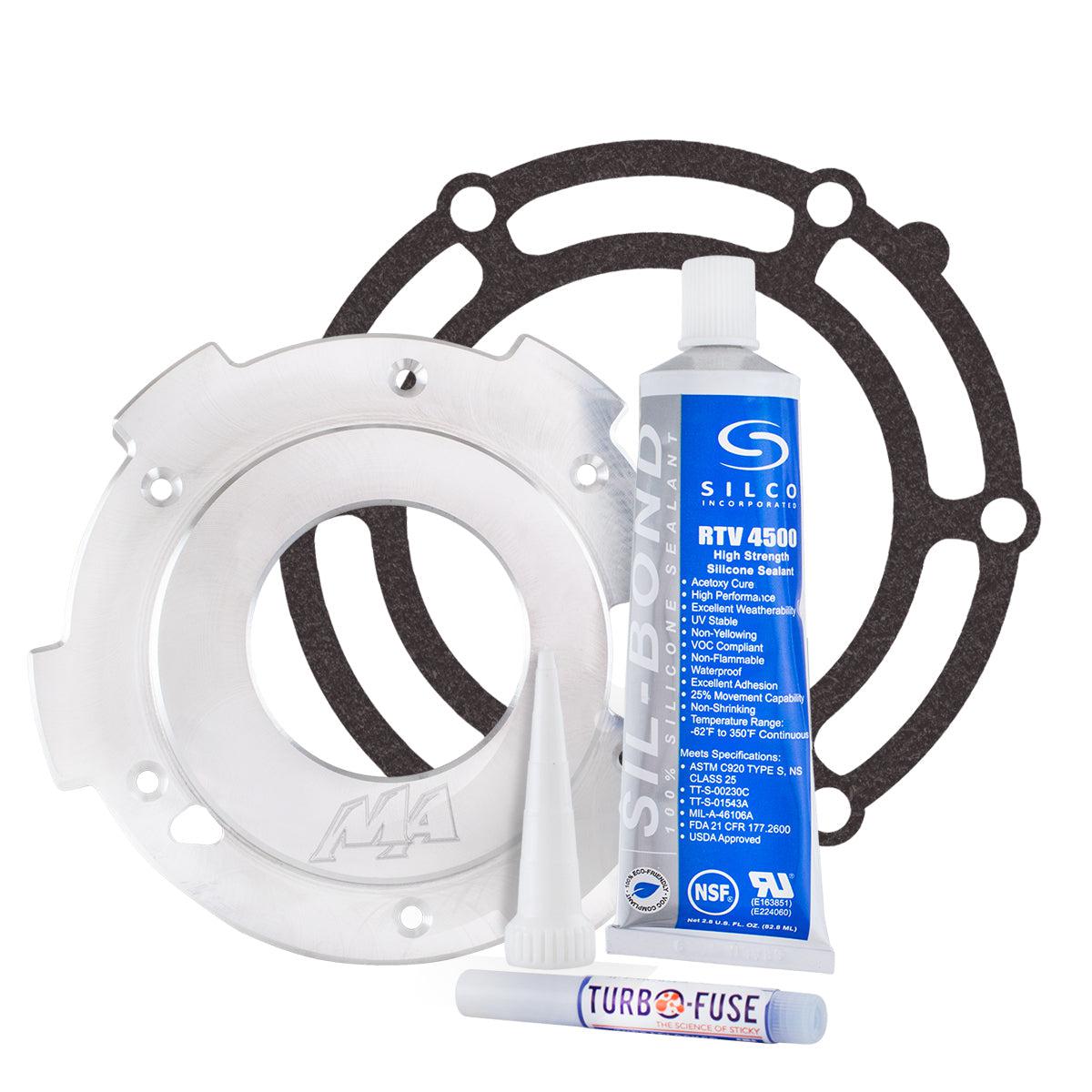

Includes:

• Merchant Automotive billet transfer case pump housing

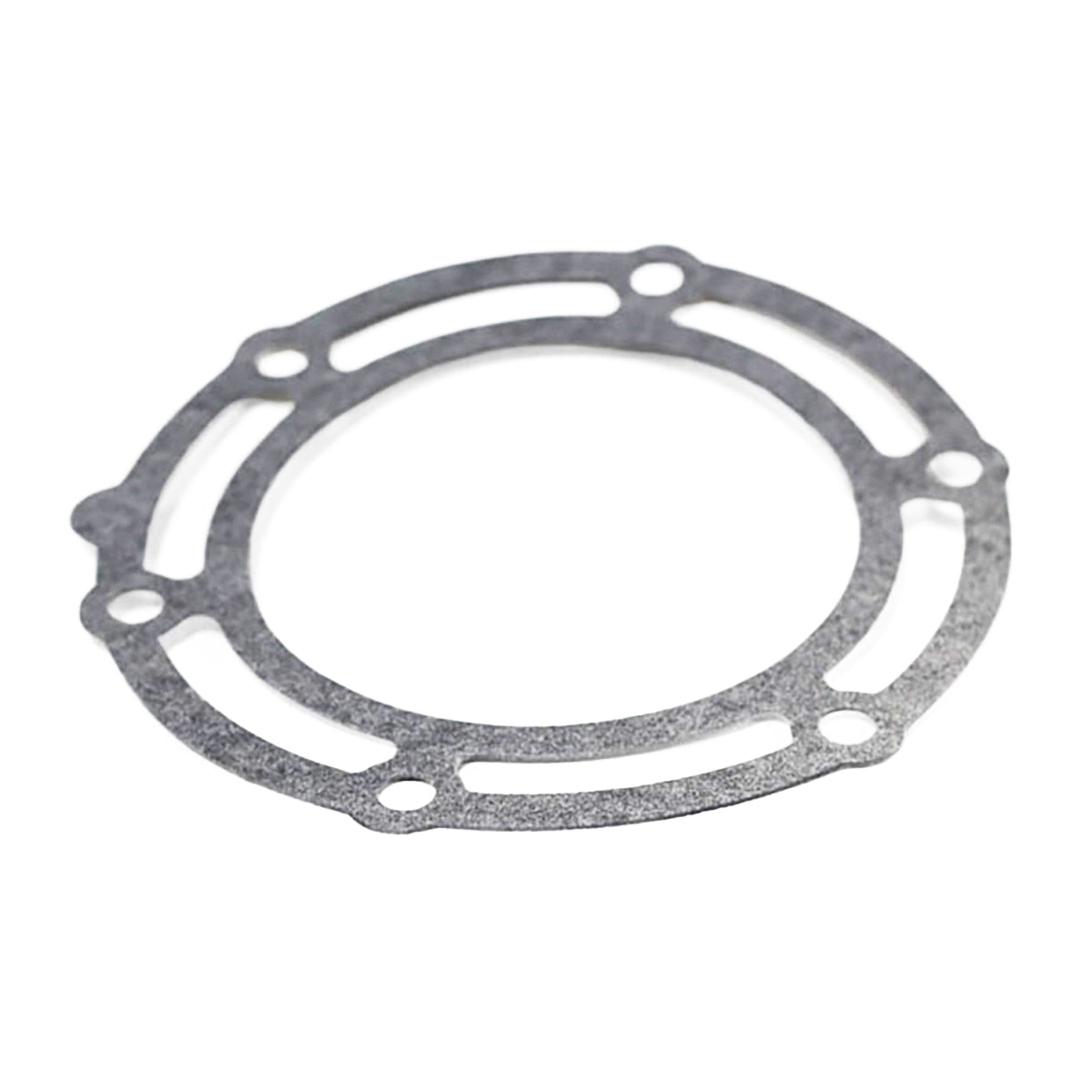

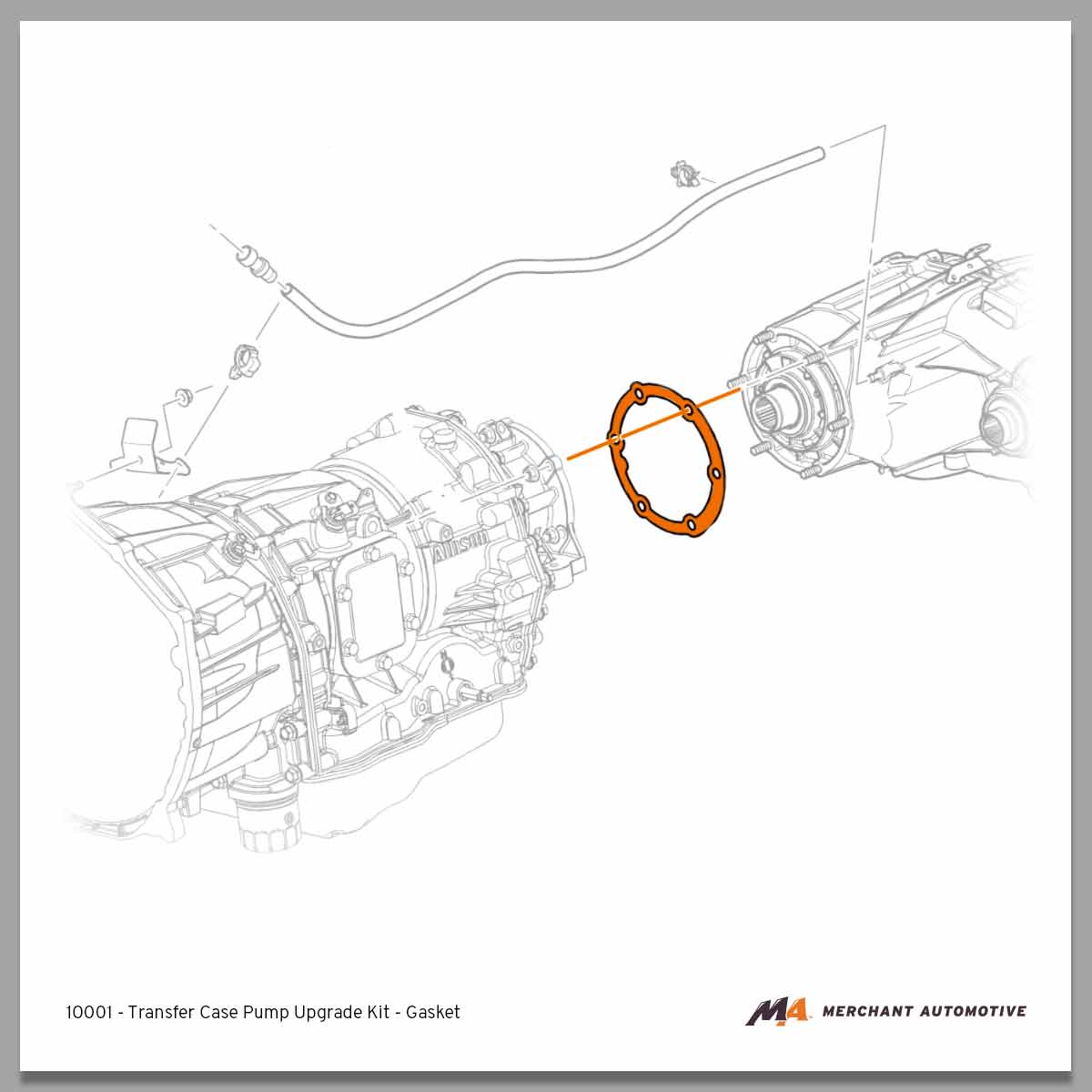

• Transfer case adapter gasket at the transmission

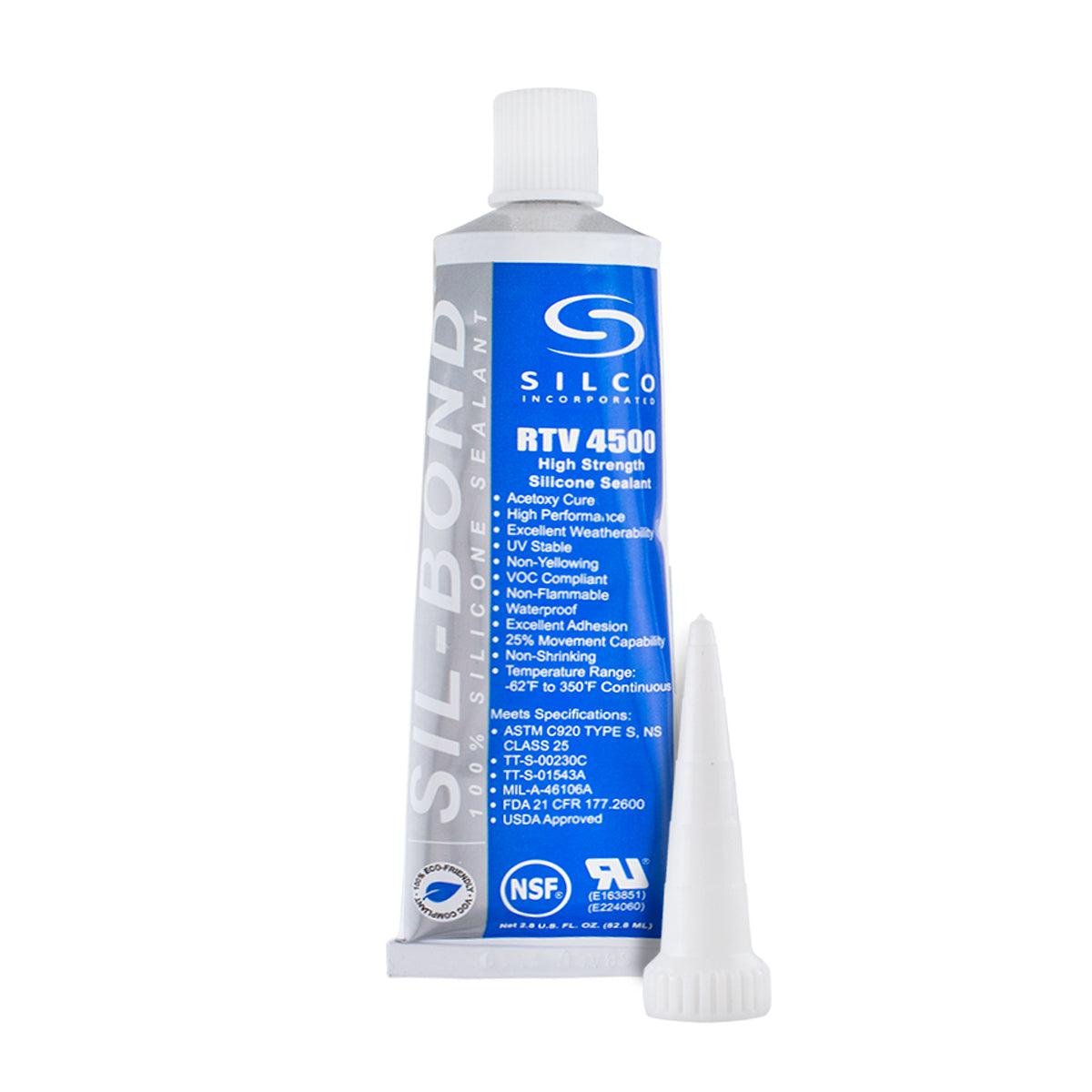

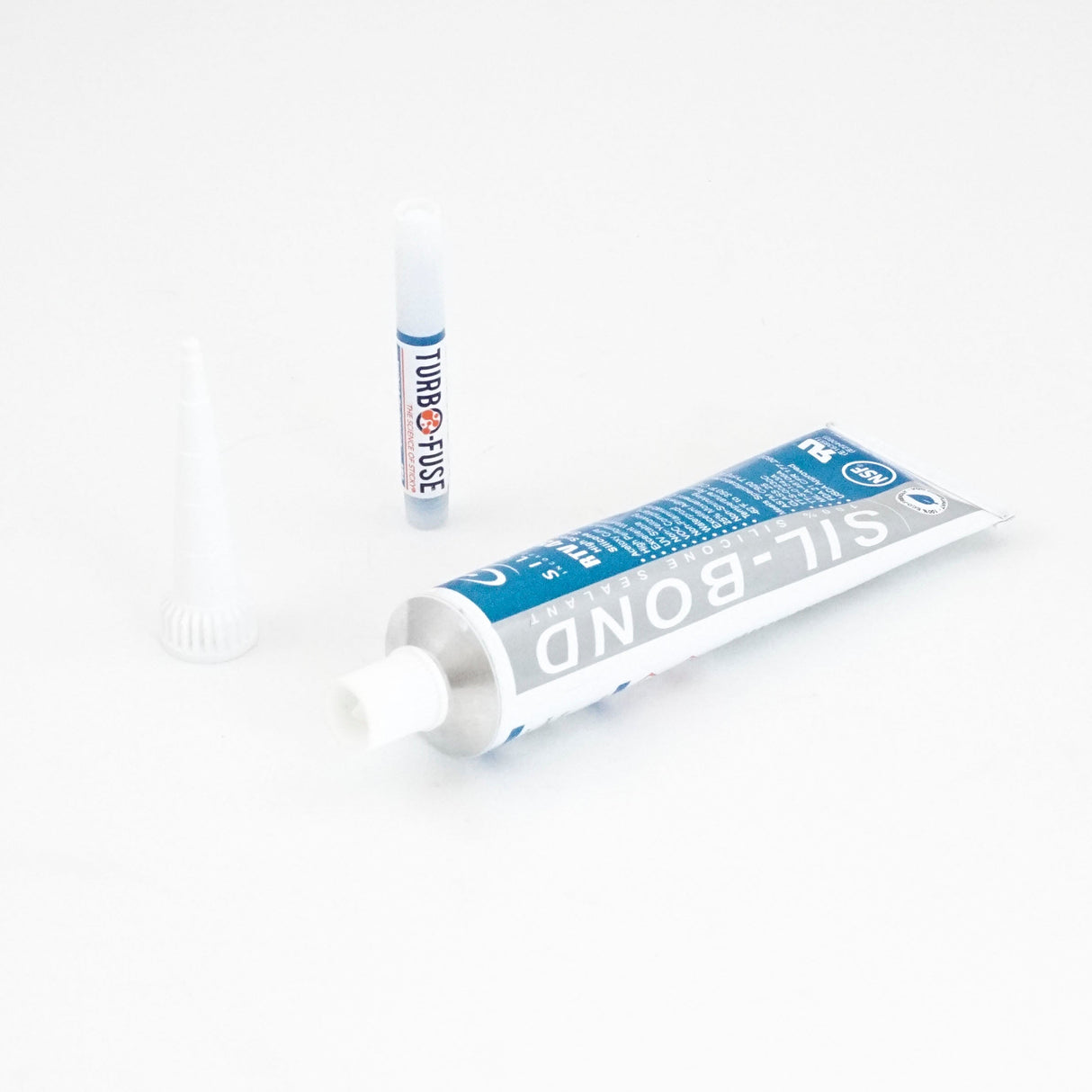

• RTV Silicone
• Blue Threadlock

Part Number: 10001
