2001-2016 Max-Flow Duramax Oil Cooler Upgrade Kit (MAX-OCU)

DMAX Store Part Number: MAX-OCU-0107+PF63

$851.45 CAD

Year

2001-2007 LB7/LLY/LBZ 2011-2016 LML

Manifold Options

I Have Aftermarket Manifolds (Removal & Modification Is Not Necessary) I Have Stock Manifolds & I understand that it Needs to be Modified (Includes Manifold Gasket & Up-pipe Gasket) Add Pre-Modified BD Exhaust Manifold (Includes Manifold Gasket & Up-pipe Gasket)

Choose your Oil Filter

AC Delco Oil Filter (Part# PF63) K&N Oil Filter (Part# HP-2010) Dmax Performance Oil Filter (Part# DMAX-EO-20) Mobil 1 Oil FIlter (M1-210A)

Purchase to earn 851 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Year	Make	Model	Engine
2001-2007	GM/Chevrolet	2500HD/3500HD	6.6L Duramax
2011-2016	GM/Chevrolet	Silverado/Sierra 2500HD/3500HD	6.6L Duramax LB7/LLY/LBZ/LML

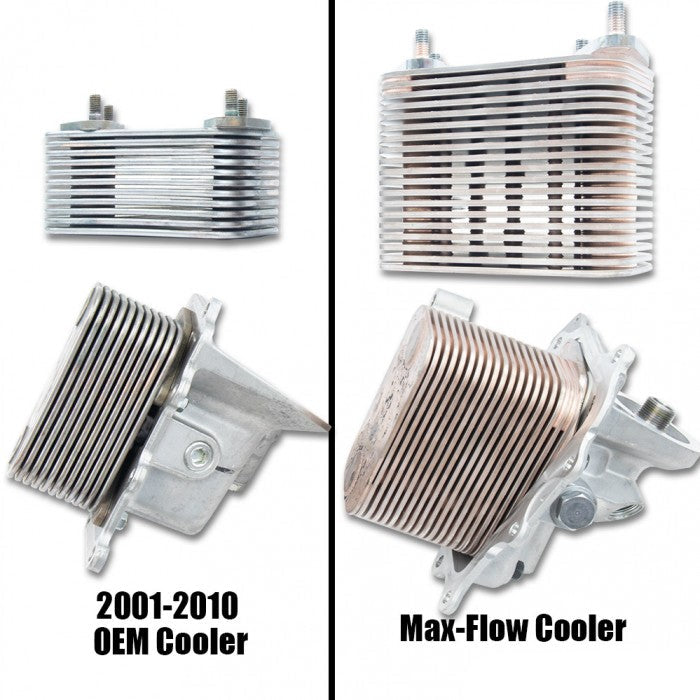

This Max-Flow kit replaces the factory oil cooler on the 2001-2016 LB7/LLY/LBZ/LML Duramax with an oversized unit and improved internal fluid dynamics that make fuller use of the cooling plates for better heat rejection. If your oil temps are climbing or you want more cooling headroom under load, this is a bolt-on upgrade over the stock cooler.

Part Number: MAX-OCU

Features

Improved internal fluid dynamics for better heat reduction
Increased cooling capacity
We have seen a 10-25 degree cooler oil temps during daily driving and towing use
Bolt on replacement
35%-89% more surface area on the cooling stack

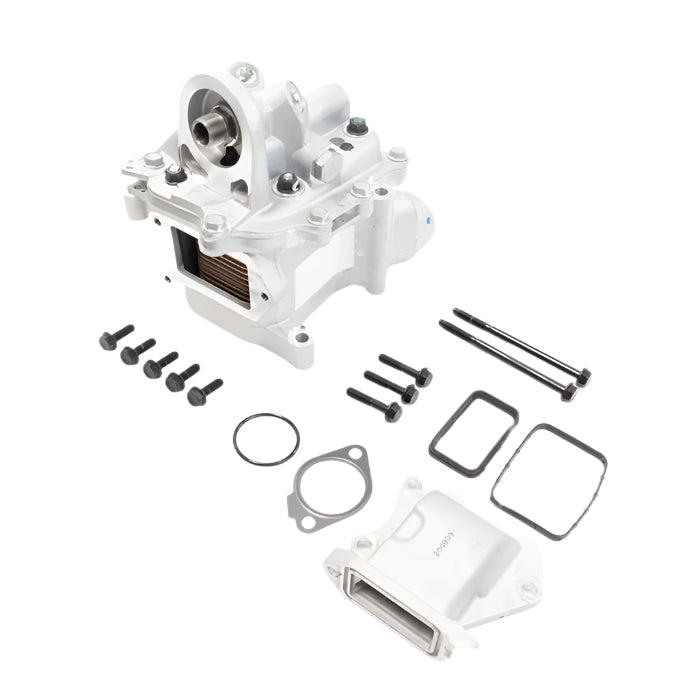

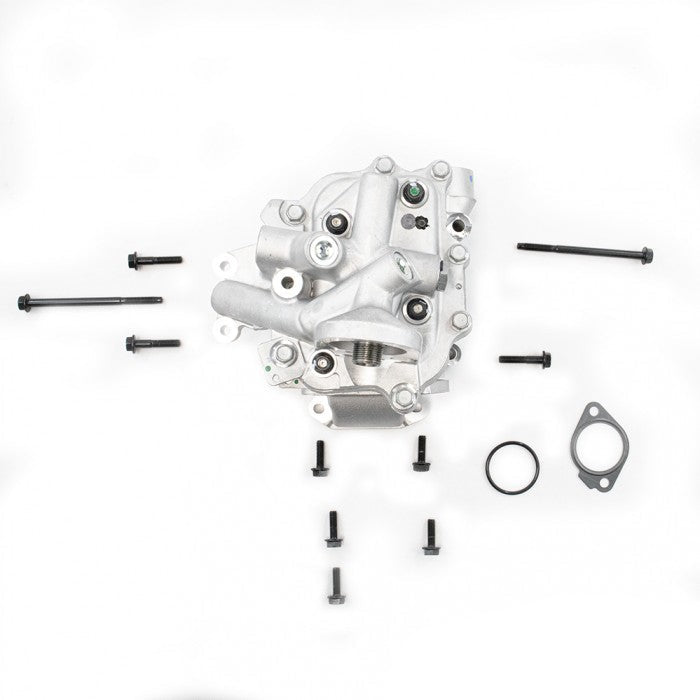

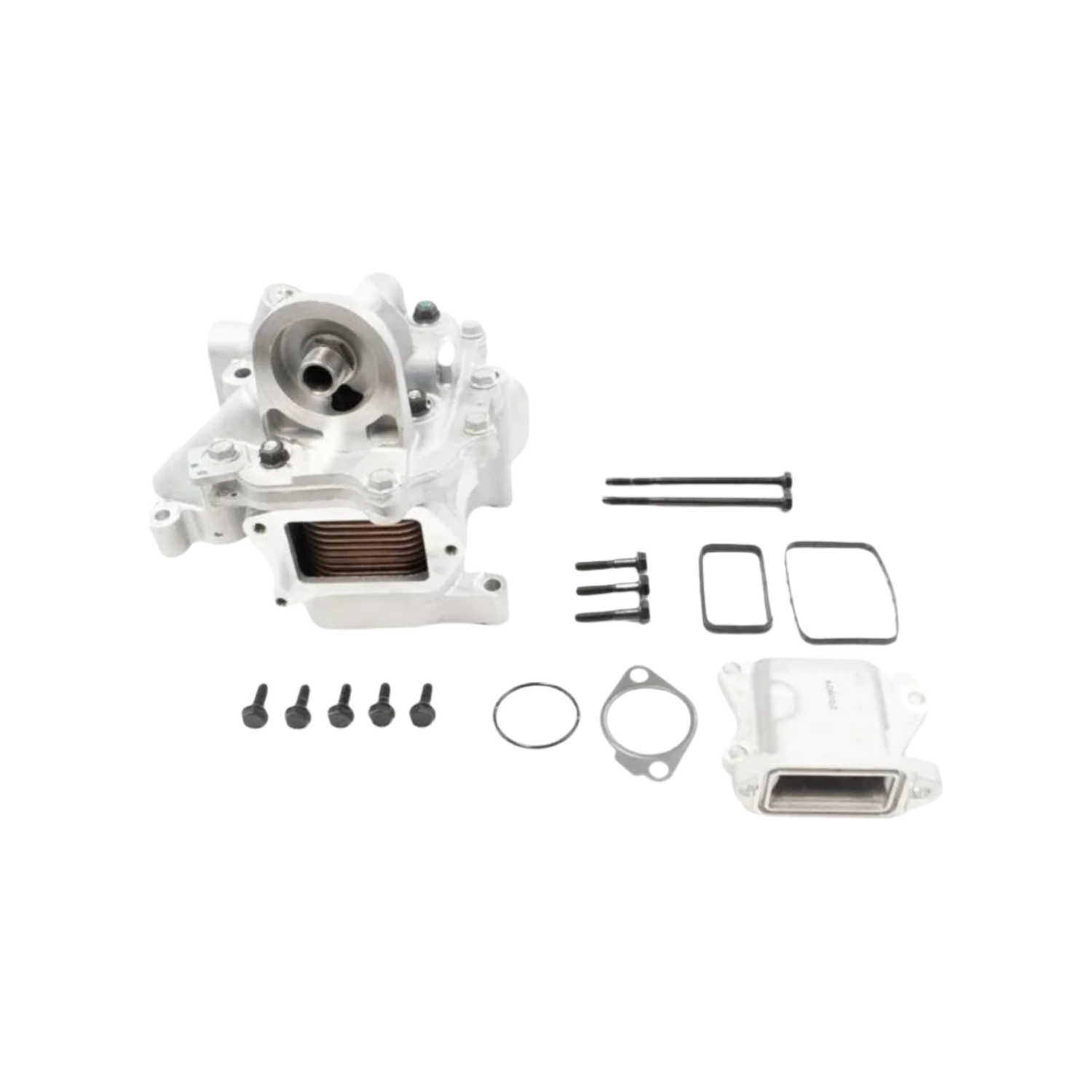

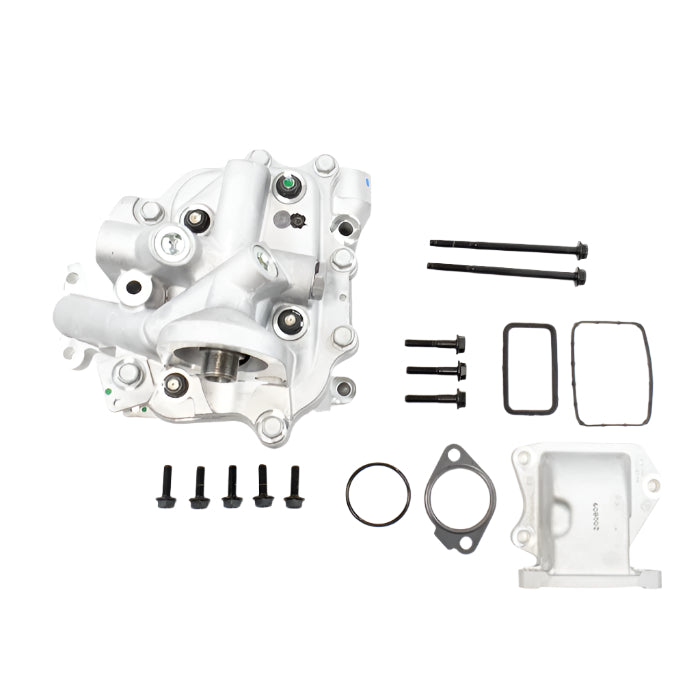

What's Included

Engine Oil Cooler
Engine Oil Cooler Gasket
Engine Oil Cooler Adapter
Water Pump Outlet Pipe Gasket
Engine Oil Cooler Adapter Gaskets
Oil Cooler Inlet Pipe O-ring
Hardware Kit
Oil Temperature Sensor Adapter
Engine Oil Filter, select from options

Notes

Utilizes 2020+ L5P oil filter
Will NOT work on 2007.5-2010 LMM 6.6L Duramax Diesels
2001-2016 models with stock manifolds will need to modify the driver side manifold and heat shield by clearancing the rear lower heat shield mount and the connection on the manifold.
