Description
Fits: 2014-2018 Chevrolet / GMC 1500 2WD/4WD trucks and SUVs
If you've ever seen a ball joint failure turn a perfectly driveable truck into a full stance monster then you will want the best to keep your truck running safely, and predictably with a lifetime warranty! These Kryptonite ball joints offer a great alternative to OEM as their strength is higher than that of your factory unit, and almost anything else offered for your GM truck! On top of the quality of the Kryptonite ball joints, this kit comes with Fox Shocks, which are one of the top names in aftermarket shocks, giving you the control, comfort and longevity that you can expect many trouble-free miles from! This kit also levels out your truck, cleaning up the look of the truck you work so hard on!

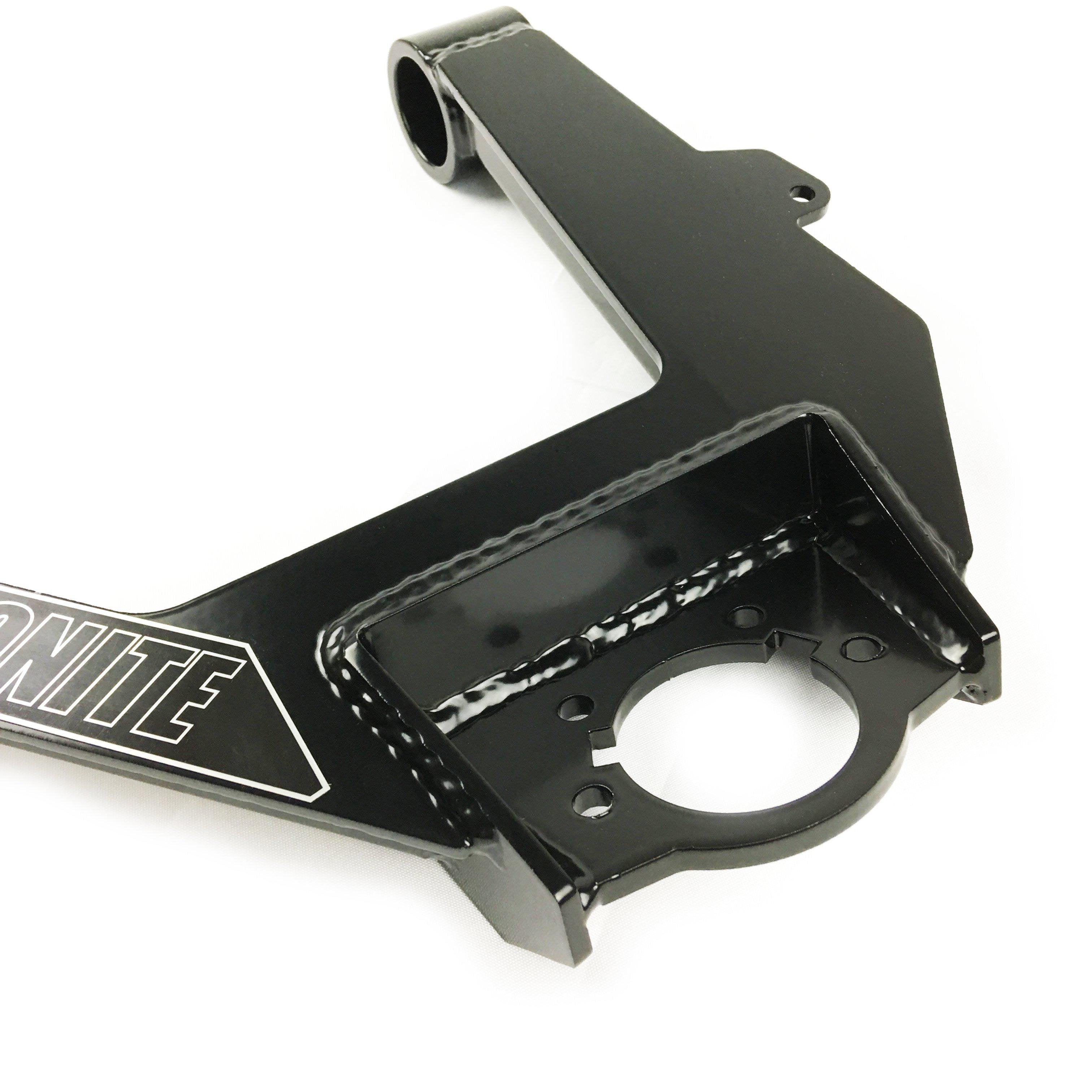

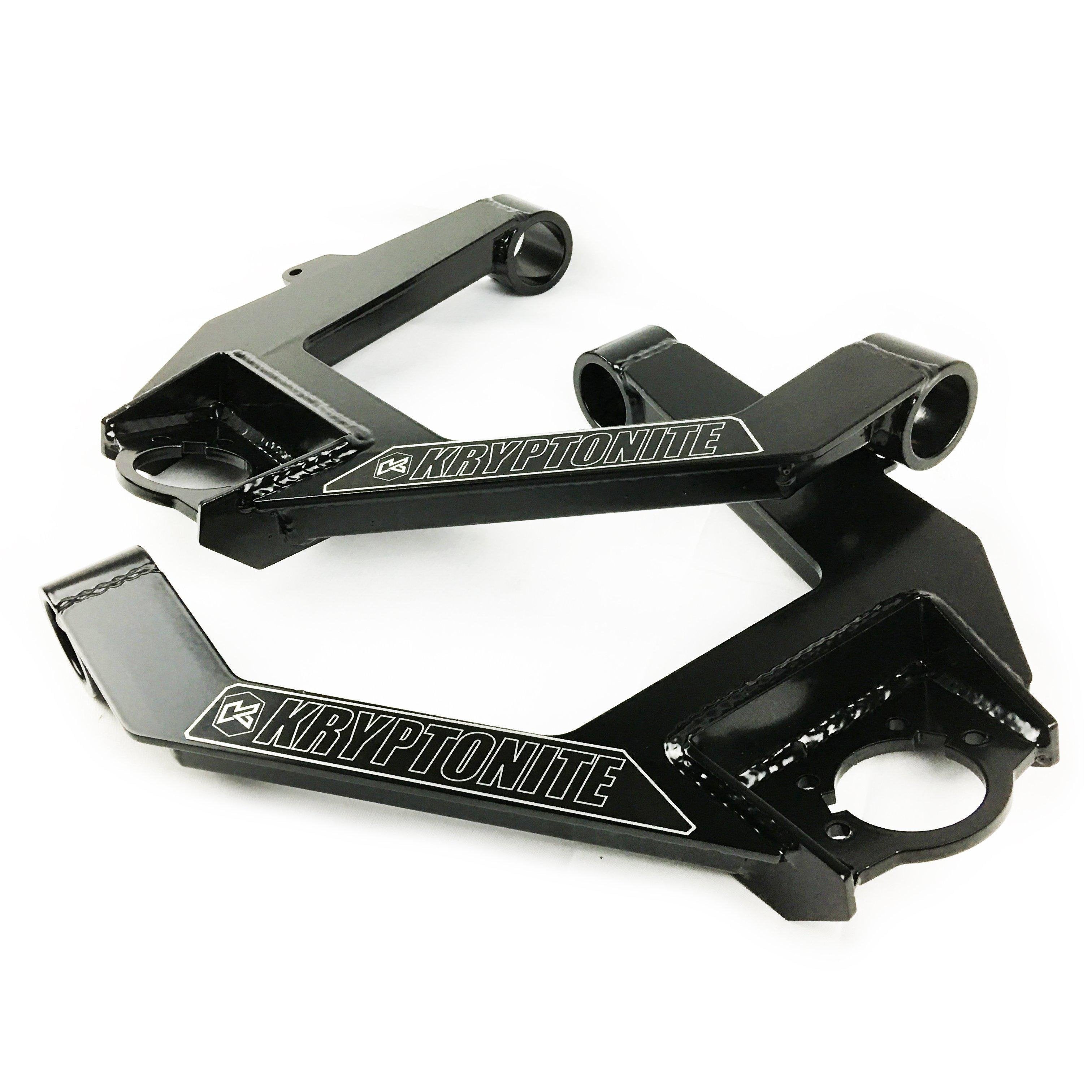

This Leveling kit includes everything you need to lift the front of your truck 2" and provides a great ride. Kit includes Fox Performance Series 2.0 Coilover Shocks pre-set at 2" above stock ride height. Plus Fox Performance Shocks for the rear of your truck. To allow for suspension travel we have included Kryptonite Upper Control arms. These arms are laser cut and welded into an extremely strong boxed design.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front to rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Part Number: KR13STAGE3FOX
Features
- Fox Leveling front coil overs and heavy-duty rear shocks
- Levels truck from front to rear
- High-quality hardware for ease of installation
- Performance Series Coil-Over IFP Shocks bolt-on with no modifications.
- Great Alternative to OEM Ball Joints
- 2" above stock ride height
- Leveling kit gives 2” of lift and gives clearance to add up to 33" tire.

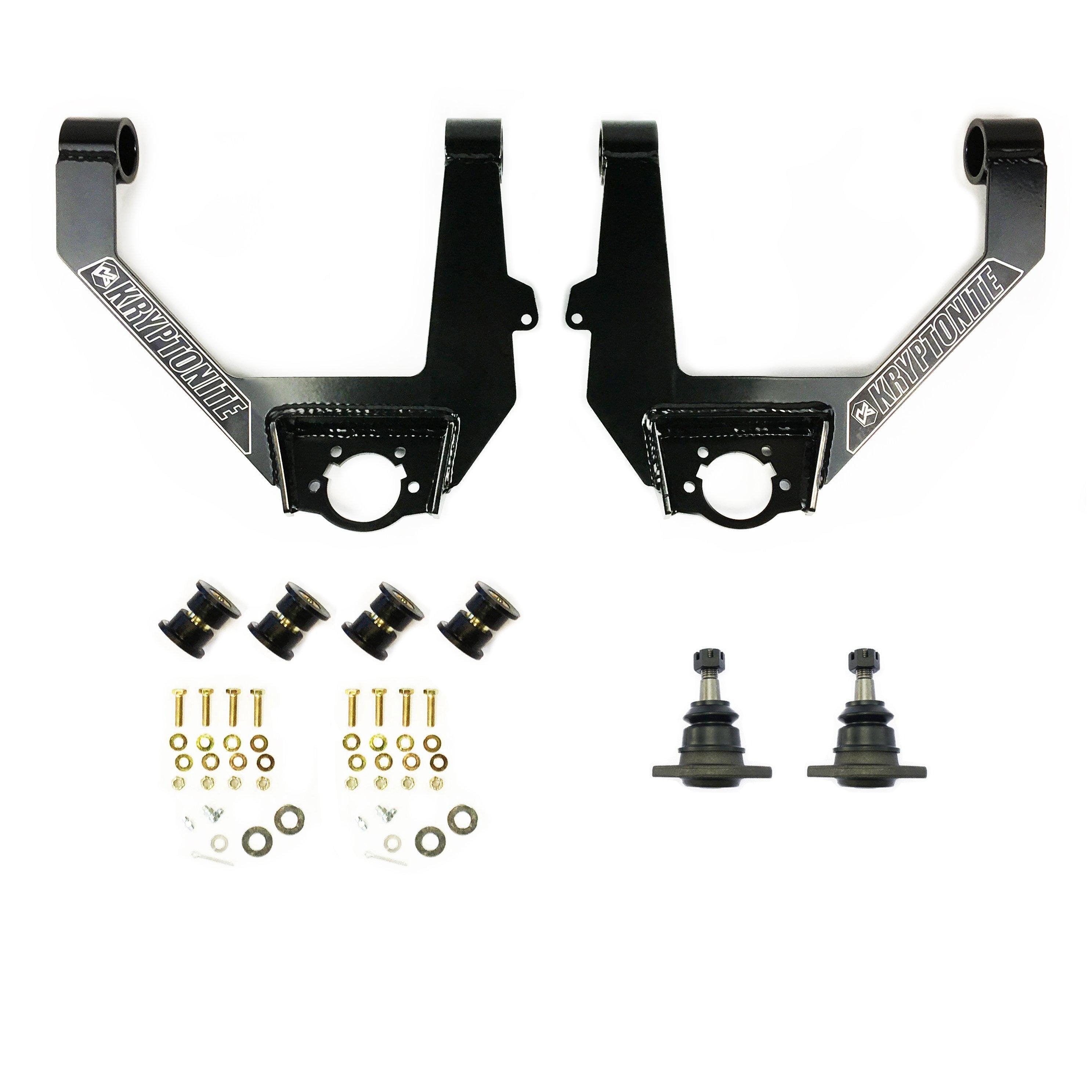

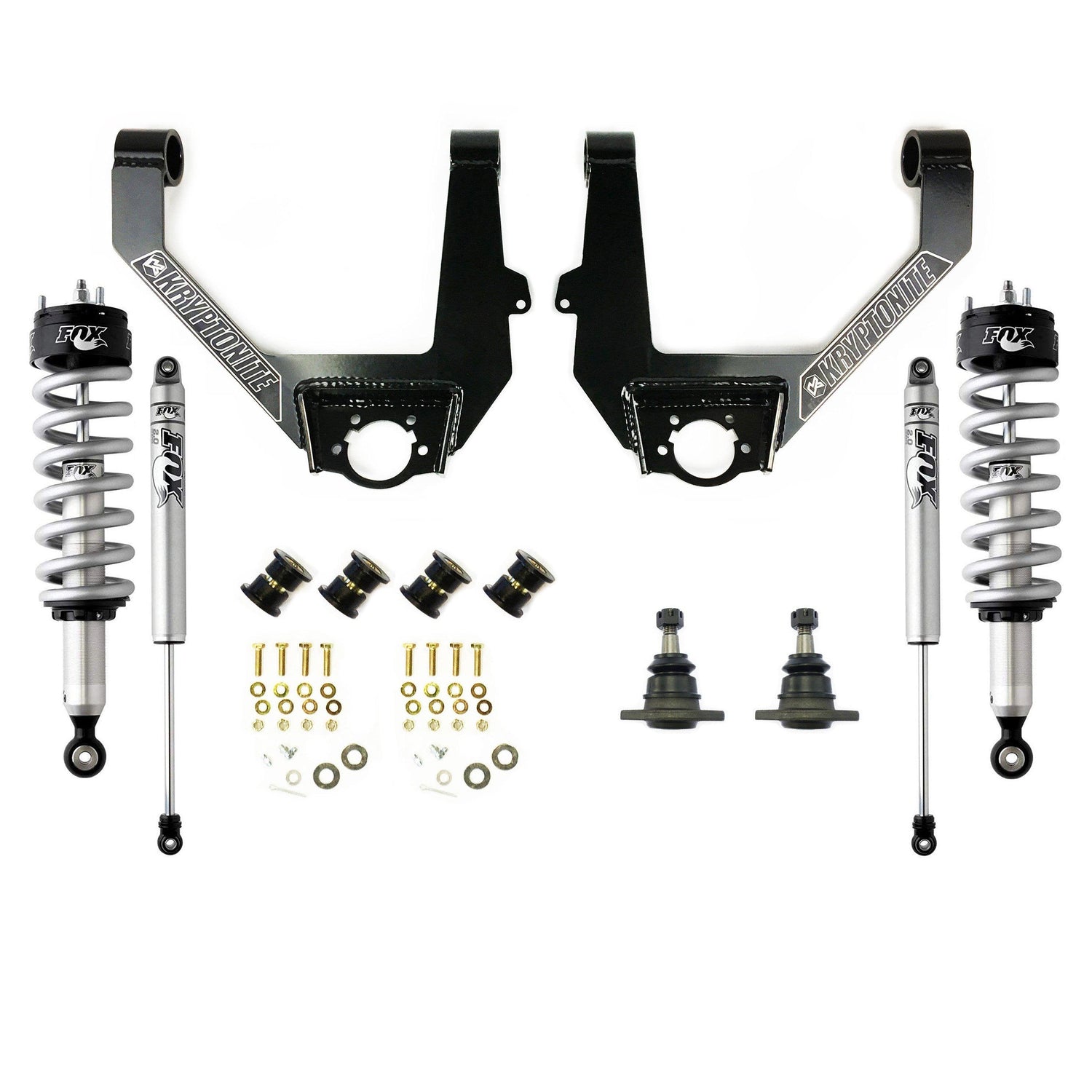

Includes:

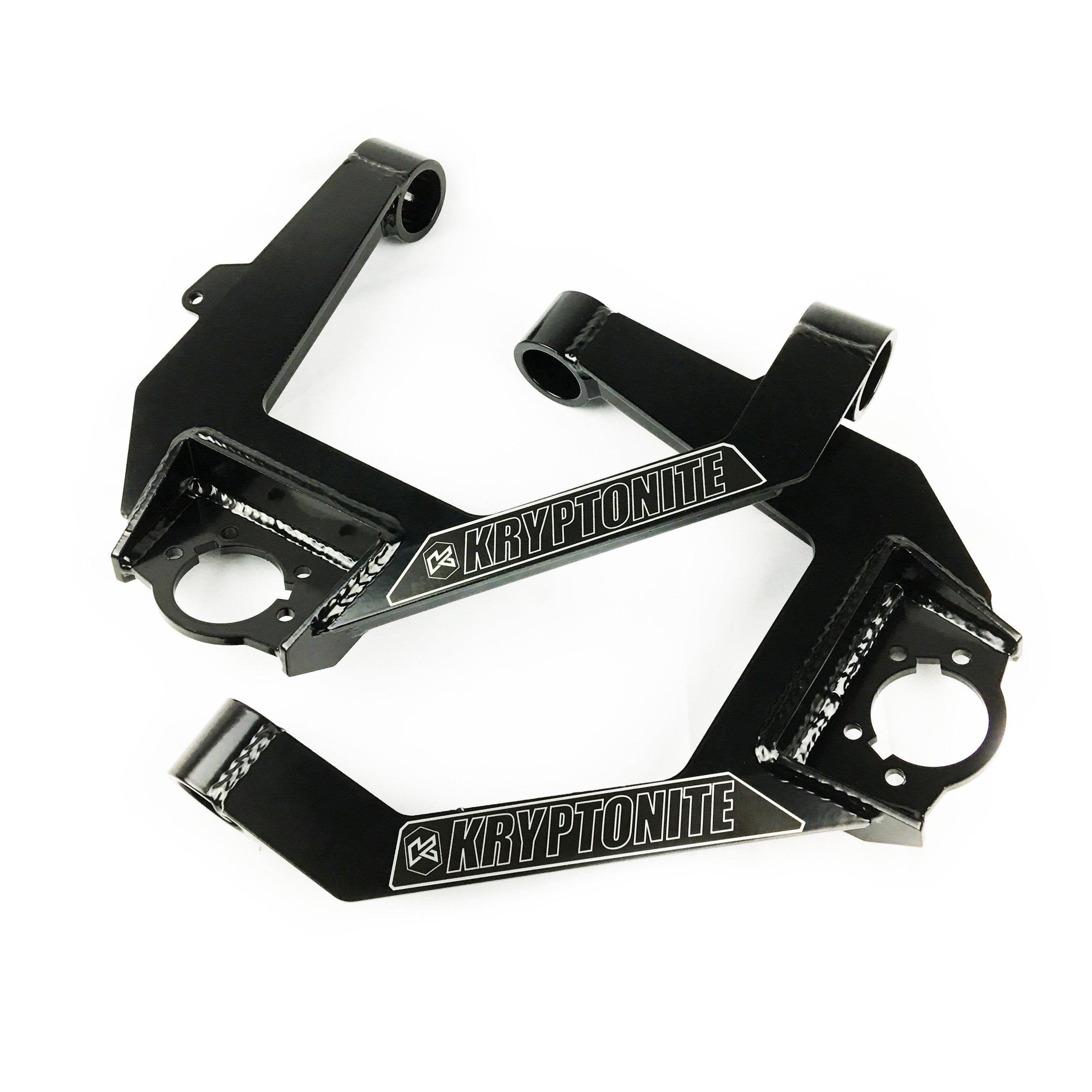

- 1 x Kryptonite Upper Control Arm Pair
- 4 x Control arm sleeves
- 8 x Control arm Bushings
- 2 x Kryptonite Bolt on Upper Ball Joints
- 1 x Hardware package
-

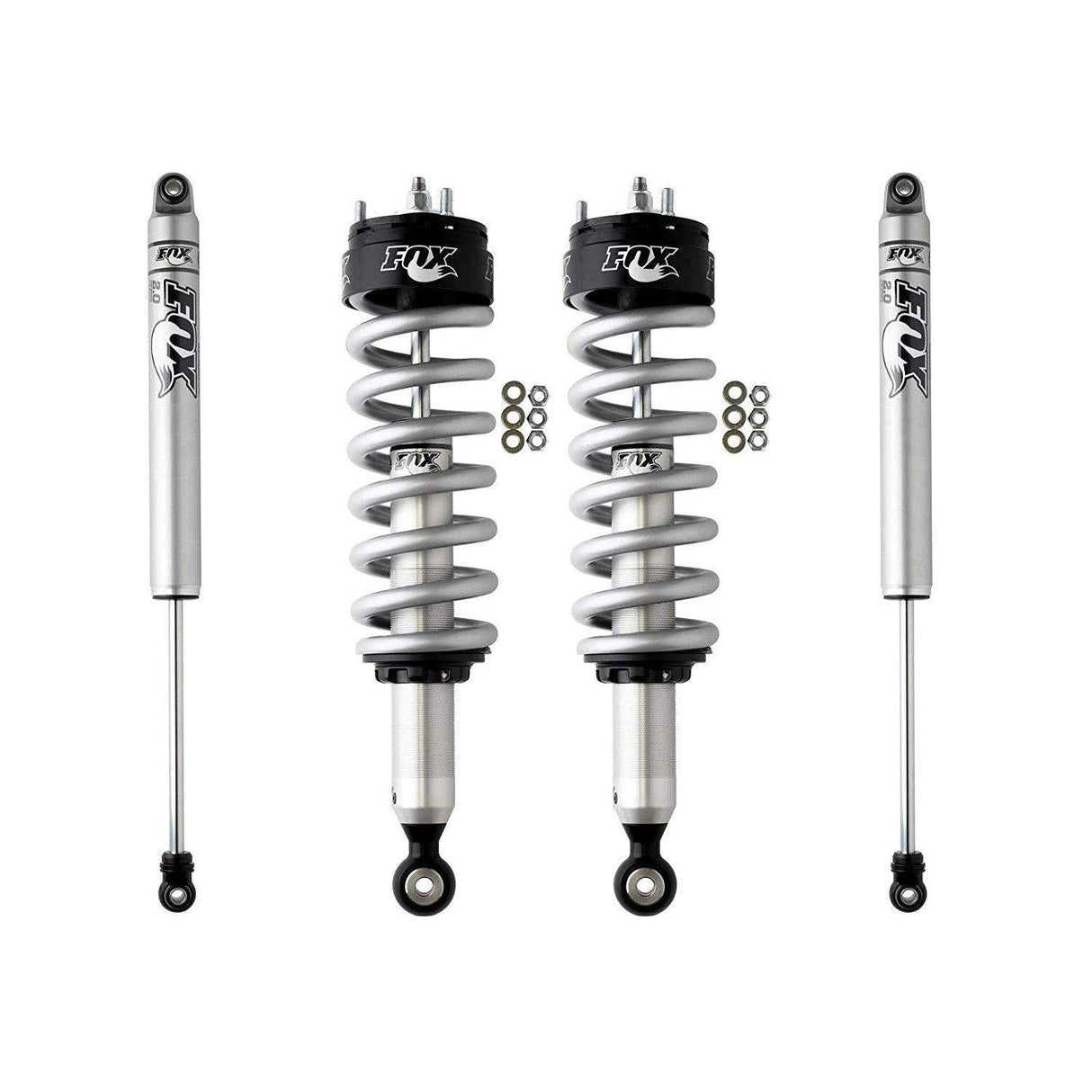

2 x Fox Leveling Coilovers Front 2" Part# 985-02-018
-
2 x Fox Shocks Part# 980-24-660

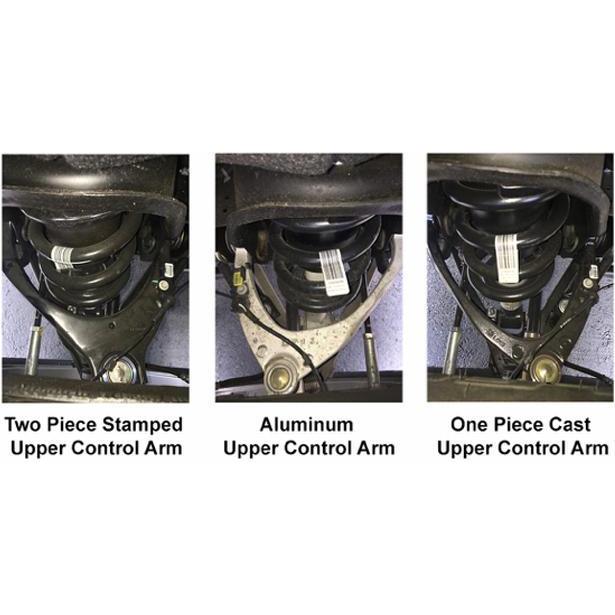

This Kryptonite Leveling Kit is compatible with trucks originally equipped with Aluminum or Two-Piece Stamped Steel Control Arms mounted in the factory location ONLY!

Optional
Kryptonite Cam Bolt Kit
Superior top lock with Nord-Lock Style flange nut, you can't find a more solid Cam Bolt Kit on the Market. Keep your front-end alignment in check.
- 1 x Kryptonite Cam Bolt Kit Part Number: KR0026
- The Kryptonite cam bolt kit is recommended to be replaced on trucks located in a harsh climate or on any truck with high miles.
Notes
- Cam Bolt Kit will Not Work with an Upper Control arm drop lift kit. They will only fit if your Upper Control arms remain in the stock location.
- These Control Arms will NOT fit with most OE Wheels on the 6 Lug Trucks. Please double-check clearances before driving as contact and damage may result.
Installation
Warranty
Kryptonite No Fine Print Lifetime Warranty: Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off-road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.
Warranty Excludes Heim Joints.
Your Kryptonite products must be purchased from an authorized dealer and must complete warranty registration within 90 days of purchase.
