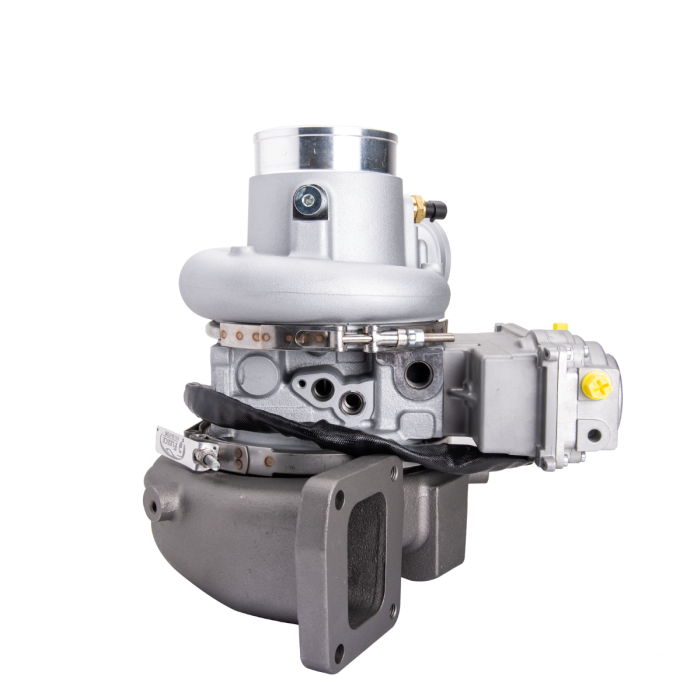

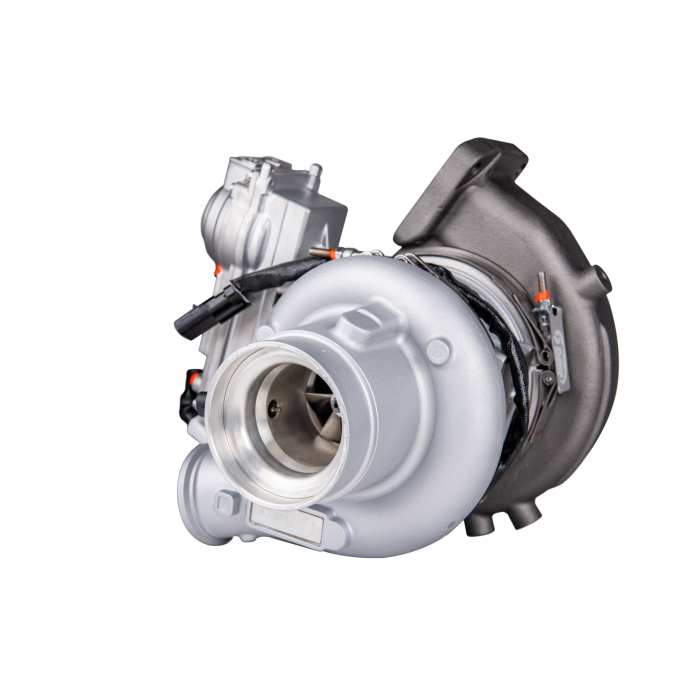

2010-2020 Cummins ISX/QSX 67mm Replacement Turbocharger (FPE-HE4-67)
Purchase to earn 6523 Dirty Dollars Learn More
Description
Description
Fits
| Year | Model | Engine |
| 2010-2020 | ISX15 CM2250 and CM2350 | Cummins |
The HE400VG / HE451VE replacement turbocharger from Fleece gives you a quick, new & reliable replacement turbo for the ISX CM2250 and CM2350 models.
Part Number: FPE-HE4-67
Features
Features
- No core charge
- New Holset actuator
- New air intake temperature sensor
- New turbine speed sensor
- New turbine flange gasket
- New mounting studs and nuts
Additional Info
Additional Info

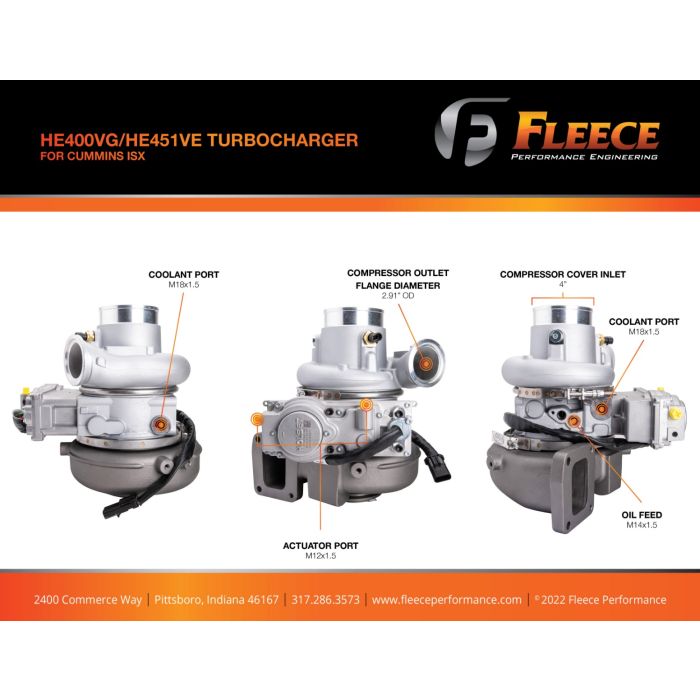

- Coolant ports: M18x1.5
- Oil feed port: M14x1.5
- Compressor intake OD: 4.0”
- Compressor outlet OD: 2.9”

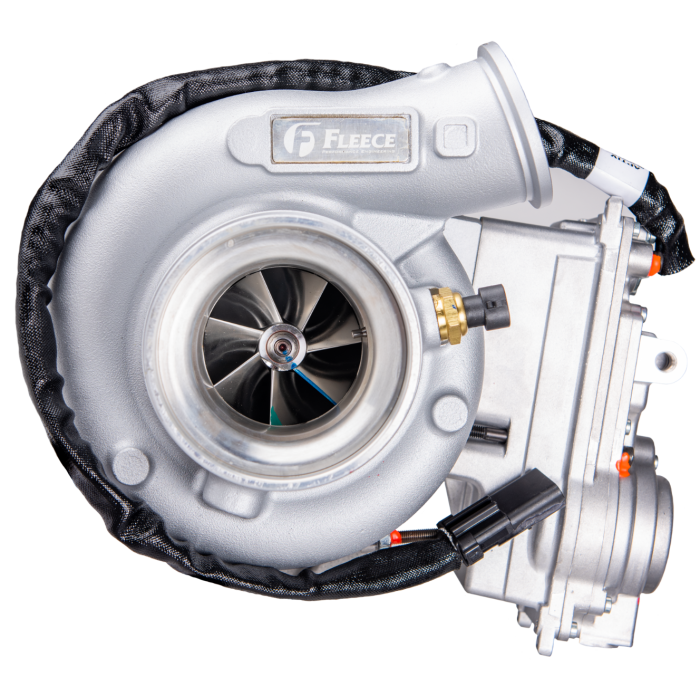

Compressor Wheel
- Blade count: 7x7
- Inducer: 67mm
- Exducer: 92mm

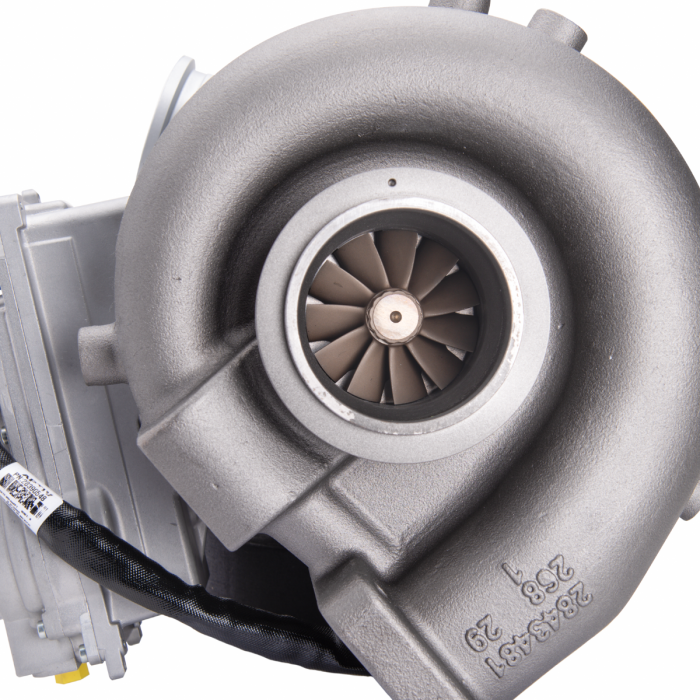

Turbine Wheel
- Blade count: 11
- Inducer: 72mm
- Exducer: 67mm
Notes
Notes
- Replaces Holset part number: 2882112
Prior Part Numbers and Cross-reference
2843821, 2882015, 2882112, 3769054, 3769055, 3769056, 3769058, 3769059, 3769061, 3773488, 3773489, 3773491, 3773492, 3773493, 3773495, 3792571, 3792576, 3792577, 3792583, 3795122, 3795143, 3795159, 3796351, 5350404, 5350411, 5350501, 5350501, 5359595, 5359609, 5456845, 5458503, 5458260, 288211200, 379257600, 2882015NX, 2882015RX, 288211200HX, 288211200NX, 288211200RX, 2882112H, 2882112NX, 2882112RX, 379257600H, 3792576H, 379258300H, 3792583H 3798515RX, 5350411RX, 5350501H, 5359609NX, 5359609RX, 5458503NX, 5458503RX, 3796391
