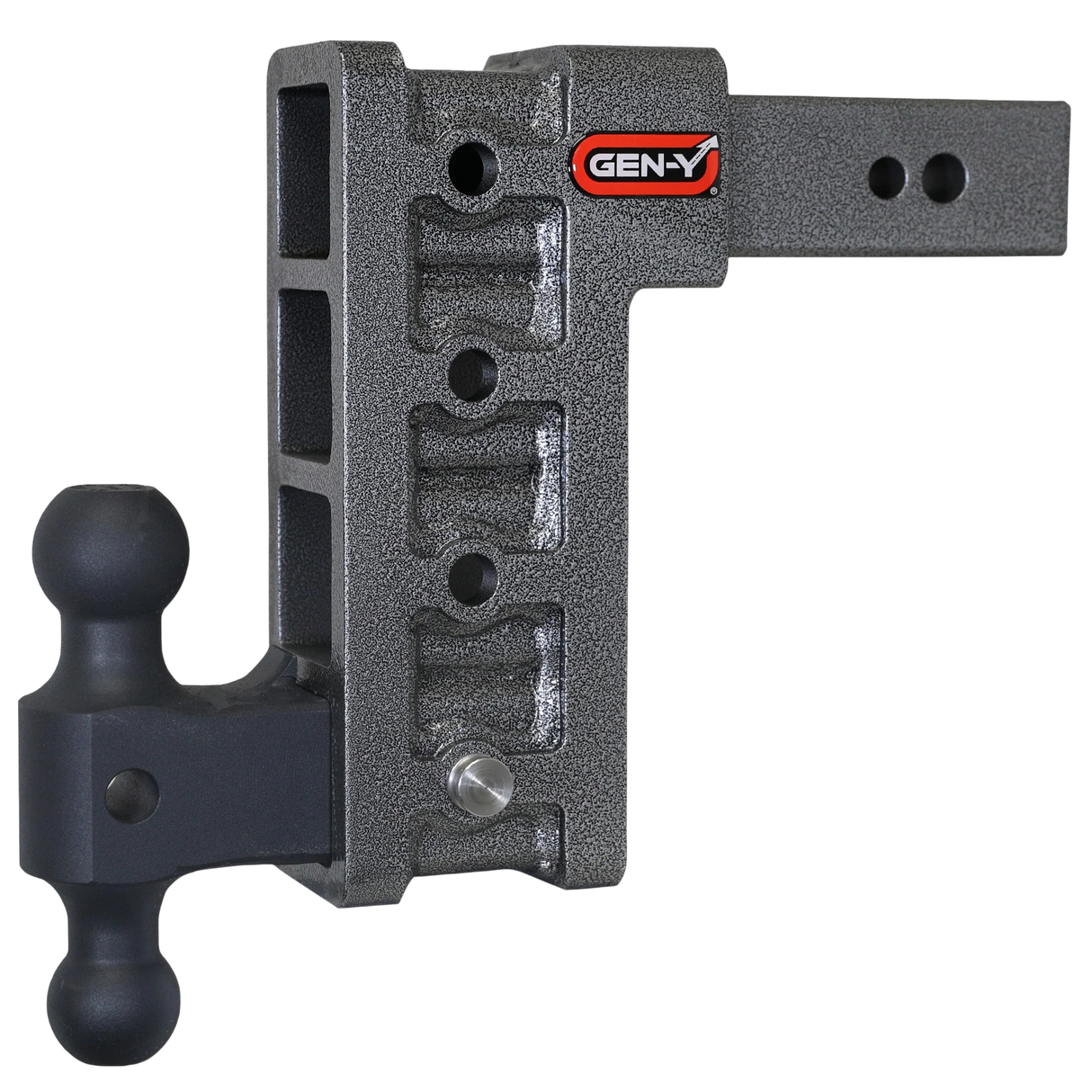

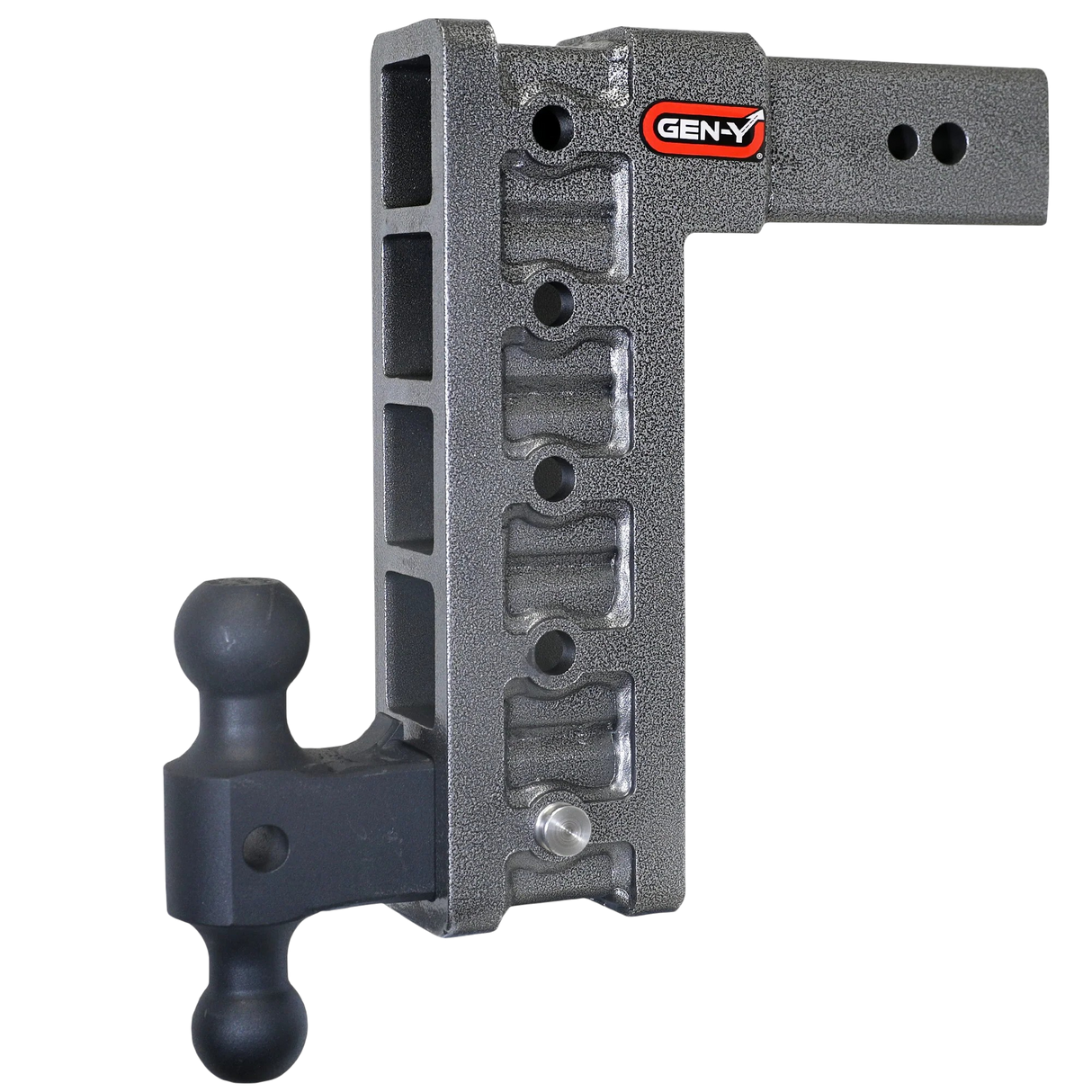

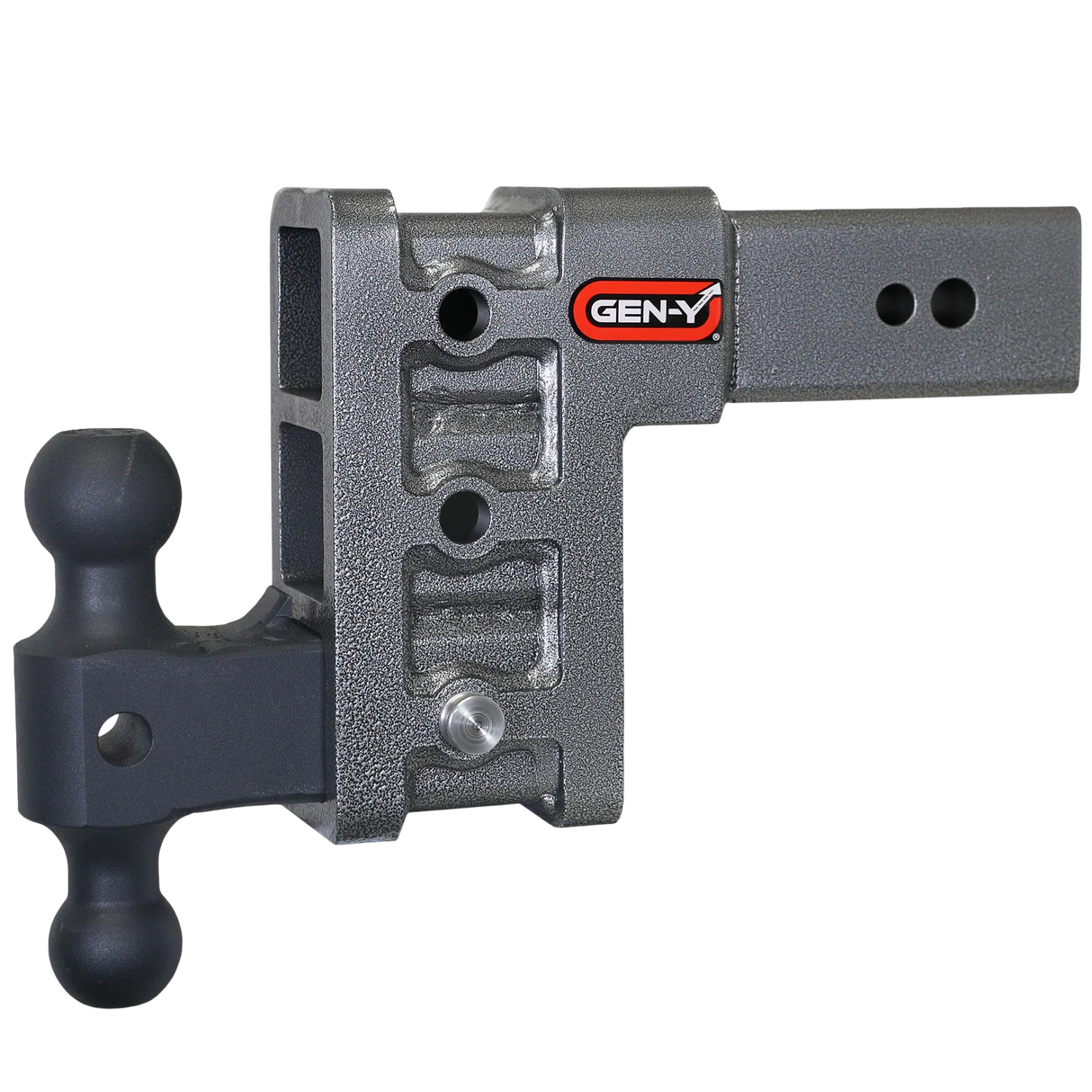

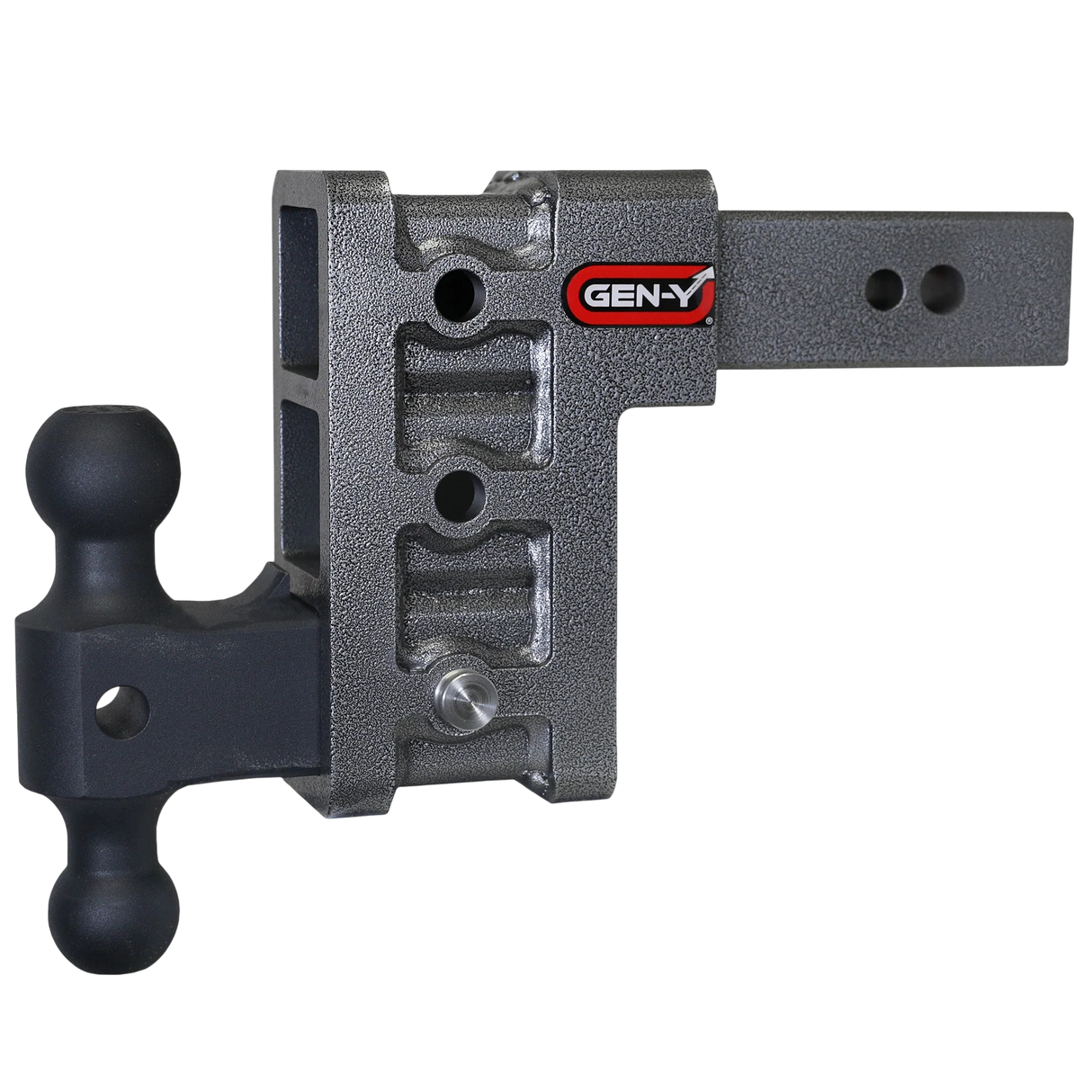

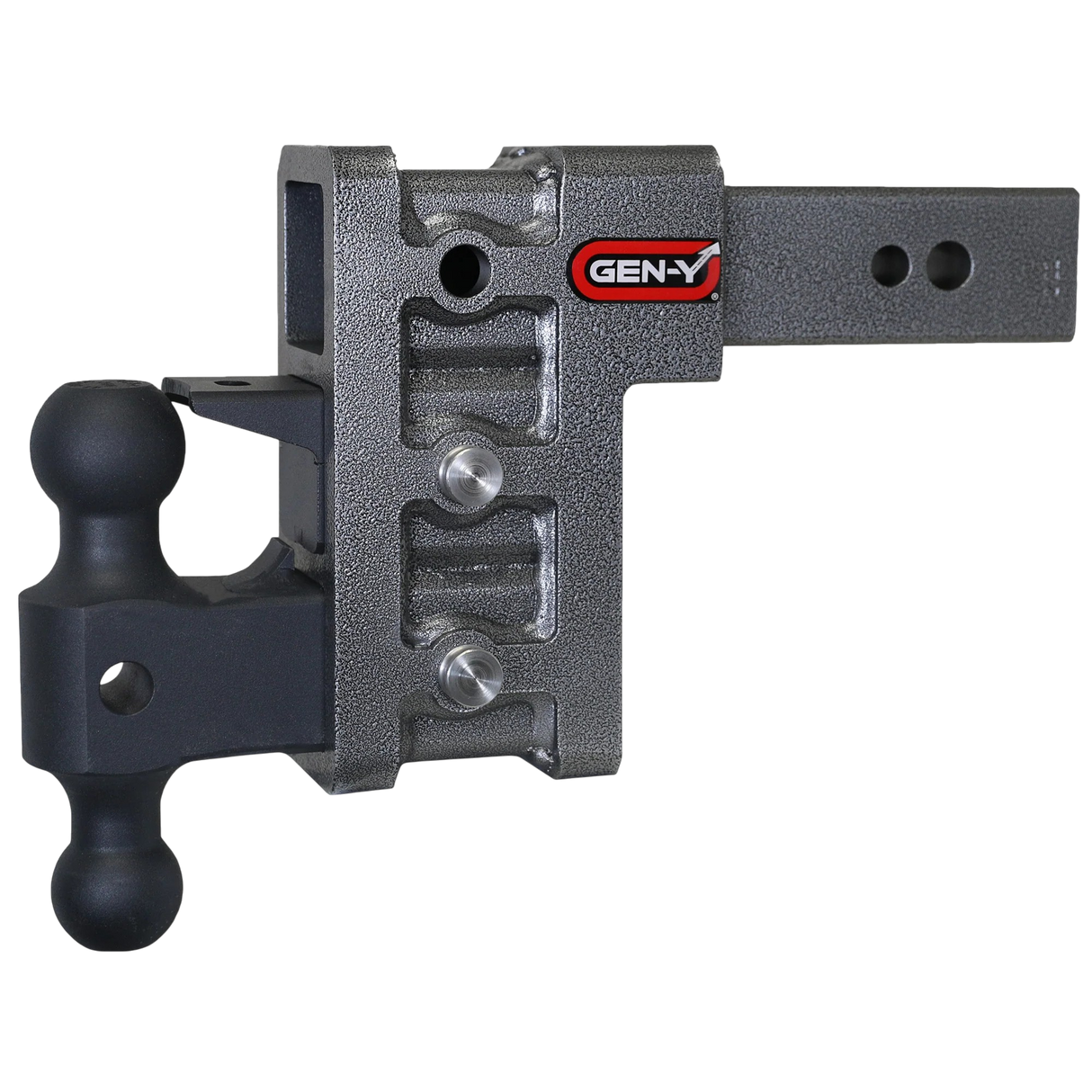

Gen-Y Mega-Duty 32K Drop Hitch

Fits: Universal w/ 2.5" & 3" Shank

Towing Capacity: 32,000LB

Tongue Weight: 3,500LB

Raise/Drop: 6" - 12"

Dual-Ball Mount: 2″ and 2 5/16″

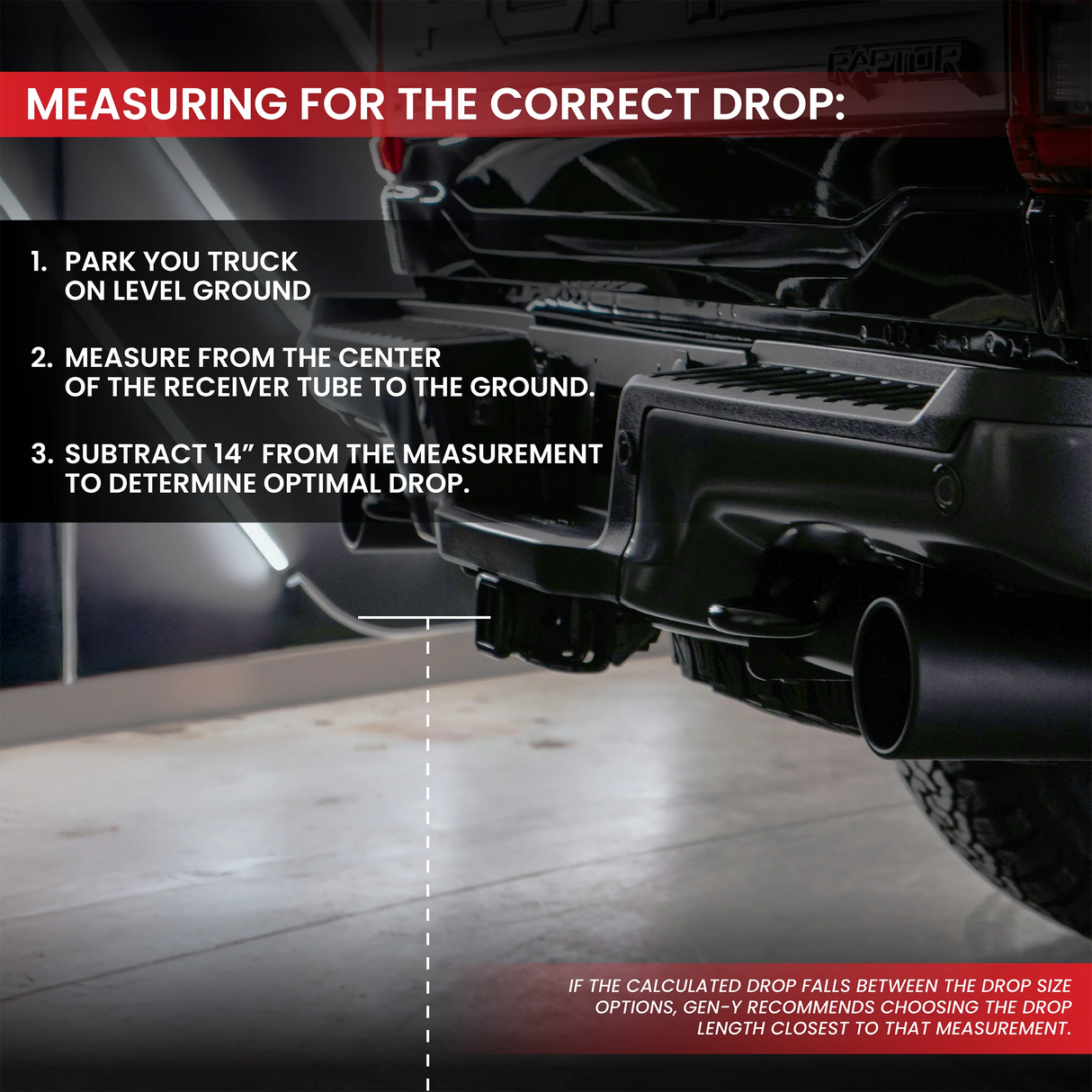

What Size Drop Hitch Do I Need? | Drop Hitch Stabilizer Bars

IMPORTANT: 3″ receivers are only offered on select FORD vehicles manufactured after 2017. Please confirm receiver size before ordering.

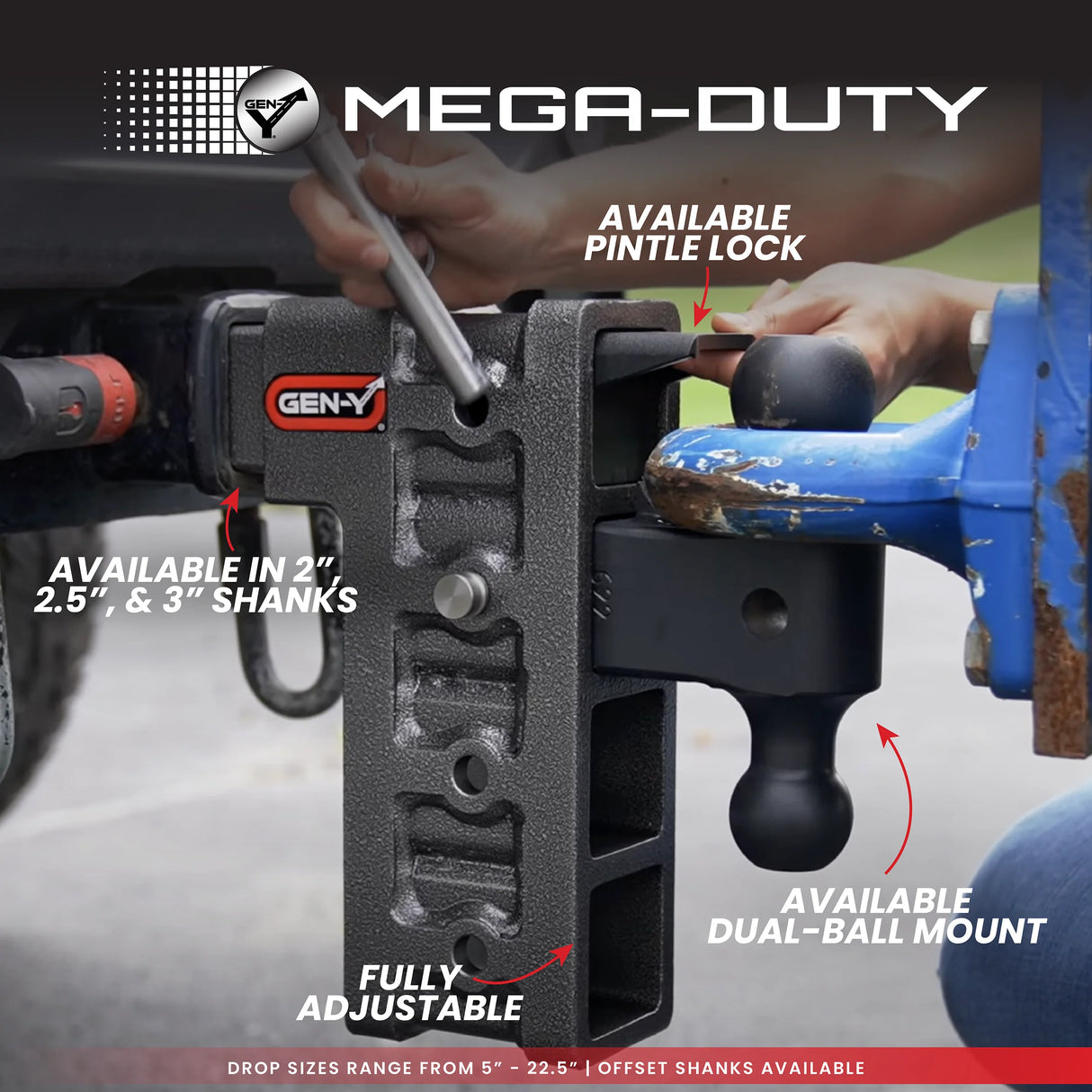

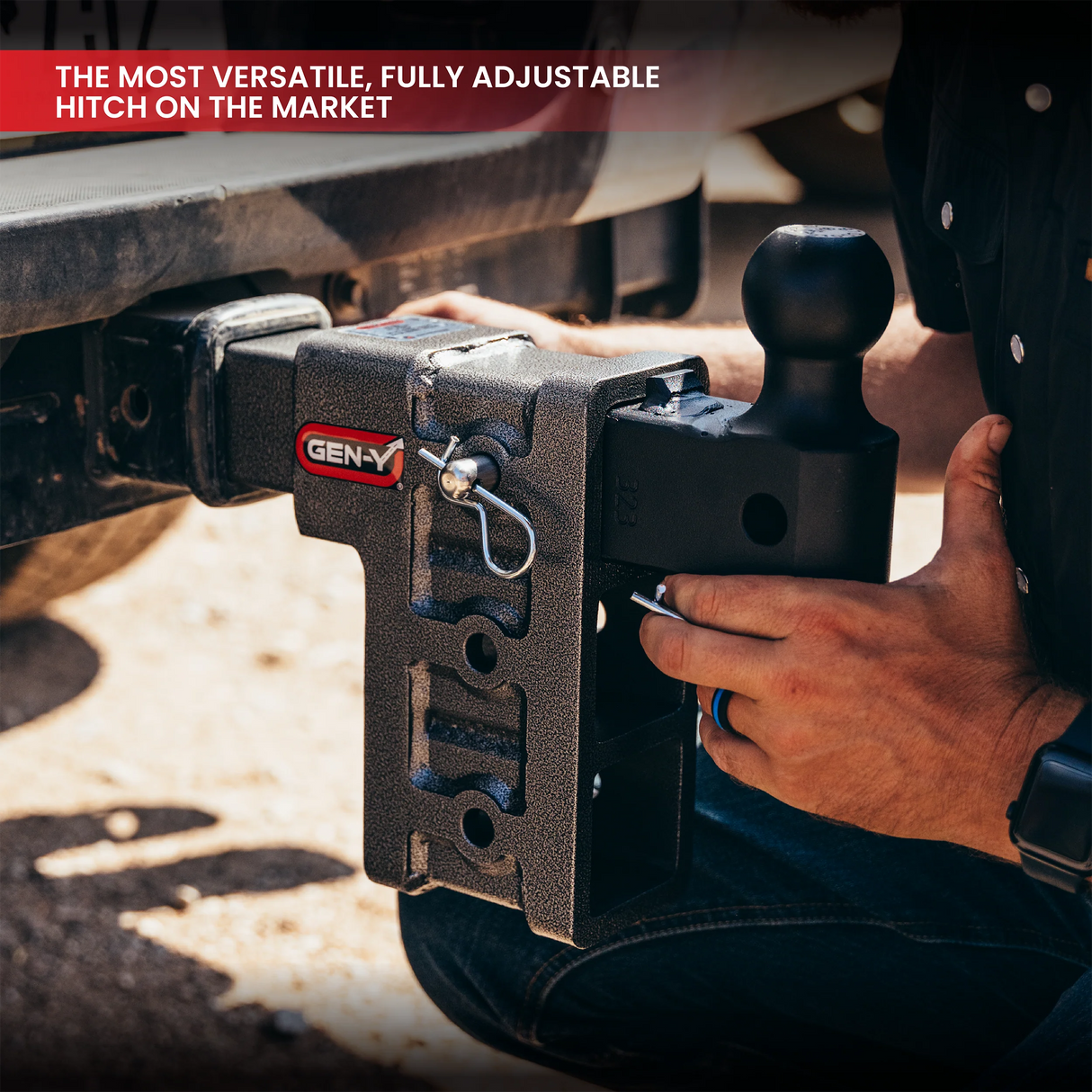

Take on the heaviest loads with the Gen-Y MEGA-DUTY 32K Drop Hitch. Engineered for ultimate strength, this hitch is designed for trucks with 2.5" or 3" receivers, offering an industry-leading 32,000 lbs towing capacity and a 3,500 lbs tongue weight rating. With a 6" to 12" drop/rise range and 3 to 6 adjustable positions, this hitch ensures your trailer stays level and secure. Fabricated from heavy-duty steel and finished with a signature Silver-Vein powder coat, it is built to outlast and outperform in the most demanding environments.

• Available in 2.5″ and 3” Receivers
• Pintle and/or Dual Ball Hitch
• Strongest adjustable drop hitch
• 2.5″ Slot Openings on Hitch
• Dual-Ball Mount: 2″ and 2 5/16″
• Drop/Raise Range: 6″ to 12″

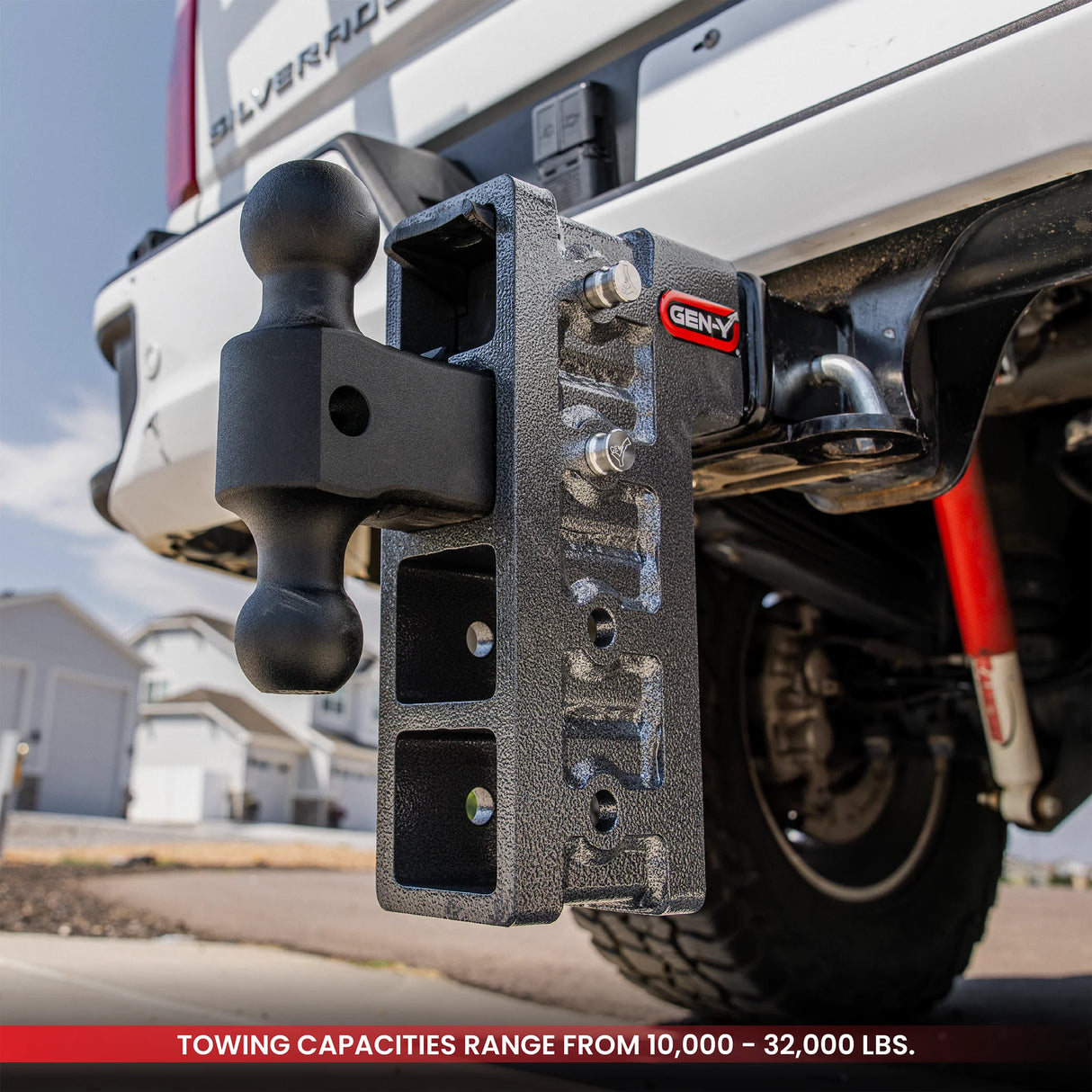

• Up to 32,000 lb Towing Capacity
• Most versatile hitch
• Fabricated with Heavy-Duty Steel
• Designed for 1.5″ or smaller lunette rings
• Sand Blasted and Coated with a Durable Silver-Vein Powder Coat

• All 32K hitches use 3/4″ Diameter Hitch pins on the stacked tube.
• 32K weight capacity hitches are derated to 21K weight capacity when using the 5/8″ pinhole.
• Got a lift, no problem! Even if you have a lift kit, this hitch can still be of use! However, there are a few things to think about when towing with a lifted vehicle.
• Long drop hitches (12" or more) will put additional leverage on the vehicle receiver. Therefore, in some cases, receiver hitch manufacturers will reduce ratings by up to 50%.
• A long drop hitch will also typically create a lot more movement due to the added length and drop of the ball mount. Using the Stabilizer Kit (GH-0100) ties the bottom of the GEN-Y adjustable drop hitch to the frame of the truck, taking stress off the receiver and keeping the bottom of the ball mount from moving, ensuring a safe towing experience.

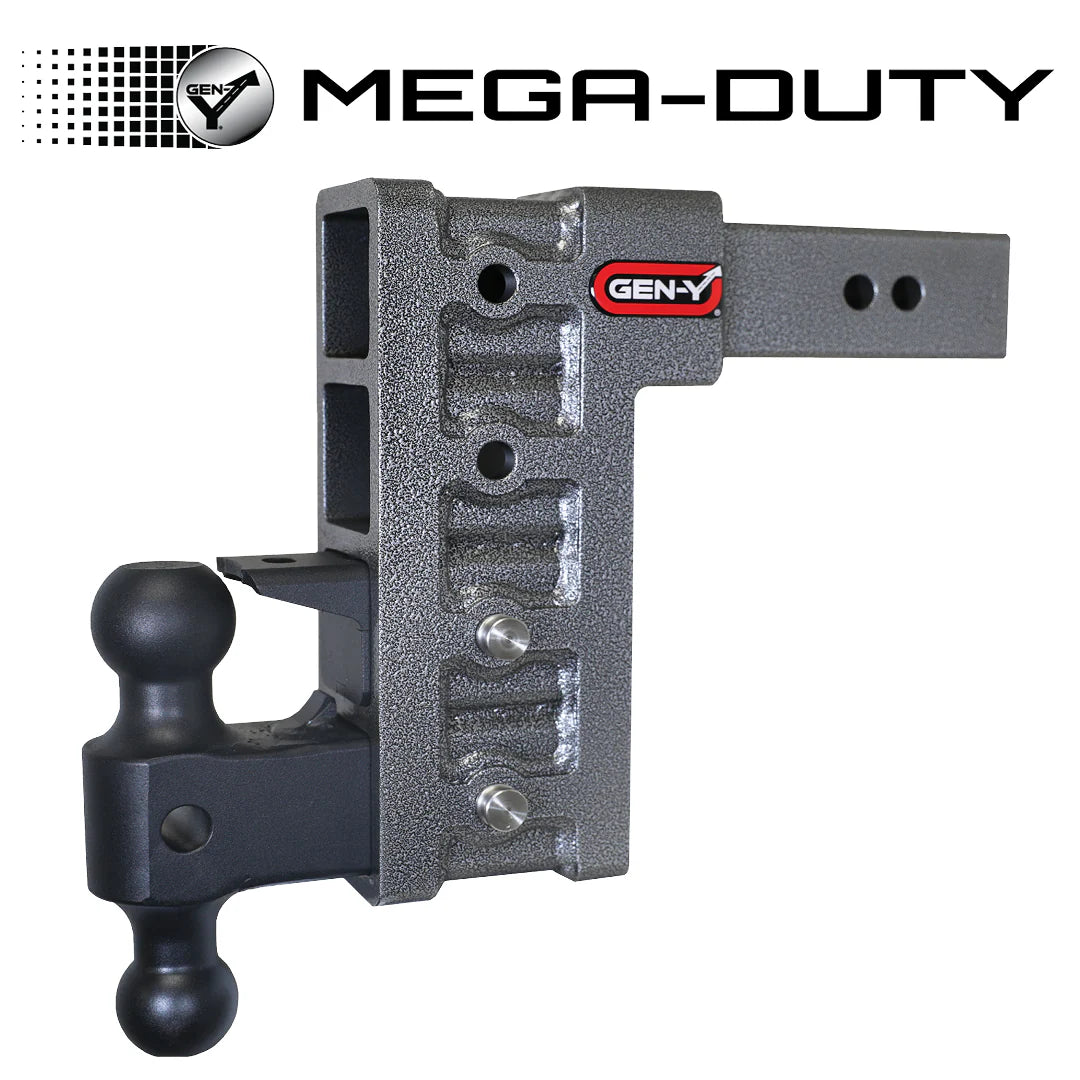

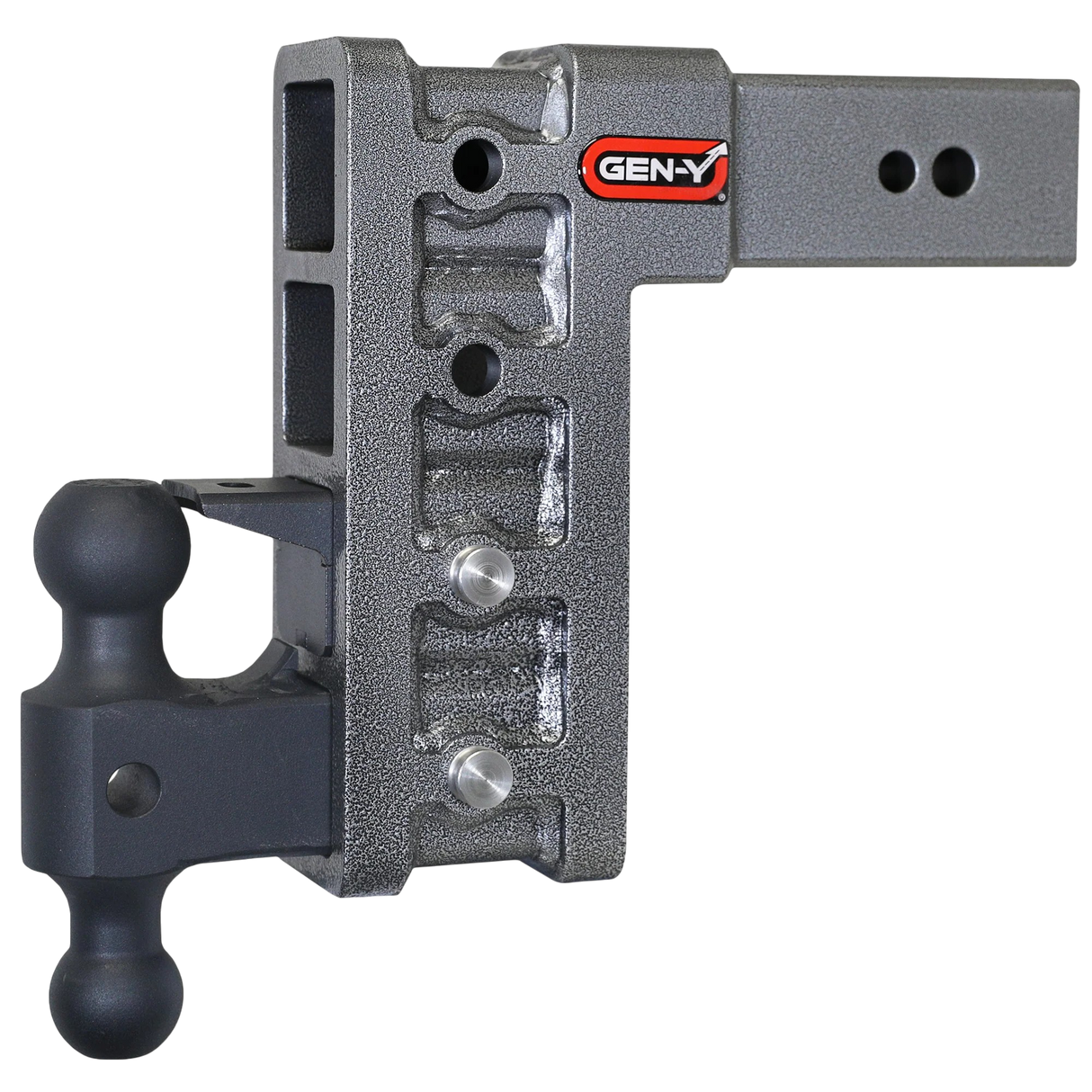

The original quick-adjust GEN-Y pintle hitch system uses the standard GH-061 2.5″ Versa-Ball, along with the GH-062 pintle lock, to quickly and safely connect to any size or height pintle coupling. By simply pulling the pin in the pintle lock and sliding it back into the adjustable GEN-Y hitch system, the lunette eye (pintle ring) of the pintle trailer can then be lowered down over the 2 5/16″ side of the Versa-Ball. The last step is to slide the pintle lock back out across the lunette eye and pin it in place securely.

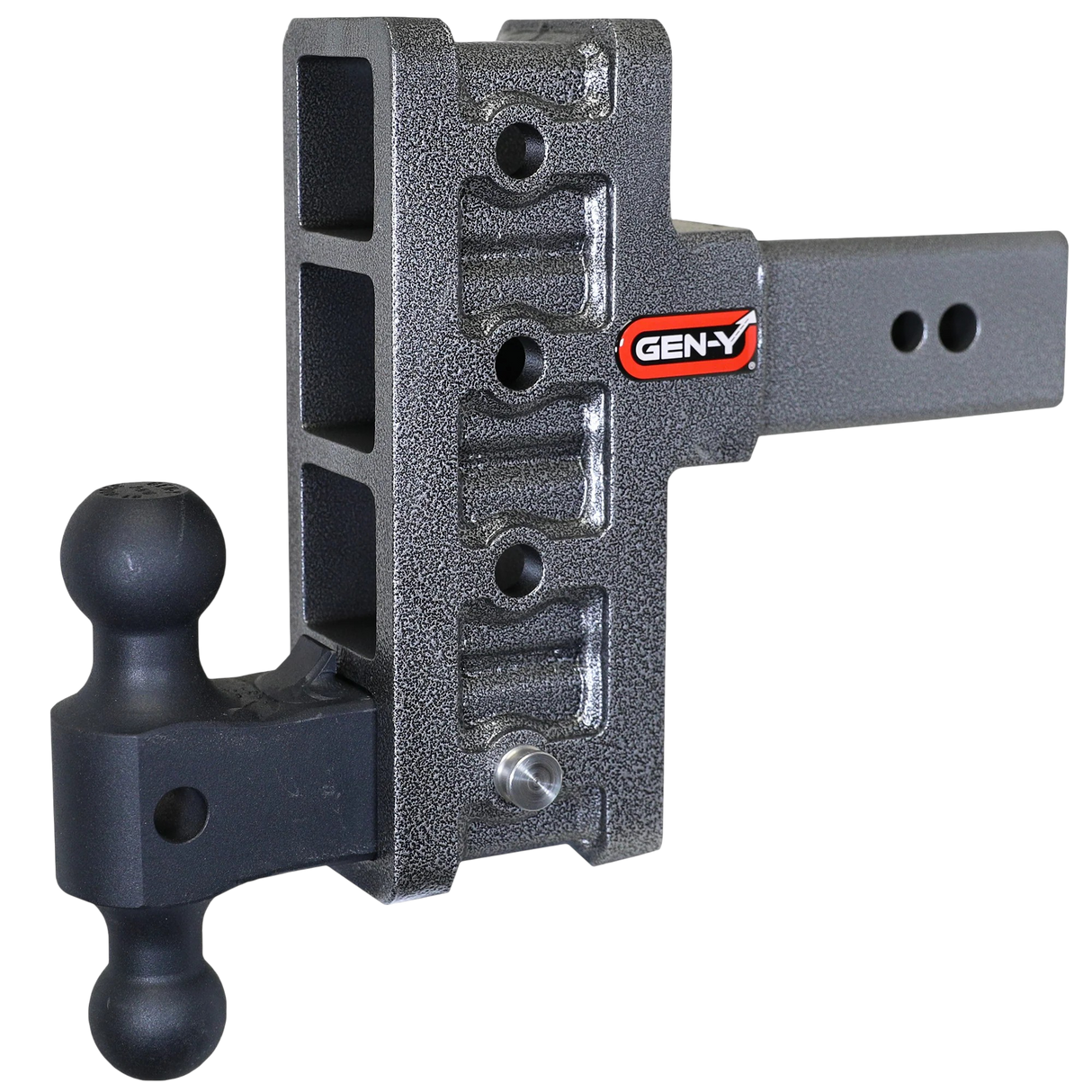

The offset drop hitches are even more versatile. The different offset drop hitches include the 6″ Offset Drop Hitch which raises the hitch 3″ and lowers it 6″ and the 12″ Offset Drop Hitch which raises it 3″ and lowers it 12″. Offset hitches allow for raised and lowered positions simultaneously, giving more options for dual-purpose jobs. For example, pulling a car dolly and attaching a bike rack or using tow bars and a luggage rack at the same time. This means a much easier and safer way of getting multiple applications connected to 2.5″ receivers.

• Limited Lifetime Warranty
