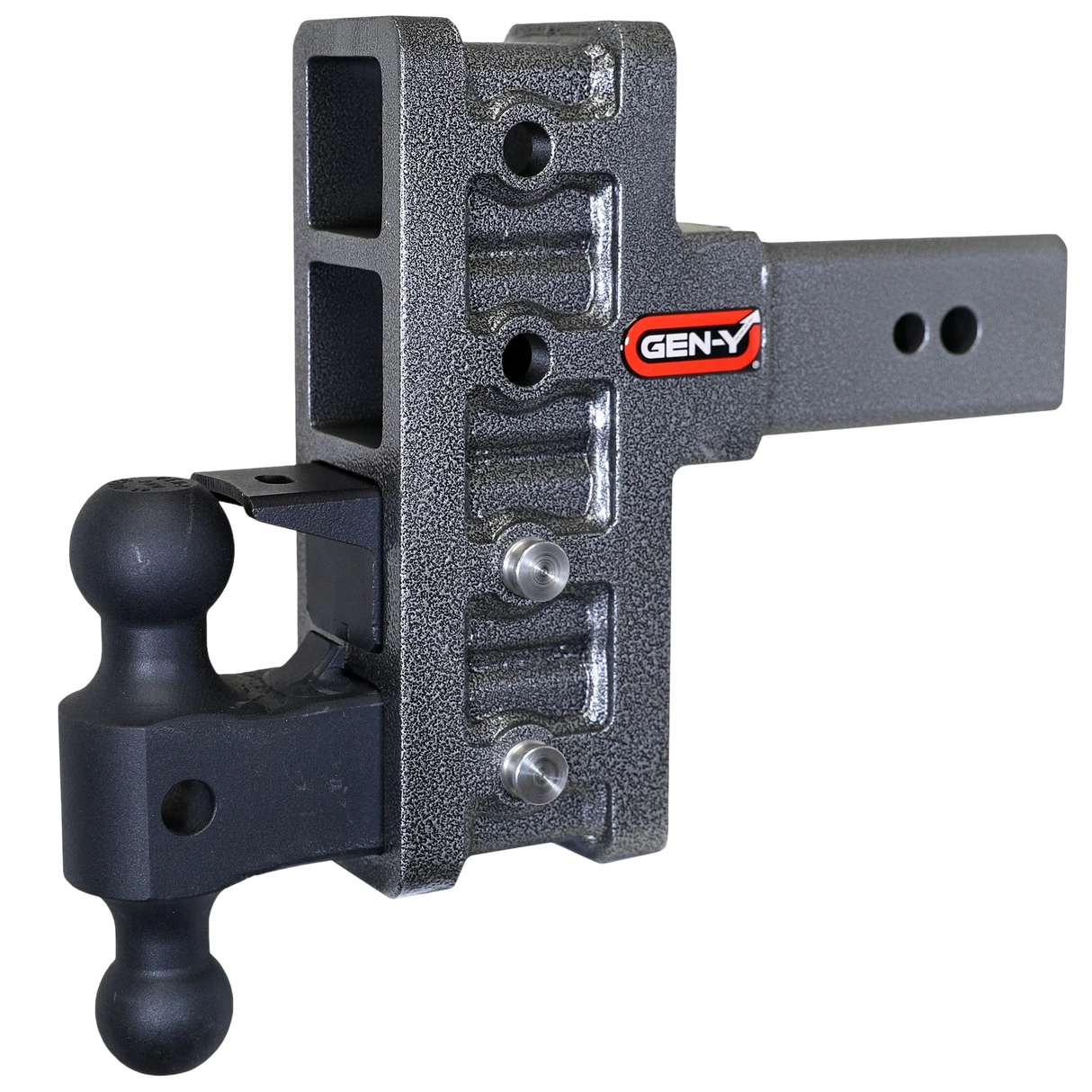

Gen-Y | Mega-Duty 32K Drop Hitch | 6" Offset Drop | 3" Shank | Dual Ball Mount & Pintle Lock (GH-2024)

Fits: Universal w/ 3" Shank

Towing Capacity: 32,000LB

Tongue Weight: 3,500LB

Drop: 6"

Rise: 3"

Dual-Ball Mount: 2″ and 2 5/16″

What Size Drop Hitch Do I Need? | Drop Hitch Stabilizer Bars

Engineered for extreme performance, the Gen-Y Mega-Duty 32K Offset Drop Hitch provides the ultimate towing solution for heavy-duty diesel owners who demand versatility and brute strength. This massive 3" receiver hitch features an integrated Dual-Ball mount and Pintle lock with a 6" offset drop across four adjustable positions, allowing you to seamlessly transition between heavy equipment and industrial trailers while maintaining a perfectly level ride. Fabricated from sandblasted steel and finished with a durable silver-vein powder coat, this 32,000 lb-rated powerhouse is built to withstand the harshest environments and outlast the competition.

IMPORTANT: 3″ receivers are only offered on select FORD vehicles manufactured after 2017. Please confirm receiver size before ordering.

Part Number: GH-2024

• Dual-Ball Mount and Pintle Lock
• 4 Adjustable Positions
• 3” Shank (Receiver)
• 6" Drop or 3" Rise
• 32,000 lb Towing Capacity
• Strongest adjustable drop hitch
• Most versatile hitch
• 2.5″ Slot Openings on Hitch
• Fabricated with Heavy-Duty Steel
• Designed for 1.5″ or smaller lunette rings
• Sand Blasted and Coated with a Durable Silver-Vein Powder Coat

• Simply adjust your ball mount to the desired height by pulling a pin and moving the ball mount to the desired position. This ensures your trailers are being towed level, this is particularly important when towing trailers with torsion axels.
• All 32K hitches Use 3/4″ Diameter Hitch pins on the stacked tube.

The original quick-adjust GEN-Y pintle hitch system uses the standard GH-061 2.5″ Versa-Ball in addition to the GH-062 pintle lock to quickly and safely connect to any size or height pintle coupling. By simply pulling the pin in the pintle lock and sliding it back into the adjustable GEN-Y hitch system, the lunette eye (pintle ring) of the pintle trailer can then be lowered down over the 2 5/16″ side of the Versa-Ball. The last step is to slide the pintle lock back out across the lunette eye and pin it in place securely.

The offset drop hitches are even more versatile. The different offset drop hitches include the 6″ Offset Drop Hitch which raises the hitch 3″ and lowers it 6″ and the 12″ Offset Drop Hitch which raises it 3″ and lowers it 12″. Offset hitches allow for raised and lowered positions at the same time, giving more options for any dual-purpose jobs. For example, pulling a car dolly and attaching a bike rack or using tow bars and a luggage rack at the same time. This means a much easier and safer way of getting multiple applications connected to 2.5″ receivers.

Parts Only

• Limited Lifetime Warranty
