Fuel FLUX - Blackout

Fuel Part Number: FC854MX17905001
$366.00 CAD
Wheel Size
Bolt Pattern
Offset

Description
SKU Finish Size Diameter Width Lug Count Bolt Pattern Offset Backspacing Centerbore Weight
FC854MX17905001 Blackout 17x9 17 9.0 5 5x127mm (5x5.0) 1 5.04 71.5 31.09
FC854MX17905012N Blackout 17x9 17 9.0 5 5x127mm (5x5.0) -12 4.53 71.5 31.7
FC854MX17906301 Blackout 17x9 17 9.0 6 6x135mm 1 5.04 87.1 30.82
FC854MX17906801 Blackout 17x9 17 9.0 6 6x139.7mm (6x5.5) 1 5.04 106.1 30.38
FC854MX17906812N Blackout 17x9 17 9.0 6 6x139.7mm (6x5.5) -12 4.53 106.1 31.26
FC854MX18906301 Blackout 18x9 18 9.0 6 6x135mm 1 5.04 87.1 34.1
FC854MX18906320 Blackout 18x9 18 9.0 6 6x135mm 20 5.79 87.1 34.32
FC854MX18906420 Blackout 18x9 18 9.0 6 6x114.3mm (6x4.5) 20 5.79 66.06 34.8
FC854MX18906801 Blackout 18x9 18 9.0 6 6x139.7mm (6x5.5) 1 5.04 106.1 33.66
FC854MX18906820 Blackout 18x9 18 9.0 6 6x139.7mm (6x5.5) 20 5.79 106.1 33.88
FC854MX18906830 Blackout 18x9 18 9.0 6 6x139.7mm (6x5.5) 30 6.18 106.1 33.44
FC854MX18907720 Blackout 18x9 18 9.0 6 6x120mm 20 5.79 66.9 34.8
FC854MX20105018N Blackout 20x10 20 10.0 5 5x127mm (5x5.0) -18 4.79 71.5 38.8
FC854MX20106318N Blackout 20x10 20 10.0 6 6x135mm -18 4.79 87.1 37.6
FC854MX20106818N Blackout 20x10 20 10.0 6 6x139.7mm (6x5.5) -18 4.79 106.1 37.16
FC854MX20108018N Blackout 20x10 20 10.0 8 8x165.1mm (8x6.5) -18 4.79 125.1 46.68
FC854MX20108718N Blackout 20x10 20 10.0 8 8x170mm -18 4.79 125.1 46.68
FC854MX20108818N Blackout 20x10 20 10.0 8 8x180mm -18 4.79 124.2 46.9
FC854MX20906301 Blackout 20x9 20 9.0 6 6x135mm 1 5.04 87.1 38.3
FC854MX20906320 Blackout 20x9 20 9.0 6 6x135mm 20 5.79 87.1 38.26
FC854MX20906420 Blackout 20x9 20 9.0 6 6x114.3mm (6x4.5) 20 5.79 66.06 38.7
FC854MX20906801 Blackout 20x9 20 9.0 6 6x139.7mm (6x5.5) 1 5.04 106.1 37.86
FC854MX20906820 Blackout 20x9 20 9.0 6 6x139.7mm (6x5.5) 20 5.79 106.1 37.82
FC854MX20907720 Blackout 20x9 20 9.0 6 6x120mm 20 5.79 66.9 38.7
FC854MX20908001 Blackout 20x9 20 9.0 8 8x165.1mm (8x6.5) 1 5.04 125.1 45.78
FC854MX20908701 Blackout 20x9 20 9.0 8 8x170mm 1 5.04 125.1 45.78
FC854MX20908801 Blackout 20x9 20 9.0 8 8x180mm 1 5.04 124.2 46.0
FC854MX22106318N Blackout 22x10 22 10.0 6 6x135mm -18 4.79 87.1 44.7
FC854MX22106818N Blackout 22x10 22 10.0 6 6x139.7mm (6x5.5) -18 4.79 106.1 44.26
FC854MX22108018N Blackout 22x10 22 10.0 8 8x165.1mm (8x6.5) -18 4.79 125.1 54.2
FC854MX22108718N Blackout 22x10 22 10.0 8 8x170mm -18 4.79 125.1 54.2
FC854MX22108818N Blackout 22x10 22 10.0 8 8x180mm -18 4.79 124.2 54.2
FC854MX22125044N Blackout 22x12 22 12.0 5 5x127mm (5x5.0) -44 4.77 71.5 47.6
FC854MX22126344N Blackout 22x12 22 12.0 6 6x135mm -44 4.77 87.1 50.4
FC854MX22126844N Blackout 22x12 22 12.0 6 6x139.7mm (6x5.5) -44 4.77 106.1 49.96
FC854MX22128044N Blackout 22x12 22 12.0 8 8x165.1mm (8x6.5) -44 4.77 125.1 58.78
FC854MX22128744N Blackout 22x12 22 12.0 8 8x170mm -44 4.77 125.1 58.78
FC854MX22956320 Blackout 22x9.5 22 9.5 6 6x135mm 20 6.04 87.1 42.77
FC854MX22956820 Blackout 22x9.5 22 9.5 6 6x139.7mm (6x5.5) 20 6.04 106.1 43.21

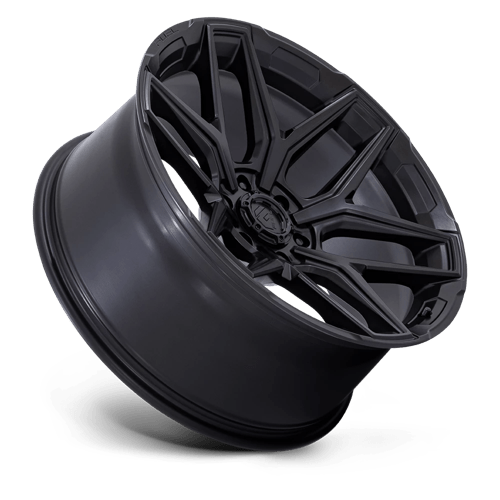

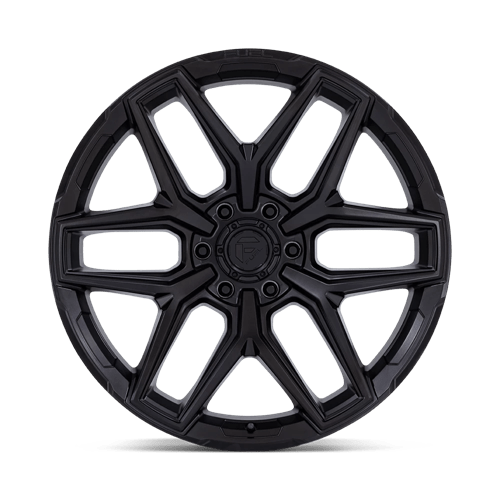

The Fuel Off-Road Flux in blackout is clean, aggressive, and built to handle whatever you throw at it. With a deep concave profile and sharp split spoke design, this wheel brings a stealthy modern look that pairs perfectly with any off-road build. Tough where it counts, stylish where it matters.

Features
  • Durable cast aluminum construction
  • Blackout finish for a sleek aggressive look
  • Concave split spoke design with angular details
  • Built for off-road strength and everyday style
