Fuel D868 ARC DUALLY - Gloss Black Milled
Fuel
Part Number:
D868208272
$661.00 CAD
Unit price
/
Unavailable
This item may have additional freight costs.
Learn more
Wheels are sold individually
Description
Description
| SKU | Finish | Size | Diameter | Width | Lug Count | Bolt Pattern | Offset | Backspacing | Centerbore | Weight |
| D868208272 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x165.1mm (8x6.5) | 104 | 8.72 | 117 | 44.3 |
| D86820827225 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x165.1mm (8x6.5) | -201 | -3.29 | 117 | 48.95 |
| D86820827225 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x165.1mm (8x6.5) | -227 | -4.31 | 117 | 53.8 |
| D86820827245 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x165.1mm (8x6.5) | -246 | -5.06 | 117 | 52.58 |
| D86820828D | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x165.1mm (8x6.5) | 104 | 8.72 | 121.5 | 44.1 |
| D86820828D35 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x165.1mm (8x6.5) | -240 | -4.82 | 121.5 | 51.48 |
| D86820828D45 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x165.1mm (8x6.5) | -265 | -5.81 | 121.5 | 55.3 |
| D868208292 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x200mm | 104 | 8.72 | 142 | 43.2 |
| D86820829235 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x200mm | -201 | -3.29 | 142 | 47.63 |
| D86820829245 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x200mm | -227 | -4.31 | 142 | 51.82 |
| D868208293 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x210mm | 104 | 8.72 | 154.3 | 42.8 |
| D86820829325 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x210mm | -201 | -3.29 | 154.3 | 46.97 |
| D86820829335 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x210mm | -227 | -4.31 | 154.3 | 50.49 |
| D86820829345 | Gloss Black Milled | 20x8.25 | 20 | 8.25 | 8 | 8x210mm | -246 | -5.06 | 154.3 | 49.94 |
| D868228272 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x165.1mm (8x6.5) | 104 | 8.72 | 117 | 50.5 |
| D86822827225 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x165.1mm (8x6.5) | -201 | -3.29 | 117 | 54.23 |
| D86822827235 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x165.1mm (8x6.5) | -227 | -4.31 | 117 | 59.3 |
| D86822827245 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x165.1mm (8x6.5) | -246 | -5.06 | 117 | 57.86 |
| D86822828D | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x165.1mm (8x6.5) | 104 | 8.72 | 121.5 | 50.3 |
| D86822828D35 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x165.1mm (8x6.5) | -240 | -4.82 | 121.5 | 56.76 |
| D86822828D45 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x165.1mm (8x6.5) | -265 | -5.81 | 121.5 | 60.6 |
| D868228292 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x200mm | 104 | 8.72 | 142 | 49.4 |
| D86822829235 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x200mm | -201 | -3.29 | 142 | 52.91 |
| D86822829245 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x200mm | -227 | -4.31 | 142 | 57.1 |
| D868228293 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x210mm | 104 | 8.72 | 154.3 | 49.0 |
| D86822829325 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x210mm | -201 | -3.29 | 154.3 | 52.02 |
| D86822829335 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x210mm | -227 | -4.31 | 154.3 | 55.99 |
| D86822829345 | Gloss Black Milled | 22x8.25 | 22 | 8.25 | 8 | 8x210mm | -246 | -5.06 | 154.3 | 55.22 |

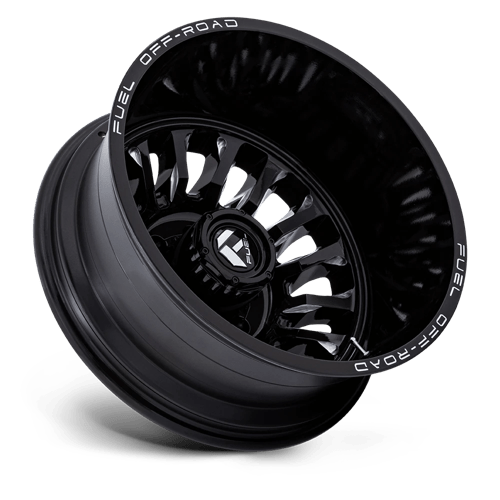

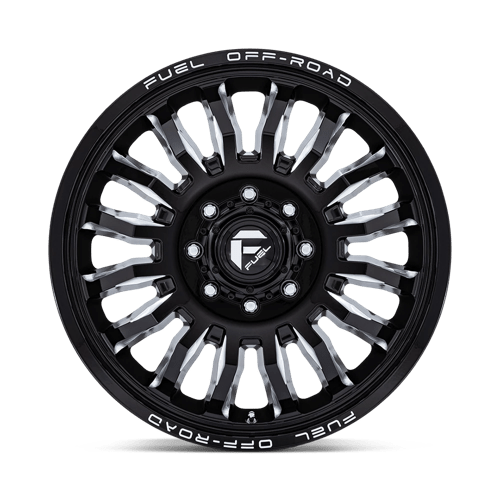

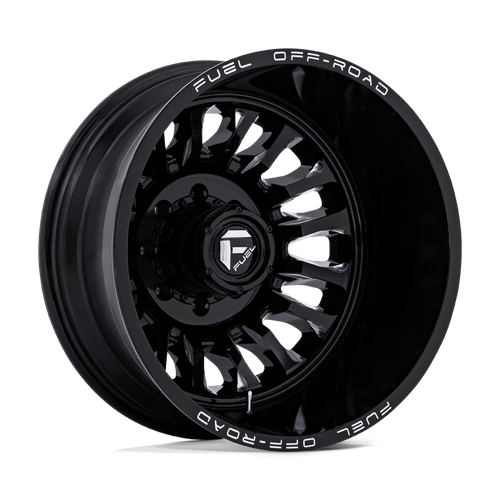

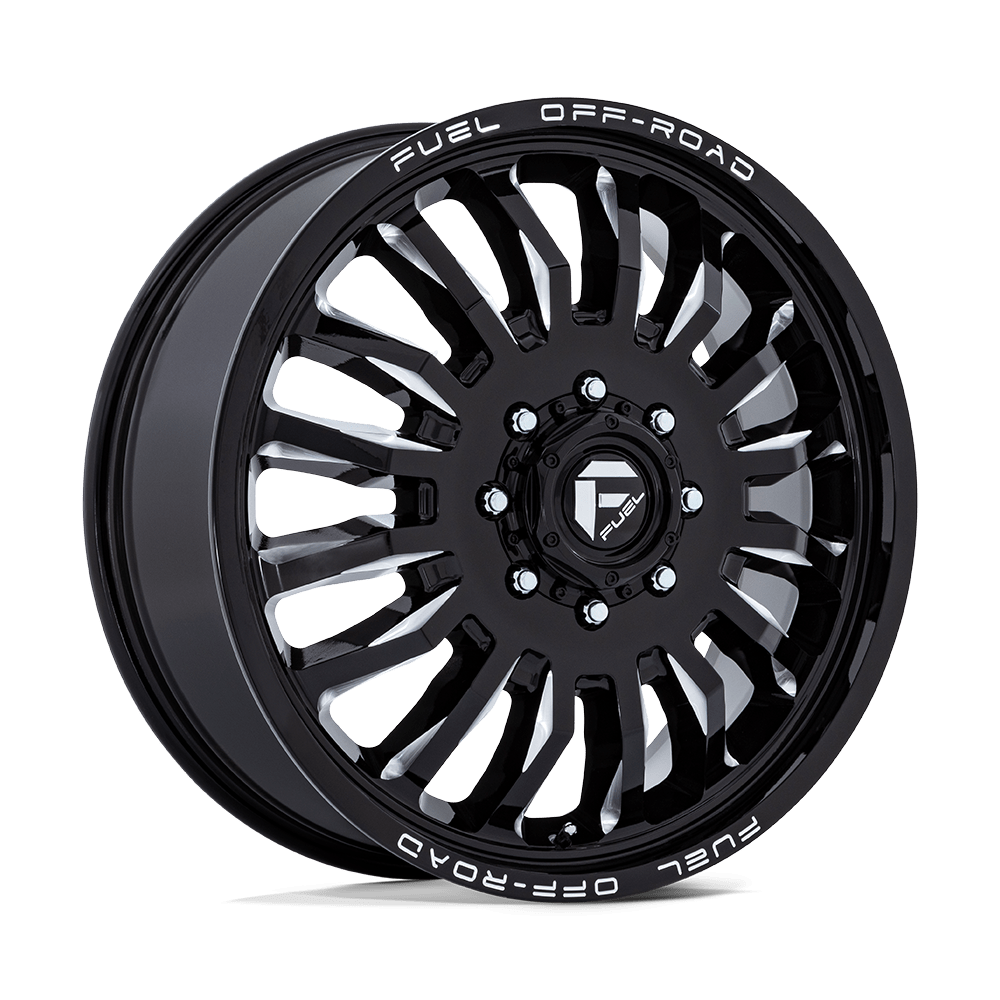

The Fuel Off-Road Arc Dually wheel is built for trucks that haul hard and look sharp doing it. With a gloss black finish and detailed milled accents, this wheel balances rugged function with aggressive style. Designed for dual-rear-wheel setups, it features a convex front and deep concave rear to handle heavy loads without compromising appearance.
Features
Features
- Cast aluminum construction
- Gloss black finish with milled accents
- Convex front and deep concave rear design
- Engineered for dual-rear-wheel performance and heavy-duty use
