Fuel 1PC D560 VAPOR - Matte Black

Fuel Part Number: D56015800437
$260.00 CAD
Wheel Size
Bolt Pattern
Offset

Description

Fits

SKU Finish Size Diameter Width Lug Count Bolt Pattern Offset Backspacing Centerbore Weight
D56015800437 Matte Black 15x8 15.0 8.0 5 5x114.3/5x120.65mm (5x4.5/4.75) -16 3.87 72.56 27.0
D56017002647 Matte Black 17x10 17.0 10.0 5 5x114.3/5x127mm (5x4.5/5.0) -18 4.79 78.1 38.0
D56017007047 Matte Black 17x10 17.0 10.0 5 5x139.7/5x150mm (5x5.5/150) -18 4.79 110.1 38.0
D56017008247 Matte Black 17x10 17.0 10.0 8 8x165.1mm (8x6.5) -18 4.79 125.1 38.0
D56017009847 Matte Black 17x10 17.0 10.0 6 6x135/6x139.7mm (6x135/5.5) -18 4.79 106.1 38.0
D56017901745 Matte Black 17x9 17.0 9.0 8 8x170mm -12 4.53 125.1 37.0
D56017901850 Matte Black 17x9 17.0 9.0 8 8x180mm 1 5.04 124.2 37.0
D56017902645 Matte Black 17x9 17.0 9.0 5 5x114.3/5x127mm (5x4.5/5.0) -12 4.53 78.1 37.0
D56017902650 Matte Black 17x9 17.0 9.0 5 5x114.3/5x127mm (5x4.5/5.0) 1 5.04 78.1 37.0
D56017907045 Matte Black 17x9 17.0 9.0 5 5x139.7/5x150mm (5x5.5/150) -12 4.53 110.1 36.0
D56017907050 Matte Black 17x9 17.0 9.0 5 5x139.7/5x150mm (5x5.5/150) 1 5.04 110.1 37.0
D56017908245 Matte Black 17x9 17.0 9.0 8 8x165.1mm (8x6.5) -12 4.53 125.1 37.0
D56017908250 Matte Black 17x9 17.0 9.0 8 8x165.1mm (8x6.5) 1 5.04 125.1 37.0
D56017908457 Matte Black 17x9 17.0 9.0 6 6x139.7mm (6x5.5) 20 5.79 106.1 34.0
D56017909845 Matte Black 17x9 17.0 9.0 6 6x135/6x139.7mm (6x135/5.5) -12 4.53 106.1 37.0
D56017909850 Matte Black 17x9 17.0 9.0 6 6x135/6x139.7mm (6x135/5.5) 1 5.04 106.1 37.0
D56018901745 Matte Black 18x9 18.0 9.0 8 8x170mm -12 4.53 125.1 37.0
D56018901750 Matte Black 18x9 18.0 9.0 8 8x170mm 1 5.04 125.1 44.0
D56018901845 Matte Black 18x9 18.0 9.0 8 8x180mm -12 4.53 124.2 37.0
D56018901857 Matte Black 18x9 18.0 9.0 8 8x180mm 20 5.79 124.2 44.0
D56018902645 Matte Black 18x9 18.0 9.0 5 5x114.3/5x127mm (5x4.5/5.0) -12 4.53 78.1 37.0
D56018902650 Matte Black 18x9 18.0 9.0 5 5x114.3/5x127mm (5x4.5/5.0) 1 5.04 78.1 44.0
D56018907045 Matte Black 18x9 18.0 9.0 5 5x139.7/5x150mm (5x5.5/150) -12 4.53 110.1 37.0
D56018907050 Matte Black 18x9 18.0 9.0 5 5x139.7/5x150mm (5x5.5/150) 1 5.04 110.1 44.0
D56018907057 Matte Black 18x9 18.0 9.0 5 5x139.7/5x150mm (5x5.5/150) 20 5.79 110.1 44.0
D56018908245 Matte Black 18x9 18.0 9.0 8 8x165.1mm (8x6.5) -12 4.53 125.1 37.0
D56018908250 Matte Black 18x9 18.0 9.0 8 8x165.1mm (8x6.5) 1 5.04 125.1 44.0
D56018908257 Matte Black 18x9 18.0 9.0 8 8x165.1mm (8x6.5) 20 5.79 125.1 44.0
D56018909844 Matte Black 18x9 18.0 9.0 6 6x135/6x139.7mm (6x135/5.5) -13 4.49 106.1 37.0
D56018909850 Matte Black 18x9 18.0 9.0 6 6x135/6x139.7mm (6x135/5.5) 1 5.04 106.1 44.0
D56018909856 Matte Black 18x9 18.0 9.0 6 6x135/6x139.7mm (6x135/5.5) 19 5.75 106.1 44.0
D56020001747 Matte Black 20x10 20.0 10.0 8 8x170mm -18 4.79 125.1 47.0
D56020001847 Matte Black 20x10 20.0 10.0 8 8x180mm -18 4.79 124.2 47.0
D56020002647 Matte Black 20x10 20.0 10.0 5 5x114.3/5x127mm (5x4.5/5.0) -18 4.79 78.1 47.0
D56020007047 Matte Black 20x10 20.0 10.0 5 5x139.7/5x150mm (5x5.5/150) -18 4.79 110.1 47.0
D56020008247 Matte Black 20x10 20.0 10.0 8 8x165.1mm (8x6.5) -18 4.79 125.1 47.0
D56020009846 Matte Black 20x10 20.0 10.0 6 6x135/6x139.7mm (6x135/5.5) -18 4.79 106.1 47.0
D56020900557 Matte Black 20x9 20.0 9.0 5 5x127/5x135mm (5x5.0/135) 20 5.79 87.1 47.0
D56020901750 Matte Black 20x9 20.0 9.0 8 8x170mm 1 5.04 125.1 46.0
D56020901757 Matte Black 20x9 20.0 9.0 8 8x170mm 20 5.79 125.1 47.0
D56020901850 Matte Black 20x9 20.0 9.0 8 8x180mm 1 5.04 124.2 46.0
D56020901857 Matte Black 20x9 20.0 9.0 8 8x180mm 20 5.79 124.2 47.0
D56020902650 Matte Black 20x9 20.0 9.0 5 5x114.3/5x127mm (5x4.5/5.0) 1 5.04 78.1 46.0
D56020905263 Matte Black 20x9 20.0 9.0 5 5x114.3/5x120mm (5x4.5/120) 35 6.38 72.56 47.0
D56020905663 Matte Black 20x9 20.0 9.0 5 5x150mm 35 6.38 110.1 47.0
D56020907050 Matte Black 20x9 20.0 9.0 5 5x139.7/5x150mm (5x5.5/150) 1 5.04 110.1 46.0
D56020907057 Matte Black 20x9 20.0 9.0 5 5x139.7/5x150mm (5x5.5/150) 20 5.79 110.1 47.0
D56020908250 Matte Black 20x9 20.0 9.0 8 8x165.1mm (8x6.5) 1 5.04 125.1 46.0
D56020908257 Matte Black 20x9 20.0 9.0 8 8x165.1mm (8x6.5) 20 5.79 125.1 47.0
D56020909849 Matte Black 20x9 20.0 9.0 6 6x135/6x139.7mm (6x135/5.5) 2 5.08 106.1 44.0
D56020909856 Matte Black 20x9 20.0 9.0 6 6x135/6x139.7mm (6x135/5.5) 19 5.75 106.1 47.0
D56022001747 Matte Black 22x10 22.0 10.0 8 8x170mm -18 4.79 125.1 57.0
D56022001757 Matte Black 22x10 22.0 10.0 8 8x170mm 10 5.89 125.1 55.0
D56022007057 Matte Black 22x10 22.0 10.0 5 5x139.7/5x150mm (5x5.5/150) 10 5.89 110.1 55.0
D56022008247 Matte Black 22x10 22.0 10.0 8 8x165.1mm (8x6.5) -18 4.79 125.1 57.0
D56022009846 Matte Black 22x10 22.0 10.0 6 6x135/6x139.7mm (6x135/5.5) -19 4.75 106.1 54.0
D56022009857 Matte Black 22x10 22.0 10.0 6 6x135/6x139.7mm (6x135/5.5) 10 5.89 106.1 55.0
D56022209847 Matte Black 22x12 22.0 12.0 6 6x135/6x139.7mm (6x135/5.5) -44 4.77 106.1 65.0

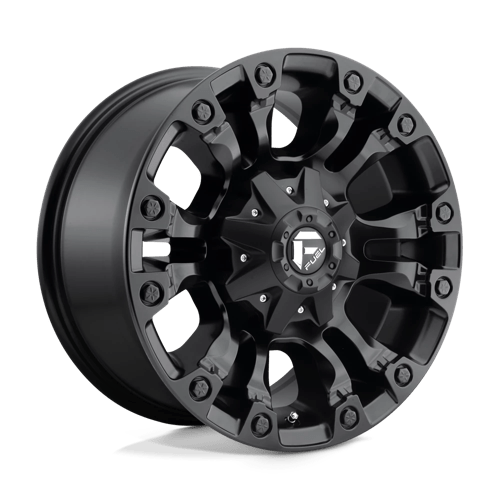

These Vapor wheels are made of one-piece cast aluminum and feature a 6 double-spoke design. These 6 spokes deeply inset the center cap. All black powder coat spokes and mock bolt heads on the outer lip. Black center cap adorned with the company logo.

These cast aluminum wheels provide strength, and performance all while delivering a stylish and appealing look to your rig.  They're available in a variety of sizes and other fitment options.

Part Number:  D56015800437

Features
  • Matte black
  • Variety of size options
  • Cast Aluminum
  • Strength and Performance
