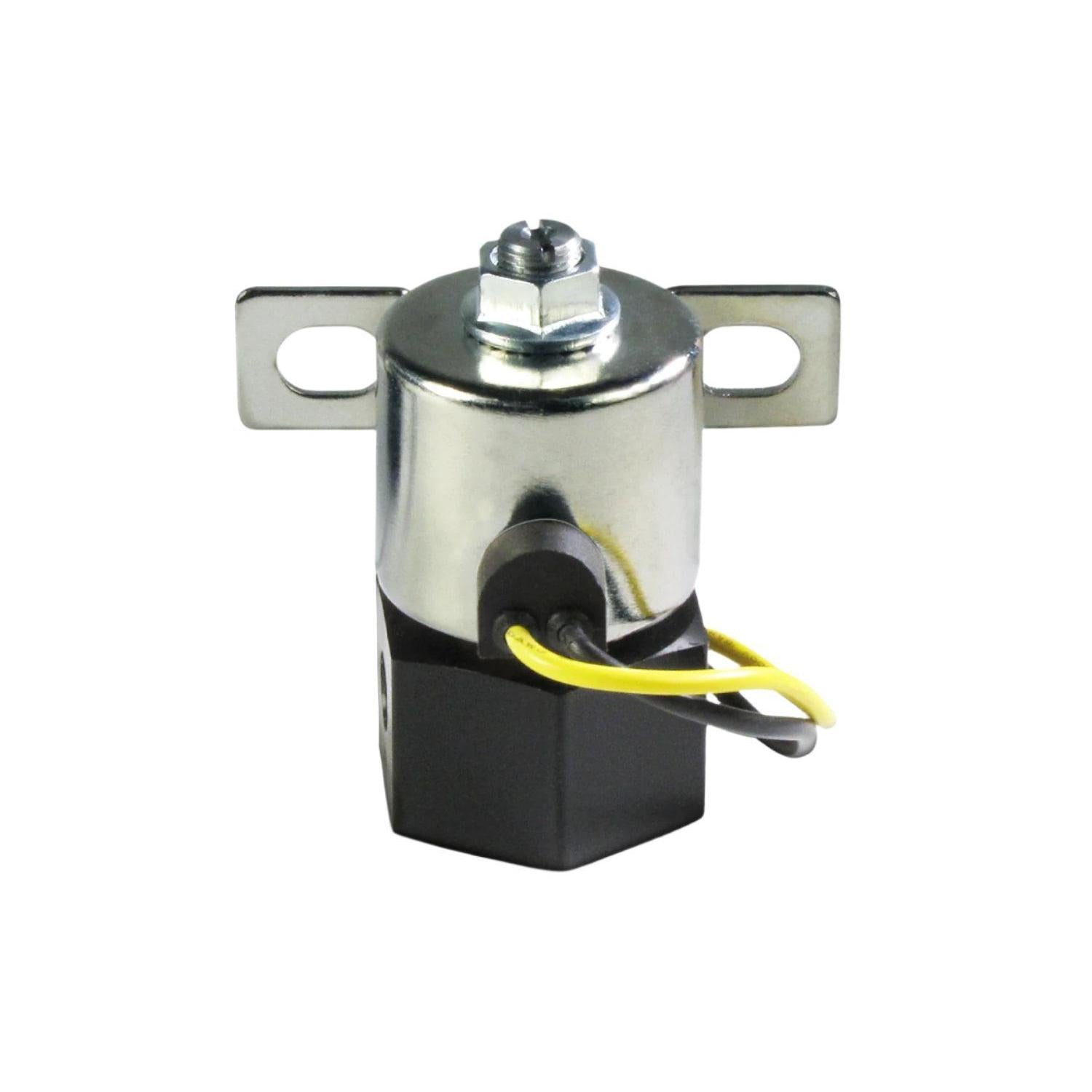

Exhaust Brake Solenoid 24 VDC (Pneumatic) 3-Way, 2-Position (C11979)

Name: Exhaust Brake Solenoid 24 VDC (Pneumatic) 3-Way, 2-Position (C11979)
Brand: PACBRAKE
SKU: C11979
Price: 147.21 CAD
Availability: InStock

PACBRAKE Part Number: C11979

$147.21 CAD

Purchase to earn 147 Dirty Dollars Learn More

Free shipping over $200 to most Canadian locations! Learn more

Description

Fits: Universal

An exhaust brake solenoid controls the exhaust valve timing, altering the engine's operation to work as a power-absorbing air compressor. This creates back pressure in the exhaust system, slowing the vehicle without using the service brakes.

This 24 VDC pneumatic exhaust brake solenoid is built tough for any job. Tested in the harshest conditions, it delivers reliable performance where you need it most.

Part Number: C11979

Features

Anodized Aluminum Valve Body
Zinc Chromate Plated Carbon Steel Solenoid Body
Corrosion Protected

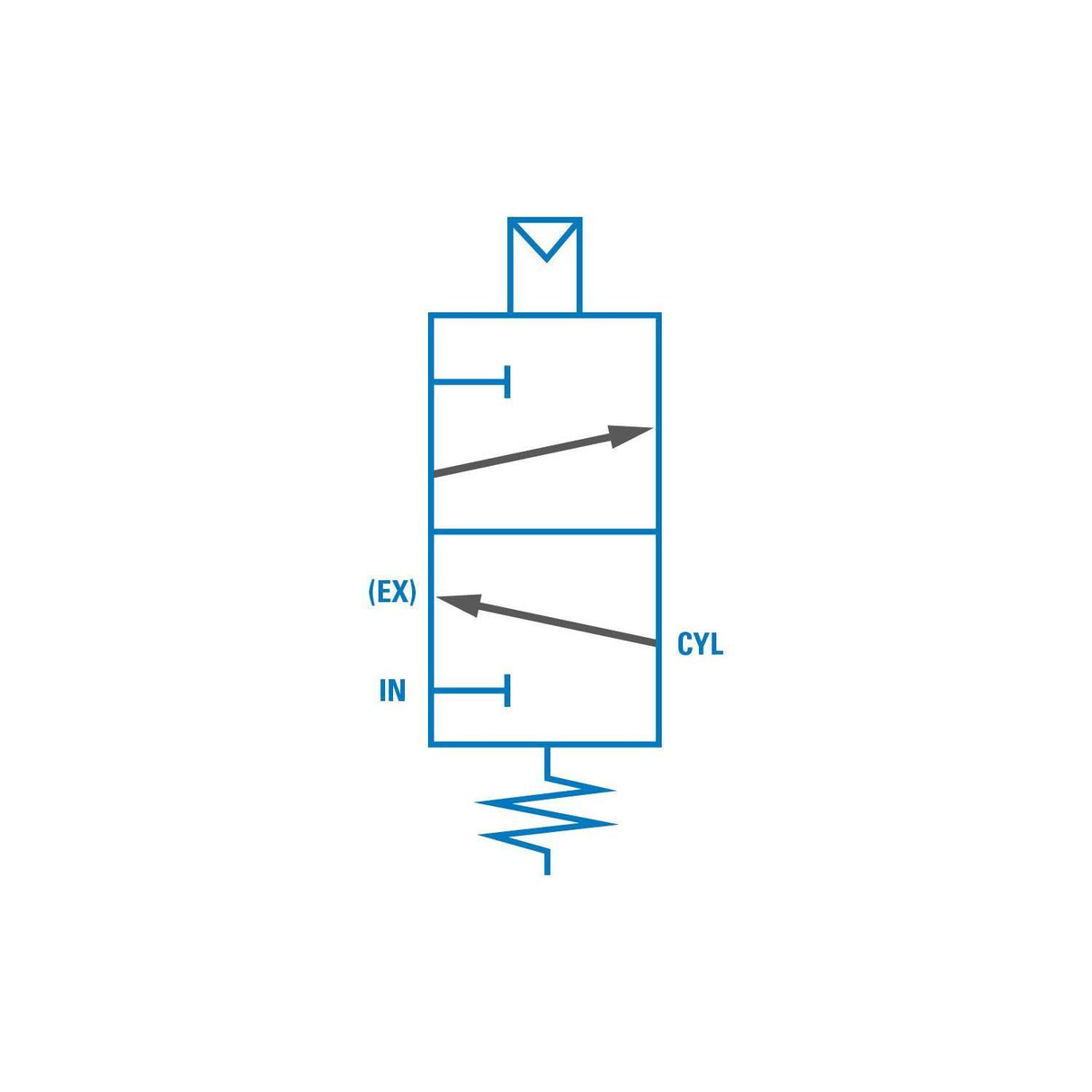

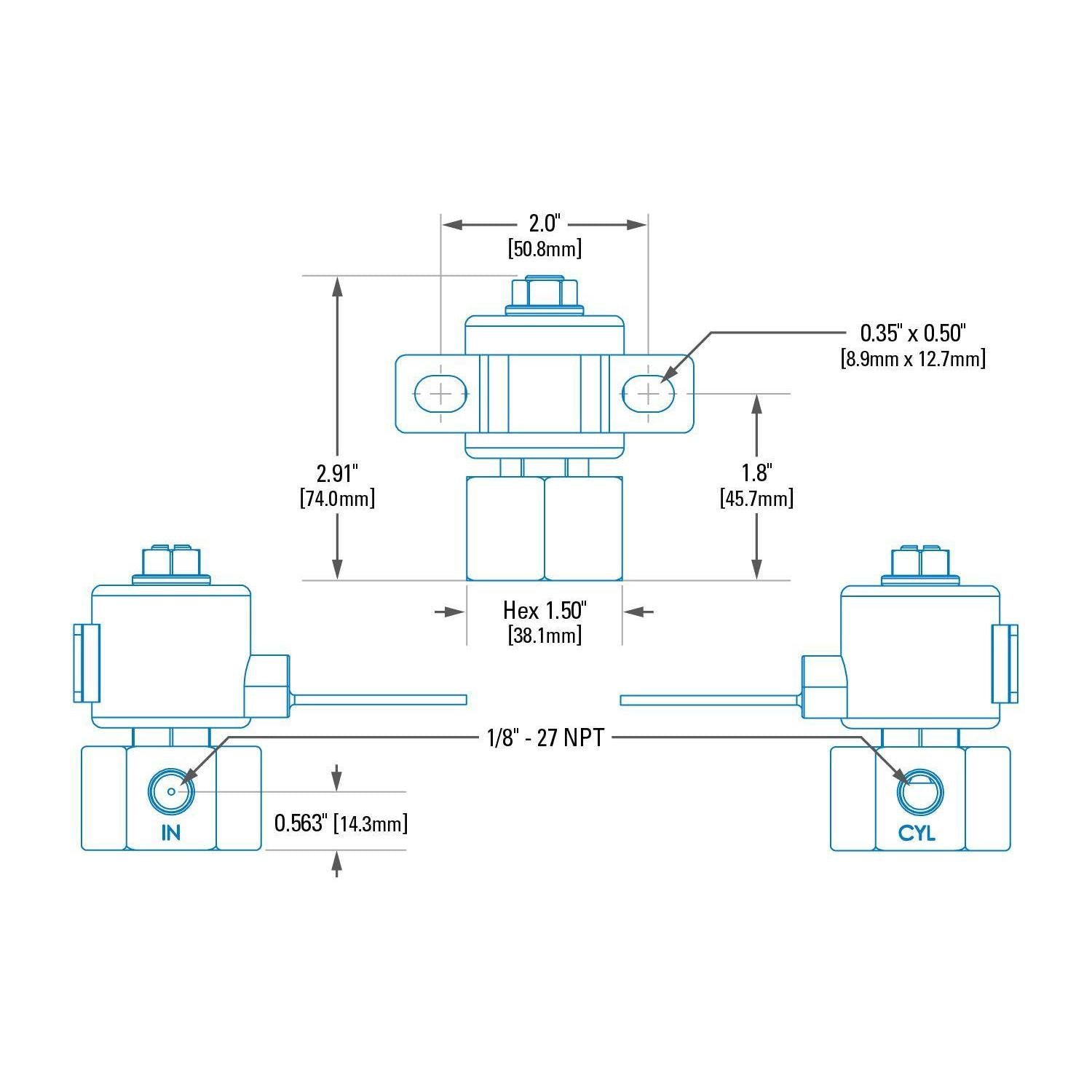

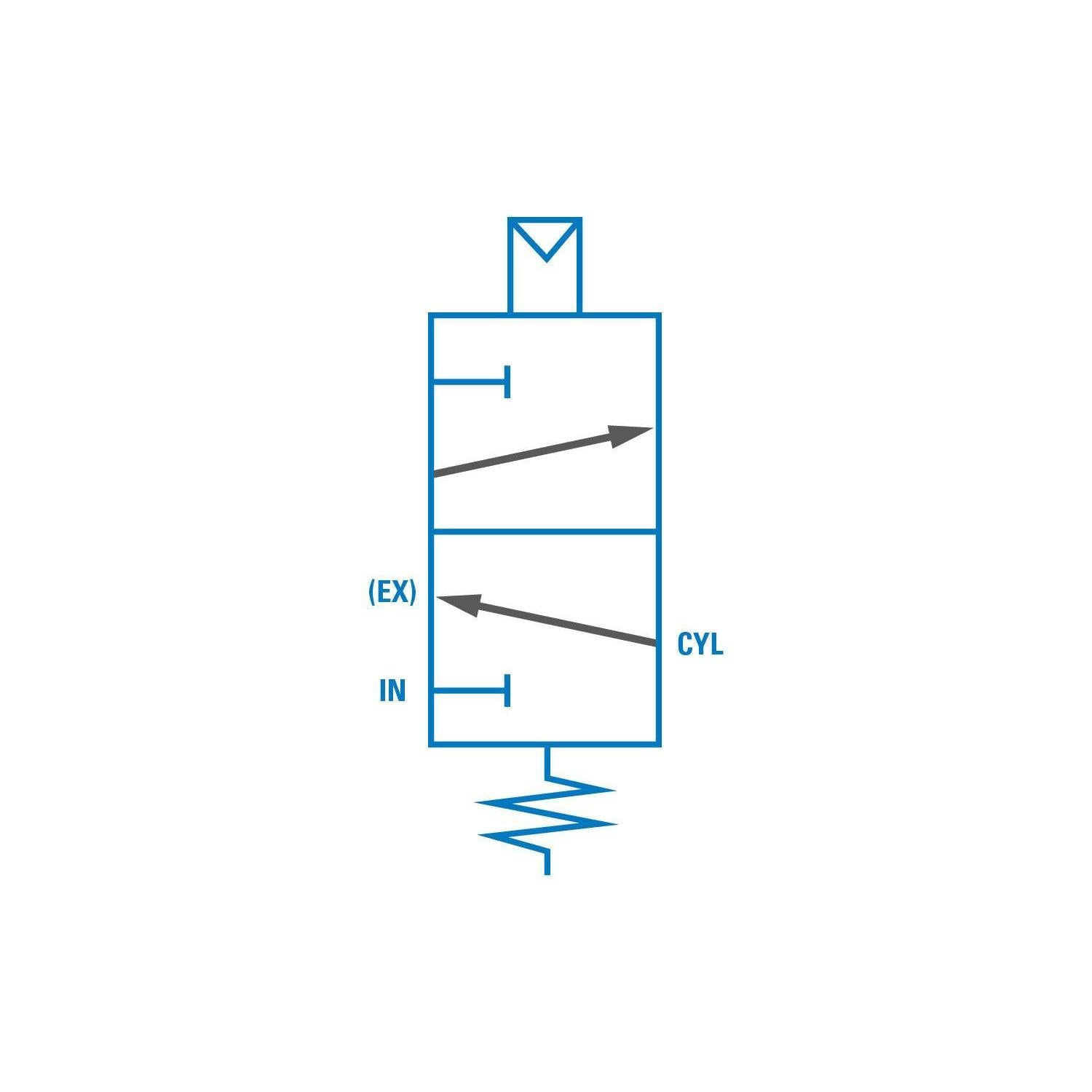

1/8" - 27 NPT Inlet "IN" Port — Normally Closed (opens when energized)
1/8" - 27 NPT Outlet "CYL" Port — Normally Open to Exhaust (Atmosphere)
18" [457 mm] long 18 AWG wire lead length
Voltage Range: 24 VDC (also available in 12 VDC)
Coil Resistance: 50 Ω

Additional Info

3-WAY, 2-POSITION PNEUMATIC 12 VDC SOLENOID

SPECIFICATIONS

Coil Resistance	10Ω
Maximum Operating Pressure	0 psi to 150 psi [0 kPa to 1034 kPa]
Operating Temperature Range	-40°F to 185°F [-40°C to 85°C]
Orifice Size	0.060 ± 0.003 [1.52 .08]
Port(s)	1/8" - 27 NPT (2 Ports)
