Universal Edge INSIGHT CTS3 MONITOR (84130-3)
Purchase to earn 724 Dirty Dollars Learn More
Price with add-ons:
Description
Description
Fits: 1996+ Vehicles w/ OBDII Port

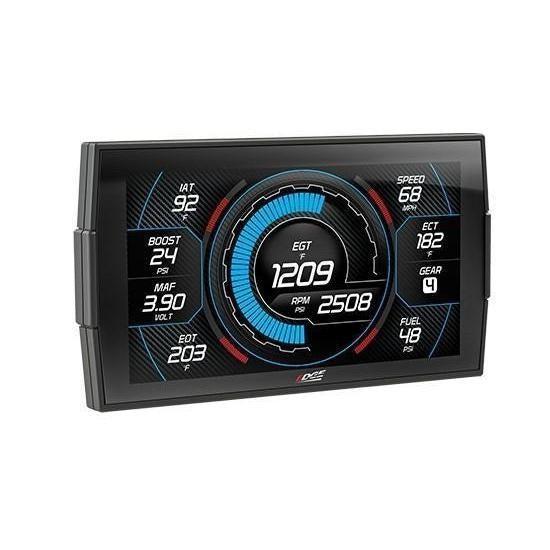

Upgrade your vehicle with the Edge INSIGHT CTS3 MONITOR! This advanced technology allows you to easily monitor up to 16 parameters and 8 sensors, including boost, speed, and voltage. The razor-thin 5" display seamlessly integrates into your cab, providing unmatched monitoring capability for OBD II vehicles. Get ready to understand your vehicle like never before!
With the CTS3, keeping track of your vehicle's performance and making improvements is a breeze. You have access to logging, graphs, and exporting for hundreds of different parameters. Plus, you can customize your display with a variety of options, including analog or digital formats, metric or US units, and unique backgrounds, arcs, keylines, and needles. And if that wasn't enough, you can even receive alerts when certain parameters or temperatures are reached or surpassed. From your everyday car to your tow rig or track-ready vehicle, the Insight CTS3 is the ideal monitor for all your needs!
Part Number: 84130-3
Features
Features
- Full-colour 5" capacitive touchscreen w/ auto-dimming
- Custom colour mixer for gauge arcs, needles, and backgrounds
- Multiple gauge screen layouts
- Fully customizable backgrounds
- HDMI style plug for power and linking EAS accessories
- One-touch easy menu navigation, Swipe capability
- Notification center
- Available for 1996 and vehicles equipped with an OBDII (diagnostic) port
- Switch between US or Metric units of measure
- Comprehensive digital gauge display
- Available for 1996 and newer vehicles equipped with an OBDII port
- Compatible with other tuning devices
- Displays dozens of parameters & Advanced integrated data logger with export capability
- Ability to add an Edge backup camera
- Wi-Fi Updatable
- 3rd Generation design is faster and more capable than ever
- Plug and Play install (plug into OBDII port)
- Clear and Read DTC codes
Notes
Notes
-
Some features may vary by make/model/year
- Extra sensors are required for certain parameters
- To utilize a backup camera on the Insight CTS3, a new adaptor will be needed. (CTS3 Camera Adaptor will be released soon!) 1998.5-2005 Dodge Ram coverage will also be coming soon!
- CARB EO NOT REQUIRED
- Performs Manual DPF Regeneration in 2018-2020 3.0L Ford F150 Diesel, 2011-2024 6.7L Ford Diesel, and 2007.5-2024 6.6L GM Diesel, 2020-2022 3.0L GM Duramax
- Performs Mobile DPF Regeneration in 2015-2022 3.0L Ram Diesel, 2007-2018 6.7L Ram Diesel, and 2011-2023 6.6L GM Diesel
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Additional Info
Additional Info
-
Diagnostics:
- The CTS3 also doubles as a diagnostic scan tool, allowing you to solve the mystery of your "check engine" light!
- Gives the ability to display injector balance rates as well as to scan & display vehicle trouble codes with a full code description
-

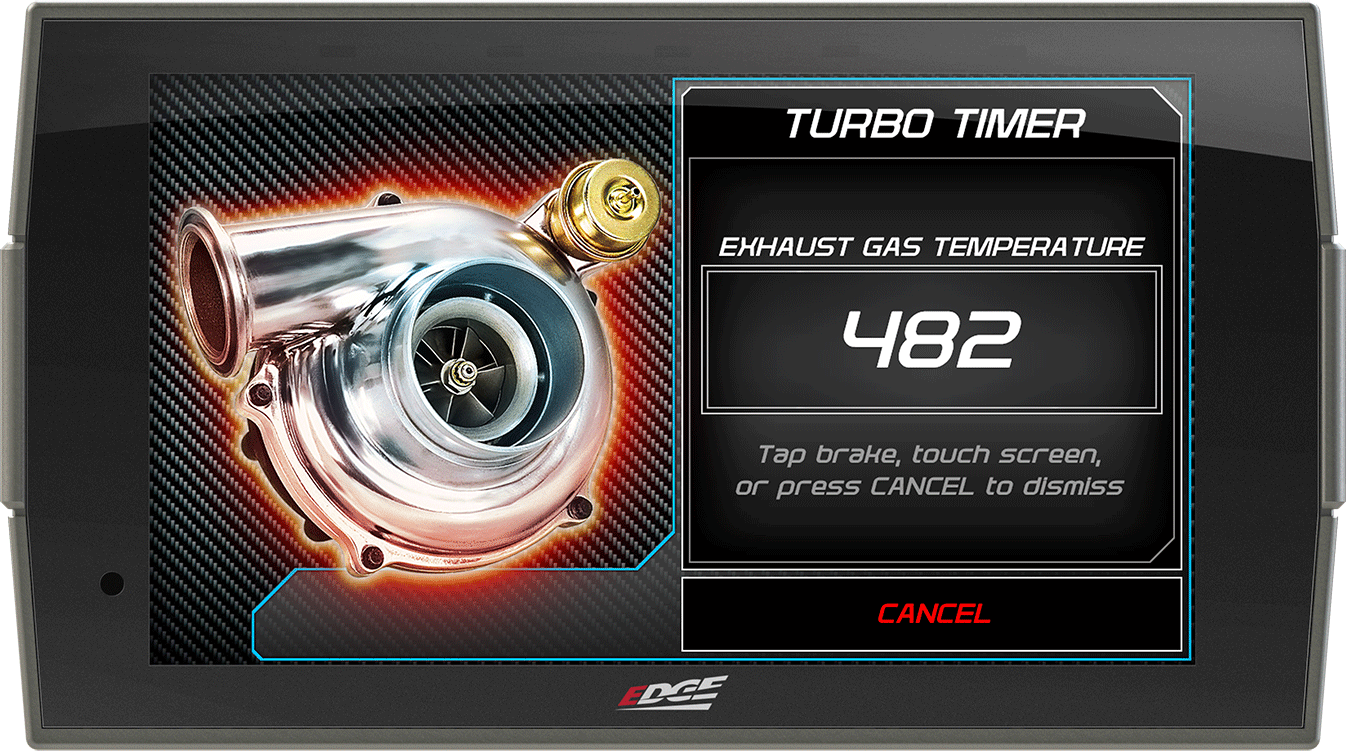

Turbo Timer:
- This is a must if you have a diesel application!
- Keeps your truck running at an idle after you have shut it off, allowing the oil in your turbo cool down.
- Prolongs the life of your turbo and motor by preventing both premature bearing wear and reduced oiling of the bearing.
-

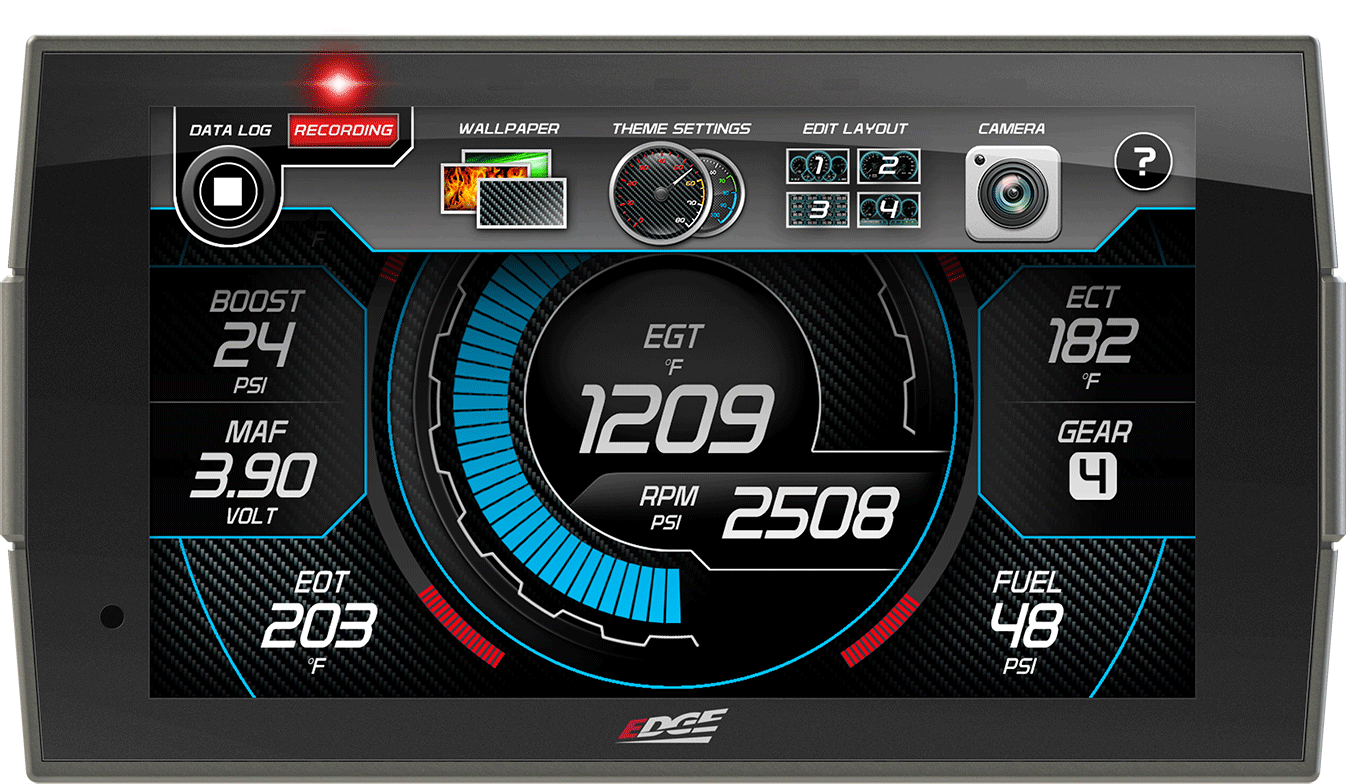

Data Logging:
- From the top pull-down menu, you can start/stop recording you're parameters straight from the device. Then, take your CTS3 to the computer and open your logs with the Dataviewer software!

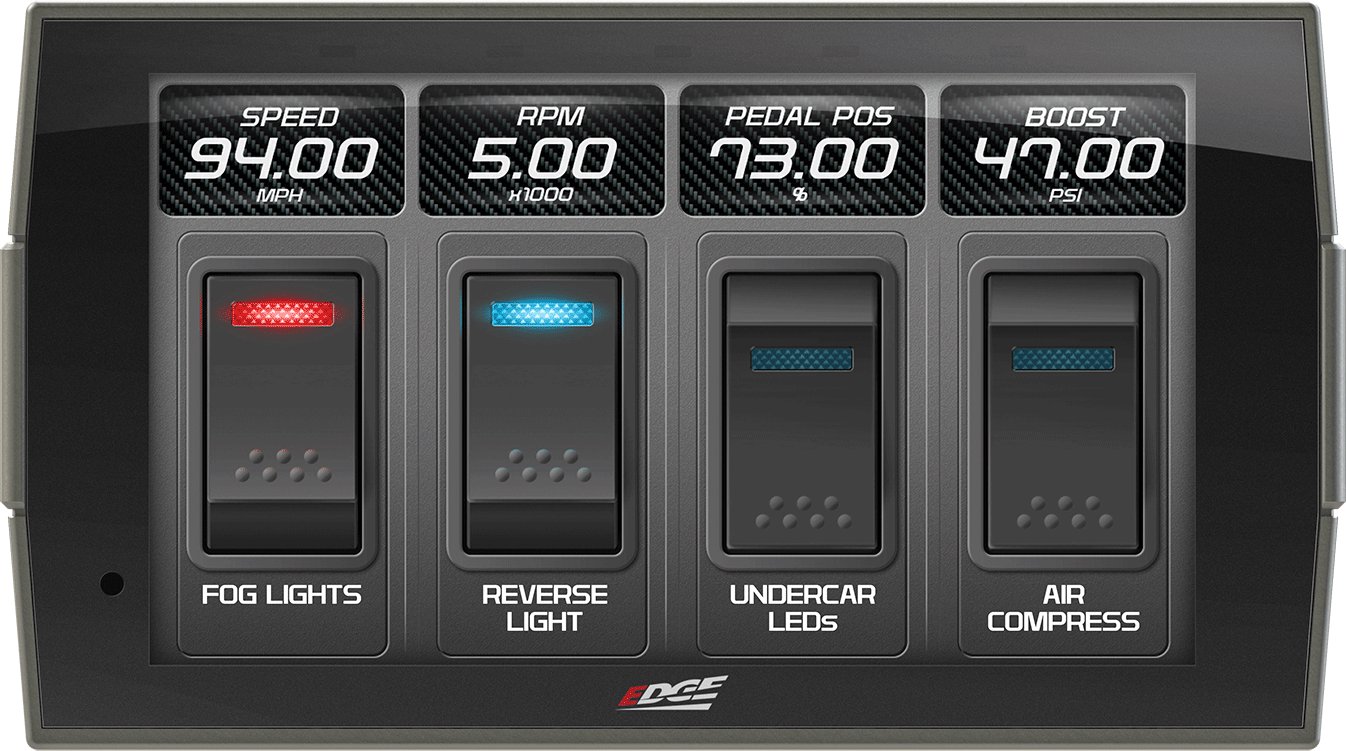

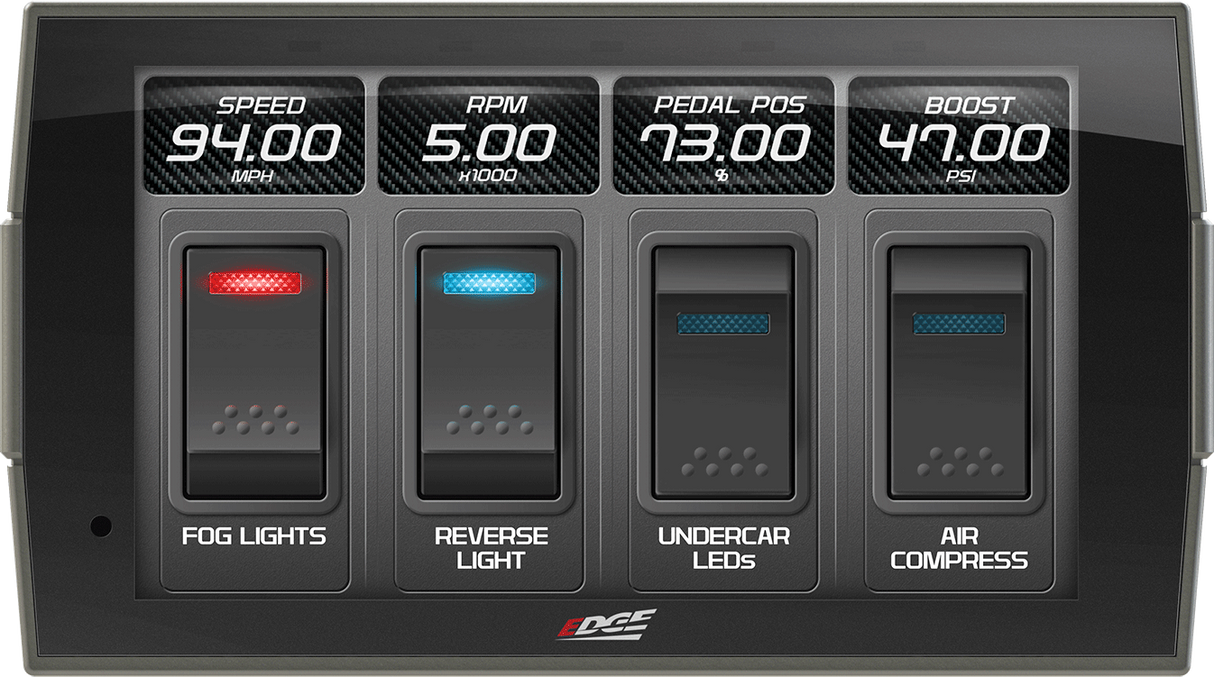

- Power Switch Screen:
- A great option screen for truck owners.
- It gives you the ability to hook up accessories like aftermarket lights, air compressors, etc and engage them from the CTS3 power switch screen!
-

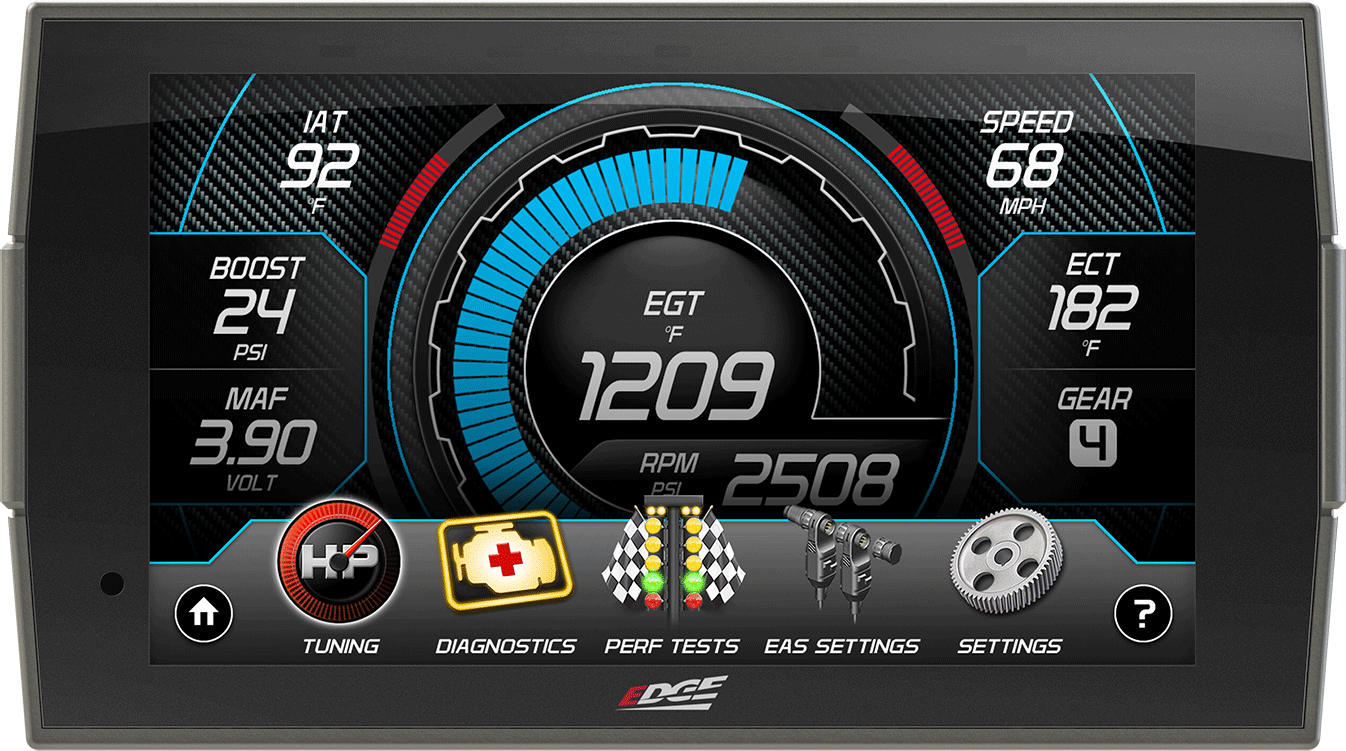

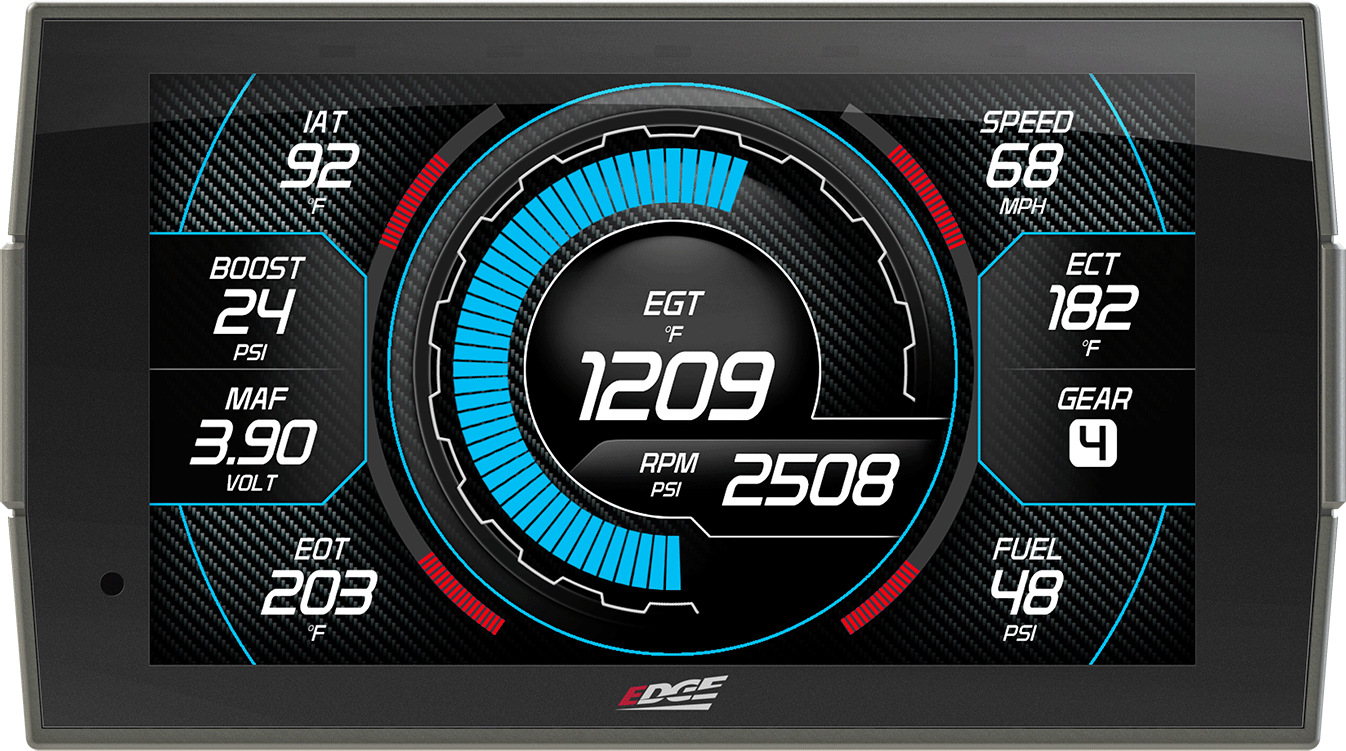

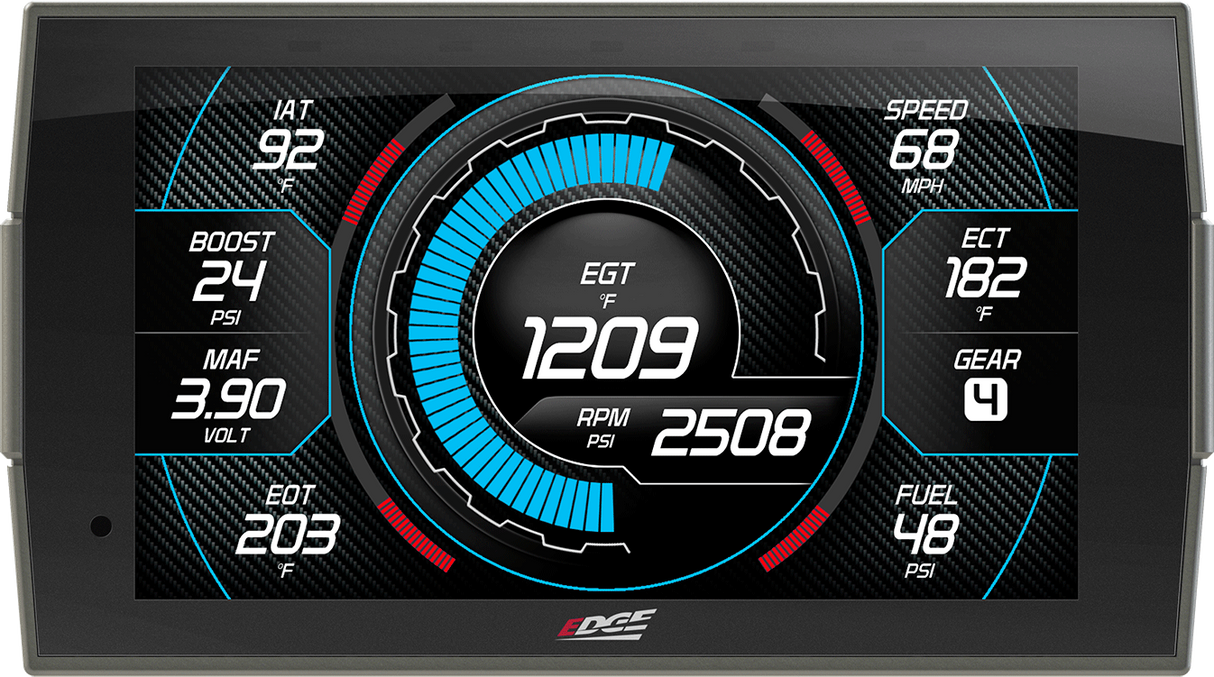

Updated Modern Screen:

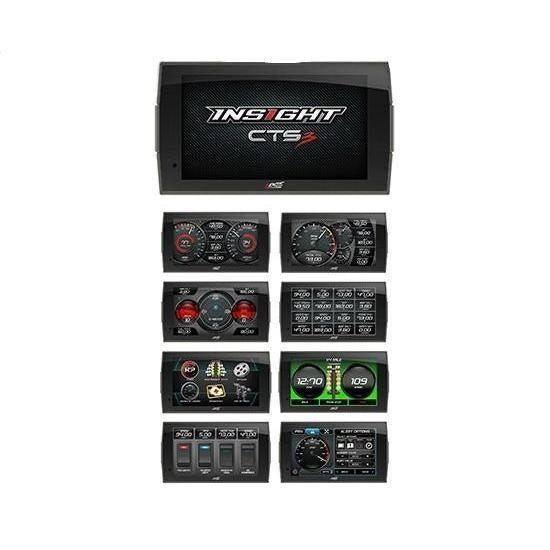

- Choose over 20 multiple custom gauge screens that monitor your vehicles vital parameters
- Allows you to monitor 10 parameters at once

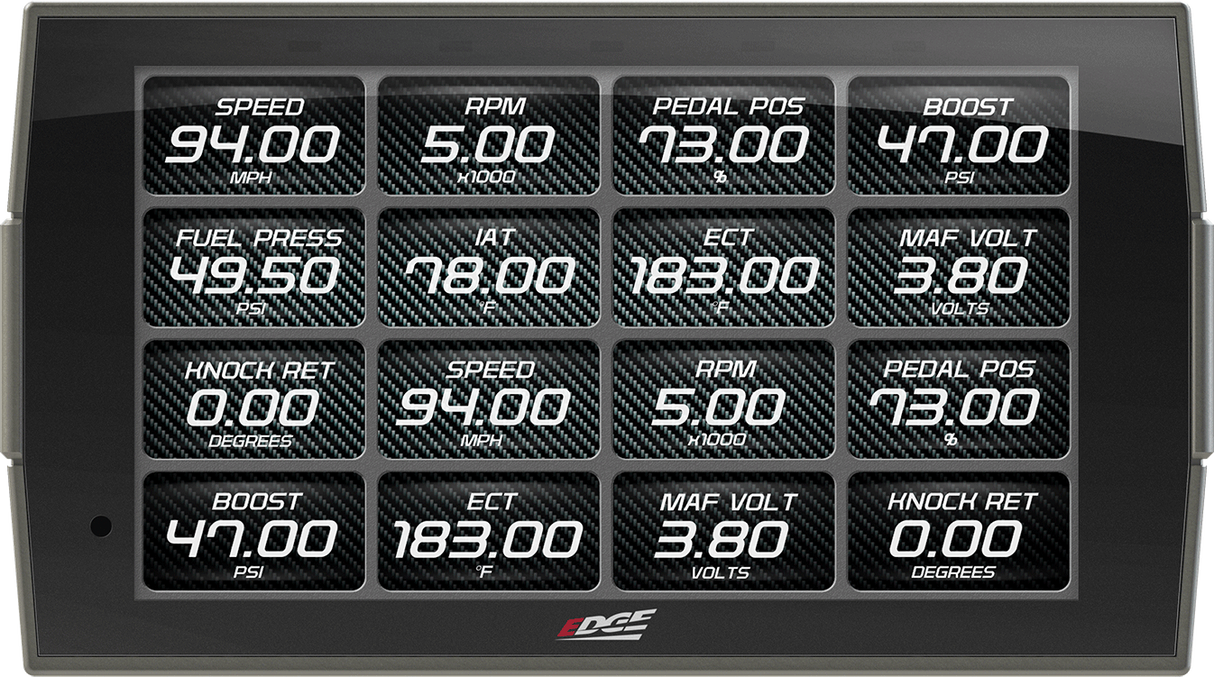

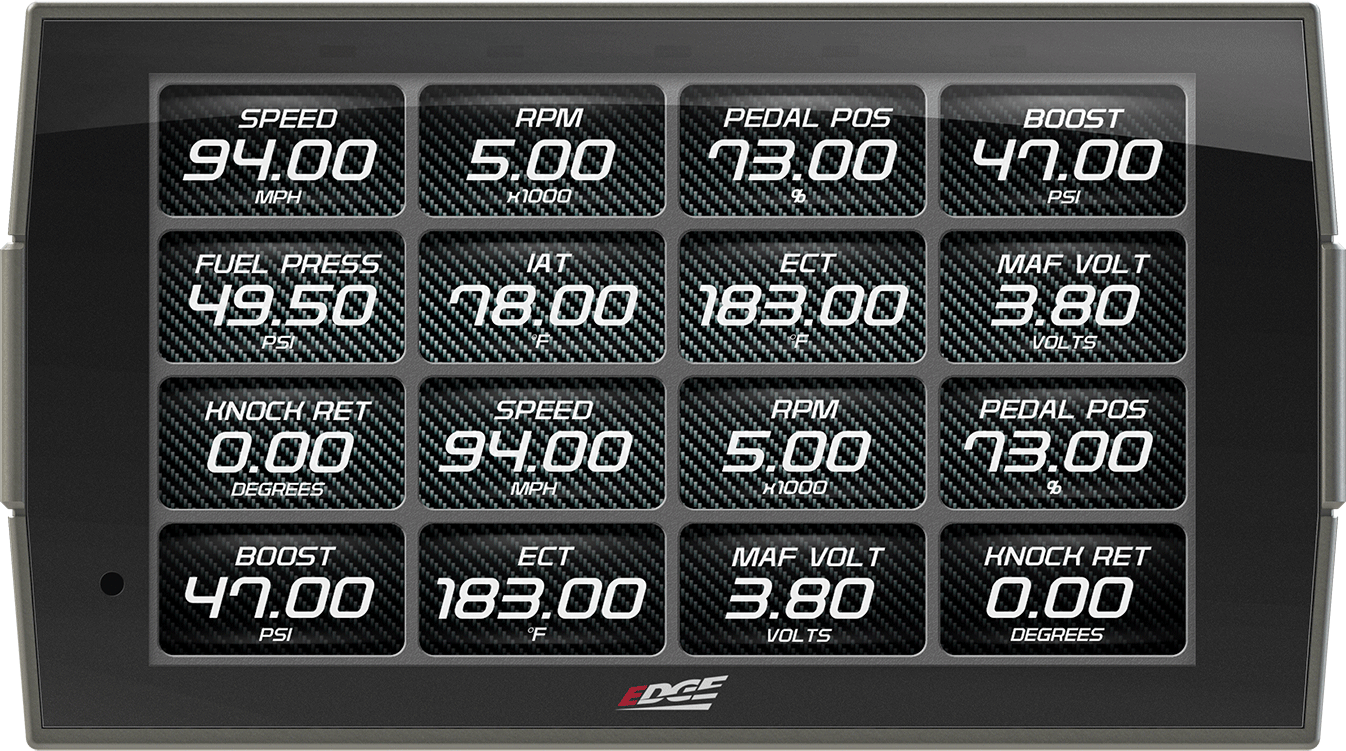

- Digital Screen:
- Created For the ultimate gearhead that is wanting to watch as many parameters (PIDS) as possible
- 16 parameters & 8 sensors which can all be recorded
- A favourite screen for competition trucks!
-

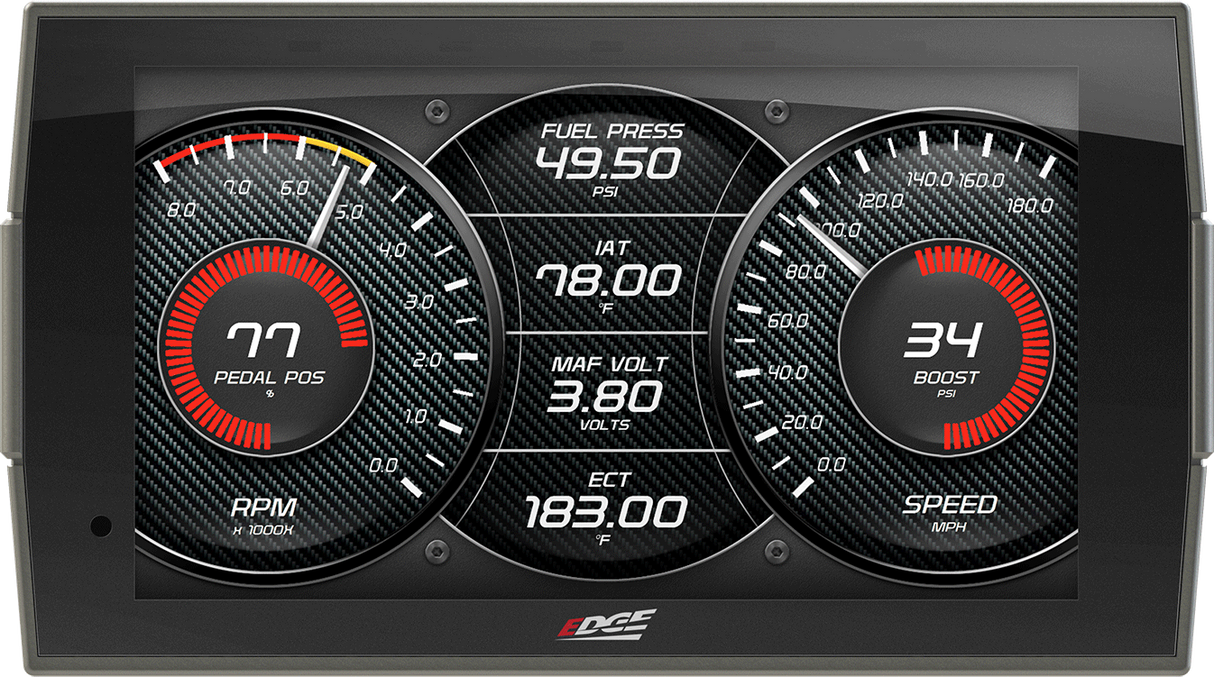

Analog Gauge Screen:
- Goes back to an original-style of vehicle gauges
- Designed for customers who like a more traditional, analog-style gauge
- A redesigned, old-school-style with a new-age look
- Digital Dash Screen:
- Combines a hint of analog gauge layouts with the digital number display to keep the trendy new vehicle dash display

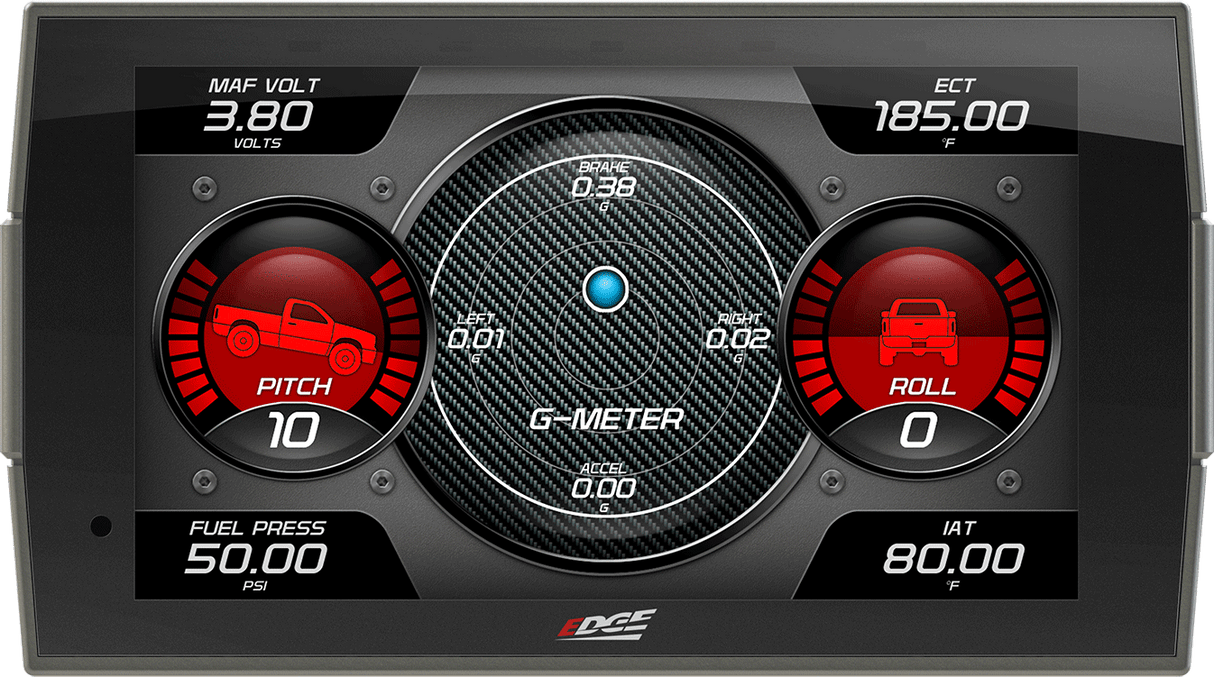

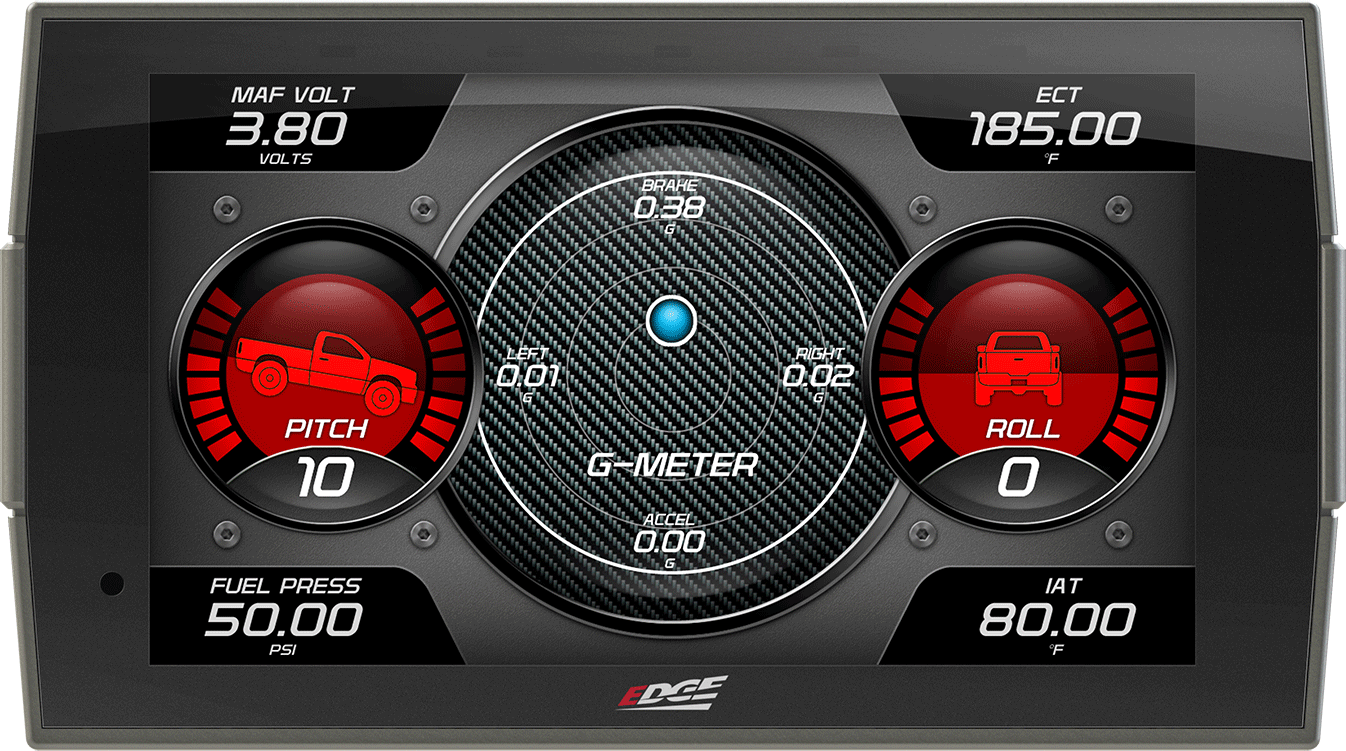

- Pitch And Roll Screen:
- Allows you to monitor your G's that you are pulling off the starting line or around a corner
- This screen could also be utilized to see the pitch and roll angle of the hill you're climbing!

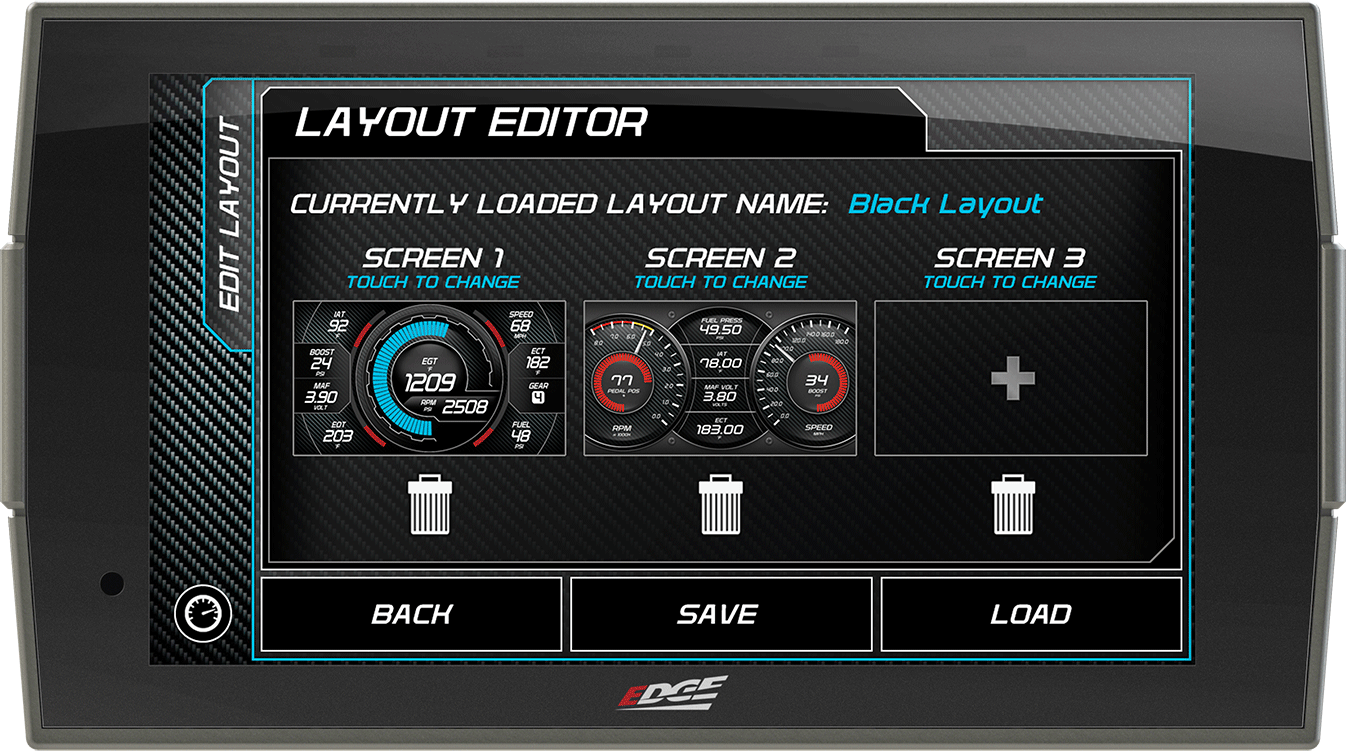

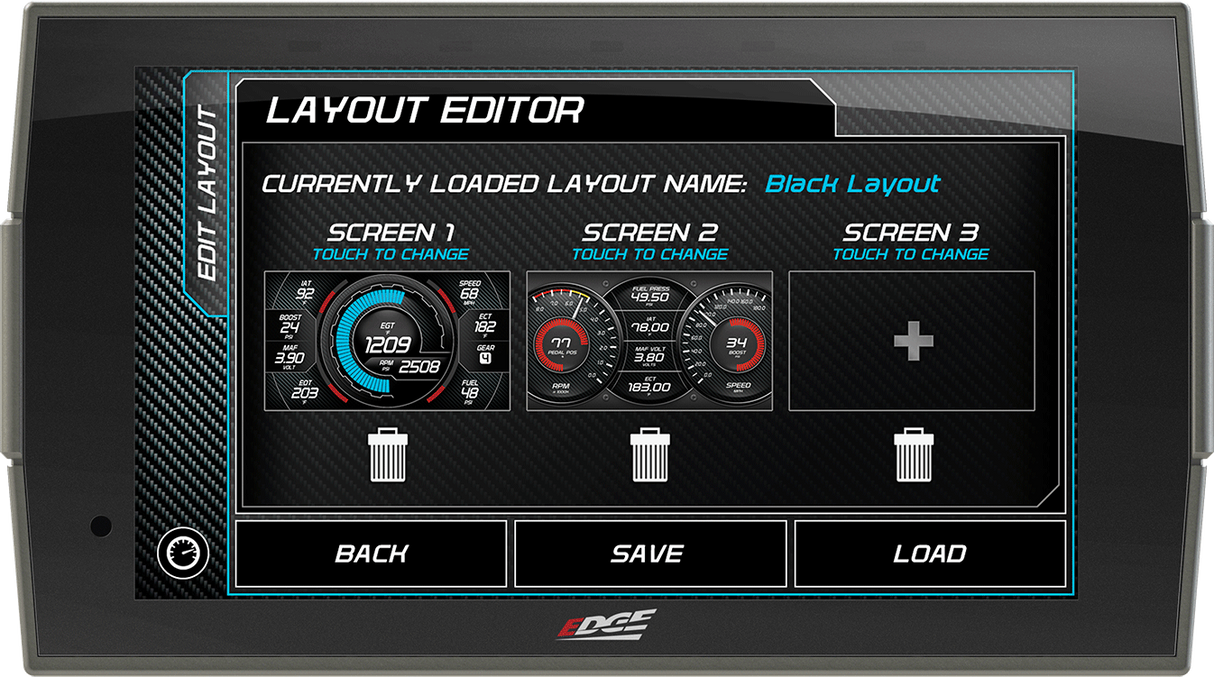

- Screen Layout Editor:
- Choose up to three screen layouts & save them to your device to swipe between at any time
- Can be saved for each layout style with black, modern, red, or chrome bezel settings

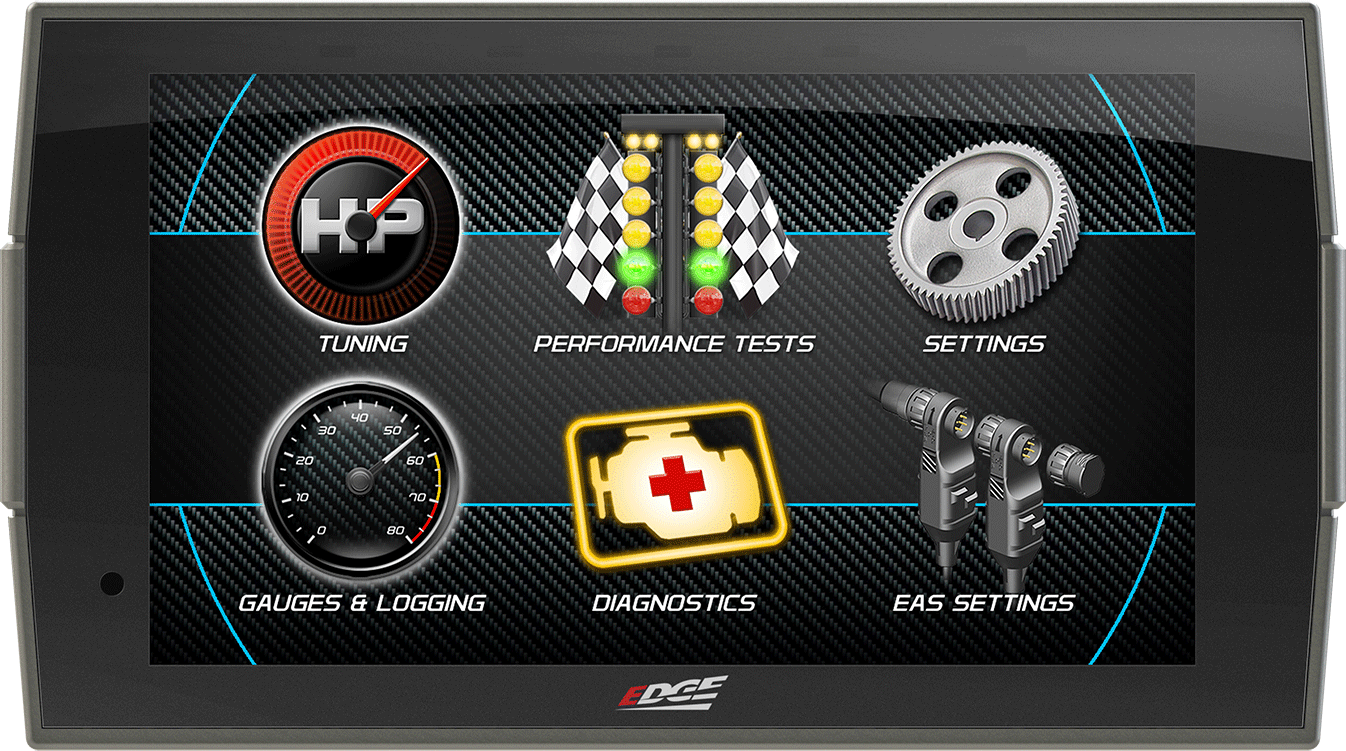

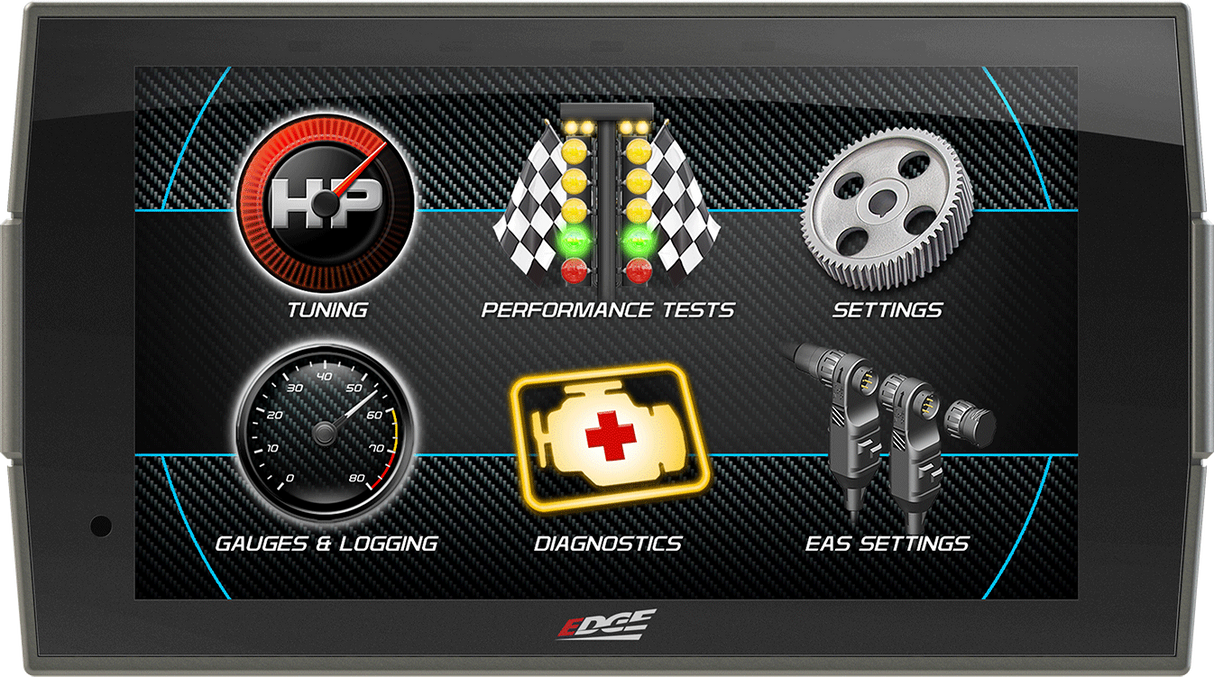

- Pull-Up/ Main Menu:
-
Features the quickest navigation to all specific CTS3 Menu Options
- Easily swipe up from the lower screen to quickly navigate from any gauge screen

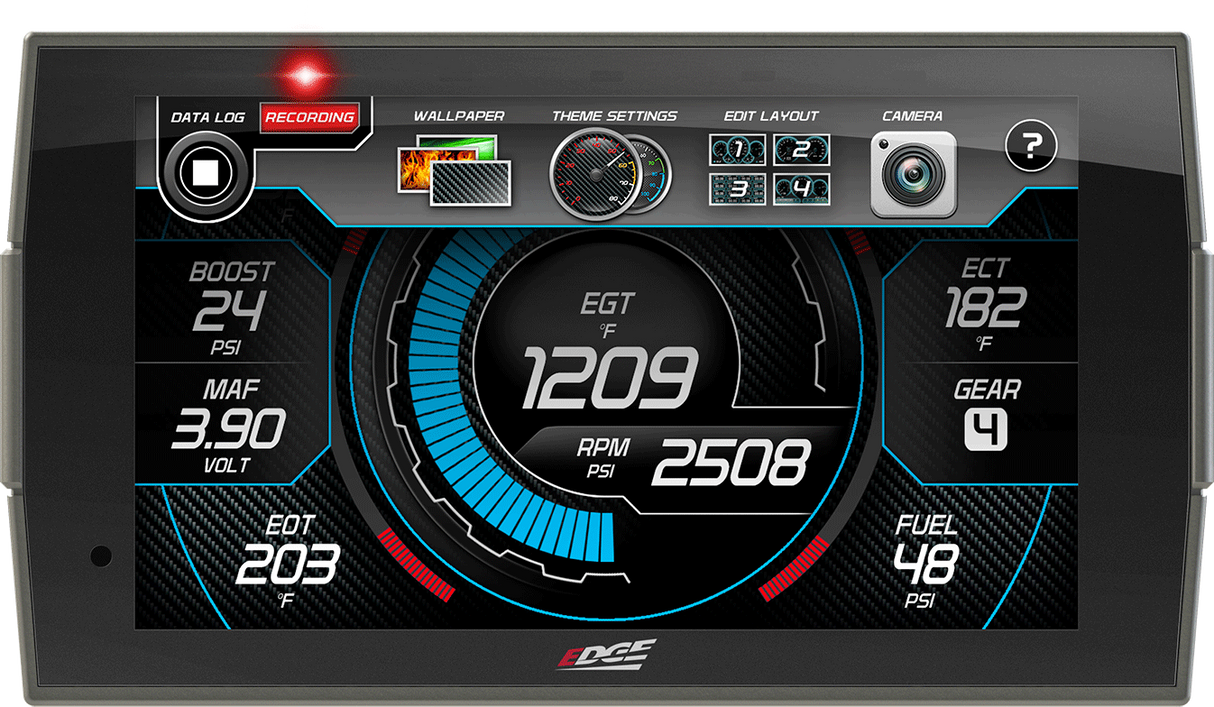

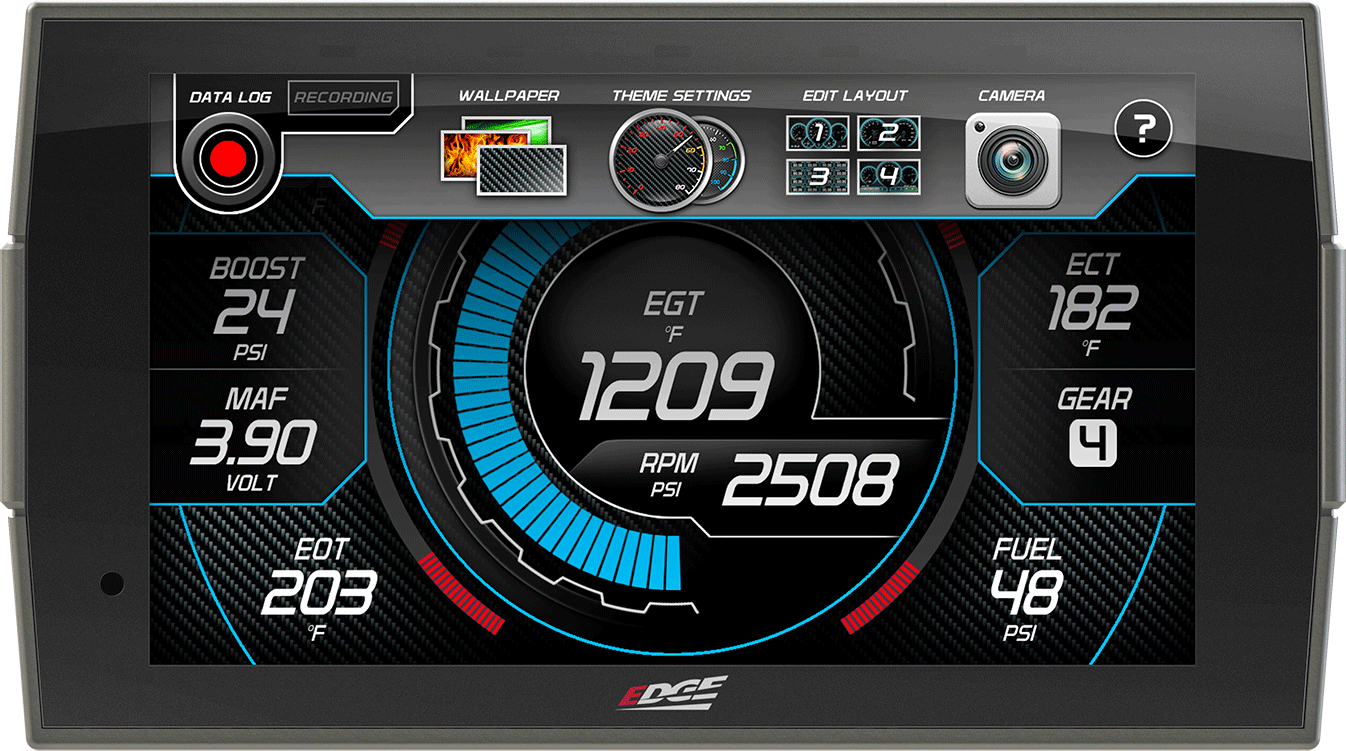

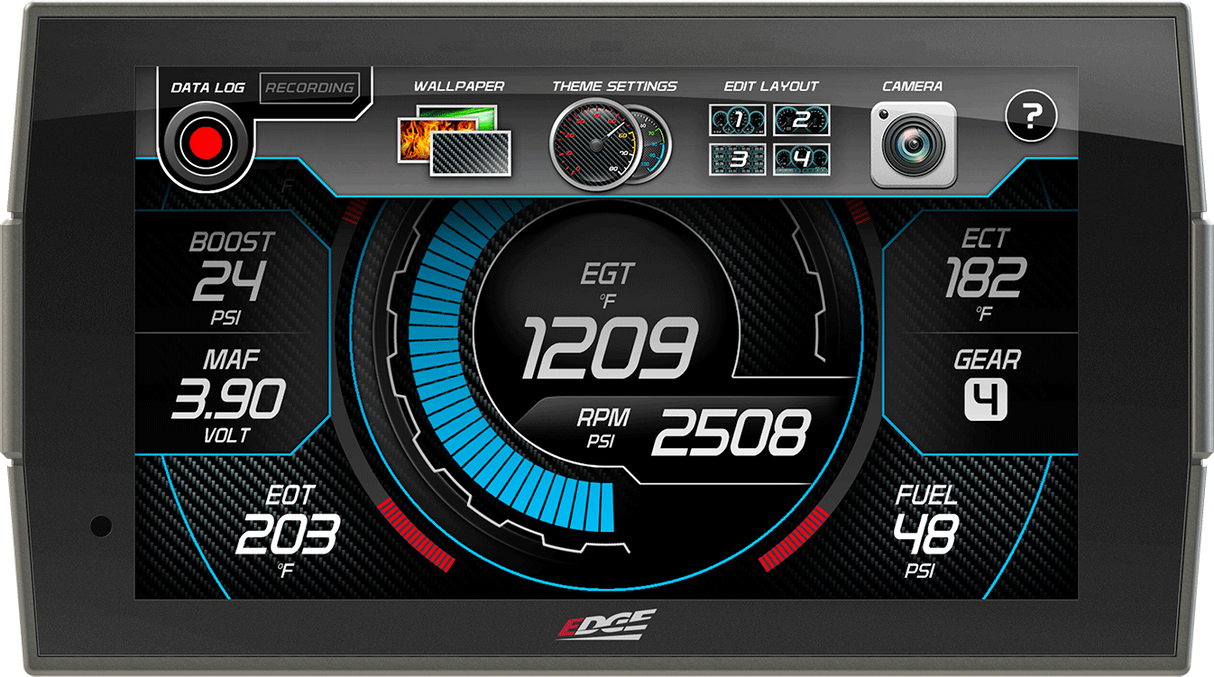

- Pull-Down Control Center:
- Swipe down from the upper part of the screen to view options that allow you to start a data log, change the wallpaper, adjust theme settings, edit gauge layout, access backup camera, or enter the help section.

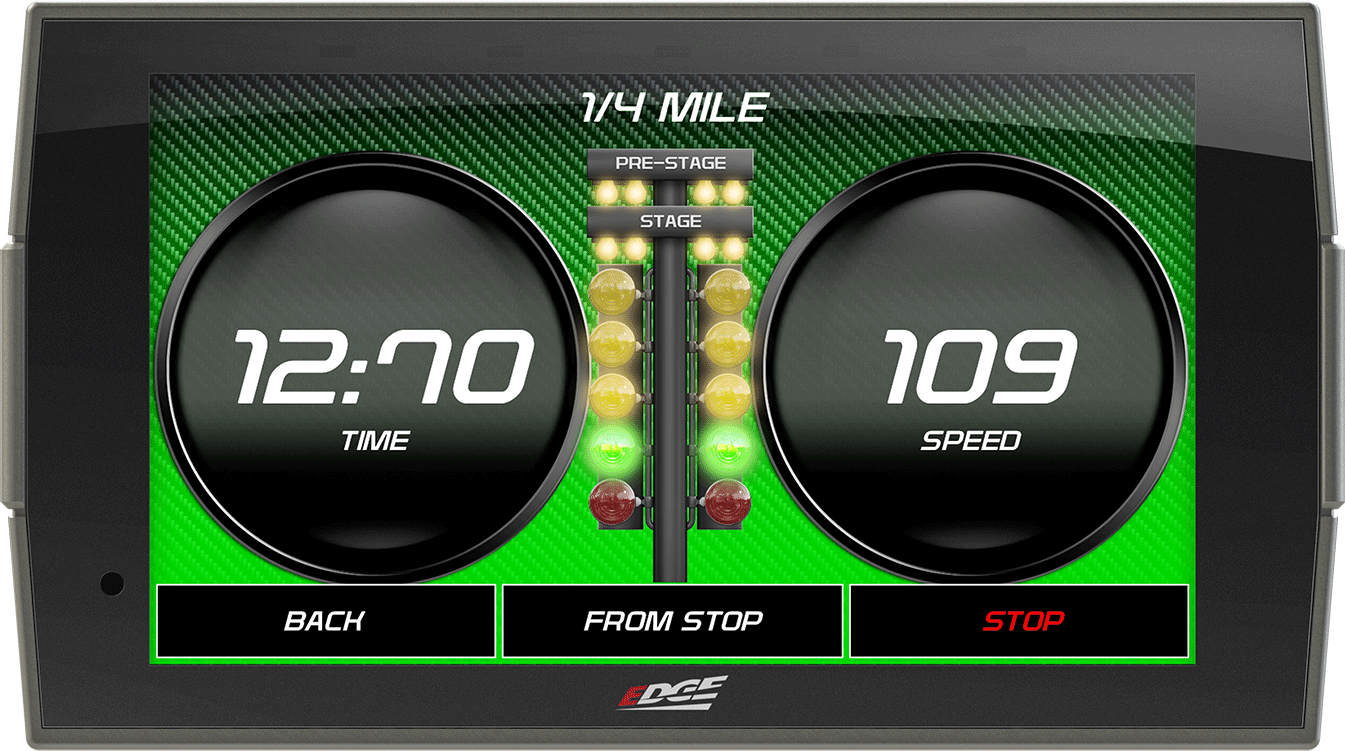

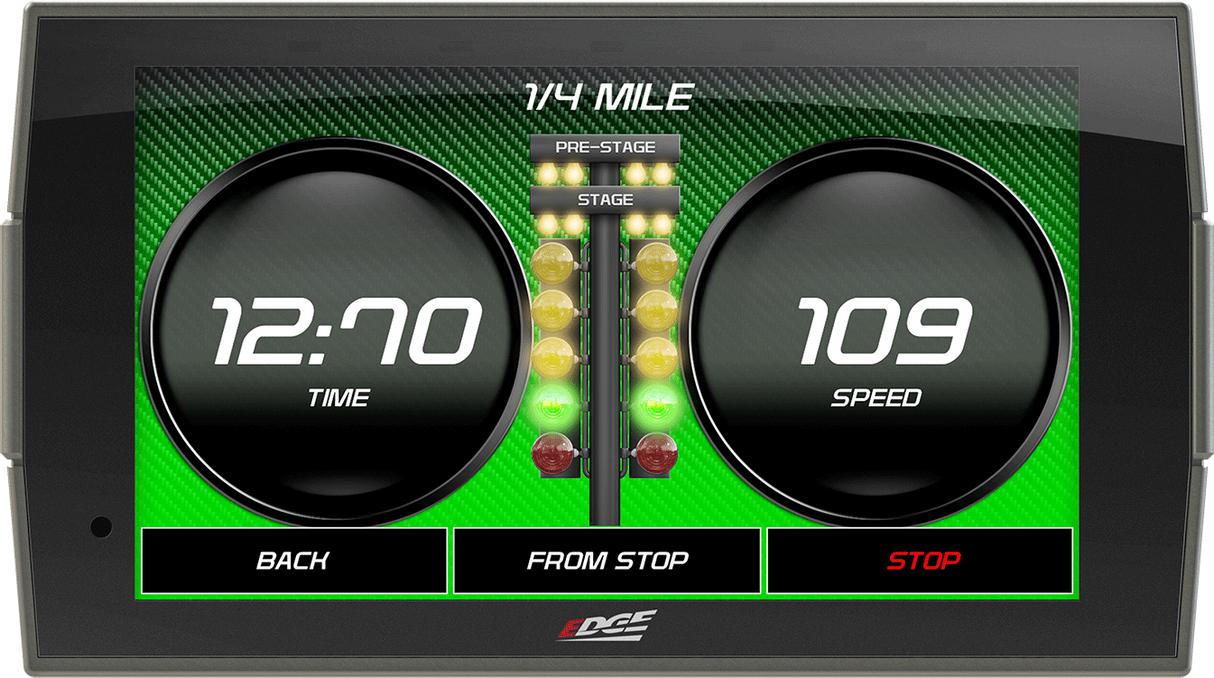

- Performance Testing:
- Allows you to test your vehicles newfound performance with one of Edge's various performance tests
- Test your vehicles 0-60, 0-100, 1/4 mile, Or 1/8 Mile
- Save test data on the new track ticket style datasheet!
-

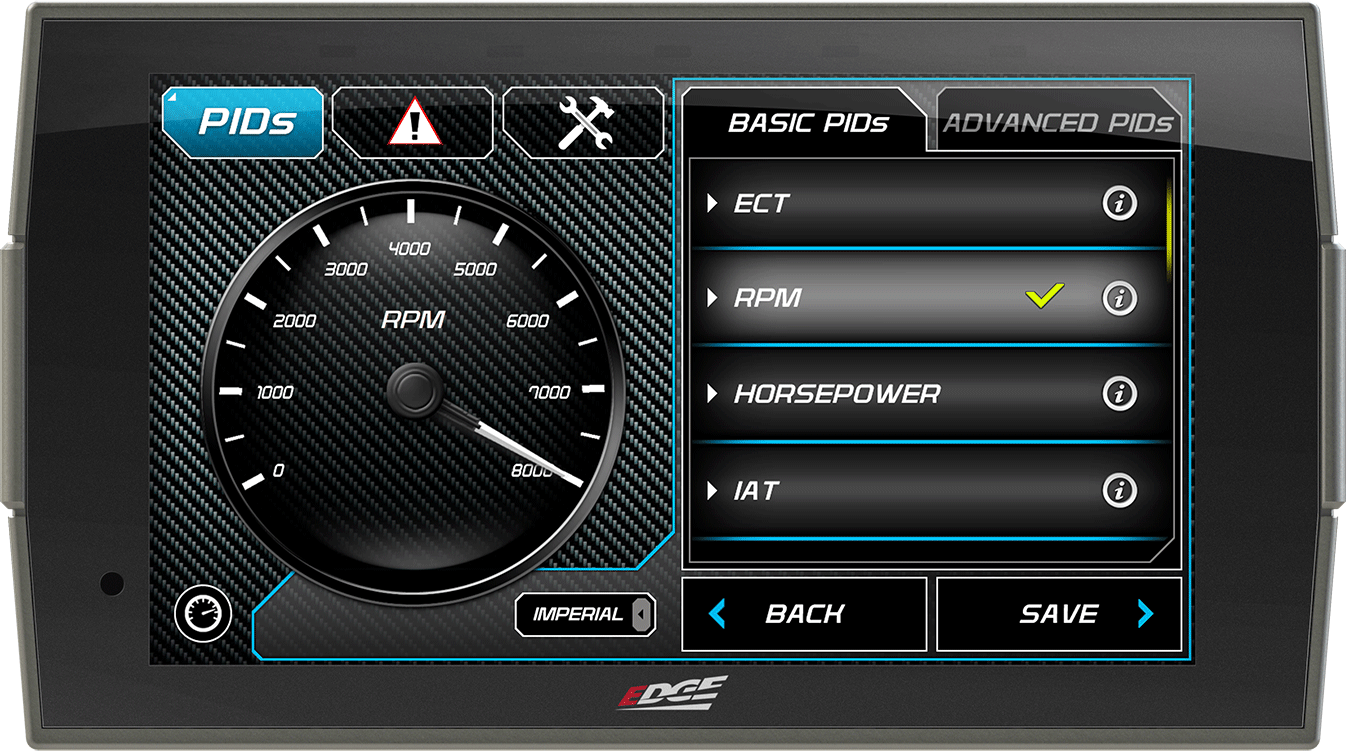

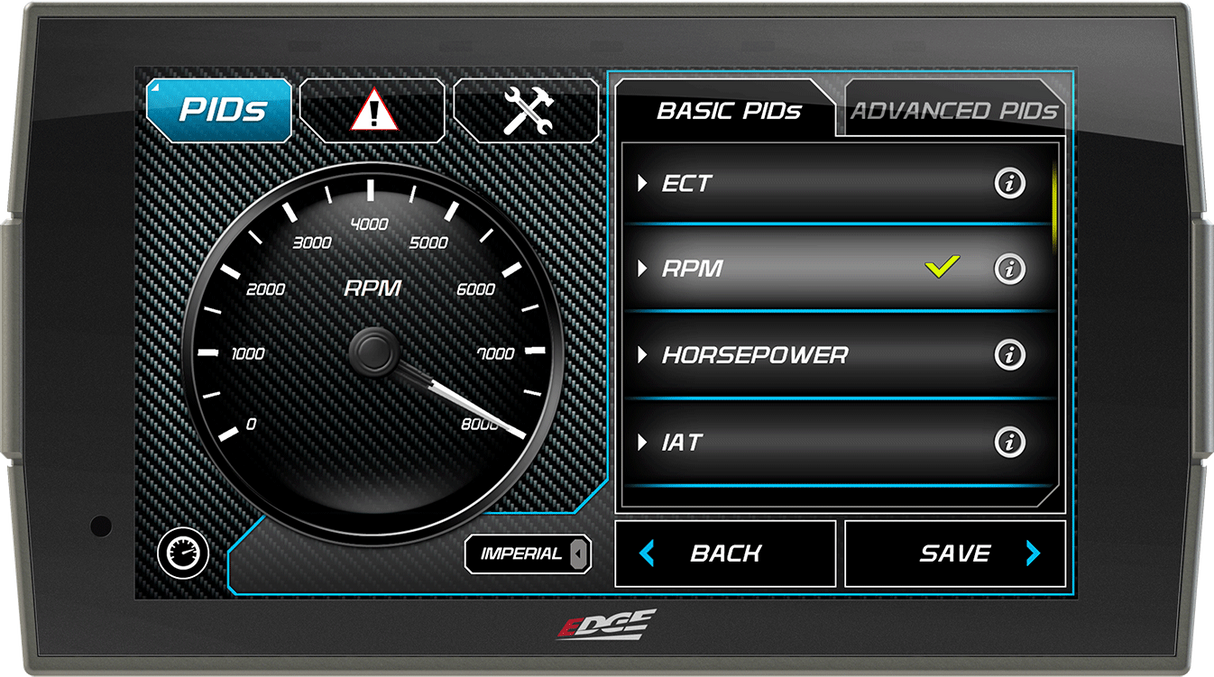

PID Selection:
-
The Selection Screen allows you to pick from hundreds of basic & advanced parameters that have been grouped together, creating a quicker search experience.
-

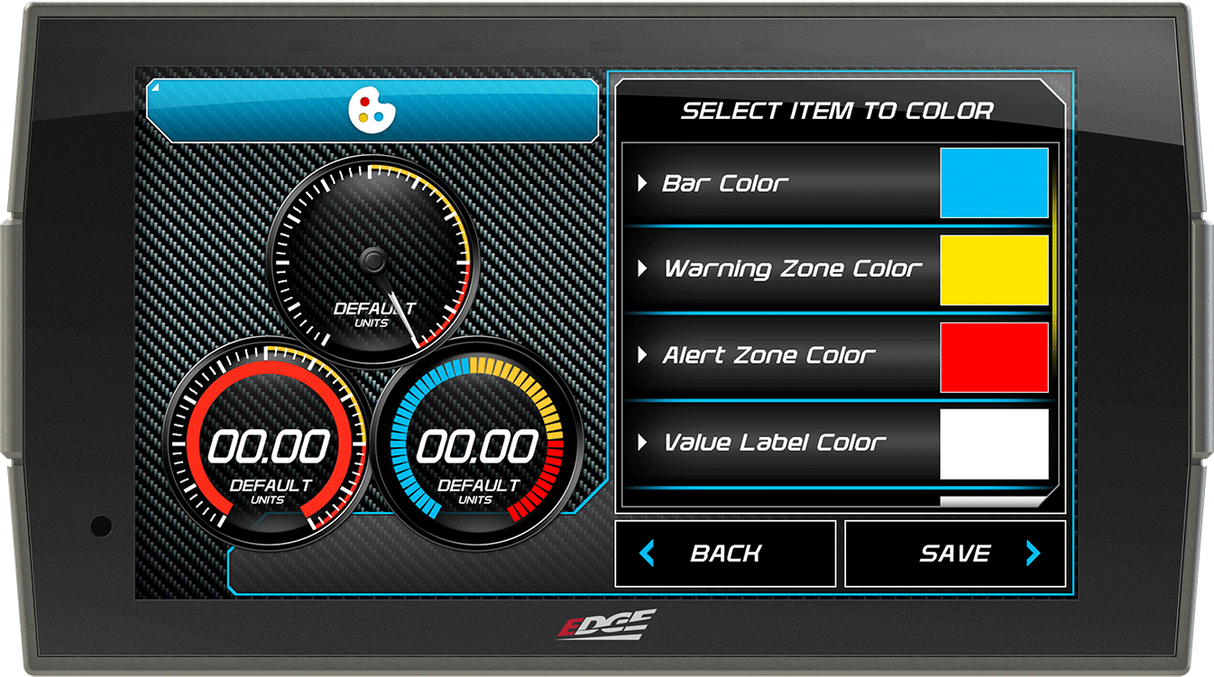

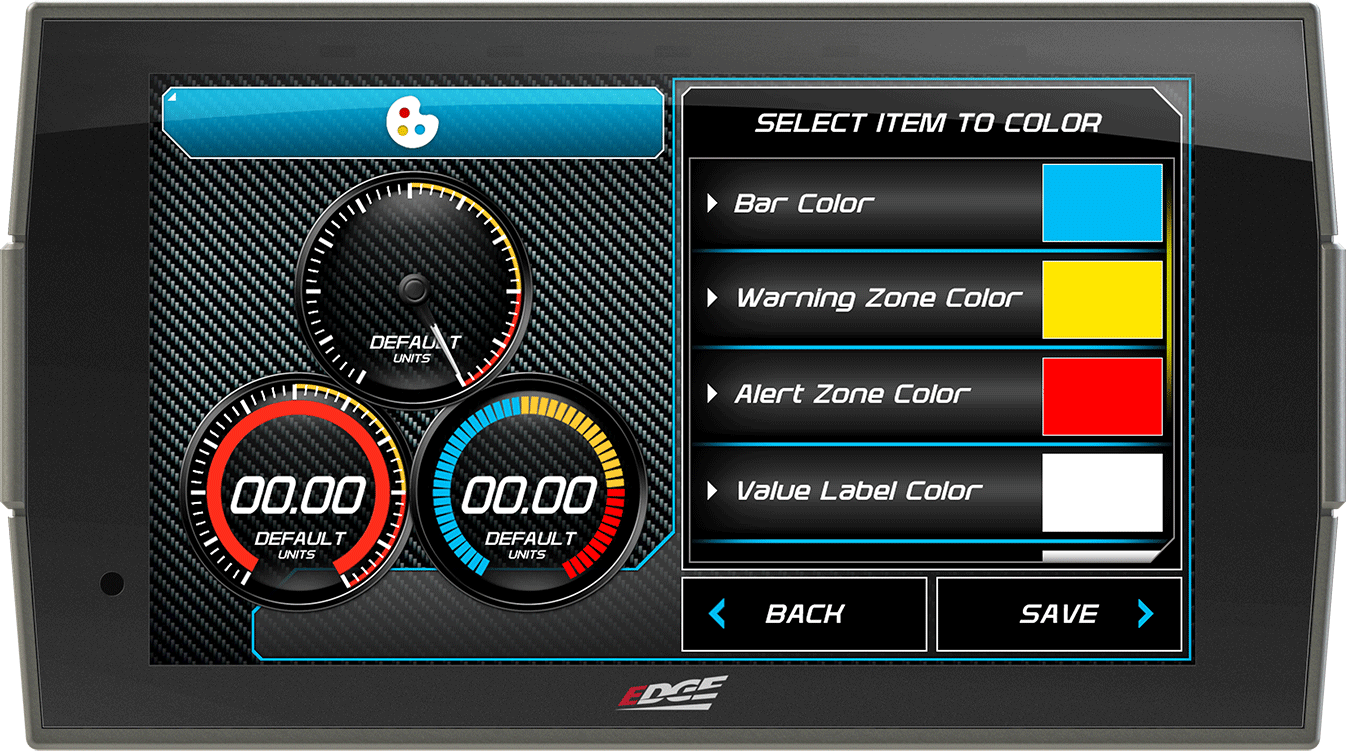

Theme Settings:
- With the all-new colour mixer screen, you can now custom mix any colour you want and apply it to your gauges or custom background.
- You can also change the gauge arc colours, tint the whole screen & more!
Installation
Installation

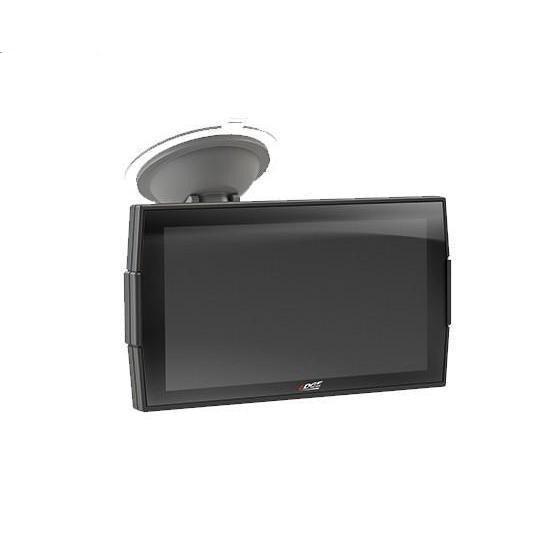

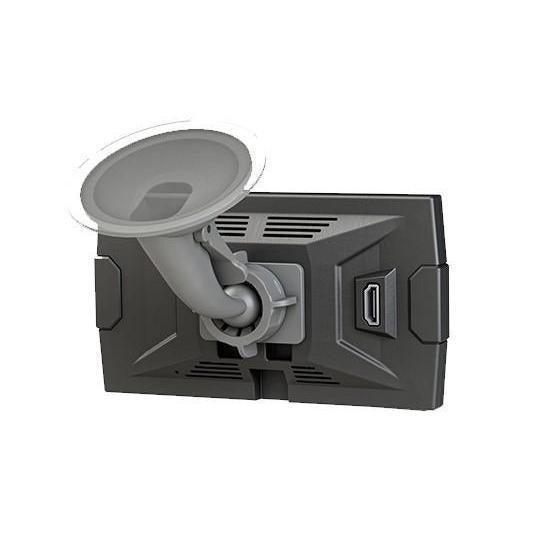

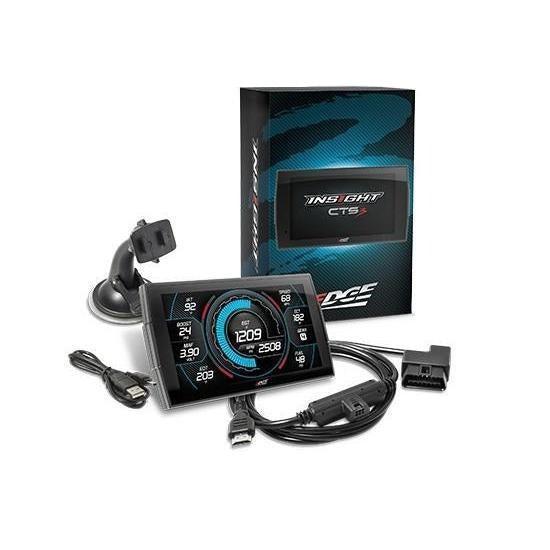

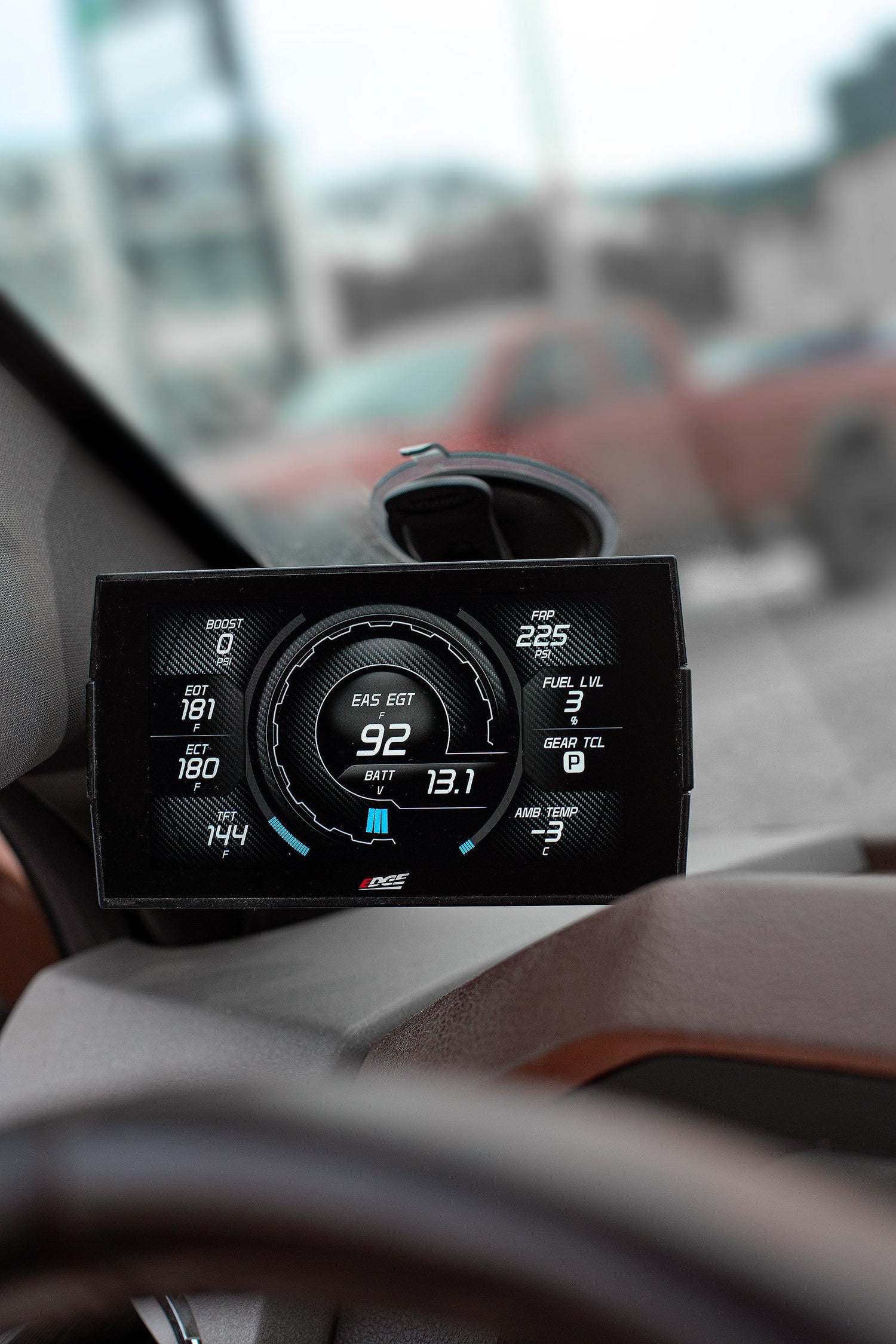

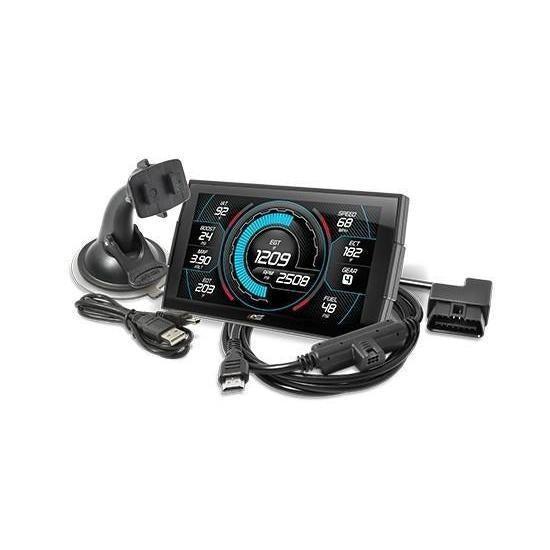

- Includes windshield mounting bracket
- Simple installation just plug into OBDII port. No wiring required
- Click Here
Videos
Videos
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
I am having issues with OBD2 splitter cable i bought. I want to run CTS3 and banks pedal commander. It seems to be either one or the other. Is there a way to do this?
To run both the CTS3 Monitor and Banks Pedal Commander, use a high-quality OBD-II splitter with priority handling or consider powering the Pedal Commander through an alternative source to avoid conflicts.
-
Is it compatible and supporting the 2.8 duramax 2022 ?
Yes.
-
I bought this for my duramax. But would it work on my 2017 gmc gas truck
Yes, it will work on any OBD2 vehicle.
-
Does this work with 2021 6.7 ram
It will, but only as a monitoring device.
-
Will it read the EOT and ECT with it being plugged into just the OBDII port?
You bet!
-
Does it read lift pump pressure on 2002 5.9 24 valve Cummins?
No.
-
Would this work on my 2019 1500 Chevy the 5.3
Yes, any vehicle with an OBDII port.
-
Can you use this for 1996 Chevy 6.5l turbo Diesel
No.
-
Does it read fuel rail pressure on a 2004.5 5.9
Yes
-
What's all needed to run on a 2018 f350?
It plugs directly into your OBD2 port and is good to go from there!
-
Would this monitor work with the efi live tuning on my 08 lmm? Could it replace the dsp5 switch? Or would it have to be reflashed for it to work together.
Yes, you will need to also purchase their SOTF adapter as well, and a tune update.
-
Does it have a "dyno" feature where you can track hp and torque?
With this item it is only a display screen to display your temps and such. Thanks!
-
What probes come with it?
With the CTS3 monitor we have not seen many issues with this device. It is the newest screen on the market and I would recommend running it if you are looking at running a bright, nice layout screen.
-
Wondering if the turbo timer is available for a 2003 ford f-250 with a 6.0 diesel?
Yes, HERE.
-
Is it compatible for an 18 6.7 cummins with ez link 5 position to monitor current trans gear, trans temp etc?
It is compatible and can monitor parameters like transmission temperature and current gear via the OBDII port, but is does not directly interface with the 5-position switch for tuning control.
-
Can you tune 2019 6.7 Cummins with the cts 3? Or is it specifically for monitoring?
Just for monitoring.
-
Will it de fuel the engine based on high egg’s?
No, this is just a monitoring device, but it can alert you to high EGT's so you can manually take action.
-
can i use the cts3 while i have a hydra chip connected?
You bet!
-
can you manually force regen with this?
You can!
-
Will this do newer trucks 2024 duramax 3l baby diesel
Yes, anything newer than 1996, with an OBD11 port.
-
Does this monitor EGR filter and can I perform a regen through this
Yes, This will shows you your levels and you can comand regens.
-
I have a 2013/2014 Chevy 4500 express bus with the 6.6 in it, Is it able to delete the dpf/def through the tuner?
This is emissions on only, if you want to delete the DPF/DEF you'll need custom delete tunes with EFI Live, it's capable of tuning an express bus, LGH w/ 6.6L Duramax.
-
Can you load custom tunes through this or is it strictly for monitoring?
Strictly for monitoring.
-
Does this just plug and play? I’ve got a 19 6.7 Cummins with EFI & SOTF fast 5. Does this just plug into the SOTF plug?
It's a plug and play monitoring device that plugs into your OBDII port; it does not control your SOTF tuning.
-
Edge Insight CTS3 will this work on 2017 F350 6.2L gas truck?
Yes, it plugs into the OBDII port, making it compatible with your truck.
-
Dose this work on a 2003ram with the 5.9
Yes, it is a universal monitor.
-
How much more horsepower does it give
This will not add any HP gains.
-
Greetings: Is the product compatible for a 2018 Chevrolet Colorado 2.8 diesel engine?
You bet!
-
Does this fit a 2003 lb7 duramax?
Yes.
-
2003 7.3, I have an older edge programmer/ display. If I download the tune from the older edge then unplug it, will it keep the file on the truck? Then just put this bad boy in?
Yes!
-
I have efi live on my 08 lmm all I want is to monitor my boost, fuel etc… but I don’t want the edge tunes will this work without there tunes?
You can use this just as a monitor if needed.
-
Can I run this monitor if I have an ezy link in my truck?
You bet, you'd just have to unplug the CTS3 when flashing a new tune on the truck but this will work to monitor your desired parameters.
-
I have a 2017 Cummins with efi live and want to run this as well would they work together and what all would I need
They'll work together, the EFI Live will handle the tuning and the CTS3 will monitor your desired parameters, just plug it into the OBDII port and you're good to go.
-
Does it ask what engine you have Or still works with Duramax 2.8 LWN
This will be compatible with your 2.8L.
