Edge CTS2 & CTS3 0-100PSIg 1/8" NPT Pressure Sensor (98607)
Purchase to earn 309 Dirty Dollars Learn More
Description
Description
Fits: CS2, CTS2, and CTS3 Monitors

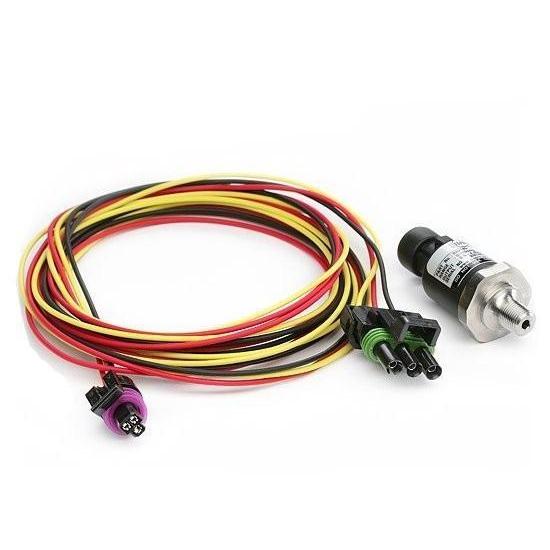

Edge's EAS Pressure Sensor is a 0 - 100 PSIg 1/8 NPT sensor that plugs directly into the Universal Sensor Input system (p/n 98605). This Pressure Sensor enables you to monitor data such as Boost PSI, Lift Pump Pressure, Air Bag Pressure, Lift Pump Pressure, Pre and Post Intercooler Pressure and much more!
Edge's Pressure Sensor comes equipped with the proper wires and connectors to plug right into the Universal Sensor Input system saving time and money on cutting, splicing, and crimping wire terminals to connect the sensor.
Part Number: 98607
Features
Features
- Plugs directly into the Universal Sensor Input system (p/n 98605)
- Enables you to monitor data such as Boost PSI, Lift Pump Pressure, Air Bag Pressure, Lift Pump Pressure, Pre/Post Intercooler Pressure and much more
- Saves time and money on cutting, splicing, and crimping wire terminals to connect the sensor
Tolerance:
- +-1.5% Full Span over a temperature range of -20C to 85C
- +-2.4% Full Span over a temperature range of -40C to 135C.
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
Im needing a way to monitor boost now that my truck has a much larger turbo setup and is using a boost fooler in the factory harness. Is this all I need to hook up to my insight CTS3 to be able to monitor boost?
To monitor your actual boost pressure independently from your factory harness, you need a complete Edge EAS network chain. The Edge 98607 sensor alone will not plug into your CTS3 monitor. You will also need 98605 and 98602.
-
Do I need to buy the adapter to plug into my current egt/power switch or does this come with the adapter for the 5 volt sensors...
Yes, you do need to buy this adapter module separately; the pressure sensor does not come with the 5-volt interface hub required to plug into your existing EAS daisy-chain setup. If you also need the mandatory 5-volt interface hub to plug it into your CTS monitor, that part number is -> 98605.
