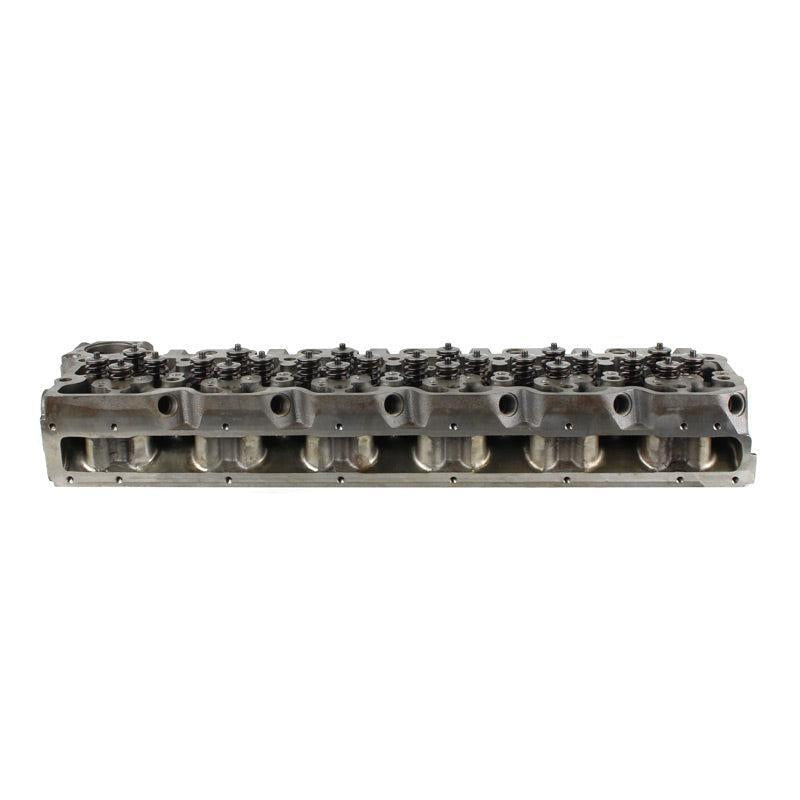

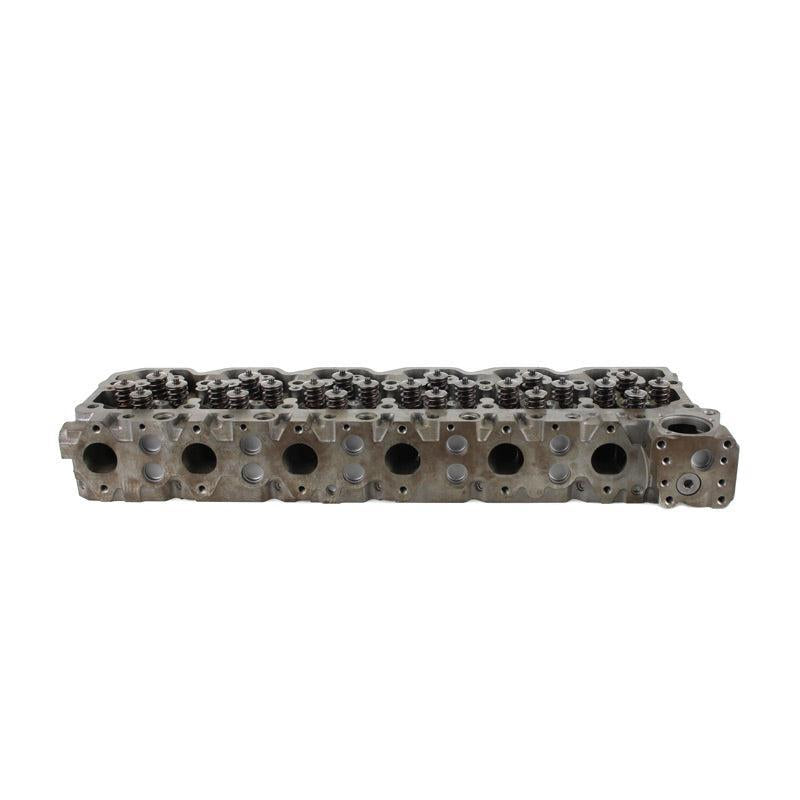

2007.5-2018 Cummins Stage 4 Concrete Filled Ported & Polished Cylinder Head w/ Fire Ring Grooves (PDM-67RHS3)

Industrial Injection
Regular price $10,337.64 CAD

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Purchase to earn 10337  Dirty Dollars Learn More

Description

The PDM-67RHS3 is Industrial Injection's Stage 4 race head for the 2007.5-2018 6.7L Cummins — the top of the race head ladder. Fully CNC-ported with fire ring grooves, custom-port oversized 34mm valves, and concrete-filled water jackets to reinforce the deck against extreme cylinder pressure. Built for sled pullers and racers where head deformation is the limiting factor.

Part Number: PDM-67RHS3

Features

  • Stage 4 race head — concrete-filled
  • 5-axis CNC porting on intake and exhaust ports
  • Fire ring grooves machined into the deck surface
  • Custom-port oversized 34mm stainless steel valves
  • Unshrouded valves
  • Diamond-honed high-strength alloy heat-treated iron-based valve guides
  • Premium nickel-based non-magnetic valve seat inserts
  • Multi-angle valve job
  • 120lb performance valve springs
  • Milled off intake to accept ZZ Fab side runner

Notes

  • 34mm valves will not clear a 5.9 bore — must have a 6.4 or 6.7 bore to clear.
  • Filled water jackets are intended for competition use only — not for street.
  • Designed to run with a fire ring head gasket — confirm gasket and stud package before ordering.
  • Head studs and head gasket sold separately.
