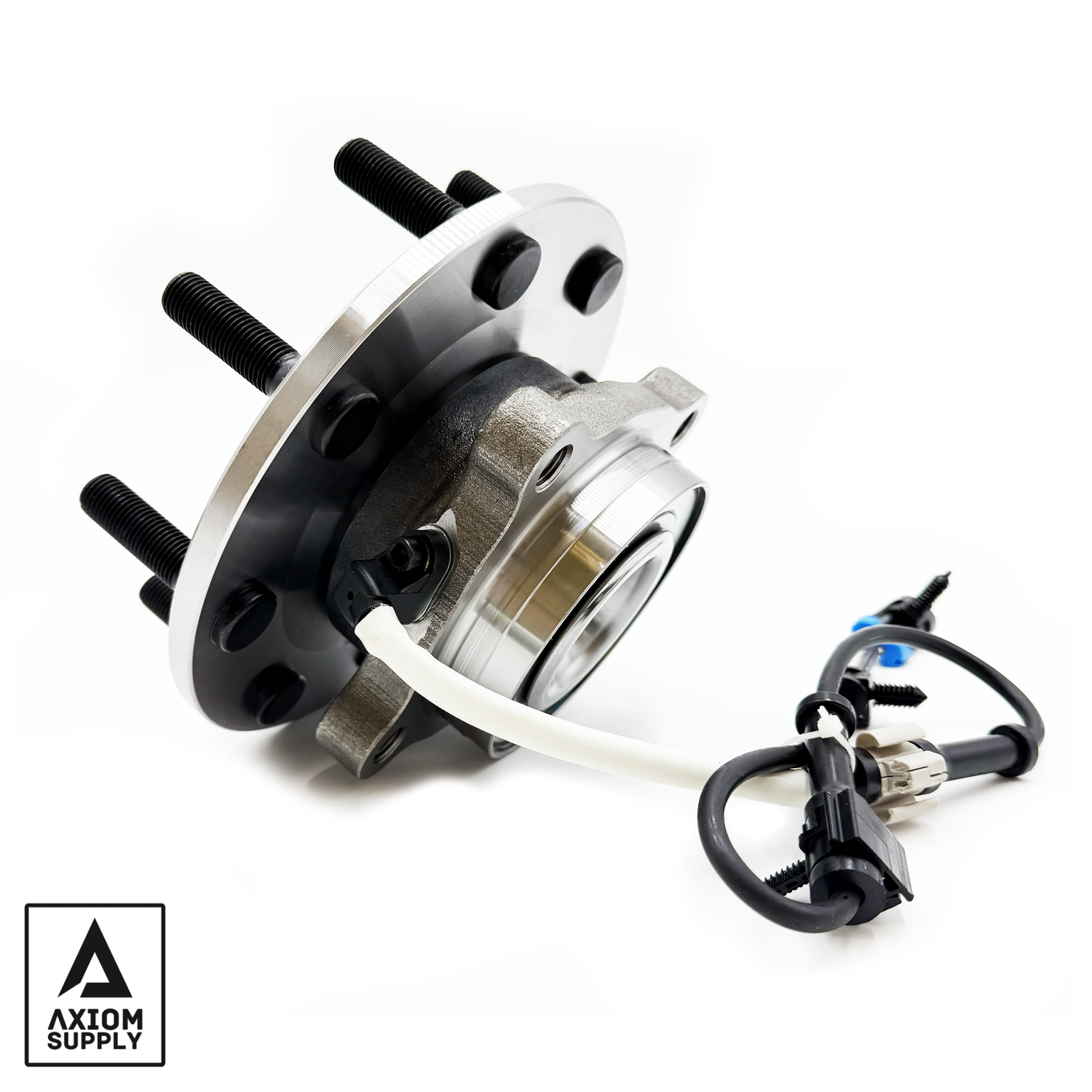

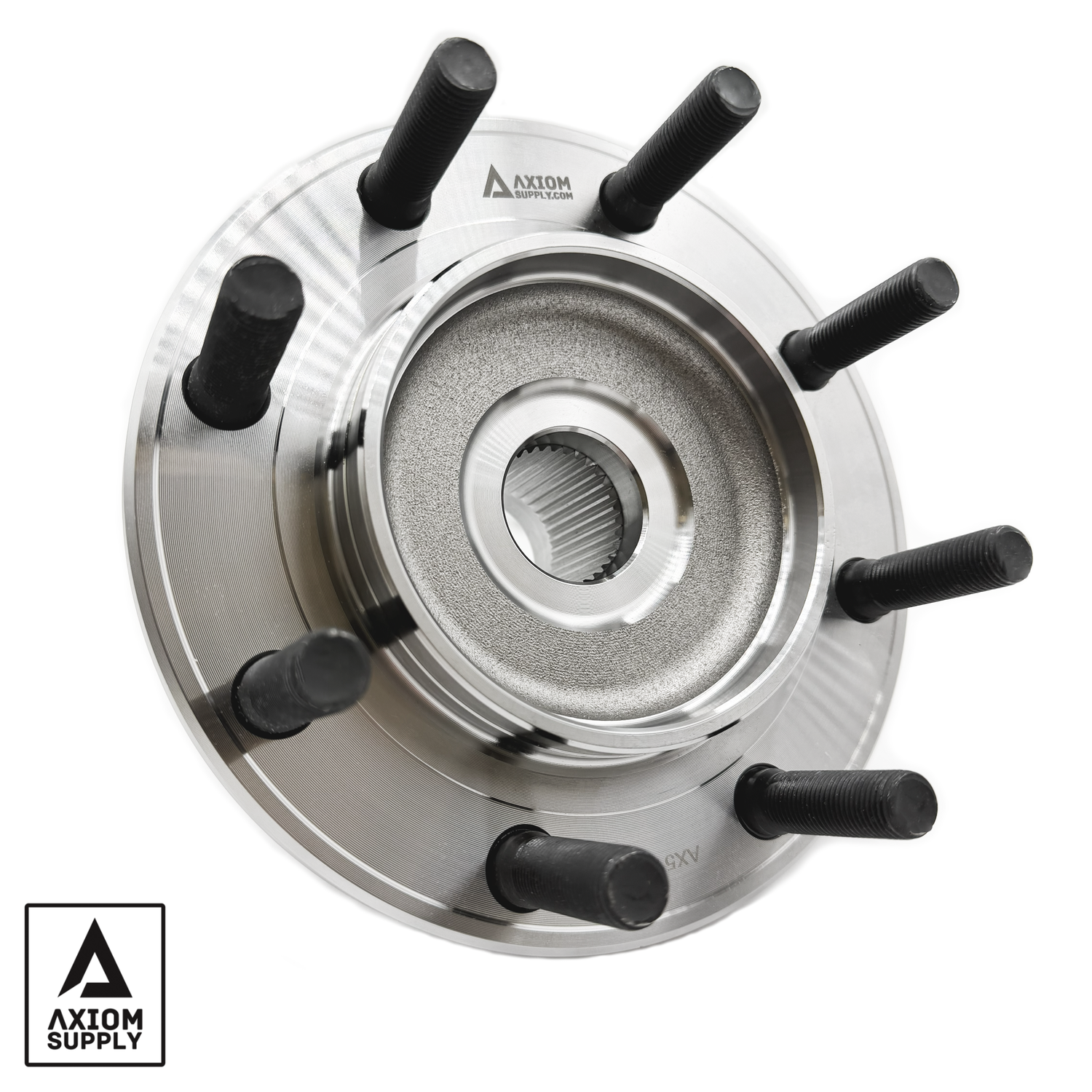

2019-2024 Cummins Wheel Bearing Assembly (AX515206)

Fits:

Newer Ram HDs still chew through factory bearings the moment you start towing heavy or running lifts and big tires. The Axiom assembly fixes it with precision rollers, Grade 10.9 studs, and a real-world-tested ABS sensor — complete bolt-in, two-hour install, no special tools.

Part Number: AX515206

• Precision Tapered Roller Bearings – Pre-greased for maintenance-free service.
• Grade 10.9 Studs – Cold-formed and zinc-plated.
• Heavy-Duty ABS Sensor – Reliable signal in heat, mud, and moisture.
• Versatile Spindle Design – Rolled inner spindle works with 2WD and 4WD.
• Configuration – 8 × M14-1.50 lug studs.

• Axle Nut: 280 lb·ft
• Spindle Bolts: 150 lb·ft
• Main Caliper Bolts: 250 lb·ft
• Lug Nut: 130 lb·ft
• Box Dimensions: 11" × 10.2" × 6.8"
• Weight: 26 lb

• (1) Wheel Bearing & Hub Assembly with integrated ABS wire

Autopart International 1411-730388, Doc's DH515206, GSP 120009, Moog Hub Assemblies 515206, ZZZN 68292887AA, Axiom AX515206

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.
