9007/9004 Bi-xenon Relay Harness (H80)
Description
Description
Fits
| STOCK BULB SIZE | 9006 |
| HID SYSTEMS | Low Beams, High Beams, or Fog Lights |
Customers often ask, Do I really need a harness? Yes! A relay harness is designed to deliver steady voltage to your HID ballasts directly from the car battery. Nobody likes a flickering headlight, so why risk it? Factory headlight outputs are really only designed to power a halogen light bulb, not an HID ballast.
The third generation MotoControl 8-Pin Relay has a tiny built-in capacitor that stores and releases it's charge between mode changes. So even if there's a short gap between the low and high beam signals from your car, your HID's will run smoothly.
Part Number: H80
Features
Features
- Works perfectly with Bi-xenon projector retrofits and Hi/Lo HID systems
- Abrasion resistant Techflex mesh sleeving & extruded aluminum
- Plug n Play
- Sealed weather-pack connector
- Designed to work with both positive and ground switched headlight circuits
Additional Info
Additional Info

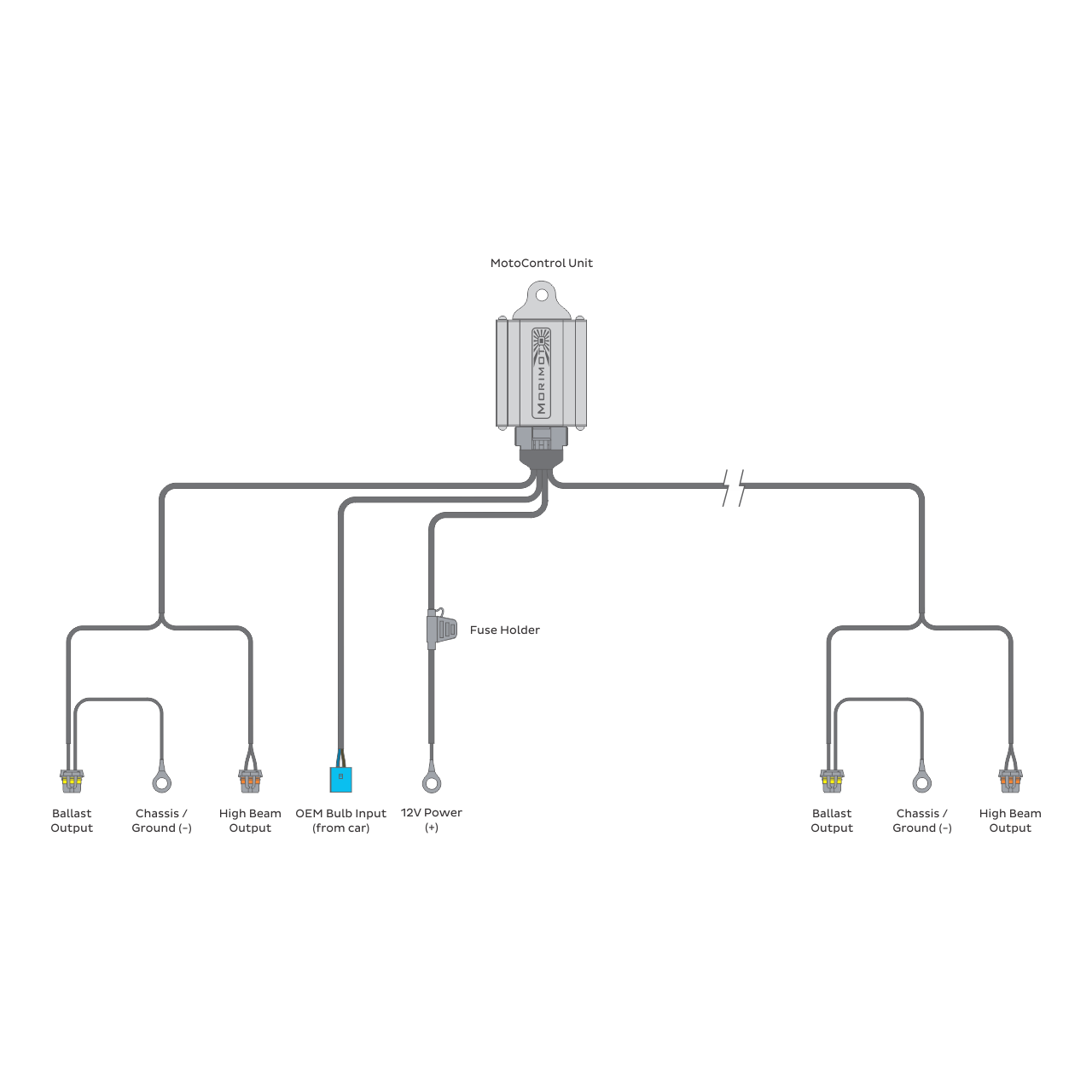

| INPUT TRIGGER | 1x 9007 Male |

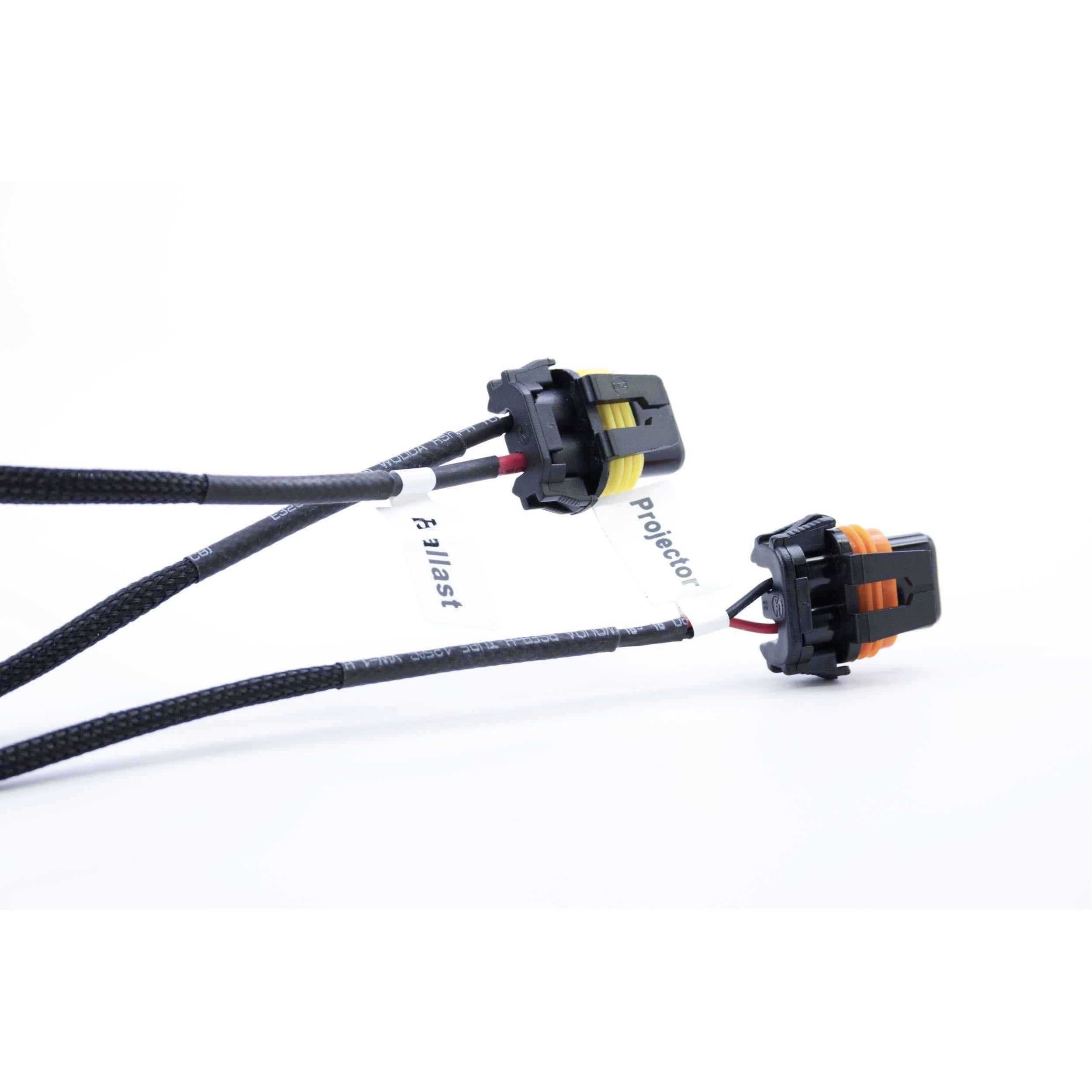

| BALLAST OUTPUTS | 2x 9006 Female |
| HIGH BEAM OUTPUTS | 2x 9006 Female |

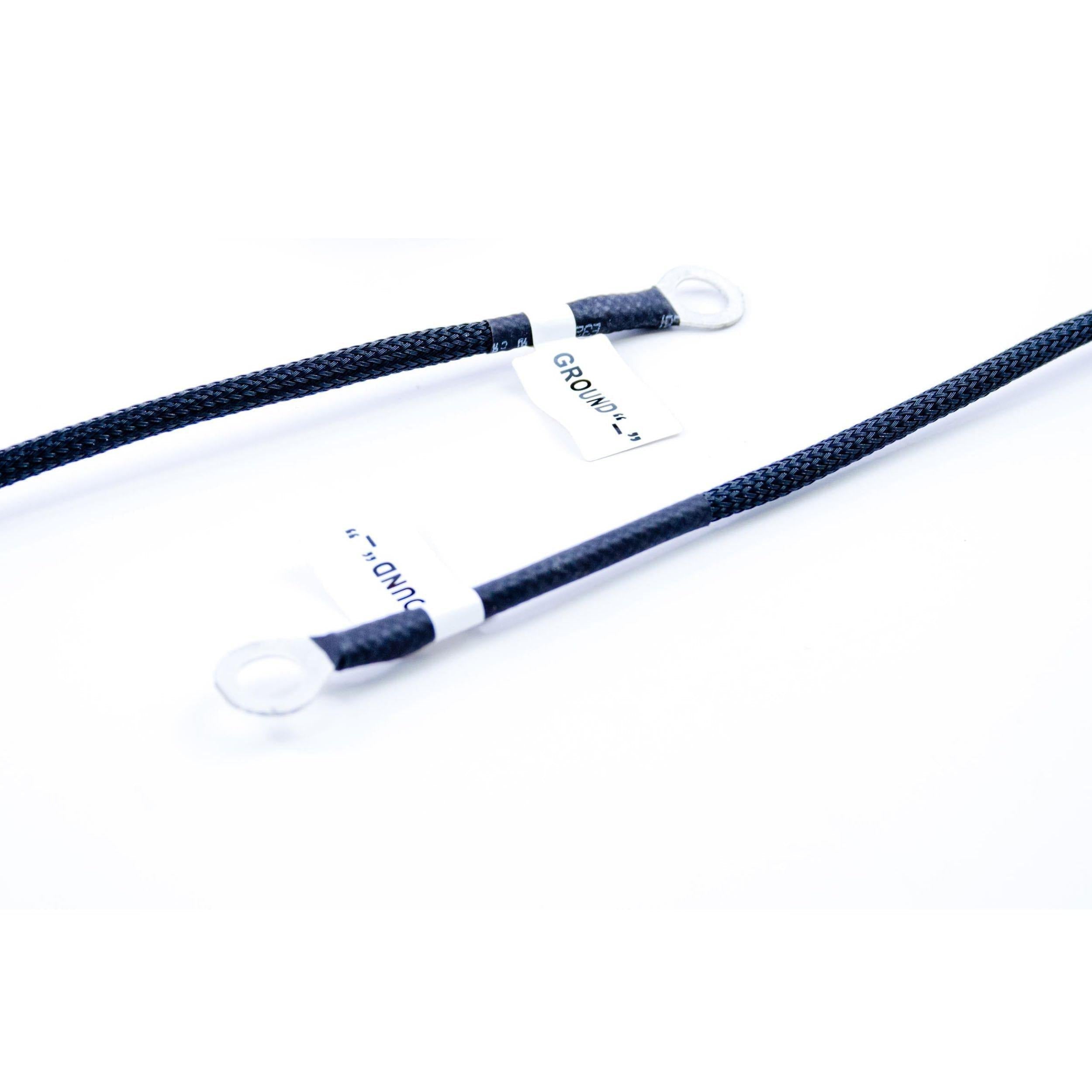

| GROUNDS | 2x Nickel-Plated Ring-Type |
| 12V POWER | 1x Nickel-Plated Ring-Type |

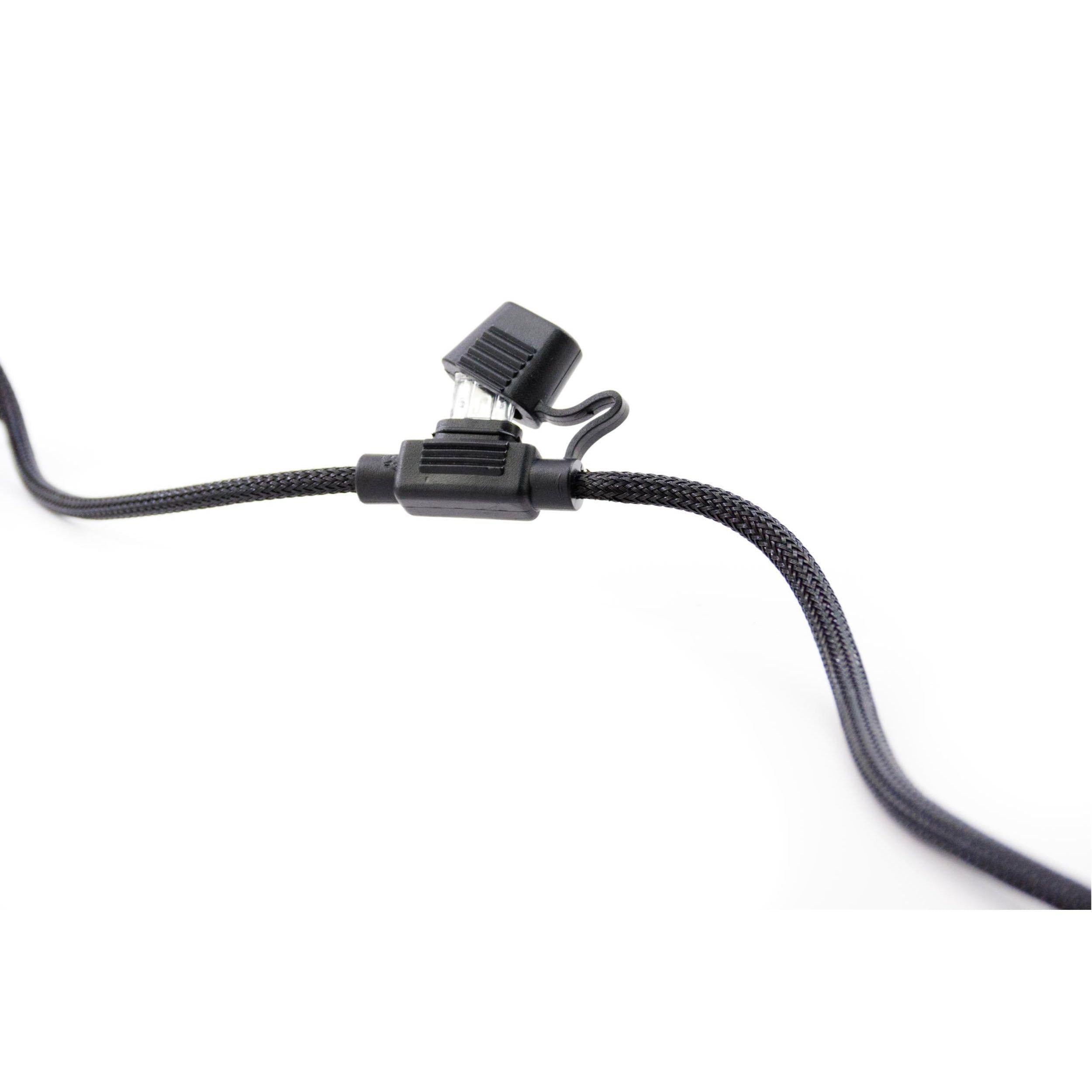

| FUSE | Inline 25A |
What's Included
| RELAY HARNESS | 1x Morimoto 9004/9007 Bi-Xenon |

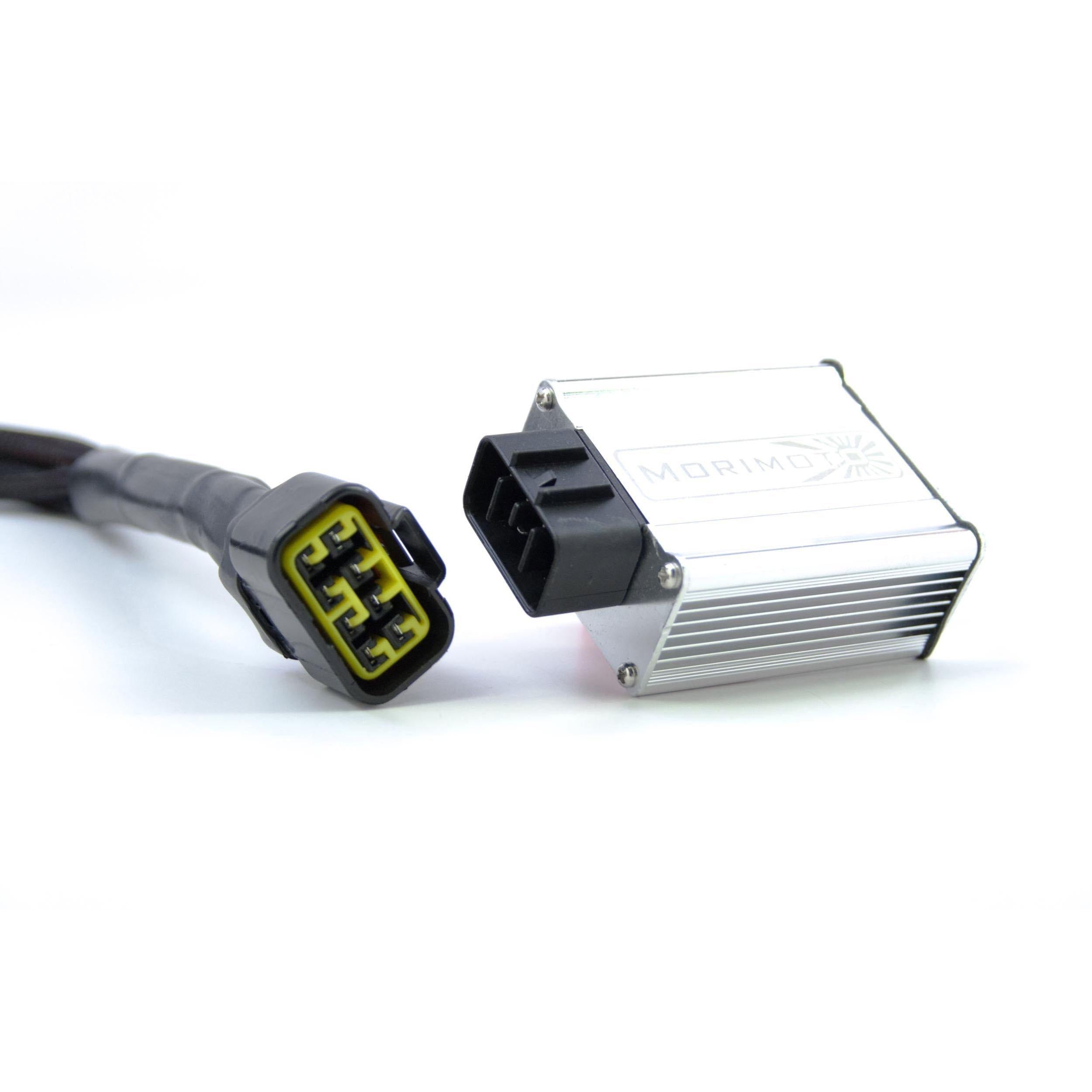

| RELAY | 1x Silver WeatherPack MotoControl Low/High |
| WARRANTY | 2 Years |
Notes
Notes
- Use Standalone Canbus or the Mopar Spec harnesses
- One Harness Controls Both Headlights
- PWM Pulsing signals need a Capacitor Link
- Bi-Xenon Projectors need high beam splitters
