1974.5-1993 Cummins 5" Lift Kit (BDS202H)-Lift Kit-BDS-BDS202H-Dirty Diesel Customs

1974.5-1993 Cummins 5" Lift Kit (BDS202H)

BDS

Part Number: BDS202H

Mfr Part Number:

Sale price$1,402.06 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model Type
1974-1993 Dodge / Ram 1500 Truck 4x4
1974-1993 Dodge / Ram 2500 Truck 4x4

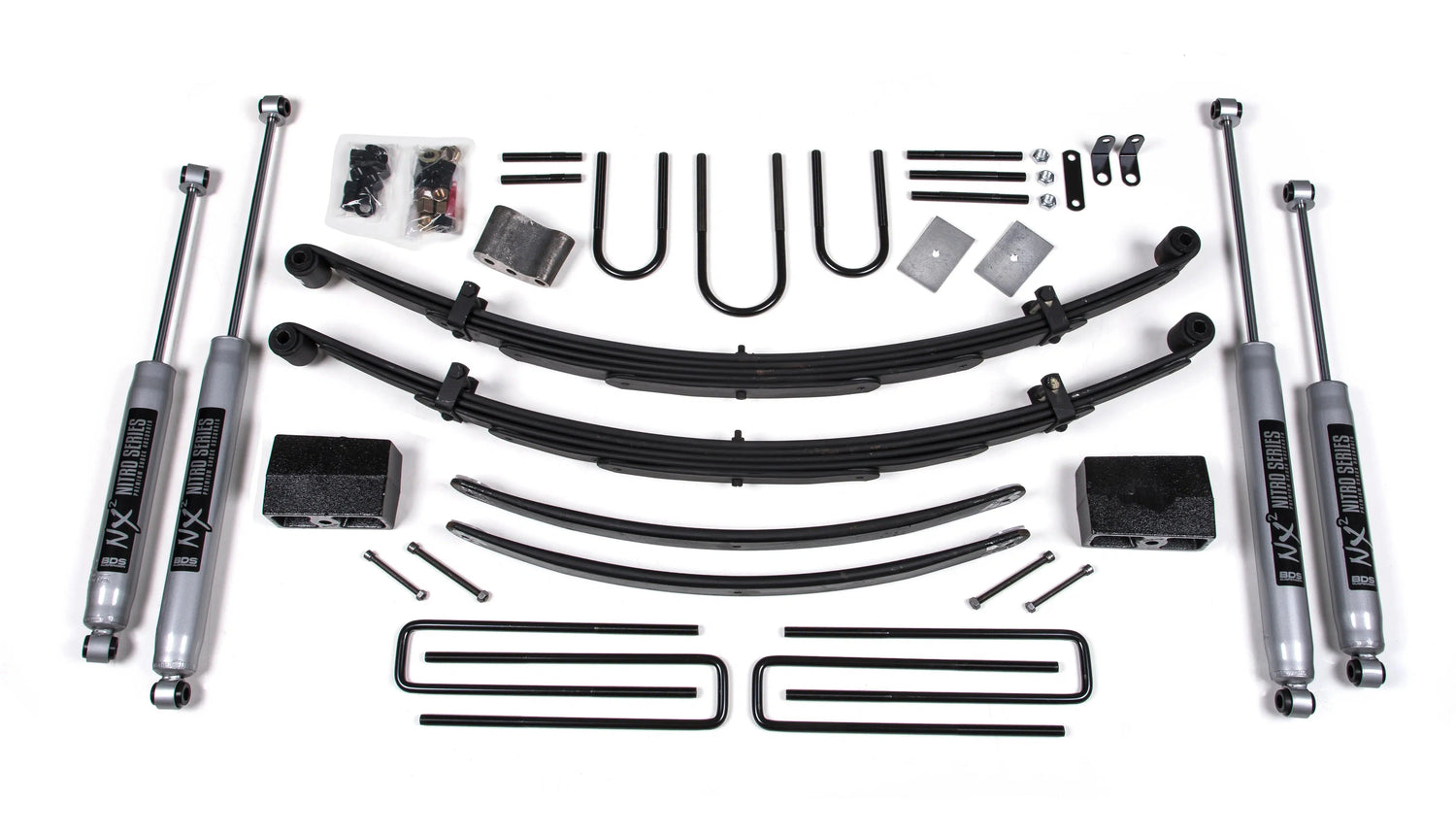

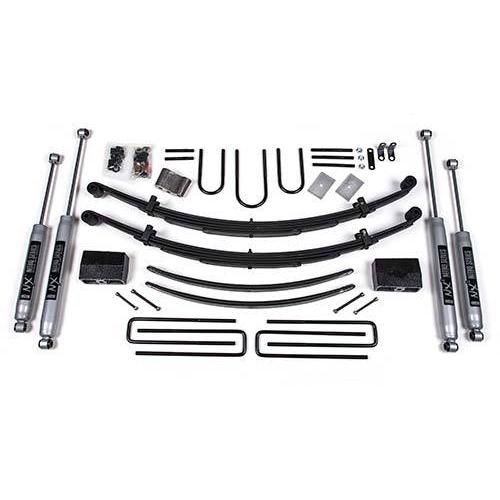

The BDS Suspension 5" Lift Kit for the 1974.5-1993 Dodge Ram 1500 1/2 Ton and 2500 3/4 Ton Pickup 4WD Pickup. This kit comes with front Glide-Ride Leaf Springs with anti-friction pads, bolts style leaf alignment clamps, and tapered leafs. The box kit includes new urethane front spring bushings, brake line relocation, 3" steering block to restore steering linkage angles and all-new u-bolts. The rear is lifted via a tapered block & add-a-leaf or upgrade to the Glide-Ride Leaf Springs to reduce axle wrap and create a more controlled and stable feel when towing.

Part Number: BDS202H

Features
  • 5" GlideRide Leaf Springs
  • 5" Block & Add-A-Leaf Kit
  • Polyurethane Spring Bushings
  • Brake Line Relocation Brackets
  • 3" Steering Block

Tire & Wheel Combinations:

  • 35" x 12.50" w/ 15 x 8 and 4"
Notes
  • 3" Steering block will only fit Dana 44 with a 3 bolt knuckle to steering arm mount.
  • Not for heavy-duty 3/4 ton version
  • If your vehicle is equipped with a front sway bar, the links will have to be sectioned and lengthened.
  • On models equipped with 4WD dash light, the wiring will need to be lengthened
  • On models with Saginaw or Corporate type front driveshaft, the CV cluster may require dressing to prevent binding.
  • This kit includes 3 front u-bolts and 2 studs. Early '74 models may use 4 square front u-bolts. Verify before ordering your kit on '74 models. If you have 4 front u-bolts, use the '69-'73 kit 200H.
Installation
