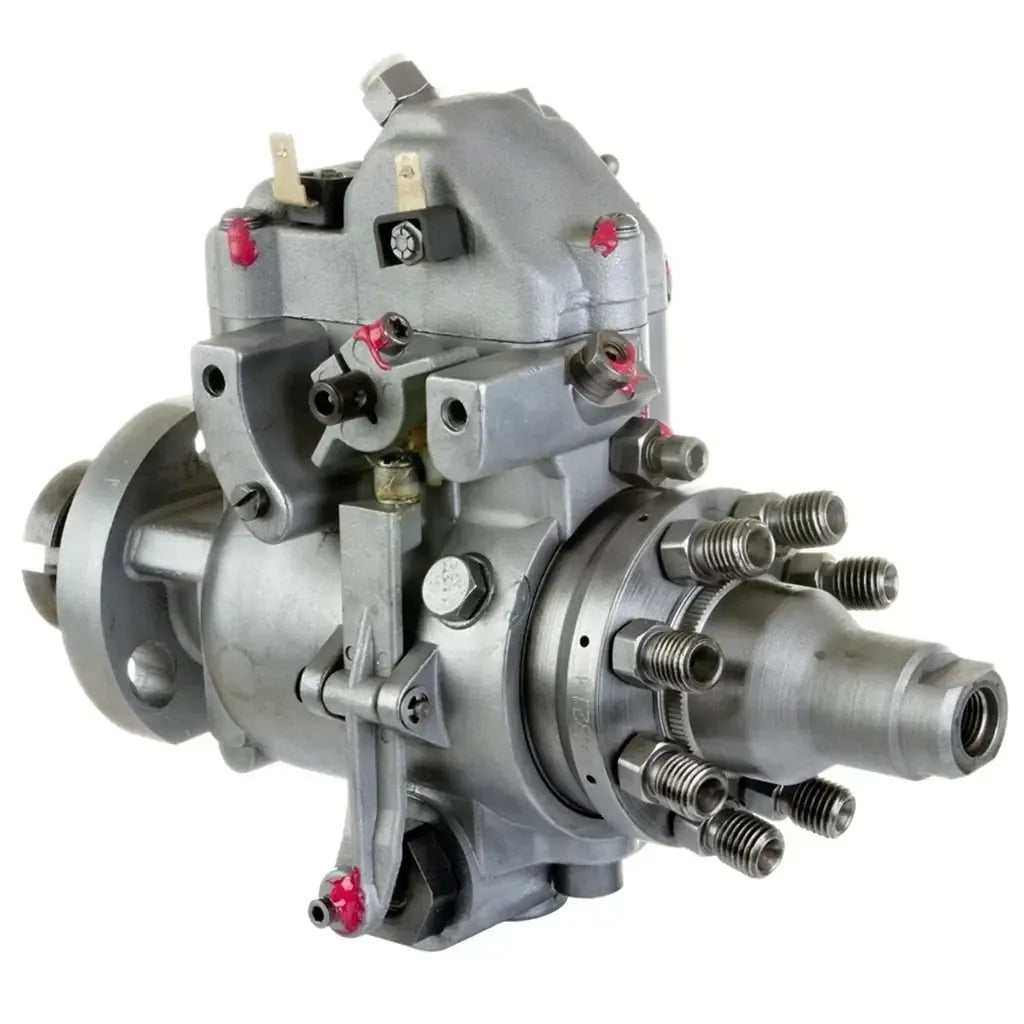

1988-1989 Ford Stanadyne DB2 Mechanical Injection Pump (DB2831-4812)

Stanadyne DB2 mechanical injection pump for 1988-1989 Ford F-Series and E-Series trucks running the 7.3L IDI diesel — the larger displacement IDI engine that replaced the 6.9L in 1988. OE-spec replacement for trucks that have lost fuel pressure or developed shaft seal leaks.

Bolts to the factory front cover, uses OE hard lines, lift pump connection, and shutoff solenoid. Calibrated to OE fuel rates for stock-power 7.3L IDI applications.

• Stanadyne DB2 Pump for 7.3L IDI
• Calibrated to OE Spec
• Direct Bolt-On — Factory Lines & Mounting
• Mechanical Injection — No ECM or Electronics
• For Stock-Power 7.3L IDI Trucks
• Part Number: DB2831-4812

• This is the IDI pump — not for 7.3L Powerstroke trucks (1994.5+), which use a HEUI fuel system with no mechanical injection pump.
• Install fresh primary and secondary fuel filters at the same time.
• This is a repair and return item, you must send us your core to send to to Industrial Injection for rebuild.
