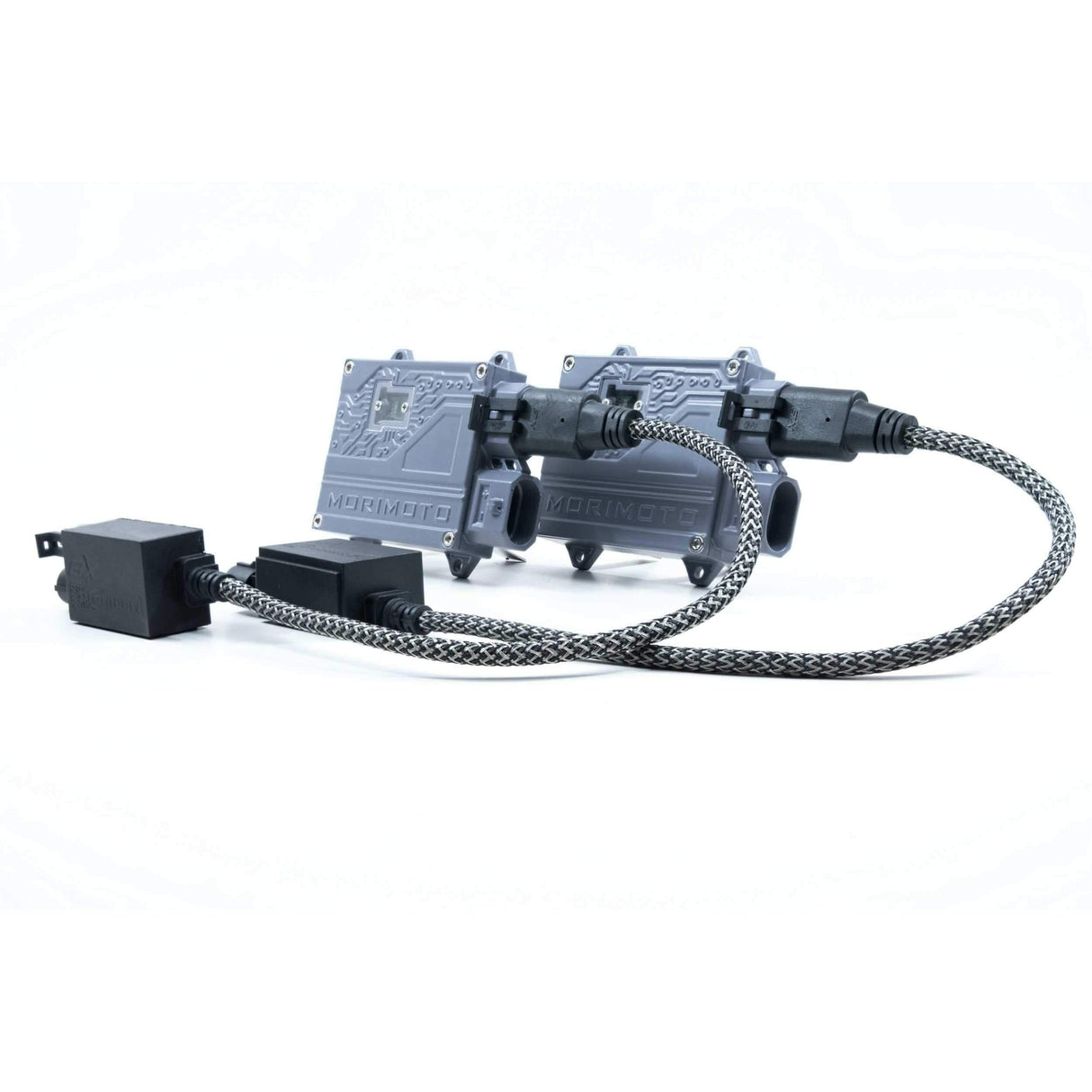

50W: Morimoto XB55 2.0 Computer (BL24)

Morimoto Part Number: BL24
$98.00 CAD

Purchase to earn 98 Dirty Dollars Learn More

Free shipping over $200 to most Canadian locations! Learn more

Description

Fits

HID BULBS D2S/D2R (P32-D)
HARNESSES All with '9006' female outputs
VEHICLES All with 9-18V electrical systems


Designed to last for 2500 hours and we're confident they will. The powerful AS15-G4 IC chip recognizes outside system faults such as a loose high voltage connection, and after one misfire will cut power rather than potentially self-destruct. The software is proprietary to this ballast alone.

Since the igniter cord can be unplugged from the HID ballast computer, you can easily change from AMP to D2S or vice-versa (without the use of unreliable adapters, that is). Likewise, if an igniter does happen to go bad, it can easily be replaced.

Part Number: BL24

Features

  • Stainless Steel hardware
  • XB has relocated igniters far closer to the HID bulb which reduces radio interference
  • Slim 18mm body
  • die-cast aluminum shell houses a 100% potted circuit board eliminating moisture
  • Consumes less than HALF of the start current than the previous model did
  • Improved shielding from voltage bursts
  • TechFlex braided insulation
  • Embossed circuitry on the shell

Additional Info

OUTPUT WATTAGE 50W +/- 4%
OUTPUT CURRENT 85V AC
IGNITION VOLTAGE 23KV
INPUT VOLTAGE 9-18V DC
INPUT CURRENT 5A @ Startup
OPEN CIRCUIT Protected (< 1s)
SHORT CIRCUIT Protected (< 1s)
CLIMATE RANGE -40C to +85C
RATED LIFESPAN 2500hours (5-7 years)

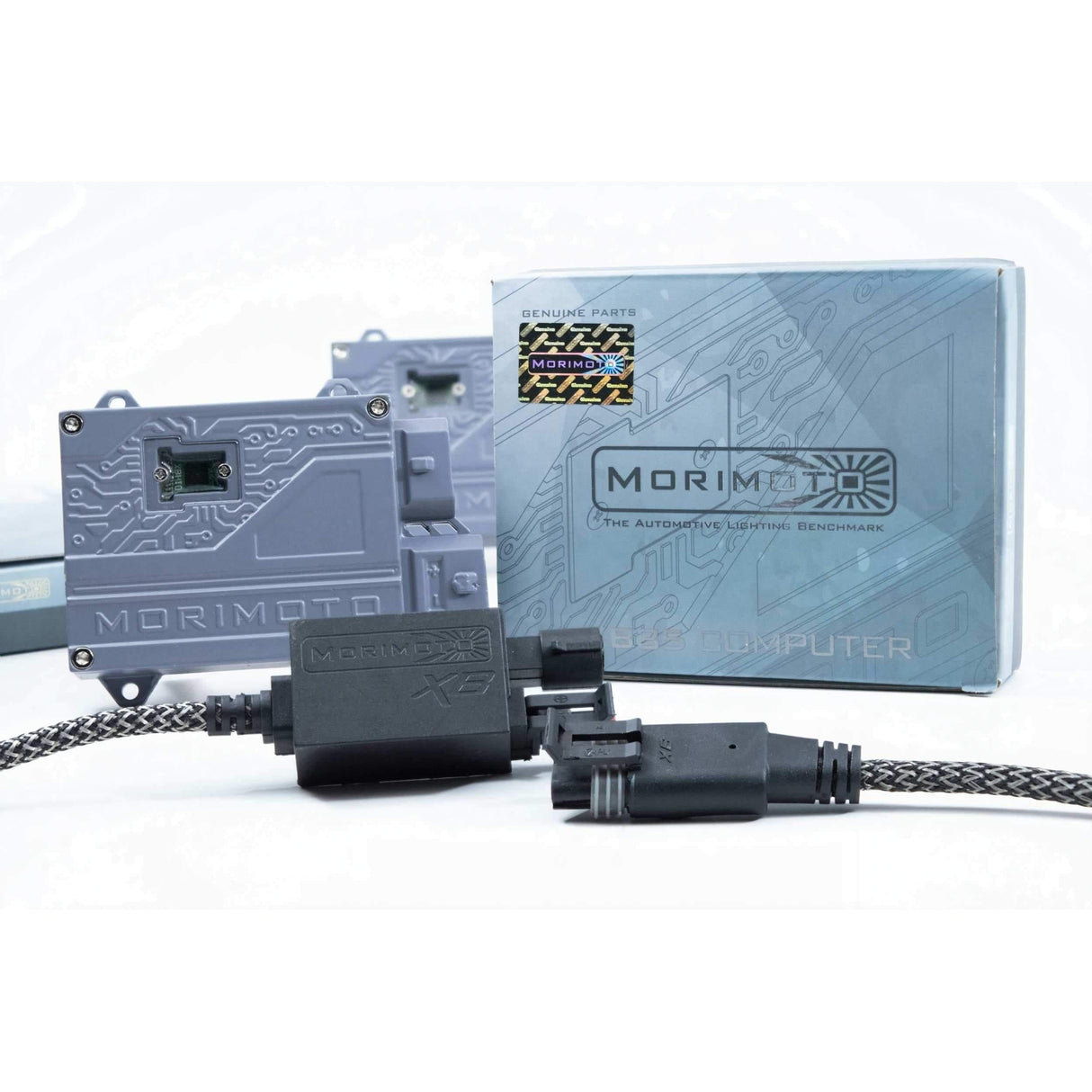

What's Included

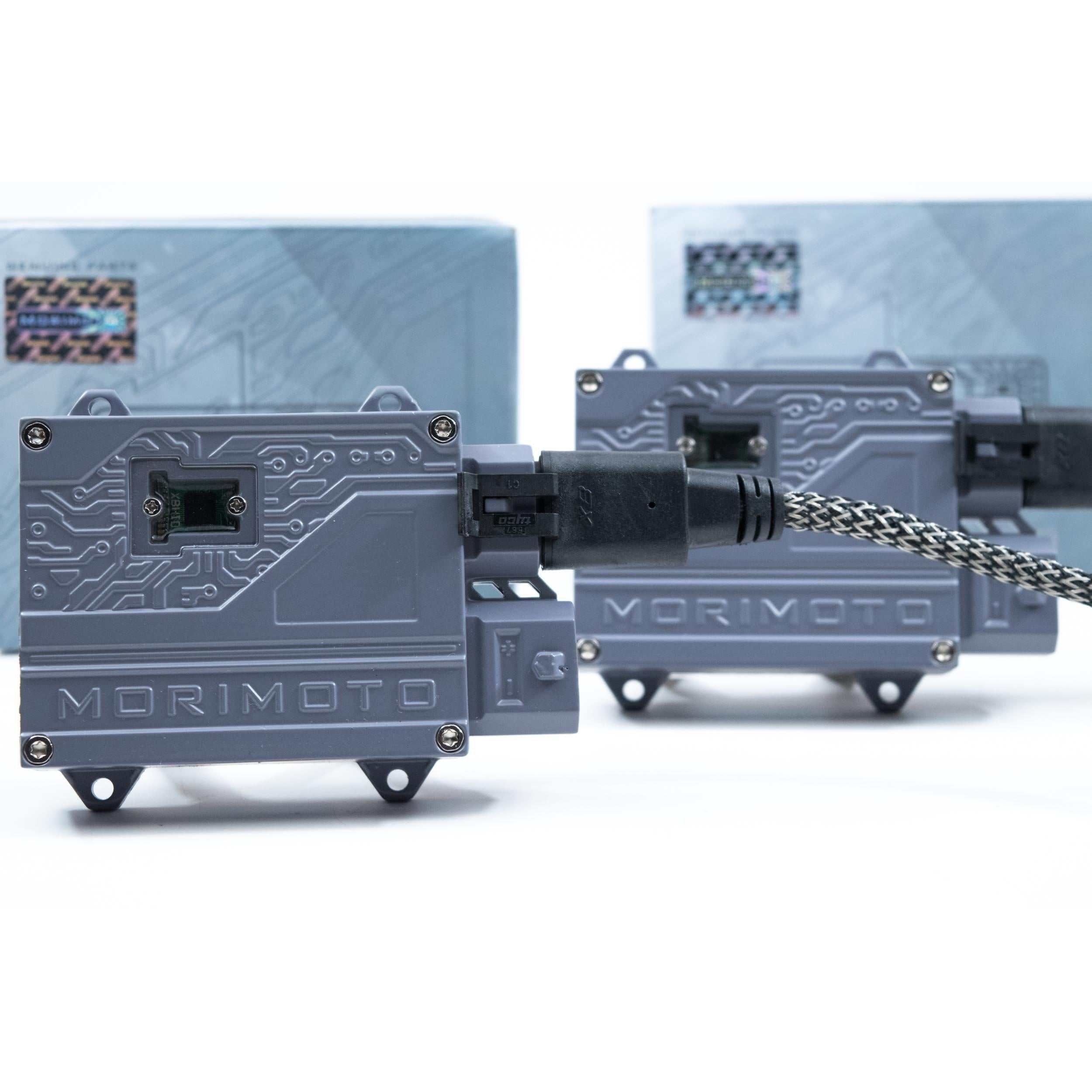

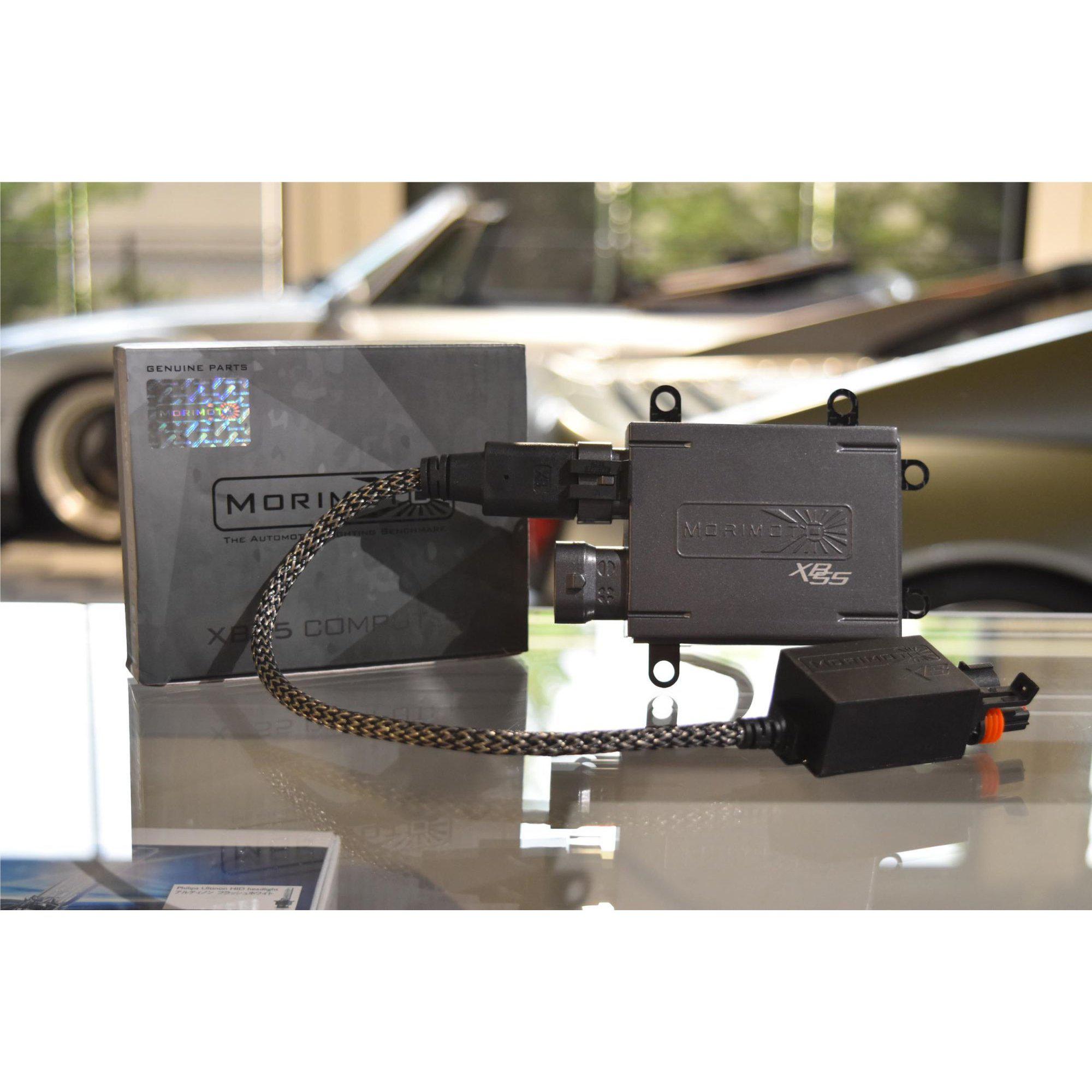

BALLASTS 1x Morimoto XB55 2.0 Computers

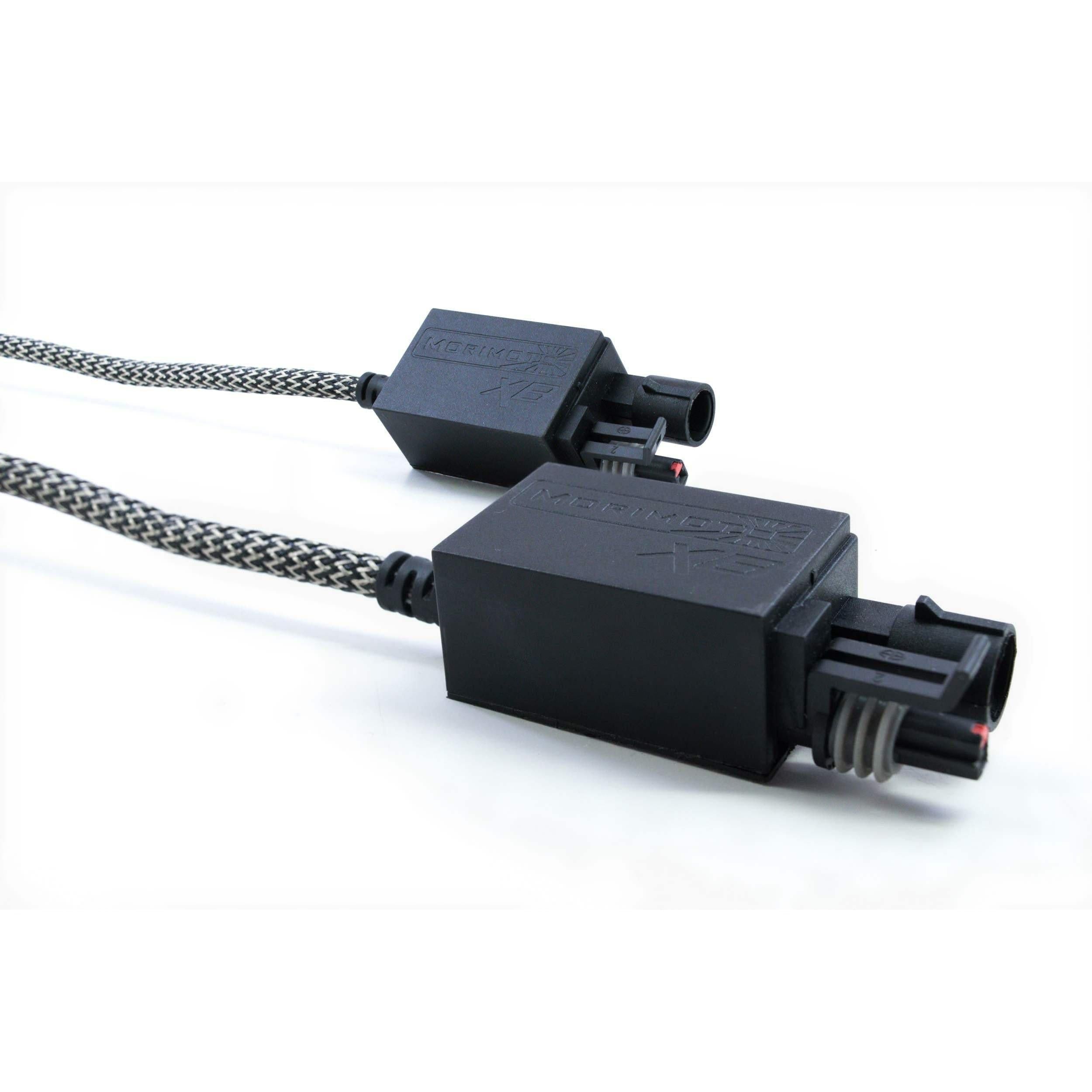

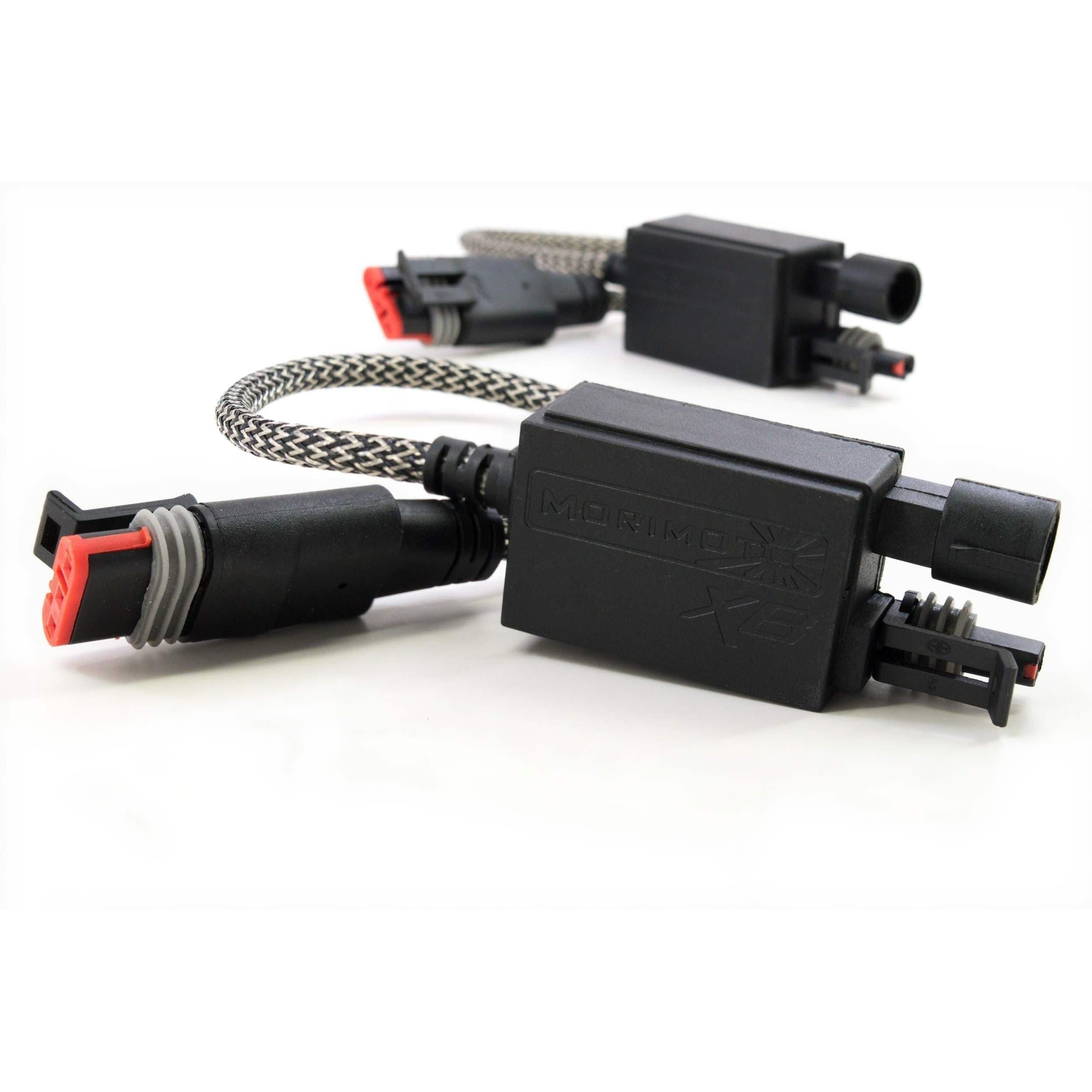

IGNITERS 1x Morimoto XB AMP
WARRANTY 2 Years
