Universal 5 Gallon Aluminum Air Tank Kit w/ Air Accessories (HP10268)

Fits: Universal

Pacbrake's polished aluminum tanks are made with less corrosive and lighter material than the standard steel tanks. These tanks also work in conjunction with air compressors to store the compressed air and hold it until it is required. This allows for quicker activation, especially when operating more than one product simultaneously!

Part Number: HP10268

• Made with less corrosive and lighter material than the standard steel tanks
• Stores the compressed air, holding it until it is required
• Allows for quicker activation, especially when operating more than one product simultaneously
• Max Working pressure of 200 psi

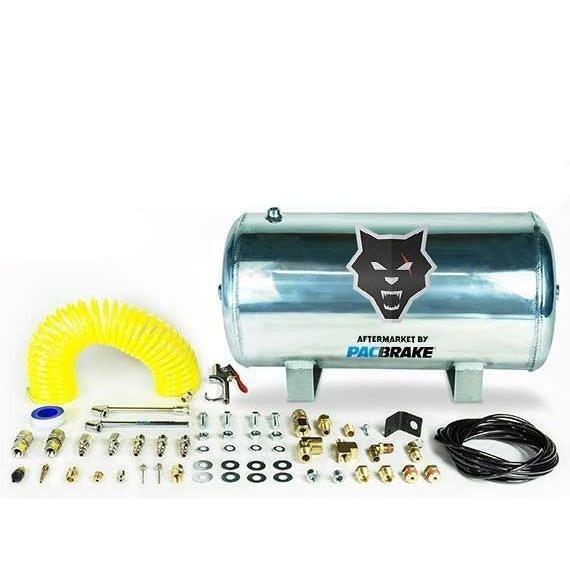

Includes:

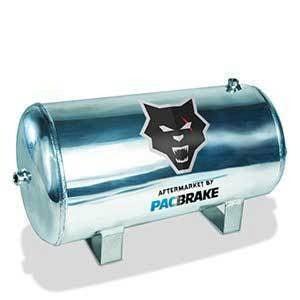

• 5 Gallon Aluminum Air tank
• Airline
• Air nozzle
• Air accessories
• Fittings, fasteners and more

Air Tank Specifications:

• 2 x 3/8 (-6) NPT Ports
• 2 x ¼ (-4) NPT Ports
• Rust Inhibitor applied to the inside of the tank
• Max Working Pressure of 200 psi
• Dimensions: 20.1 x 9.2 x 10.3 (LxWxH)
• Weights 7.9 lbs
• Welded on Mounting Brackets

• Not approved for use with an HP235 Pacbrake Series Compressor

• For Installation Instructions, Please Click Here
