Universal HP325 Series 24V Air Compressor w/ Hardware (HP10151)-Air Compressor-PACBRAKE-HP10151-Dirty Diesel Customs

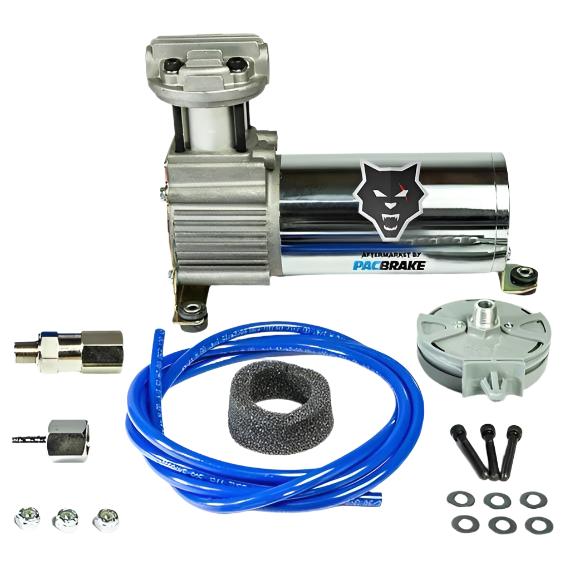

Universal HP325 Series 24V Air Compressor w/ Hardware (HP10151)


Part Number: HP10151
Sale price$302.10 CAD

This product ships for free to most Canadian locations! Learn more.
(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.

Fits: Universal

The Pacbrake HP325 Series 12 Volt Air Compressor Kit is intended for filling air tanks for both the on and off-road markets. This compressor will provide quick and effortless inflation power thanks to its 1/4HP air compressor that has a 33% duty cycle (20 minutes @ 100psi). All AMP compressors have a max working pressure of 150psi, feature an oil-less design, and are mountable in any orientation. So whether you are wanting to fill your air suspension, supply air to your train horns, fill flat tires, or power small air tools, the HP625 Series Air Compressor will get the job done!

Part Number: HP10151

  • Quick & effortless inflation power
  • 33% duty cycle
  • Oil-less design
  • Sealed bearings
  • PTFE piston ring
  • Copper wire wound permanent magnet motor
  • Hard-anodized aluminum cylinder and aluminum sleeve
  • Equipped with a Check Valve to prevent possible motor damage
  • 150 PSI max working pressure

Compressor Specifications:

  • (Part Number HP10139)
  • 24 VDC
  • 100 percent (1 Hour at 100 PSI) duty cycle
  • 1/4 HP
  • Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
  • Weight is 5.5 lbs.


  • HP325 Series 24 Volt Air Compressor
  • Required Hardware
  • This kit does NOT include any pre-built harnesses
