2010-2012 Cummins S300 SX-E Single Turbo Kit (22BXXX)
If your order ships from the USA, Canada charges an import tariff on US-made turbos. It's added at checkout as its own line, not built into the price.
Purchase to earn 4094 Dirty Dollars Learn More
Description
Description

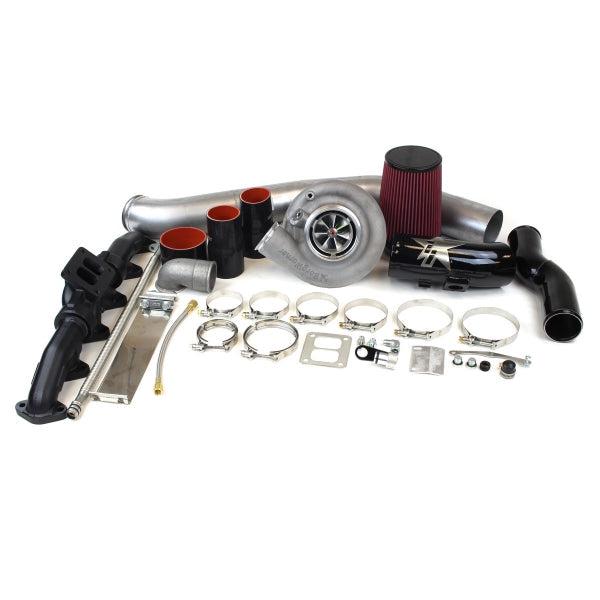

The Industrial Injection S300 SX-E single turbo kit converts the 2010-2012 6.7L Cummins to a 2nd-gen-style centered turbo on a high-flow T4 manifold. Every SX-E comes with a 360-degree thrust bearing and forged milled compressor wheel for reliability under load. Multiple compressor and turbine housing combinations let you scale the kit from mild street builds to dedicated race trucks.
Features
Features
- S300 SX-E turbo, center-mounted on a high-flow T4 manifold
- 360° thrust bearing and FMW (Forged Milled Wheel) compressor
- High-flow HX40 downpipe included
- Complete install kit
- Lower EGTs and improved throttle response over stock
- Turbo dimensions (compressor / turbine / HP target):
- 62/74 SX-E — up to 600 HP (Mild Performance)
- 63/74 SX-E — up to 625 HP (Mild Performance)
- 64/74 SX-E — up to 650 HP (Mild Performance / Race)
- 66/74 SX-E — up to 750 HP (Mild Performance / Race)
- 69/74 SX-E — up to 850 HP (Mild Performance / Race)
- Turbine housing options:
- 0.88 A/R T4 Single Scroll (Mild Performance)
- 0.91 A/R T4 Twin Scroll (Mild Performance — most popular)
- 1.00 A/R T4 Twin Scroll (Mild Performance / Race)
Notes
Notes
- For closed-circuit competition use only. Not legal for on-road, off-road, or dual-use applications. Emissions compliance is the consumer's responsibility.
