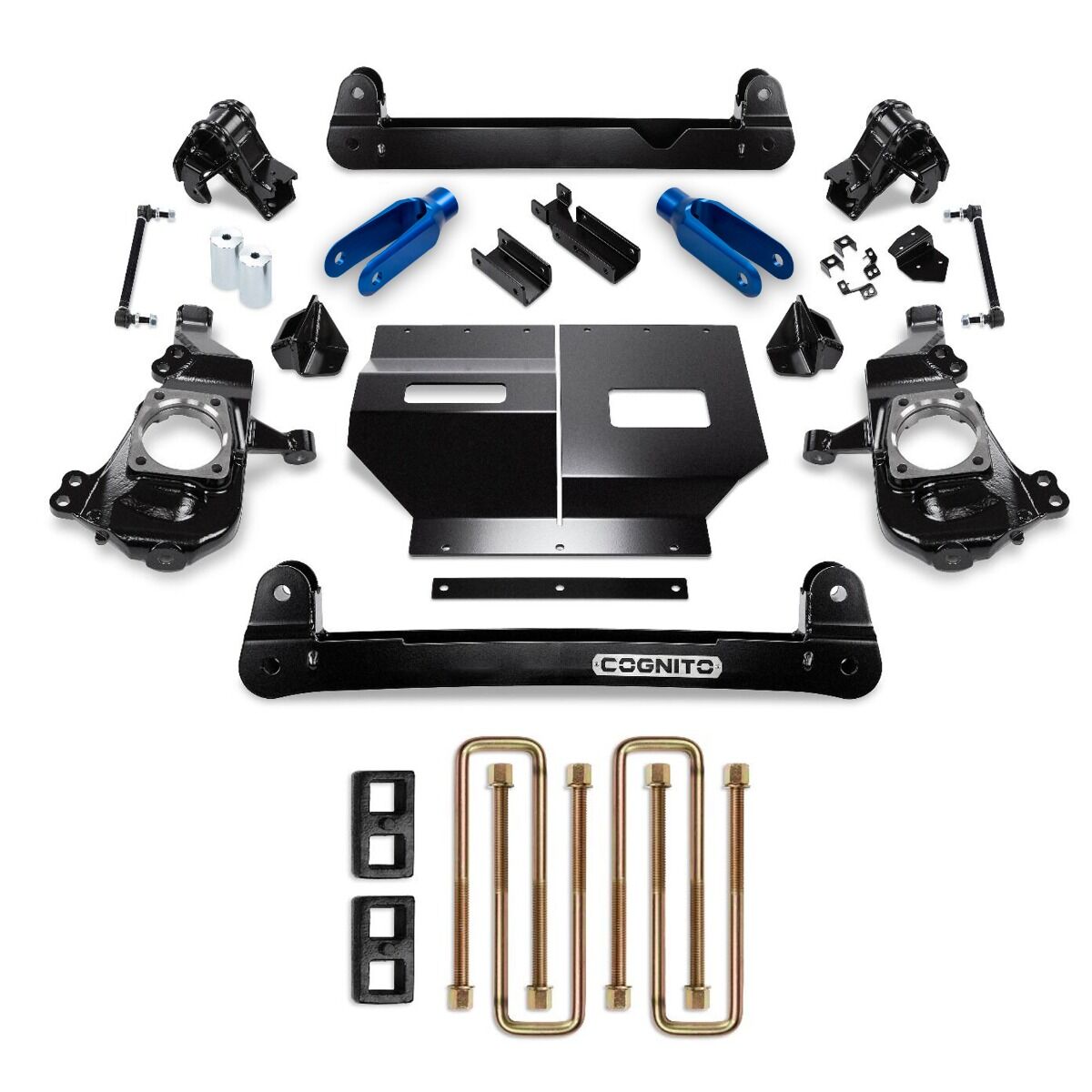

2024-2025 Duramax 2.5" Standard Lift Kit (110-P1313)

Fits

Elevate your Duramax with this Standard, all-inclusive 2.5" Standard Lift Kit!

This kit adds 2.5" front lift with subframe, taller knuckles, and diff drops while increasing suspension droop travel to 3". Rear gets 0.5" lift with 2" blocks and longer u-bolts. Maintains OEM Multimatic DSSV shocks by swapping the lower clevis mount on the front shocks with a billet extended version. Perfect for Duramax owners wanting more height without sacrificing factory ride quality.

Part Number: 110-P1313

• Adds 2-1/2" front & 1/2" rear lift
• Improves ride quality by adding front suspension droop travel
• Retains the OEM Multimatic DSSV shocks
• Includes billet front shock clevis bracket
• Maximum Lift: 2.5

• Click Here 7024
• Click Here 7459
• Click Here 7565
• Click Here 7566

• Allows for up to 37x12.50 tire on max 10" wide wheel with 0mm to +19mm offset
• Stock tire or 35 x 12.5 tire on stock wheel
  This will look small in our opinion, 12.5 wide tire might need 1/4" wheel spacer.
• 37 x 12.50 tire on stock wheel
  Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie back kit plus medium trimming.
• 35 on 10” wide wheel +18mm offset
  Use tie back kit plus medium trimming.
• 35 on 10” wide wheel, 0mm offset
  Use tie back kit plus medium trimming.
• 37 x 12.50, 9” wide wheel +18mm offset
  Use tie back kit plus medium trimming.
• 37 x 12.50, 9” wide wheel, 0mm offset
  Use tie back kit plus heavy trimming.
• 37 x 12.50 on 10” wide wheel, 0mm offset
  Use tie back kit plus excessive trimming. Might have an occasional rub.

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
