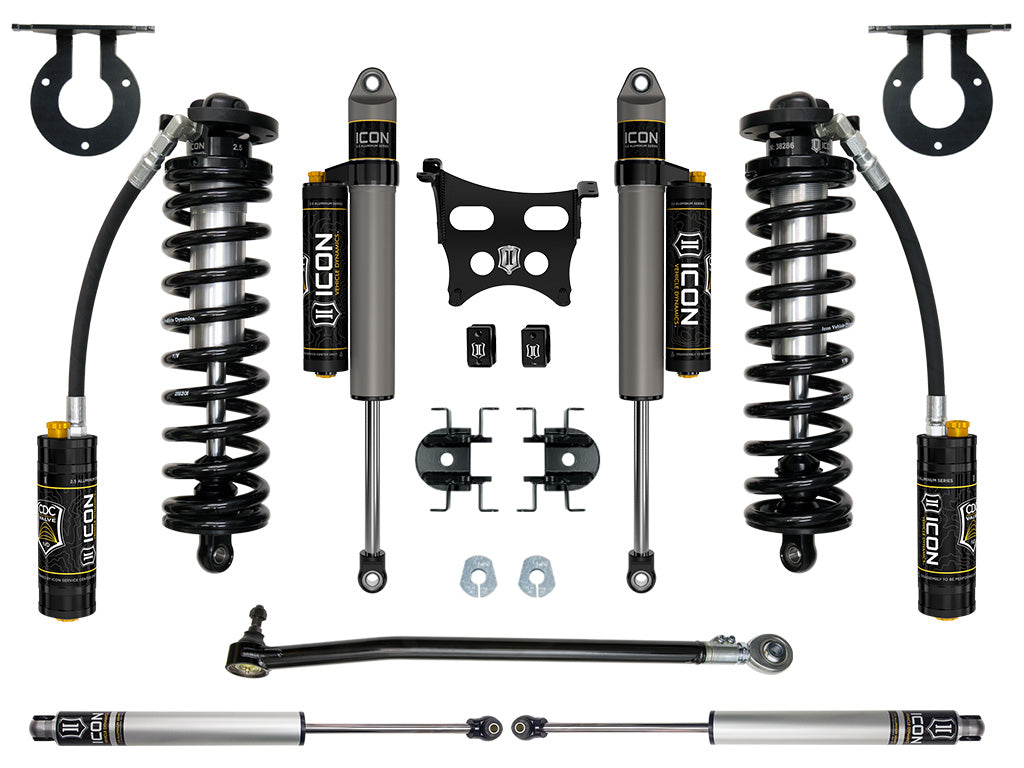

2023 Powerstroke ICON 2.5 Front and Rear Lift Kit (ICOK63164)

Transform your 2023 Ford Super Duty with this complete ICON suspension system delivering 2.5-3" of lift. Purpose-built springs, shocks, and hardware work together as a matched package for improved clearance, ride quality, and off-road capability.

Part Number: ICOK63164

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3" of lift
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Adjustable track bar ensures proper axle placement and improves handling
• Dual steering stabilizer kit for smooth wheel control while driving
• ICON engineered coil springs guaranteed for life against sagging or breakage
• Wheel & Tire Recommendations:
• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• Important Notes:
• Only fits 4WD models
• Will not fit F-350/F-450 Cab & Chassis models
• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Rare Cases Require A 2.6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split.
• Secondary Shock Options Available, Contact ICON For More Details.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Will not fit 2024 models
• Diesel models without Tremor package will have front lift height range of 2.5-3" over stock
• Diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
• Gas models without Tremor package will have front lift height range of 3-3.5" over stock
• Gas models equipped with Tremor package will have front lift height range of 2-2.5" over stocks
• Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
• Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
