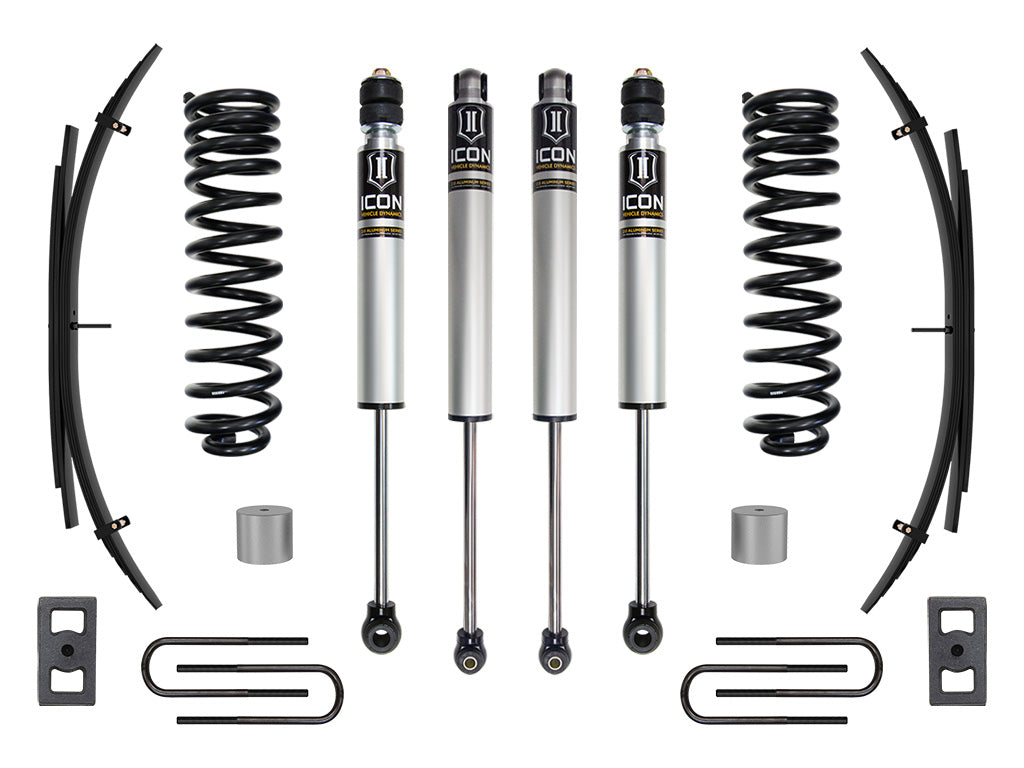

2023 Powerstroke ICON 2.5 Front and Rear Lift Kit (ICOK62561L)

Transform your 2023 Ford Super Duty with this complete ICON suspension system delivering 2.5" of lift. Purpose-built springs, shocks, and hardware work together as a matched package for improved clearance, ride quality, and off-road capability.

Part Number: ICOK62561L

• ICON engineered dual rate coil springs provide 2.5" of front lift over stock
• Vehicle specific tuned internal reservoir 2.0 Aluminum Series shocks
• Application specific alignment cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won't sag or break
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting or welding necessary for install
• Wheel & Tire Recommendations:
• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• Important Notes:
• Only fits 4WD models
• Will not fit F-350/F-450 Cab & Chassis models
• Springs Are Rated For Diesel Engines Only
• An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
• Lift Heights Based On 4WD Crew Cab Diesel
• Rare Cases Require A 2.6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• If equipped with Dynamic Bending Headlamps and/or Onboard scales part # 611081 is also required
• Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
• Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
• Will not fit 2024 models
• Trucks equipped with Tremor package with have front lift height of 1.5" over stock
• Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
