2023-2026 Super Duty 3.0" Lift Pathfinder System (CS-FLVL-PF-23-GAS)

Carli Suspension
Regular price $7,021.44 CAD

Notices

This item may have additional freight costs. Learn More

Build Your Kit

Customize your Pathfinder System. Each selection adds as a separate item in your cart - you can adjust quantities or remove individual addons before checkout.

Front Sway Bar Options

Required

The Pathfinder System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck

Rear Leaf Spring Selection

Optional

The Pathfinder System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road as the rebound tuning is matched to the lighter Carli Leaf Springs (add-a-packs will "bounce" a bit more). Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package). XHD Leaf Springs are ONLY to be run with the XHD version of this system, so they are not offered here. Skipping the rear leaf springs will result in a "floaty" rear end and unknown height as this Carli System is optimized to the Progressive Leaf Springs; NOT the factory leaf springs.

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

2° Pinion Shim

Optional

*OPTIONAL BUT RECOMMENDED* - When modifying the rear leaf springs (add-a-pack or Full Spring Pack) of the 2017+ Super Duty platform, there's a small chance you'll induce a driveline vibration around 70mph when under power from the rear driveline. These pinion shims will correct the angle to 4°-5°, ideal for our lifted applications. Although these will not be "required" on every truck, we've found the 4°-5° spec to be superior in our applications and these are FAR easier to install initially than correctively

Adjustable Radius Arms

Optional

Icing on the cake, these arms have been completely redesigned for the 23+ Super Duty. They boast Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Low Mount Steering Stabilizer

Optional

High Mount Steering Stabilizer

Optional

Bolt-in replacement for the factory stabilizer. Adjustable 70-200 psi — run neutral or counter the right-hand pull of aggressive M/T tires like Toyo Mud Terrains. Stainless, leveled-and-lifted trucks only, not compatible with drop pitman arms.

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Purchase to earn 7021  Dirty Dollars Learn More

Description

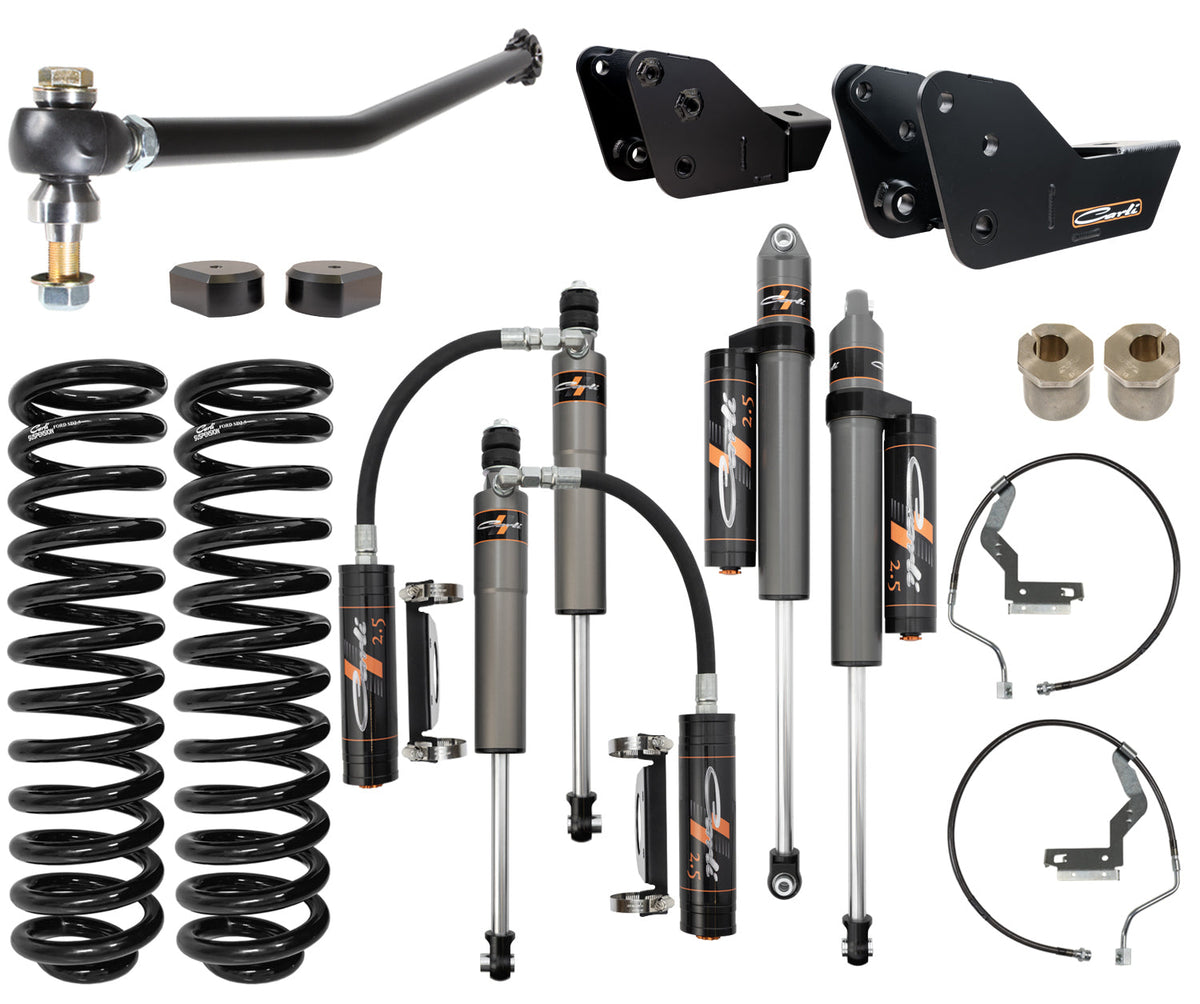

Step up your Ford Super Duty F-250/F-350 with the Carli Suspension Pathfinder System. Sitting between the Commuter and Pintop in Carli's lineup, the Pathfinder delivers an outstanding balance of on-road comfort and off-road confidence with Carli-spec remote reservoir shocks and precision-engineered components.

Part Number: CS-FLVL-PF-23-GAS

Features

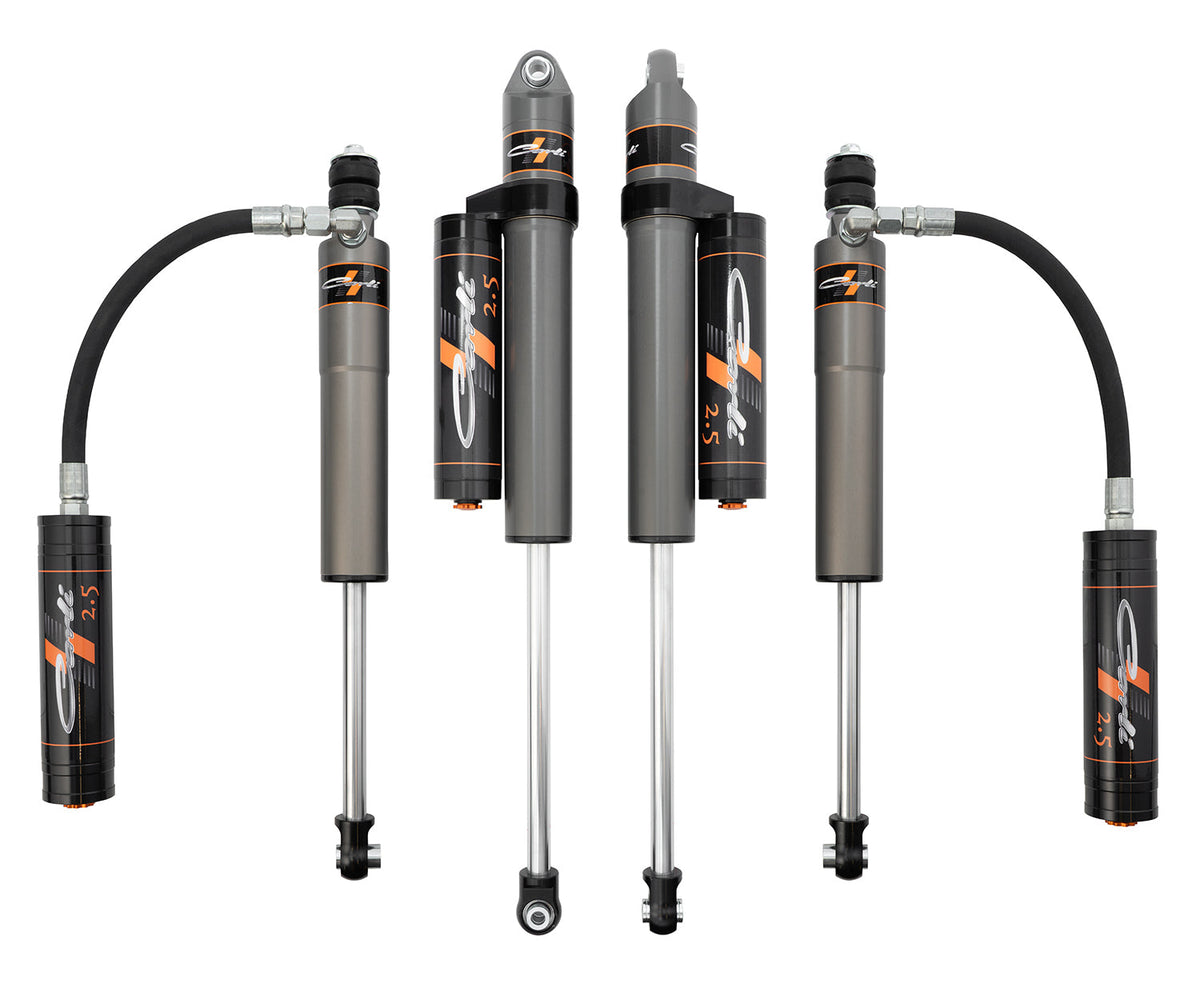

  • Carli-spec 2.5" remote reservoir shocks for superior damping
  • Adjustable track bar for precise steering geometry

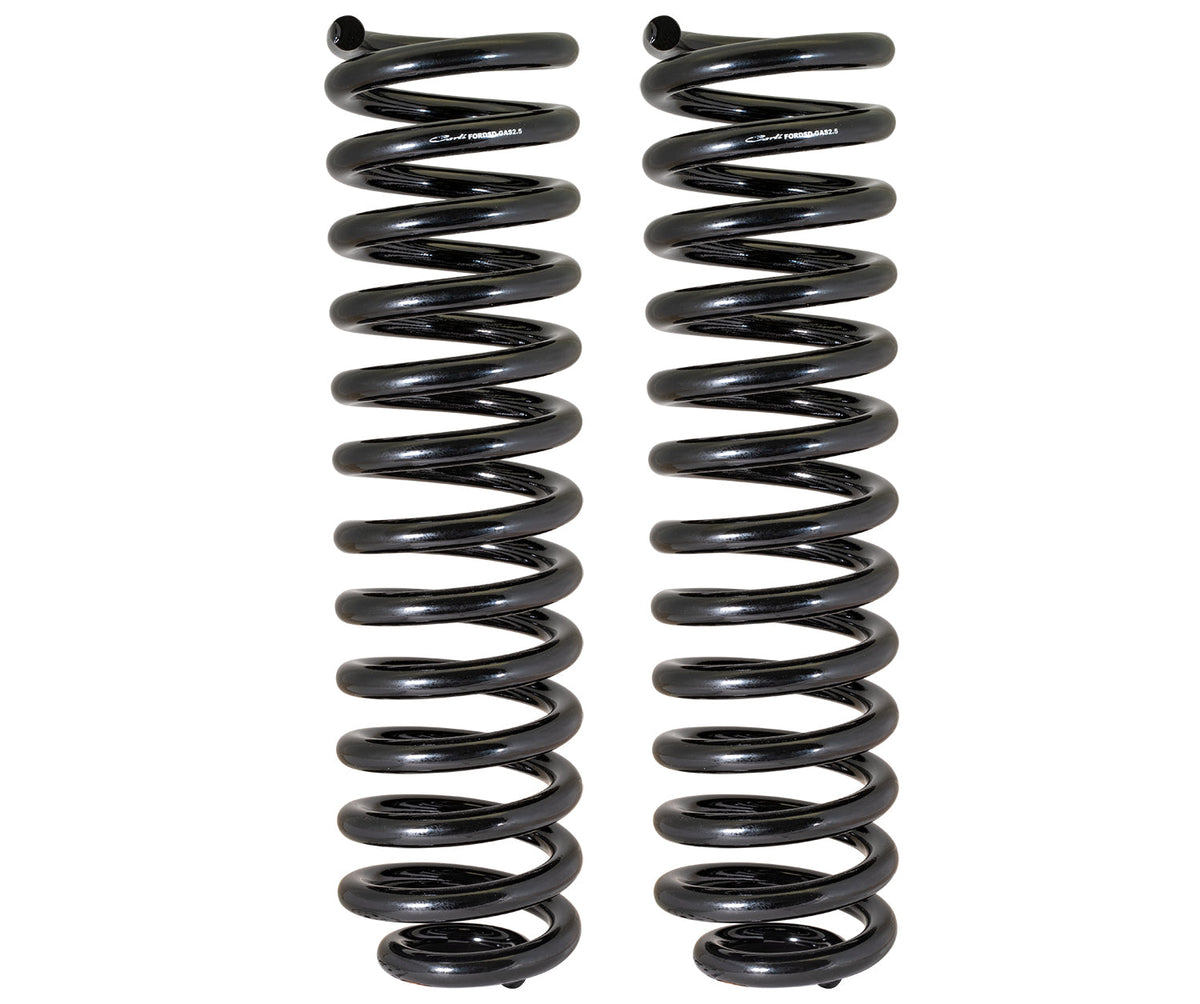

  • Linear-rate front coil springs for the added ride height
  • Complete bolt-on system with all hardware included
  • Excellent balance of on-road comfort and off-road capability
  • 100% American made and hand-assembled

Fitment

3" Lift - 2023-2026 F250/350 4x4 7.3L Gas
1" Lift - 2023-2026 F250/350 4x4 7.3L Gas Tremor
