2023-2026 Powerstroke Pathfinder 5.5" Lift Kit (CS-F55-PF-23)

Carli Suspension
$7,120.80 CAD
Notices

This item may have additional freight costs. Learn More

Build Your Kit

Customize your Pathfinder System. Each selection adds as a separate item in your cart - you can adjust quantities or remove individual addons before checkout.

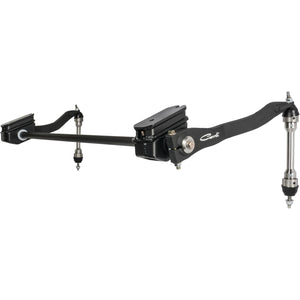

Sway Bar

Required

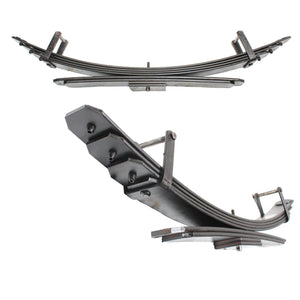

Rear Leaf Spring Option

Required

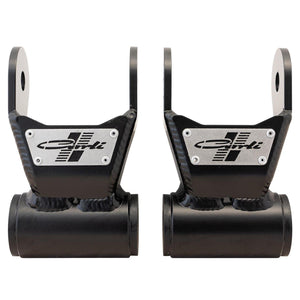

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

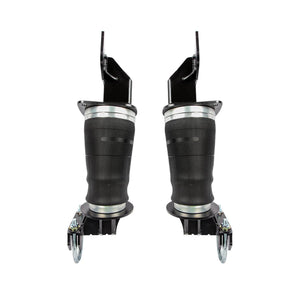

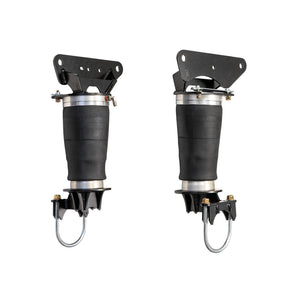

Long Travel Airbags

Optional

2° Pinion Shim

Optional

*OPTIONAL BUT RECOMMENDED* - When modifying the rear leaf springs (add-a-pack or Full Spring Pack) of the 2017+ Super Duty platform, there's a small chance you'll induce a driveline vibration around 70mph when under power from the rear driveline. These pinion shims will correct the angle to 4°-5°, ideal for our lifted applications. Although these will not be "required" on every truck, we've found the 4°-5° spec to be superior in our applications and these are FAR easier to install initially than correctively

Fabricated Radius Arm Option

Optional

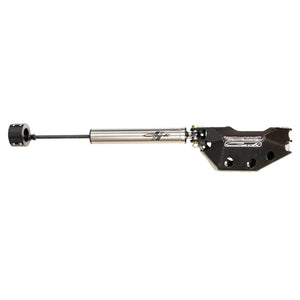

Low Mount Steering Stabilizer

Optional

High Mount Steering Stabilizer

Optional

Bolt-in replacement for the factory stabilizer. Adjustable 70-200 psi — run neutral or counter the right-hand pull of aggressive M/T tires like Toyo Mud Terrains. Stainless, leveled-and-lifted trucks only, not compatible with drop pitman arms.

Carrier Bearing Drop

Optional

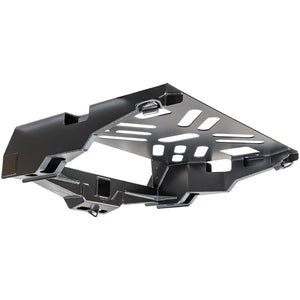

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Purchase to earn 7120  Dirty Dollars Learn More

Description

Fits

Year
 Make  Model
2023–2026 Ford F-250/F-350 Super Duty 4x4

Note: This lift kit is not compatible with the ONBOARD SCALES/SMART HITCH.

Elevate your Super Duty’s performance with the Carli Pathfinder system, the ultimate do-all suspension setup for 6.7L Powerstroke owners who demand a plush on-road ride without sacrificing off-road capability. This kit utilizes custom-tuned 2.5" shocks to deliver unmatched stability and control, whether you're hauling a heavy trailer or airing down for the trails. Engineered to fix factory geometry issues, it ensures your heavy-duty Ford tracks straight and handles with precision.

Part Number: CS-F55-PF-23

Features
  • Carli-spec 2.5” remote reservoir shocks
  • Full progressive rate front coils
  • Corrects caster for 37” tires
  • Extremely stout box-tubing construction
  • Fully serviceable spherical joints
  • Optimized towing stability and comfort
  • Durable corrosion-resistant hardcoat finish

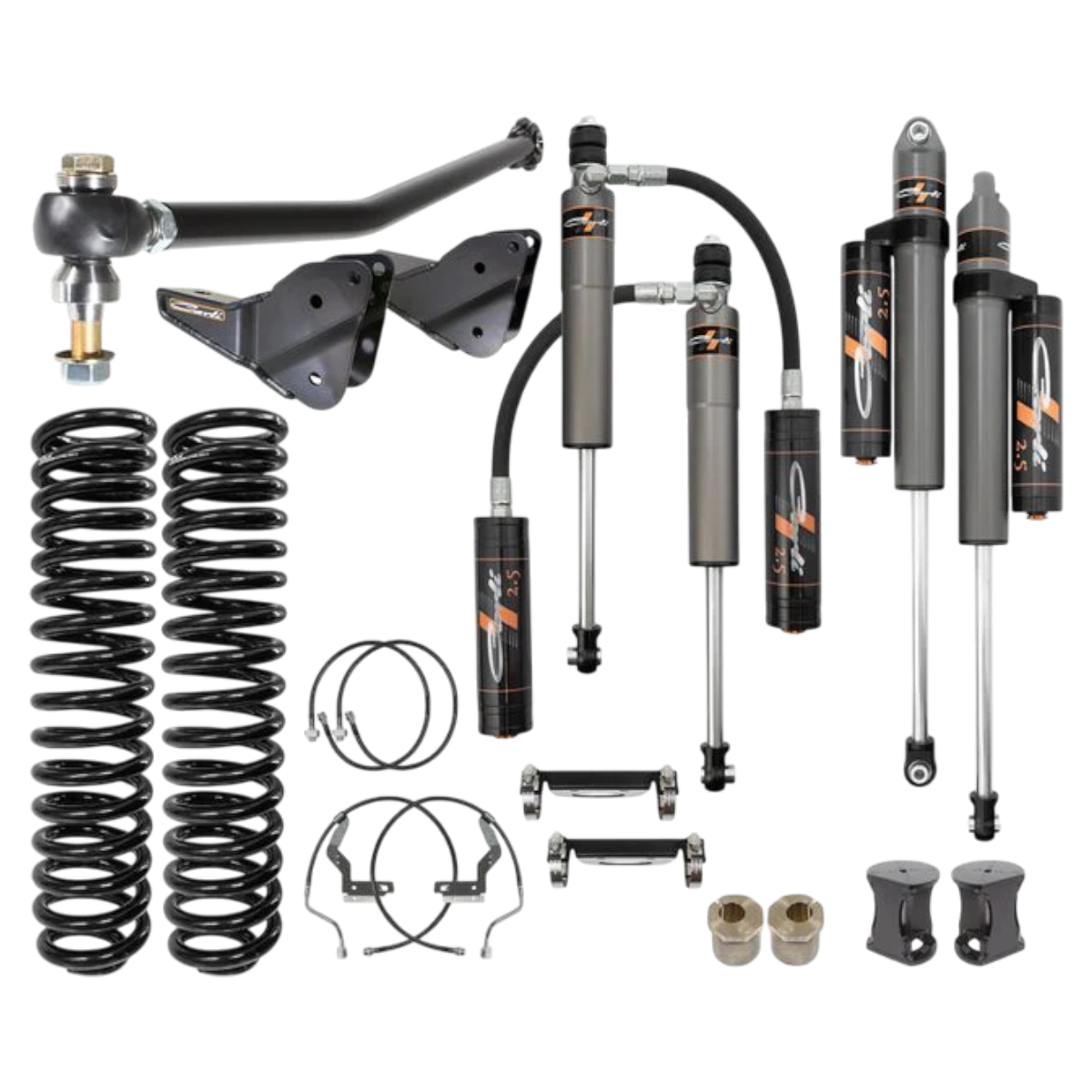

Part Numbers Included:

  • CS-FMRC-05: Progressive Coil Springs
  • CS-FATB-17: Adjustable Track Bar
  • CS-FORDBBL-55-23: Extended Brake Lines
  • CS-FRAD-2325: Radius Arm Drop Brackets
  • CS-FBDF-45-17: Front Bumpstop Drop
  • CS-FCASTERSHIM-45: Caster Correction Shim
  • AS-F45SPKG-CS25RR-A: Pathfinder 2.5 Shocks For 4.5/5.5" Lift
  • CS-FRM-CS25: Reservoir Mount Carli-Spec 2.5"

Notes
  • This is a Front-Lift Base Kit. To achieve a level stance, you must select a Rear Lift option (Add-a-Packs or Full Leaf Springs) and a Sway Bar correction option from the "addons" above.
  • This system cannot be installed with the factory sway bar links alone; a correction option is required.
  • Not compatible with trucks equipped with factory Onboard Scales/Smart Hitch.
  • Modifying the ride height or spring rate will interfere with this system’s performance.
