2023-2025 Powerstroke ICON Intelligent Suspension Controller (ICO93502)

Take full control of your 2023-2025 Superduty's suspension with ICON's intelligent controller. Electronically adjustable damping lets you switch between comfort and performance modes on the fly — real-time tuning from your phone.

Part Number: ICO93502

• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
• Onboard sensors monitor G-forces and movement of vehicle chassis
• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
• User interface provided by IIC Mobile App via Bluetooth connection to iOS device
• Mobile app offers preconfigured “Drive Modes" as well as the ability to create custom presets
• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

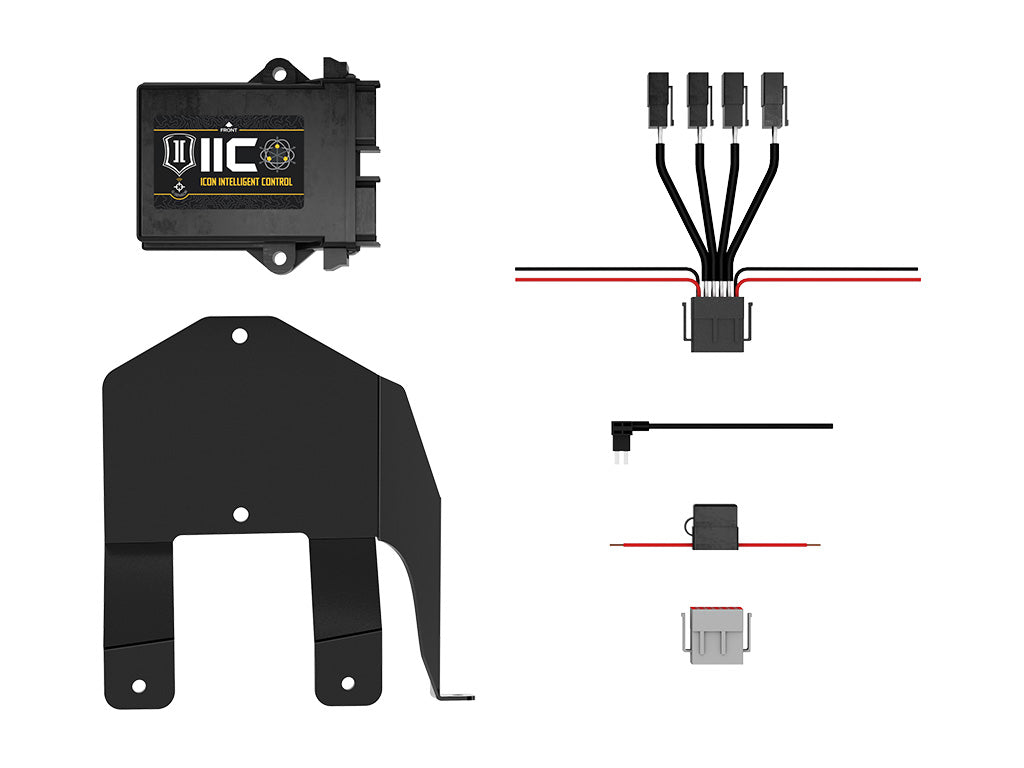

• Application specific mounting brackets, hardware and wire harnesses

• An iOS operated device is required to run ICON Intelligent Control App
• Also requires installation of applicable CDEV front and rear shocks
• Included wire harnesses allows IIC to operate 4 CDEV equipped shocks, 2 fronts and 2 rears. For optional CDEV secondary front shocks in addition to CDEV primary shocks, part number 191207 is also required.
