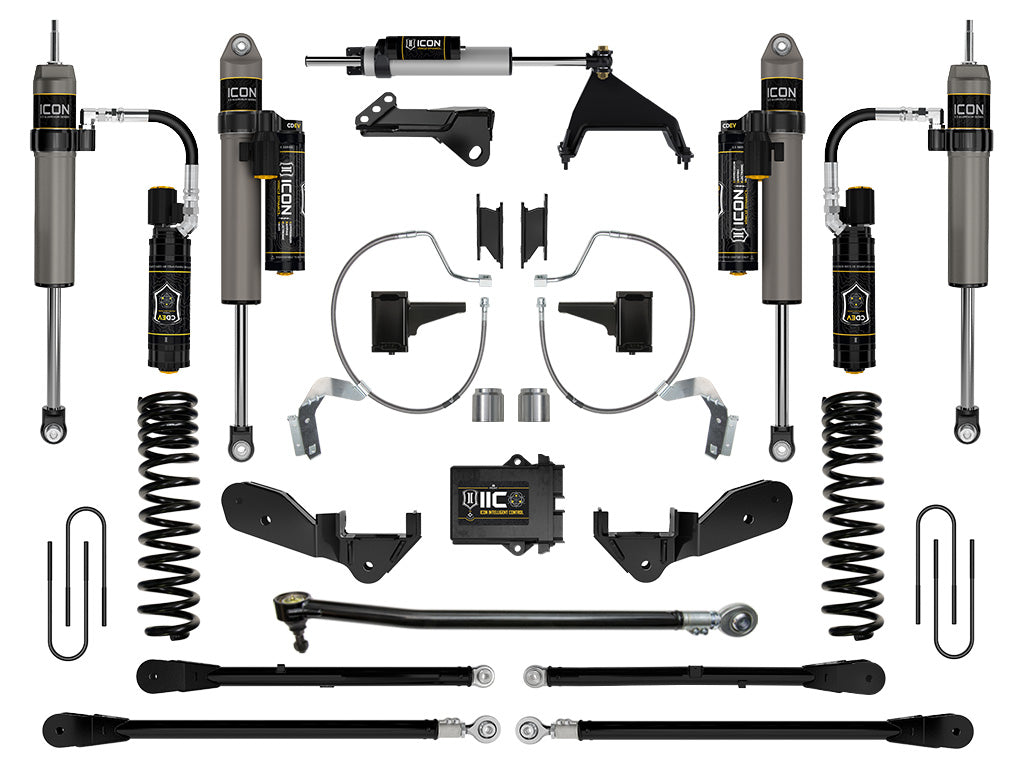

2023-2025 Powerstroke ICON Front and Rear Lift Kit (ICOK64548)

Transform your 2023-2025 Ford Super Duty with this complete ICON suspension system delivering 4.5" of lift. Purpose-built springs, shocks, and hardware work together as a matched package for improved clearance, ride quality, and off-road capability.

Part Number: ICOK64548

• ICON engineered dual rate coil springs deliver 4.5" of front lift with exceptional vehicle control over varying terrain
• ICON 2.5 Aluminum Series remote reservoir shocks feature vehicle specific tune for superior performance and ride quality
• Remote reservoirs maintain cooler operating temperatures and consistent performance during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Approximately 50% increased front wheel travel over stock
• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• Stainless steel braided front brake lines
• Wheel & Tire Recommendations:
• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Important Notes:
• Only fits 4WD models
• Will not fit F-350/F-450 Cab & Chassis models
• Springs are rated for diesel engines only
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Lift heights based on 4WD crew cab diesel
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• An iOS operated device is required to run ICON Intelligent Control App
• Trucks equipped with Tremor package with have front lift height of 3.5" over stock
