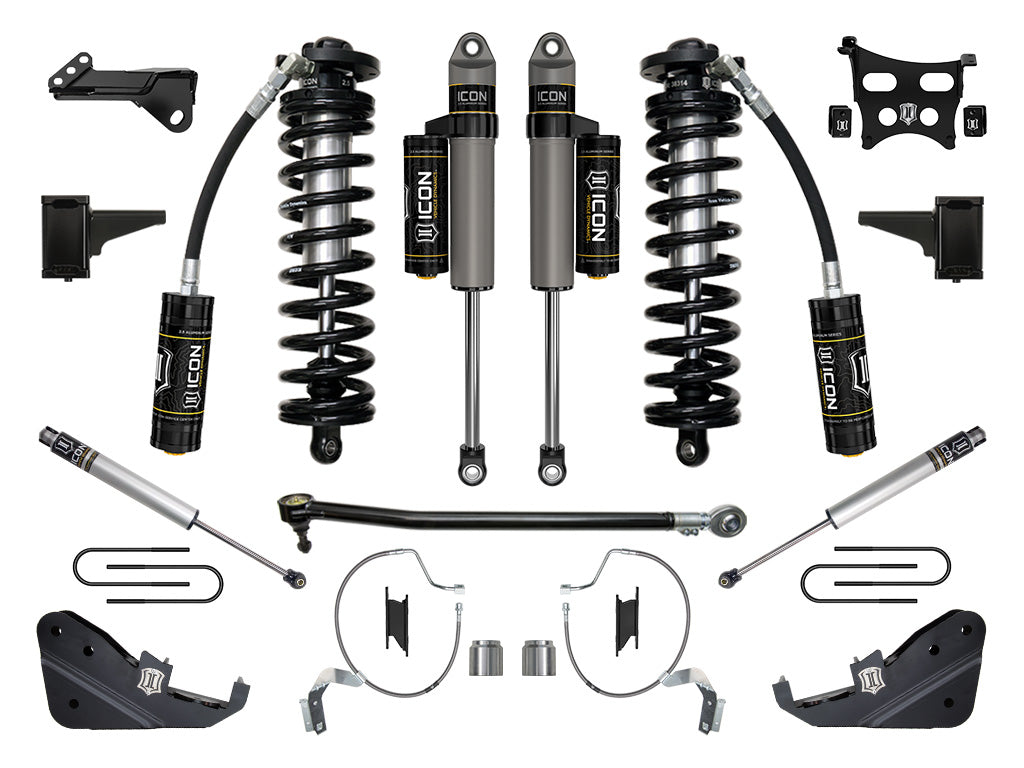

2023-2025 Powerstroke ICON Front and Rear Lift Kit (ICOK63174)

Transform your 2023-2025 Ford Super Duty with this complete ICON suspension system delivering 4-5.5" of lift. Purpose-built springs, shocks, and hardware work together as a matched package for improved clearance, ride quality, and off-road capability.

Part Number: ICOK63174

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
• Vehicle-specific shock valving provides unparalleled ride quality and control
• ICON 2.5 Aluminum Series piggyback reservoir rear shocks
• Increased wheel travel and ride quality over stock
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• Dual steering stabilizer kit offers increased steering damping
• Corrosion resistant anodized steering stabilizer shock bodies with 5/8" shafts
• Stainless steel braided front brake lines
• Wheel & Tire Recommendations:
• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Important Notes:
• Only fits 4WD models
• Will not fit F-350/F-450 Cab & Chassis models
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Removal of the coil centering cup in factory coil bucket required for installation
• Lift heights based on 4WD crew cab diesel
• Secondary shock options available, contact ICON for more details
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
• Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
• Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
• Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
• If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
• Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
