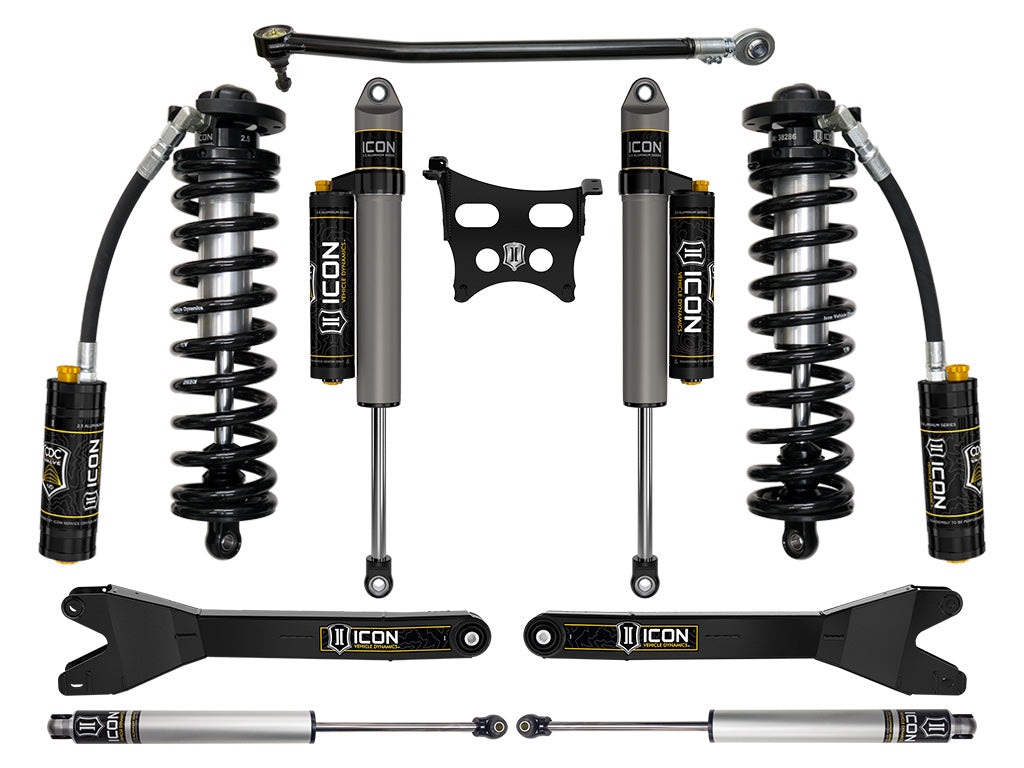

2023-2025 Powerstroke ICON 2.5 Front and Rear Lift Kit (ICOK63204R)

Fits

Level up your 2023-2025 Superduty with this complete ICON suspension system. 4" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Part Number: ICOK63204R

• ICON engineered dual rate coil springs provide 4" of front lift over stock
• Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Adjustable track bar ensures proper axle placement and improves handling
• Less body-roll than stock
• Lifetime guarantee that springs won't sag or break
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

• Only fits 4WD models
• Not compatible with F-350 Cab & Chassis models
• Springs are rated for diesel engines only
• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Lift heights based on 4WD Crew Cab diesel
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• If equipped with OnBoard Scales also requires sensor bracket part number 66203
• Trucks equipped with Tremor package with have front lift height of 3" over stock
• 37" x 12.50" tires may fit but fender trimming and modifications will be required.
• Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
• Included rear shocks are compatible with 0-3" of rear lift over stock

• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 35" x 12.50"
