2023-2024 Powerstroke Pintop 5.5" Lift Kit (CS-F55-PT25-23)

Fits

Note: NOT compatible with the ONBOARD SCALES/SMART HITCH

Review 'Additional Info' for required and optional components

One of the best off-road suspension systems Carli offers, the Pintop 5.5" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-F55-PT25-23

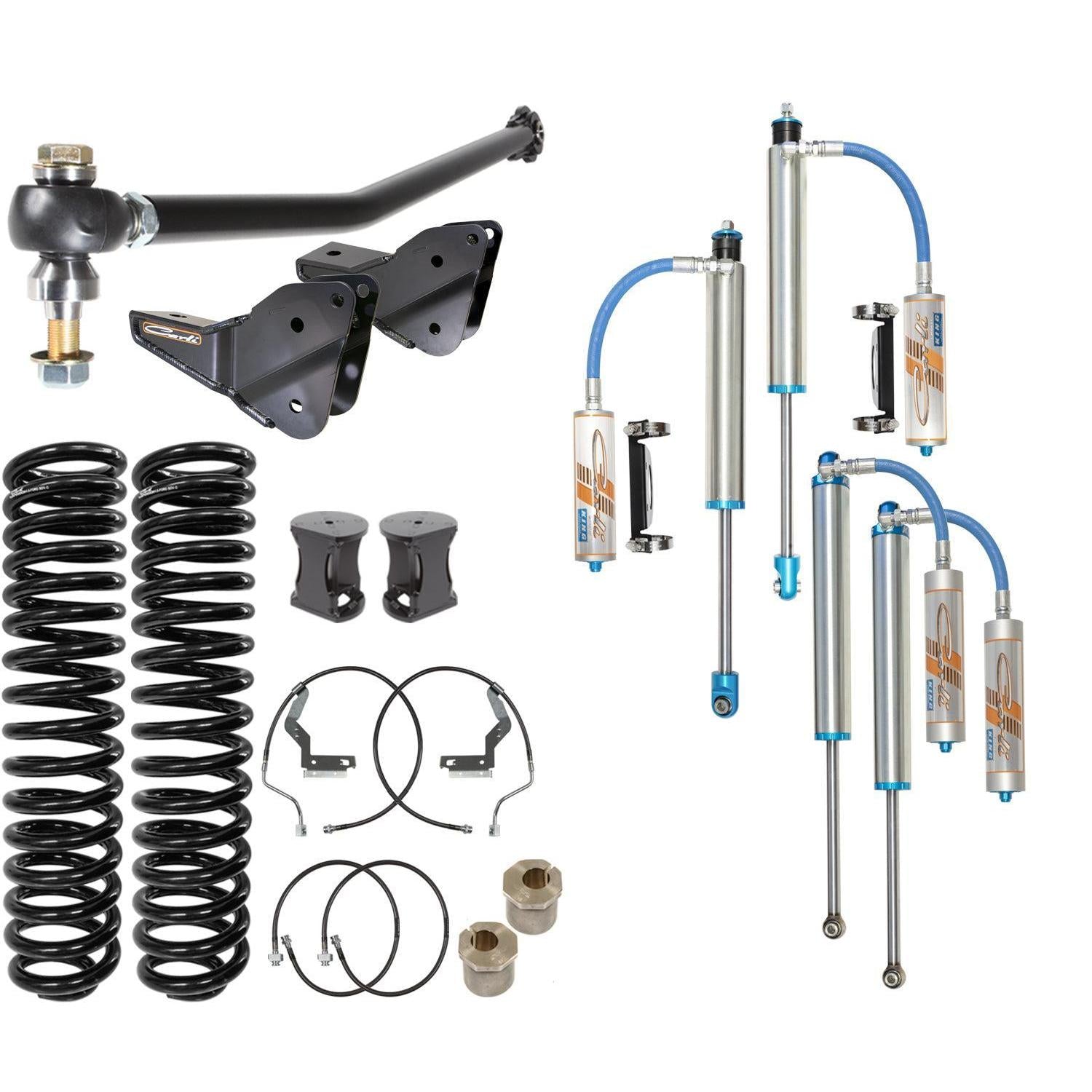

• Front shock package, brake line kit, radius arm drop brackets, bump stop drops, caster correction shims, and adjustable track bar
• Increases wheel travel to 11" front and 13" rear

• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17
  • Radius Arms: CS-FARA-55-23
  • Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Long Travel Bags: CS-FLTB-23-35 or CS-FLTB-23-40 or CS-FLTB-23-45
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-23
  • Carrier Bearing Drop: CS-CARRIERDROP-F
  • 2 deg Pinion Shim: CS-FPSKIT-3X2
  • Trophy Hitch: CS-FHITCH-1723

• NOT compatible with the ONBOARD SCALES/SMART HITCH. Modifying the ride height or spring rate will interfere with this system’s performance.
• Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar, and most concerning, the Brake Lines. Factory tires and factory wheels will work without issue, but Carli DOES NOT recommend running oversized tires on factory wheels.
• It is recommended to wrap your shocks in 3M to provide a moisture barrier that’s replaceable if you are in weather conditions below -55 degrees Fahrenheit
