2023-2024 Powerstroke Pintop 3.5" Leveling Kit (CS-FLVL-PT25-23)

Fits

Note: Will NOT fit onboard scales/ smart hitch

Review 'Additional Info' for required and optional components

One of the best off-road suspension systems Carli offers, the Pintop 3.5" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These Pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, resulting in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-FLVL-PT25-23

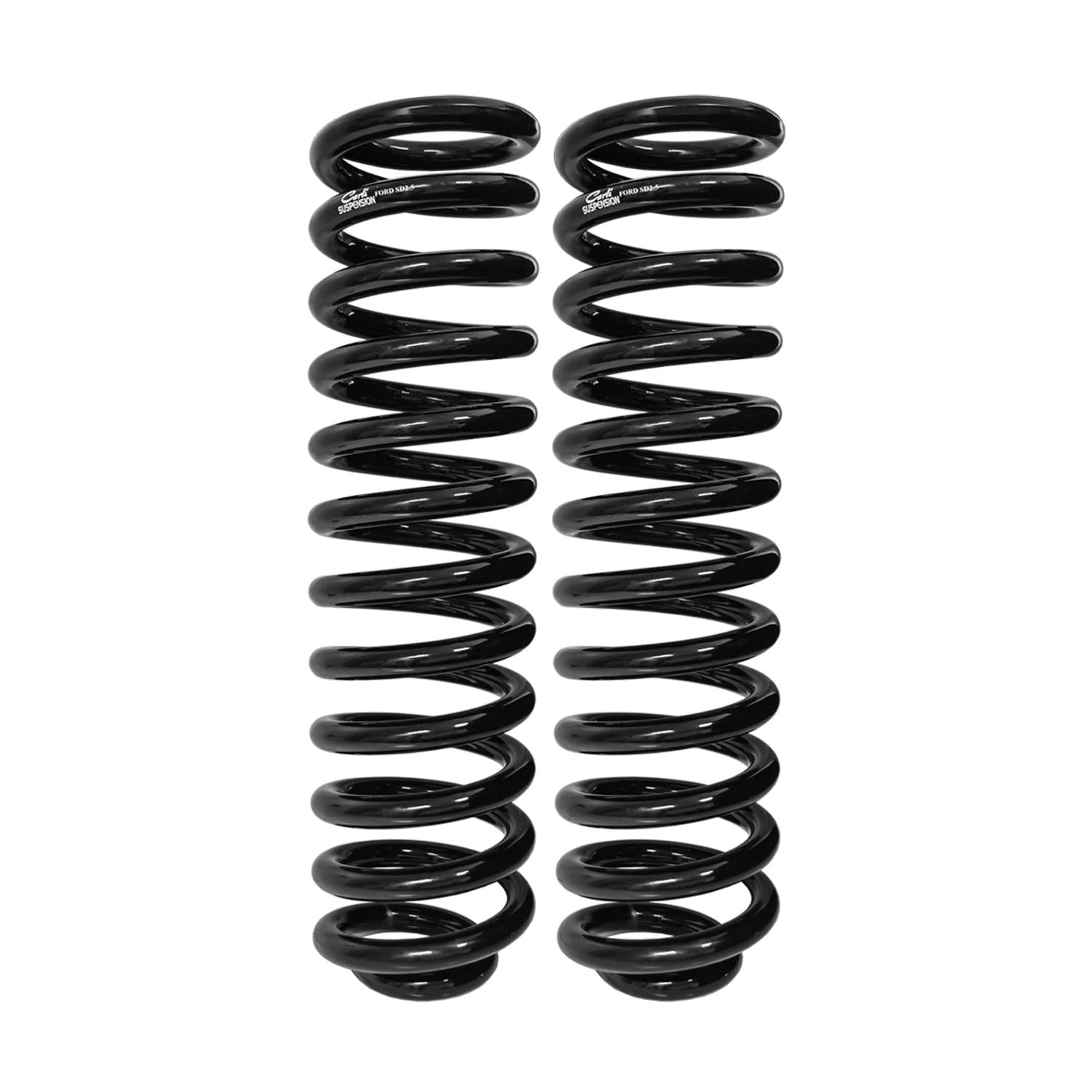

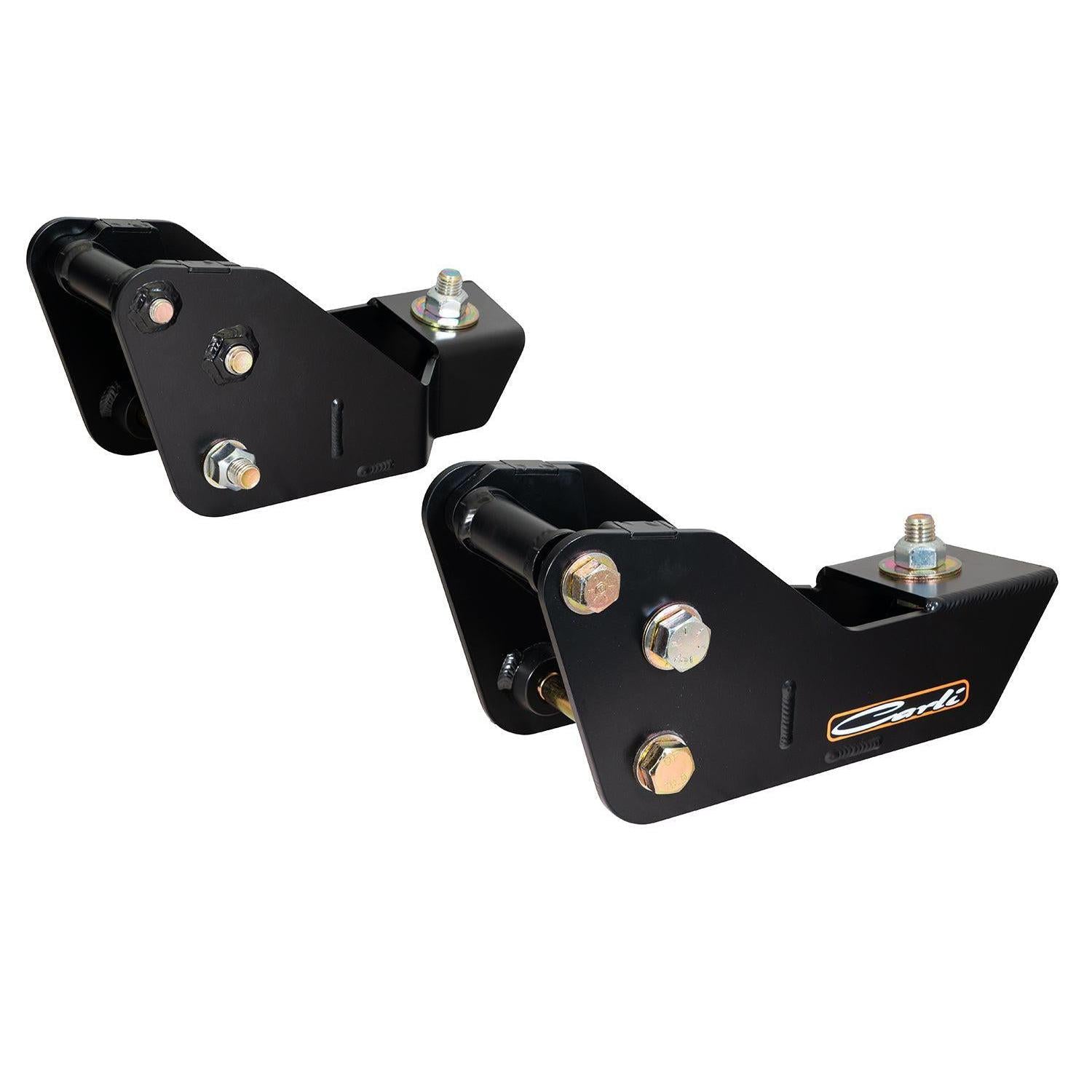

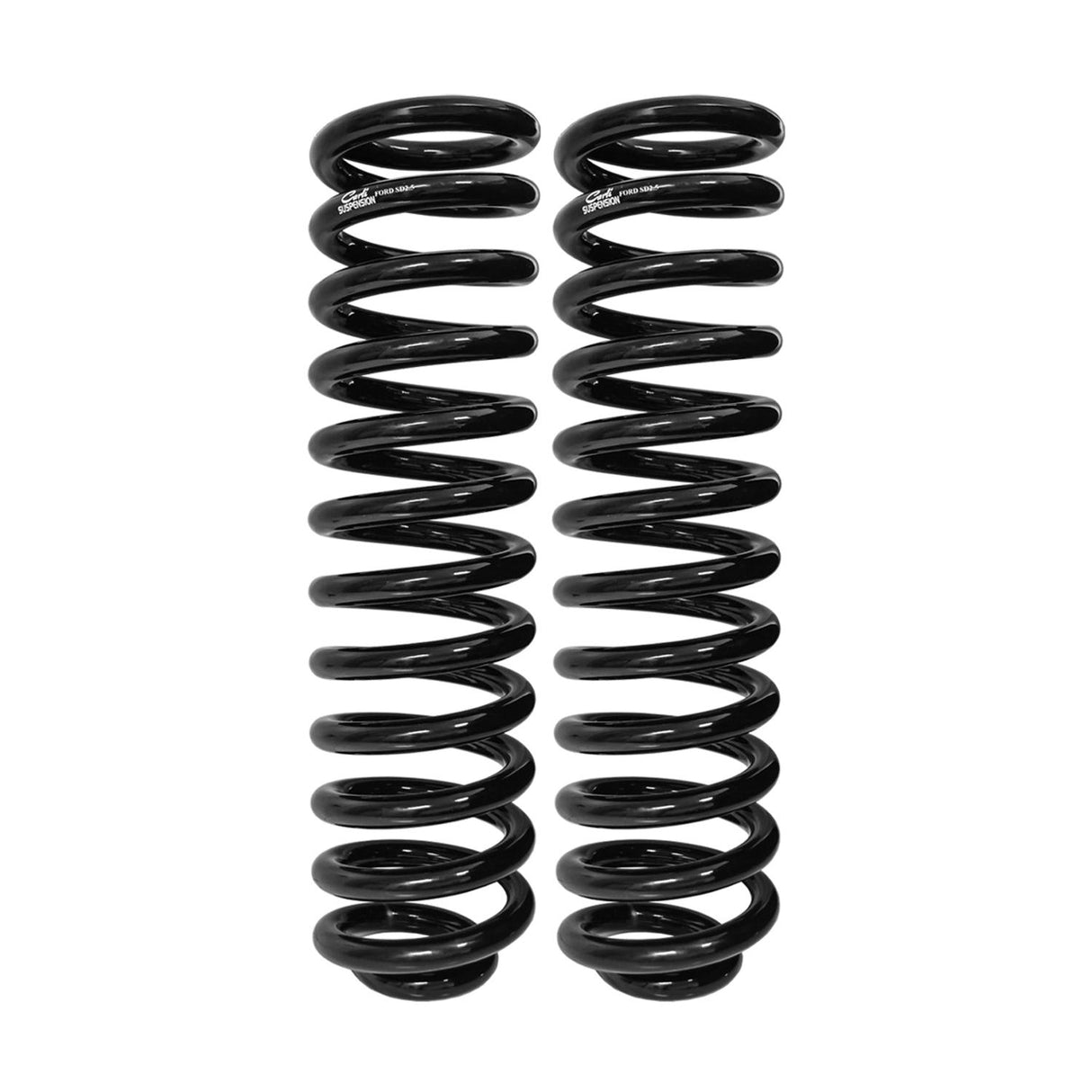

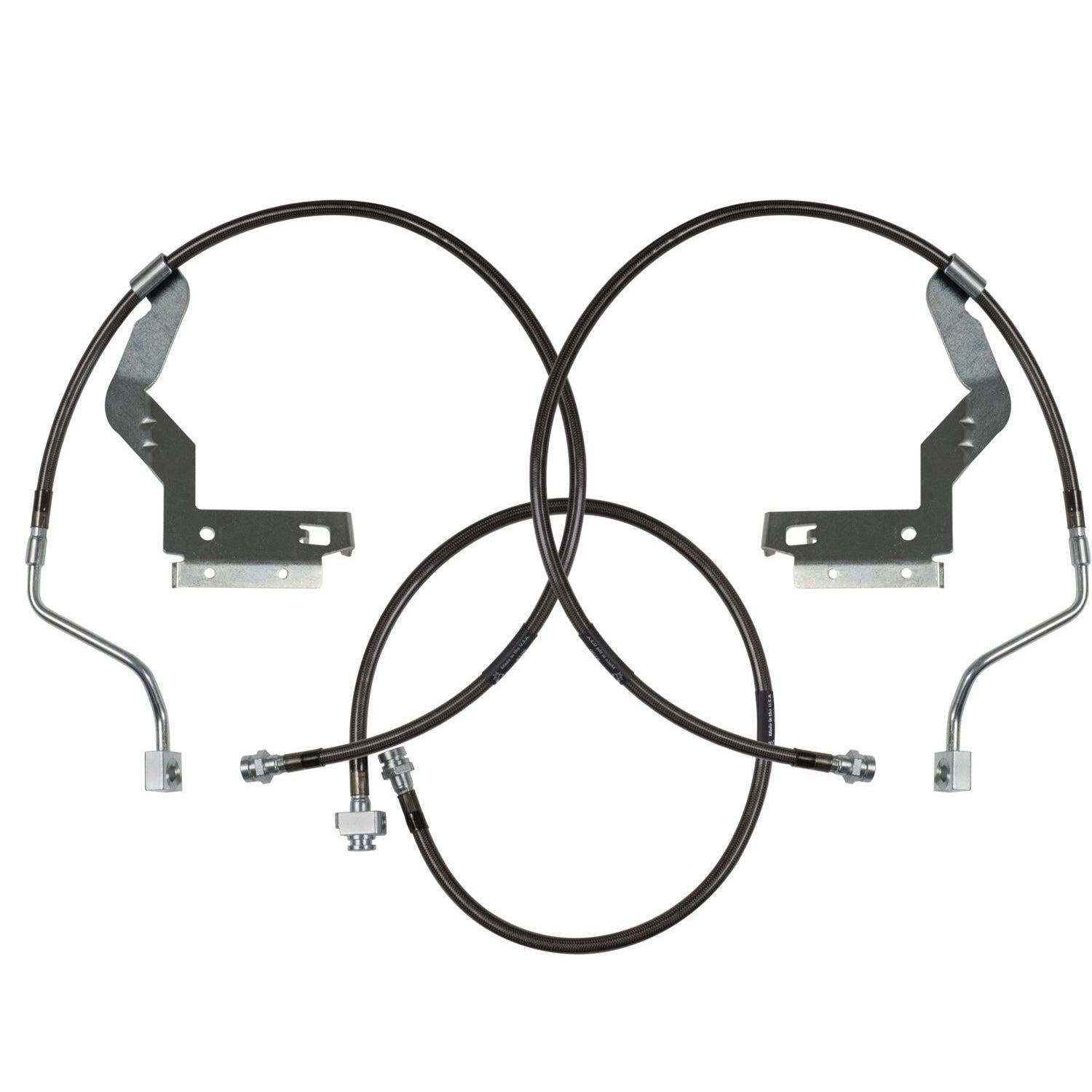

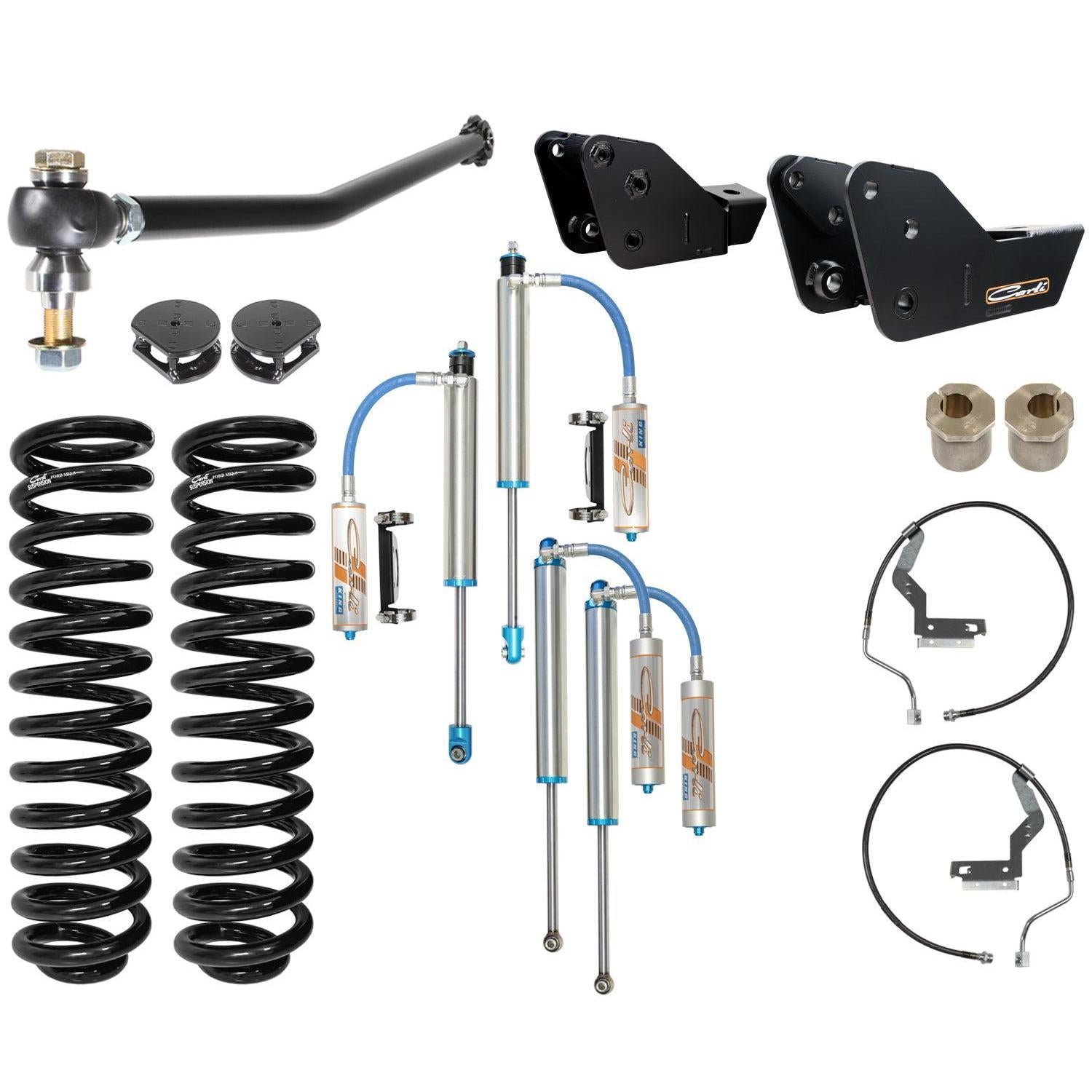

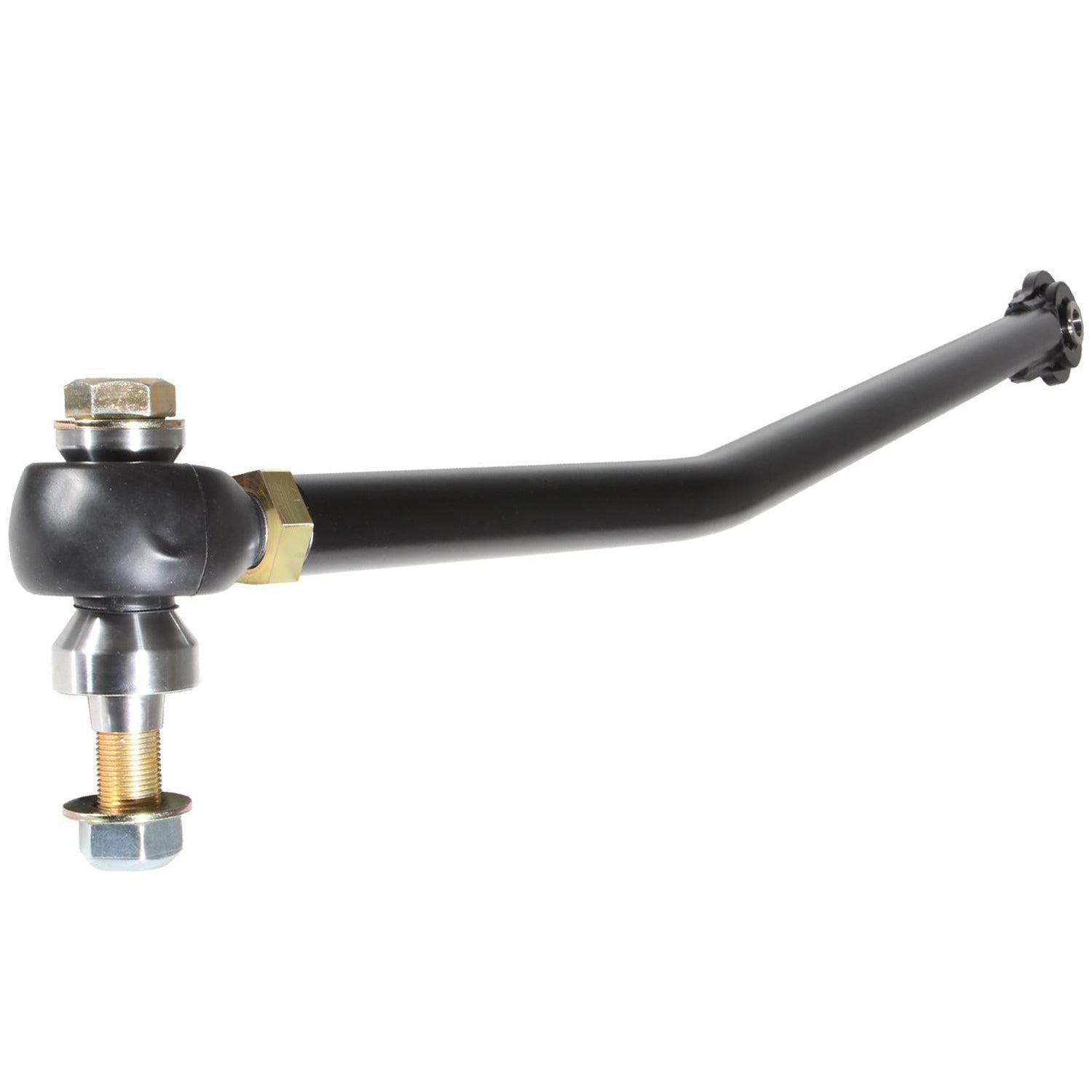

• Front and rear shock packages, linear rate coil springs, brake line kits, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bars
• Increases wheel travel to 9" front and 13" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

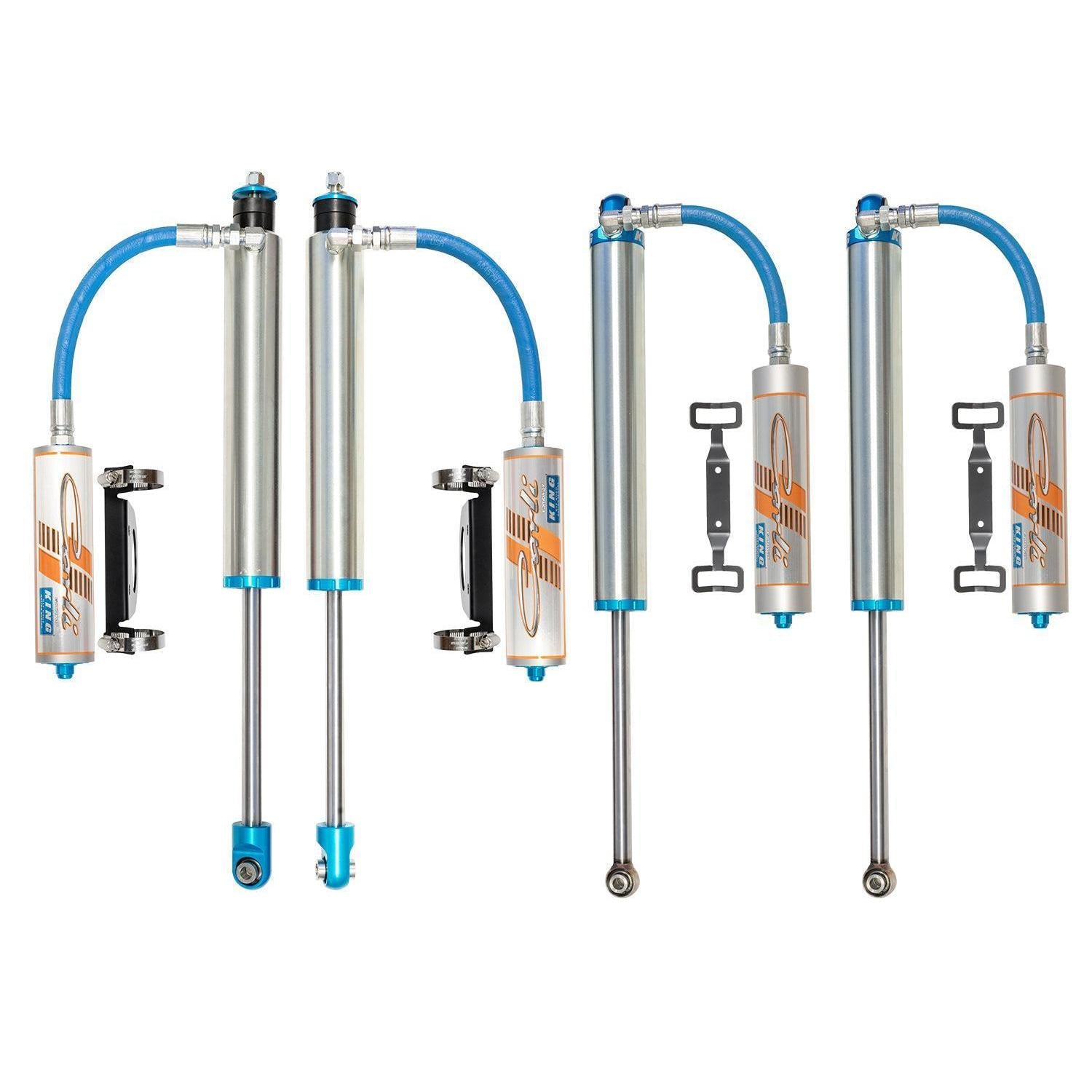

• Carli Custom Tuned KING 2.5 Remote Reservoir Shocks
• Custom pistons determine proper base flow rates to ensure the shock works well in the HD truck platform
• Shock oil holds up to -55 degrees Fahrenheit
• Superior off-road capability

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FELKIT-LVL-17 or CS-FTSB-LVL-17
  • Radius Arms: CS-FARA-LVL-23
  • Leaf Spring Options (REQUIRED): CS-FFSP-LVL-17 or CS-FPAP-LVL-17
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-23
  • Carrier Bearing Drop: CS-CARRIERDROP-F
  • Trophy Hitch: CS-FHITCH-1723

• NOT compatible with the ONBOARD SCALES/SMART HITCH. Modifying the ride height or spring rate will interfere with this system’s performance.
• Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar, and most concerning, the Brake Lines. Factory tires and factory wheels will work without issue, but Carli DOES NOT recommend running oversized tires on factory wheels.
• It is recommended to wrap your shocks in 3M to provide a moisture barrier that’s replaceable if you are in weather conditions below -55 degrees Fahrenheit
