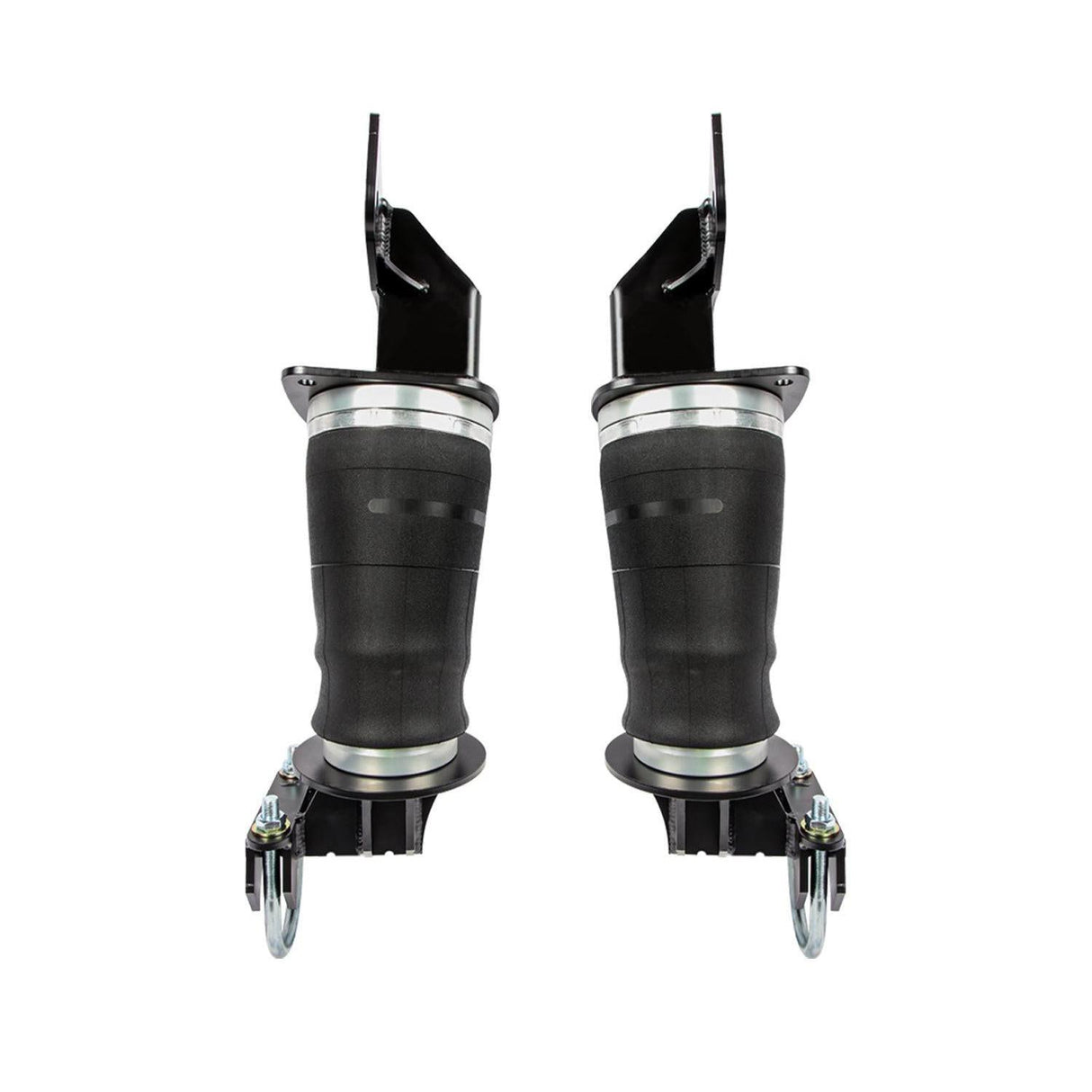

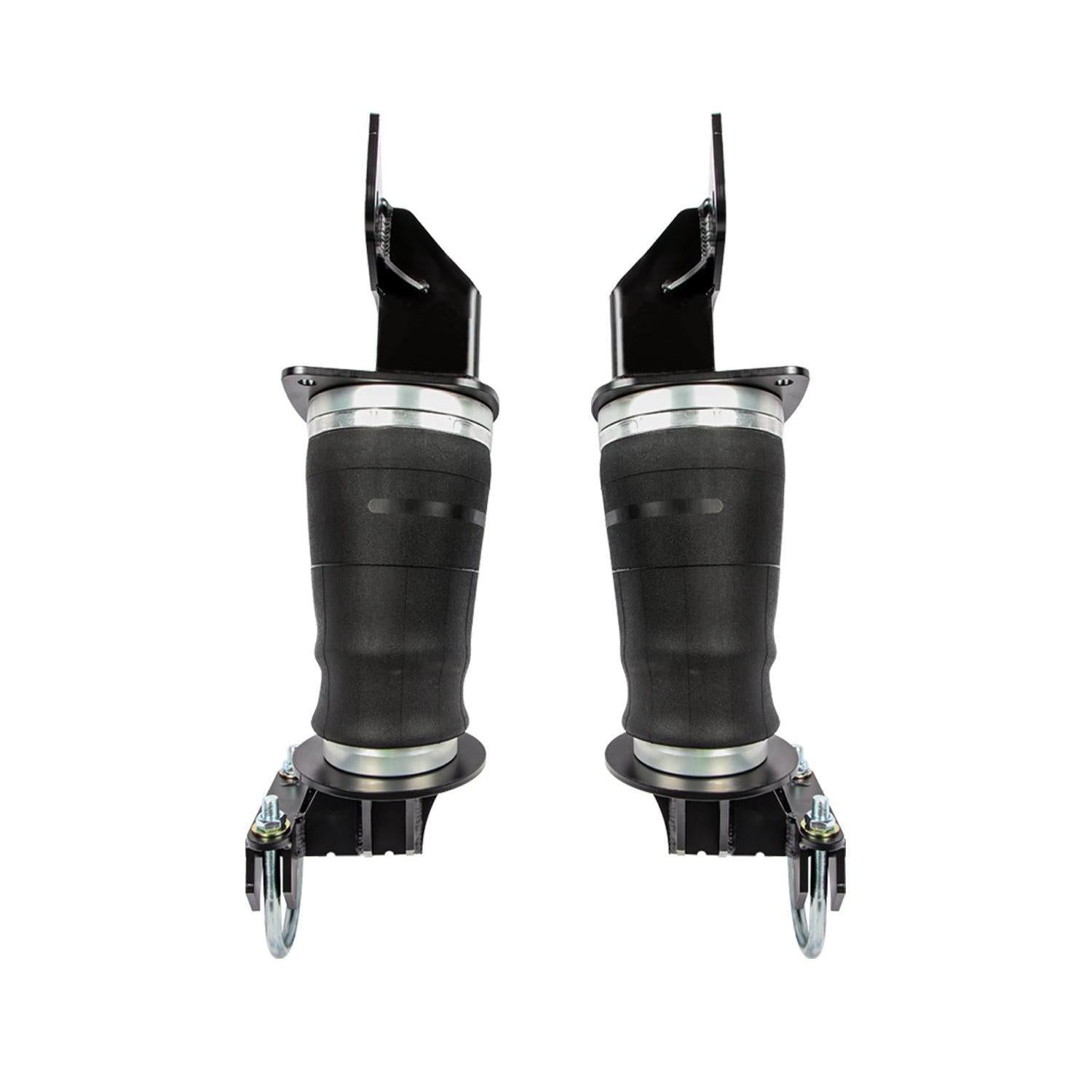

2023-2026 Powerstroke Long Travel Air Bag System w/ 3.5" Axle (CS-FLTB-23-35)

Note: For single rear wheel applications with 3.5" axle tube

These Long Travel Air Bags are perfect for those who still run the factory leaf springs and want improved ride quality without swapping springs or compromising payload capacity. Featuring a tapered piston and a folding sleeve bag to avoid any interference when deflated. Perfect for those who haul 5th wheels, campers, boats, and so on, these bags have an operating range of 0 to 100 psi (bags are rated to 2,000 lbs./ea. at 100psi).

Part Number: CS-FLTB-23-35

• Supports up to 12" of rear travel
• 2,000lb capacity per bag at max 100psi
• Restores Factory payload to full progressive spring pack
• Fits trucks with 3.5" axle tube
• Can be used as a manual fill or with onboard air systems
• Mounting Hardware Included

• Ford Long travel airbags will ONLY work with rear lifts that level to a 5.5″ Front lift. We recommend 2″ of lift in the rear over trucks with 3″ factory blocks.
• 3.5″ Axle Tube should be confirmed before ordering. This Axle is spec'd on the 2023+ F250 4×4, in Gas and Diesel configurations, without the Tremor or High Capacity tow package.
• These will also work with add-a-packs, but the factory bump-stop tang will need to be cut off the factory block.

3.5″ Axle Tube should be confirmed prior to ordering. This Axle is spec'd on the 2023+ F250 4×4, in Gas and Diesel configurations, without the Tremor or High Capacity tow package.

Increase the load capacity and towing capability of your Super Duty without sacrificing ride quality and comfort. Our airbags work with up to 12″ of suspension travel and are 100% bolt-on DIY. You can install onboard air or use them manually. These are heavy-duty and rated at 2,000lbs each (up to 4,000lbs of capacity at 100 psi) with a normal operating range of 5 to 75 psi, suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling.

These were designed to work in conjunction with our Full Progressive Leaf Springs to regain the lost payload capacity and create an adjustable solution for varying loads. These will work with add-a-packs as well but the factory bump-stop tang will need to be cut off the factory block.

NOTE: Ford Long travel airbags will ONLY work with rear lifts that level to a 5.5″ Front lift. We recommend 2″ of lift in the rear over trucks with 3″ factory blocks.
