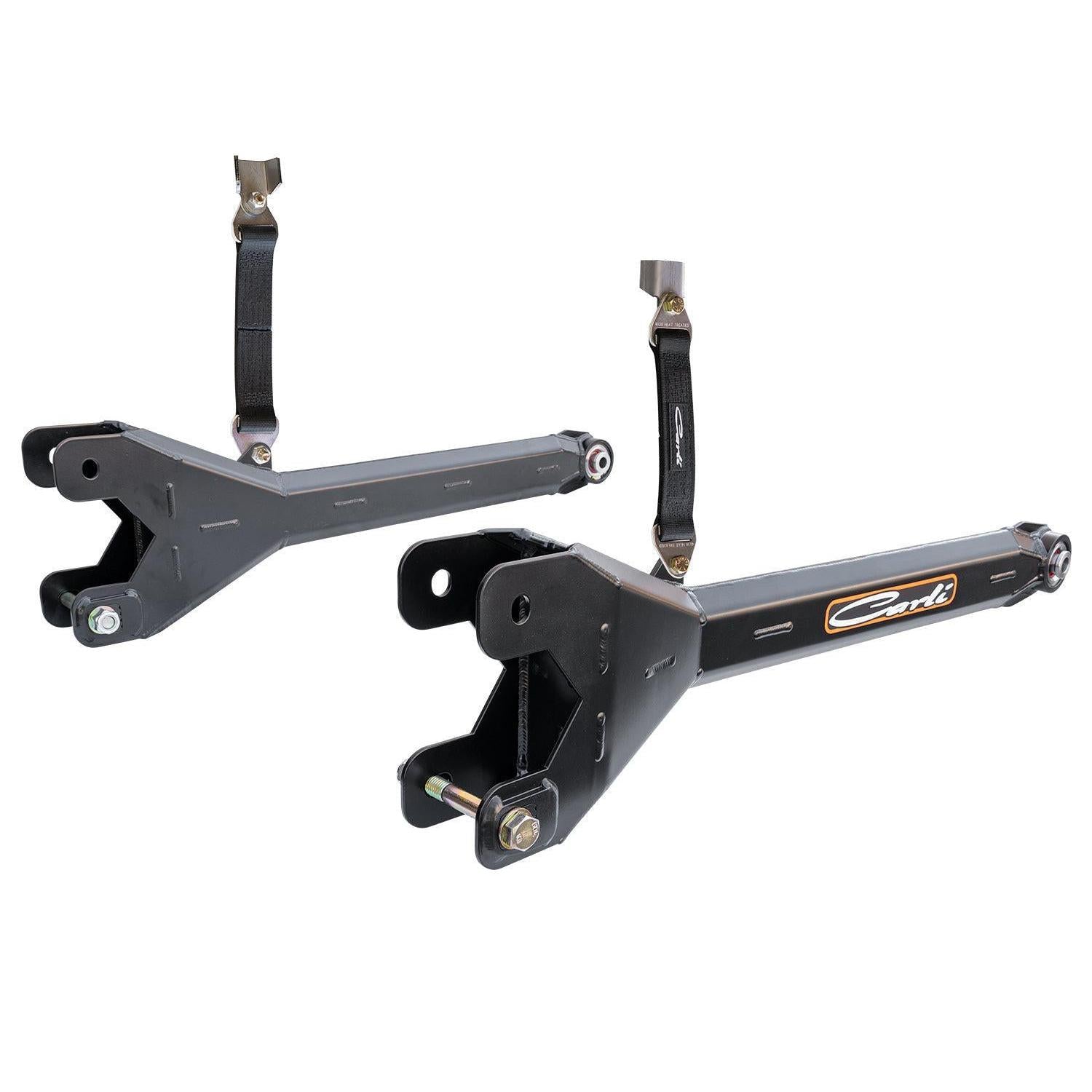

2023-2026 Powerstroke Fabricated Radius Arms w/ 3.5" Lift (CS-FARA-LVL-23)

When installing a lift or leveling kit, it is essential to maintain the alignment and geometry of your truck. If not, you will likely experience wheel hopping, death wobbling, or crab walking down the road, potentially leading to premature tire replacement. Dont be that guy. These bolt-on Carli Radius Arms are built for trucks with 3.5" lift kits, and help keep your wheels & tires tilted to the appropriate degree through your suspension's longitudinal range of motion.

Part Number: CS-FARA-LVL-23

• Caster adjustable is made simple from 0.5 -2.5 degrees through the use of 4 different insert options at the lower axle side mounting point
• Improve drivability and help prevent death wobble
• Added clearance for oversized tires is provided by the offset design of these arms, allowing the use of a 37" tire on a nearly stock backspace wheel (5.5").
• Fully boxed construction with full-length internal gusseting makes them bulletproof
• 3″ Serviceable 17-4" Stainless Spherical Joint ensures they cycle with no bind in the pivot
• Included is a 12" limit strap kit to prevent the shocks from limiting down travel.
• Black powdercoat with Carli logos installed on the exterior side for a clean and aggressive look

Fully Boxed Construction boasting full-length internal gusseting makes them bulletproof while the 3″ Serviceable 17-4 Stainless Spherical Joint ensures they cycle with no bind in the pivot.

A complete redesign from our 2005-22 arms, these arms offset the to the inside to accommodate the alterations Ford made to the 23+ Super Duty frame. This offset allows 37″ tire fitment when running near-stock Backspacing (5.5″) to keep rocks off the paint while Limit Straps prevent the shocks from limiting down travel.

The Carli arms correct 0.5°-2.5° of caster (with the included shims) at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster.

Don't see your question? Ask us anything about this product.
