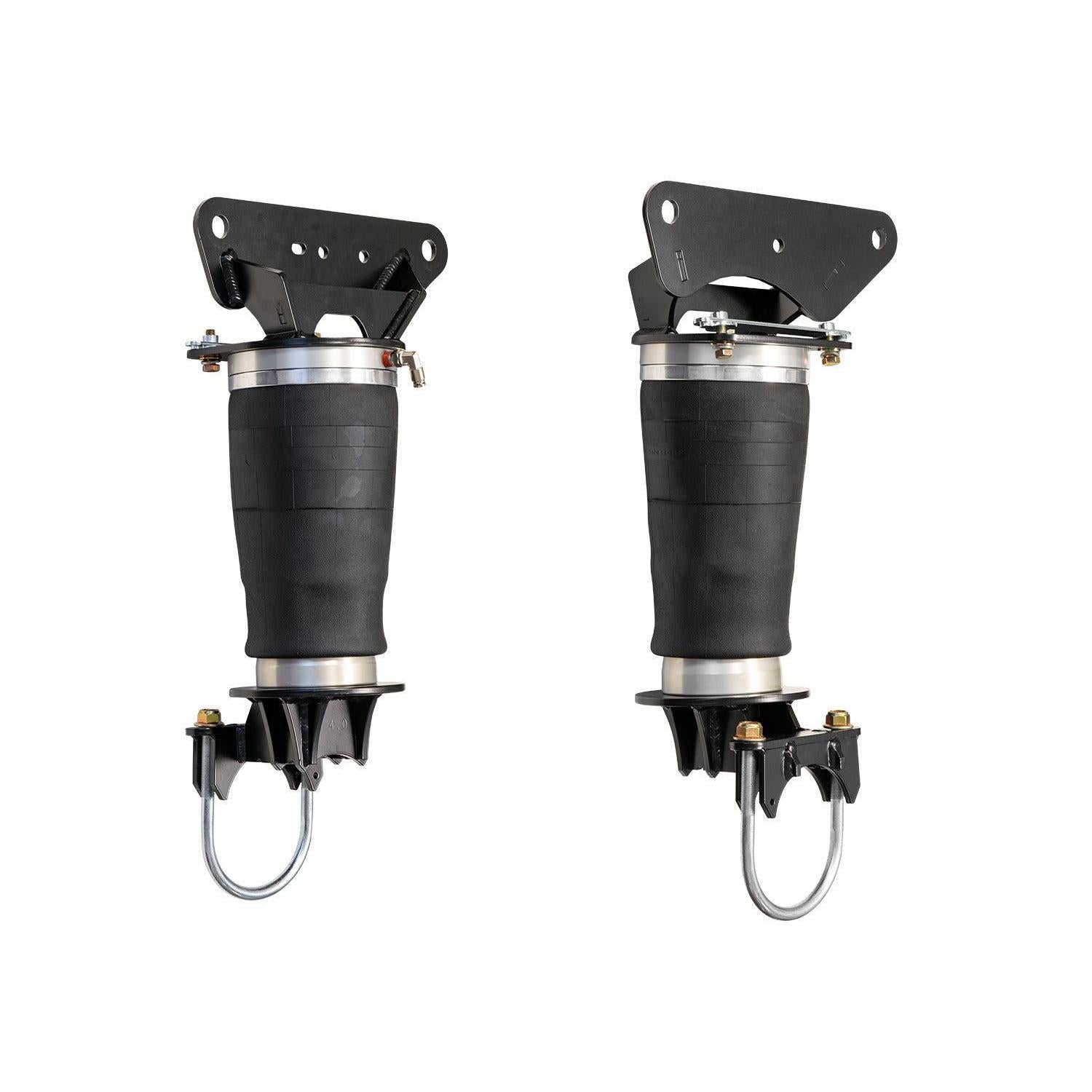

2023-2024 Powerstroke DRW Long Travel Air Bag System w/ 4.5" Axle (CS-FLTB-23-45)

Fits

Note: For dually applications with a 4.5" axle tube ONLY

These Long Travel Air Bags are perfect for those who still run the factory leaf springs and want improved ride quality without swapping springs or compromising payload capacity. Featuring a tapered piston and a folding sleeve bag to avoid any interference when deflated. Perfect for those who haul 5th wheels, campers, boats, and so on, these bags have an operating range of 0 to 100 psi (bags are rated to 2,000 lbs./ea. at 100psi).

Part Number: CS-FLTB-23-45

• Supports up to 12" of rear travel
• 2,000lb capacity per bag at max 100psi
• Restores Factory payload to full progressive spring pack
• Fits trucks with 4.5" axle tube
• Can be used as a manual fill or with onboard air systems
• Mounting Hardware Included

• Compatible with Carli 5.5″ Suspension Systems ONLY
• Ford Long travel airbags will ONLY work with rear lifts that level to a 5.5″ Front lift. Carli recommends 2″ of lift in the rear over trucks with 3″ factory blocks.
• These will work with add-a-packs as well, but the factory bump-stop tang will need to be cut off the factory block.
• 4.5″ Axle Tube should be confirmed before ordering. This Axle is spec’d on the 2023+ F350 DRW 4×4.
