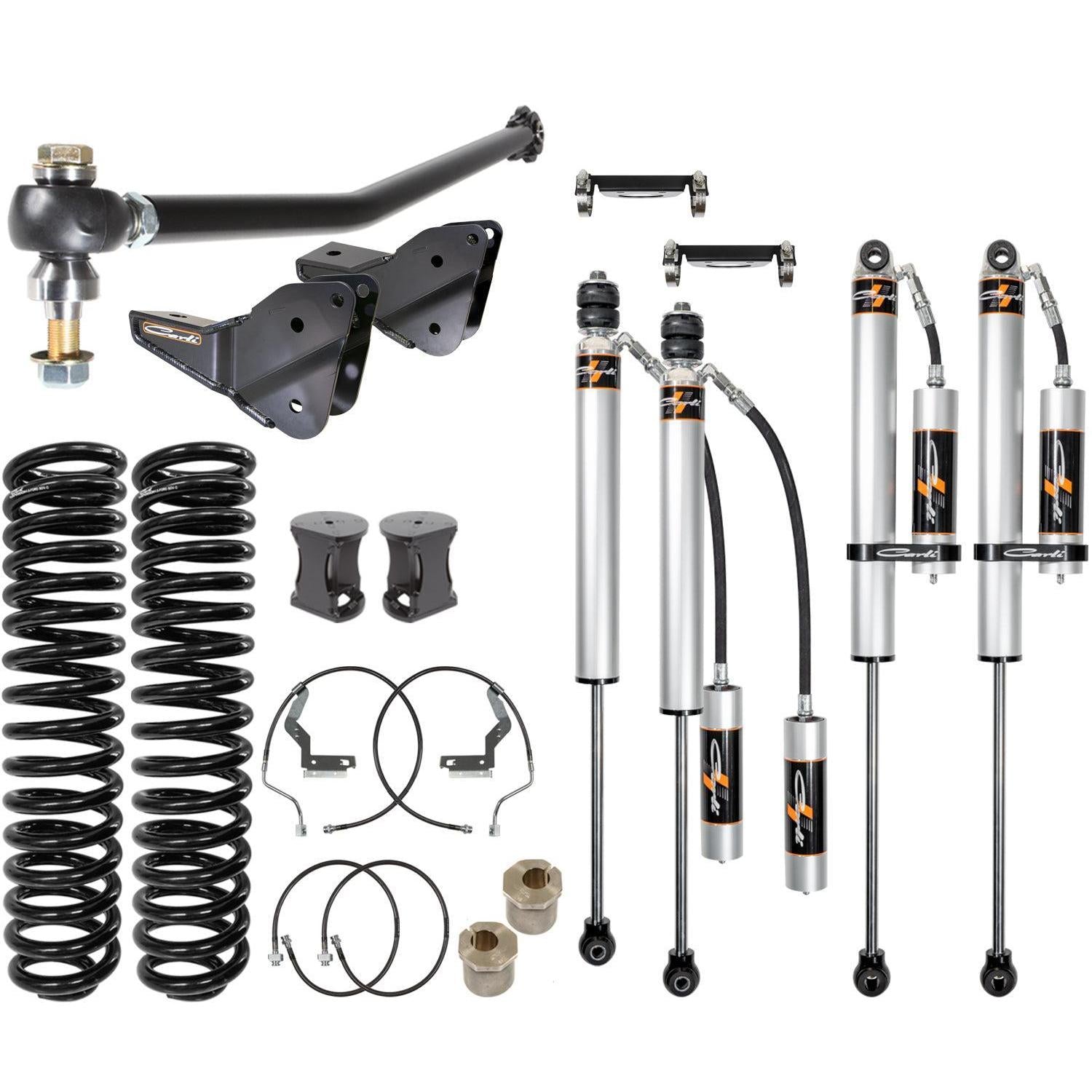

2023-2026 Powerstroke Backcountry 5.5" Lift Kit (CS-F55-BC-CS-23)

Step 1 of 10 · Optional

Sway Bar

Needed to complete this build. Skip only if your truck already has one installed. The Commuter System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops & Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Step 2 of 10 · Optional

Rear Leaf Spring Option

The Backcountry System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package). More information can be found in the description at the bottom of this page. More information is available in the long description at the bottom of this product page. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs.

Step 3 of 10 · Optional

Leaf Spring Shackle

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Step 4 of 10 · Optional

Long Travel Airbags

Restores Factory capacity to reduced rate Carli Leaf Springs. Provides the best of both ends of the spectrum. Ride on Carli's soft-rate leaf springs when unloaded then air the bags up to level the chassis and support your load! Standard F250 will have 3.5" Axle Tube, High-Capacity Tow Package F250 will have 4". F350 will have 4" and DRW will be 4.5". We ALWAYS recommend measuring your axle before ordering as the above are guidelines and should be confirmed prior to ordering!

Step 5 of 10 · Optional

2° Pinion Shim

*OPTIONAL BUT RECOMMENDED* - When modifying the rear leaf springs (add-a-pack or Full Spring Pack) of the 2017+ Super Duty platform, there's a small chance you'll induce a driveline vibration around 70mph when under power from the rear driveline. These pinion shims will correct the angle to 4°-5°, ideal for our lifted applications. Although these will not be "required" on every truck, we've found the 4°-5° spec to be superior in our applications and these are FAR easier to install initially than correctively

Step 6 of 10 · Optional

Fabricated Radius Arm Option

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Step 7 of 10 · Optional

Low Mount Steering Stabilizer

Step 8 of 10 · Optional

High Mount Steering Stabilizer

Bolt-in replacement for the factory stabilizer. Adjustable 70-200 psi — run neutral or counter the right-hand pull of aggressive M/T tires like Toyo Mud Terrains. Stainless, leveled-and-lifted trucks only, not compatible with drop pitman arms.

Step 9 of 10 · Optional

Carrier Bearing Drop

Step 10 of 10 · Optional

Trophy Hitch

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!
