2023-2026 Powerstroke AMDP EZ-Lynk Tune Package

Now with steering wheel SOTF on pickups, plus Cab & Chassis and Transmission Tuning support.

So, you're ready to truly uncork that 2023-2026 6.7L Powerstroke? This AMDP Custom Tuning Package, powered by the rock-solid EZ Lynk AutoAgent 3.0, cuts the BS and delivers serious power gains, sharper drivability, and dead-simple installation. No more fuss, just flash custom tunes directly through your OBD-II port and unleash what's been held back.

Custom Power Levels

Level 1: 0 HP (Emissions-Off Only) Ditch the emissions gear while keeping stock power for improved flow and reliability.

Level 2: +50 HP Over Stock Approximately 50 HP and 100 lb-ft of torque. A solid kick for daily driving and light hauling. Expect sharper throttle and better mileage.

Level 3: +75 HP Over Stock Approximately 75 HP and 150 lb-ft of torque. A serious bump in power and torque, perfect for spirited driving and light towing.

Level 4: +100 HP Over Stock Approximately 100 HP and 200 lb-ft of torque. This is for when you want to feel it. Aggressive gains for those who demand more from their truck.

Level 5: +125 HP Over Stock Unleashes up to 125 HP and 250 lb-ft of torque over stock. Designed for maximum performance.

Steering Wheel SOTF (Pickups)

On F-250, F-350 and F-450 pickups (Standard Output and High Output), everything is controlled with the factory cruise control buttons. There is no switch to mount or wire in. Cab & Chassis trucks still run SOTF through the Blue/Blue CAC switch.

SOTF tunes: Flash a Rumble or Hiss idle file (vane position is preprogrammed in that file), then:

• Power level: Double tap Cruise Cancel, then pick with Set + or Set - when the menu shows. 1 is 0 HP up to 5 for +125 HP (or higher depending on application).
• High idle: Hold Cruise Cancel, then set RPM with Set + or Set -.
• LBF selector: Hold Set -. 1 is Standard Fueling, 2 is Increased LBF.
• No relearn between modes.

Single power level tunes:

• Vane selection: Double tap Cruise Cancel, then pick with Set + or Set - when the menu shows. 1 is Full Rumble up to 5 at Full Hiss.
• High idle: Hold Cruise Cancel, then set RPM with Set + or Set -.
• LBF selector: Hold Set -. 1 is Standard Fueling, 2 is Increased LBF.

• Switch-on-the-Fly (SOTF) now runs from the factory steering wheel cruise controls on pickups, no extra switch needed. Cab & Chassis trucks still require the Blue/Blue CAC switch (sold separately).
• SOTF is included with both the Limited and Unlimited Support Packages, with or without transmission tuning. Existing 2023+ customers get it automatically through the cloud.
• No ECM/TCM swap required, flash directly through OBDII

• Custom tunes developed through thousands of R&D hours

• Supports larger injectors and turbochargers with custom profiles

• Optimized for daily driving, towing, and race performance
• Speed limiter is removed

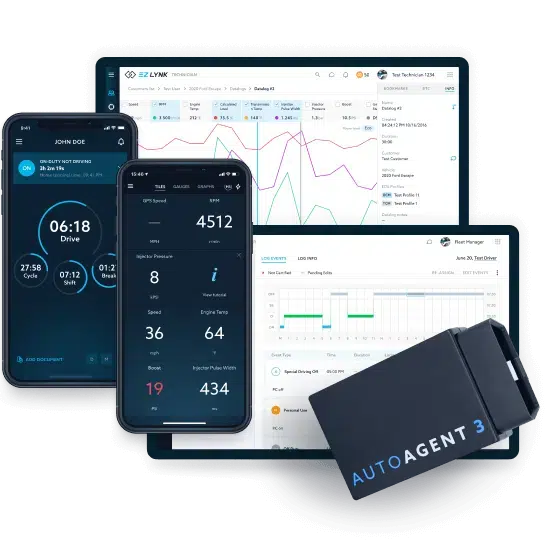

AutoAgent Features:

• Cloud-Based Tuning - Run Updates & Receive New Tunes From Anywhere
• Real-Time Diagnostics & Control Via Your Android or IOS Device.

• Firmware Updates Performed Automatically
• All Controlled Via a Downloadable App
• Datalogging
• Customized Warning Levels
• Read & Clear Codes
• Live Graphing
• Share Vehicle Diagnostics LIVE With Your Technician

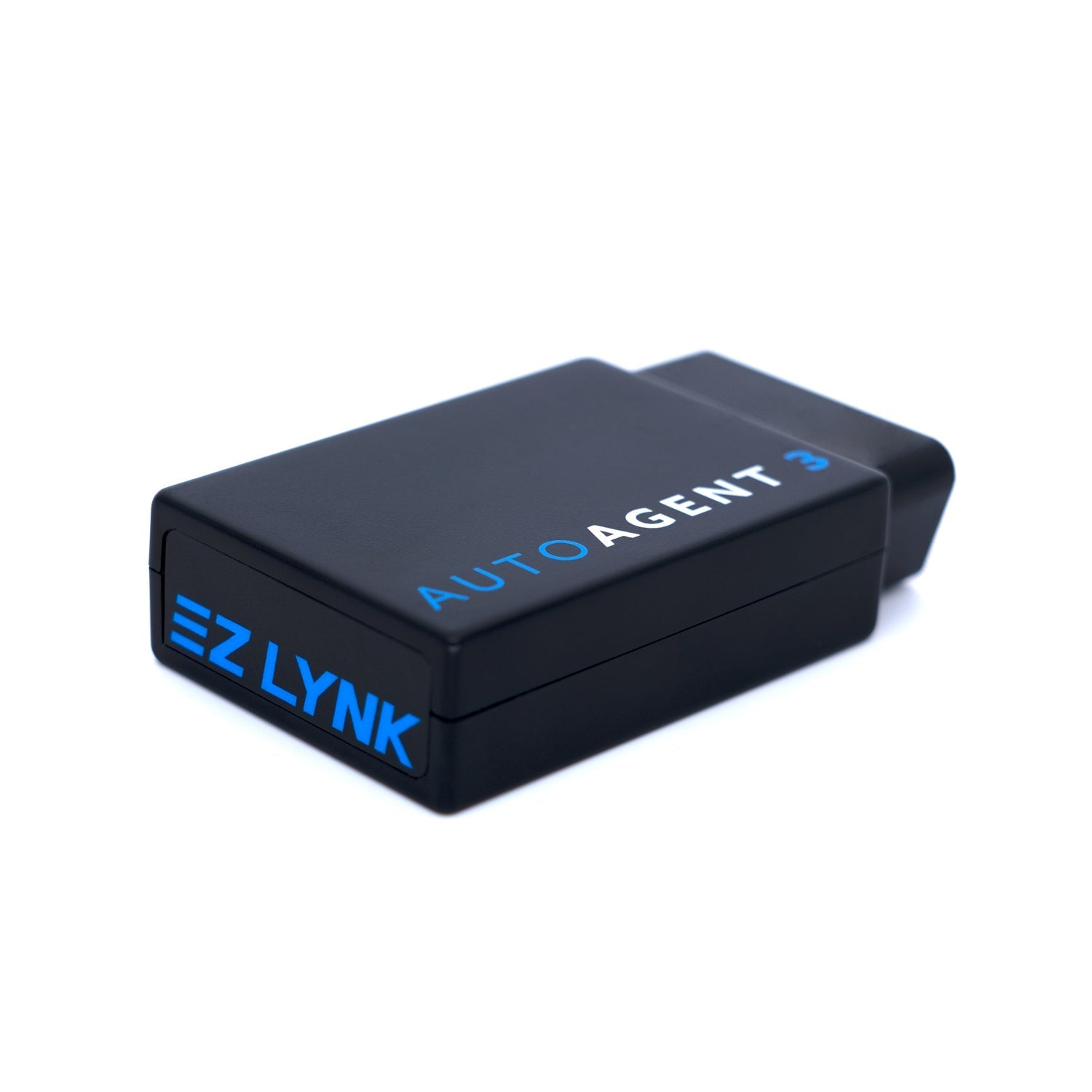

• This package includes the EZ Lynk AutoAgent 3.0 device. No separate purchase needed to run these tunes.

• Already own an EZ Lynk AutoAgent 2.0? These tunes will still load on it, though 2.0 hardware may run into future firmware limitations.

• Transmission tuning for 2023-2026 models is included in the AMDP support package: optimized torque converter lockup, dynamic pressure adjustments, smoother gear transitions, an enhanced Tow/Haul mode and improved exhaust brake performance.

• Throttle valve and EGR removal are required for proper operation

• 4-Week Limited Support Package: Access all tunes for 4 weeks. The last installed tune remains after expiration, and the package is upgradable to Unlimited Support.

• Unlimited Support Package: Lifetime access to all current and future tune files, including automatic updates and revisions.

• Any previous changes made with Forscan or Ford IDS MUST be reverted to OEM values before flashing these tune files.

Click here to view instructions

Download the AMDP EZ-Lynk How To sheet (PDF)

Don't want to read? Check out the install video below!

Don't see your question? Ask us anything about this product.
