2023-2026 Powerstroke 3" Radius Arm Lift Kit (BDS2200H)

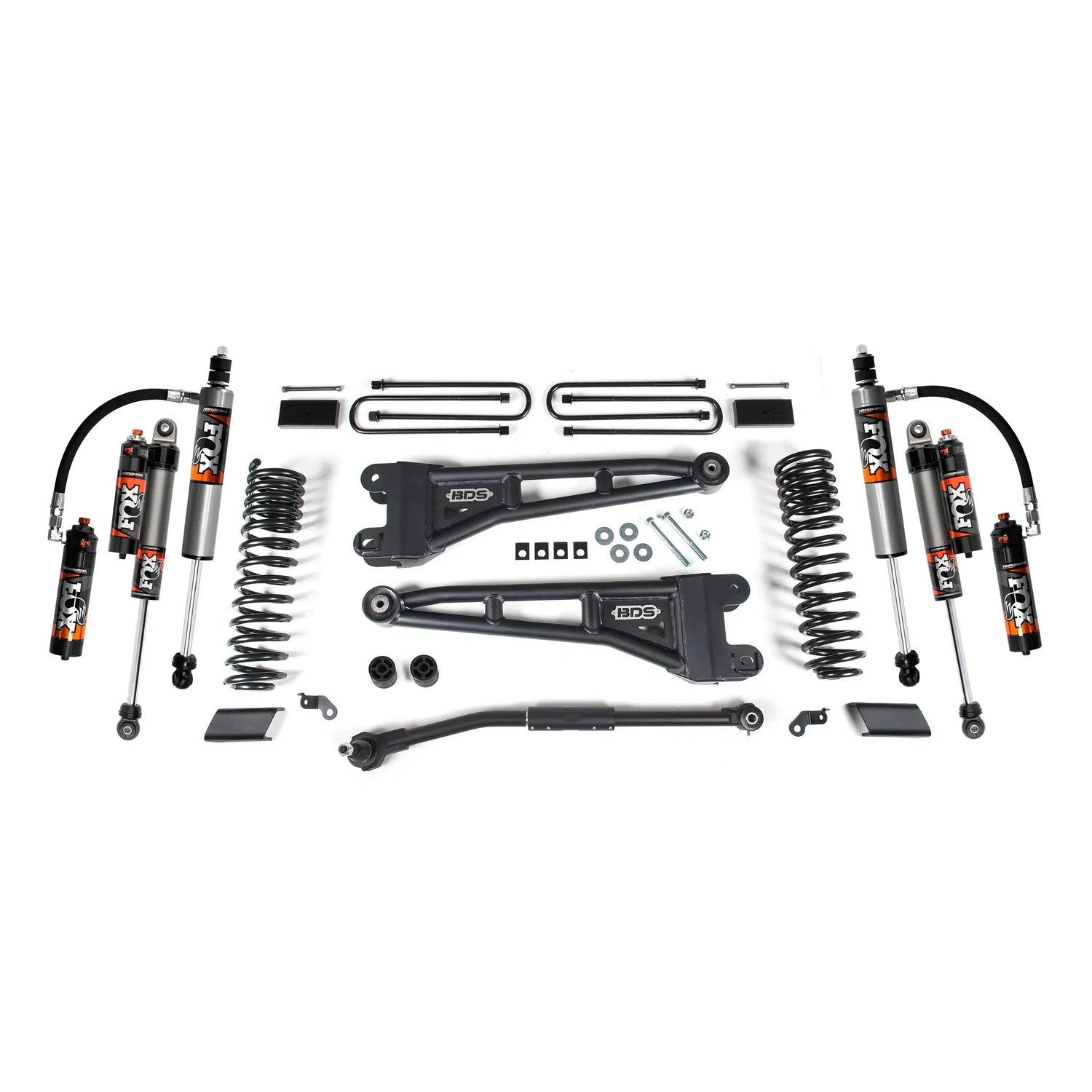

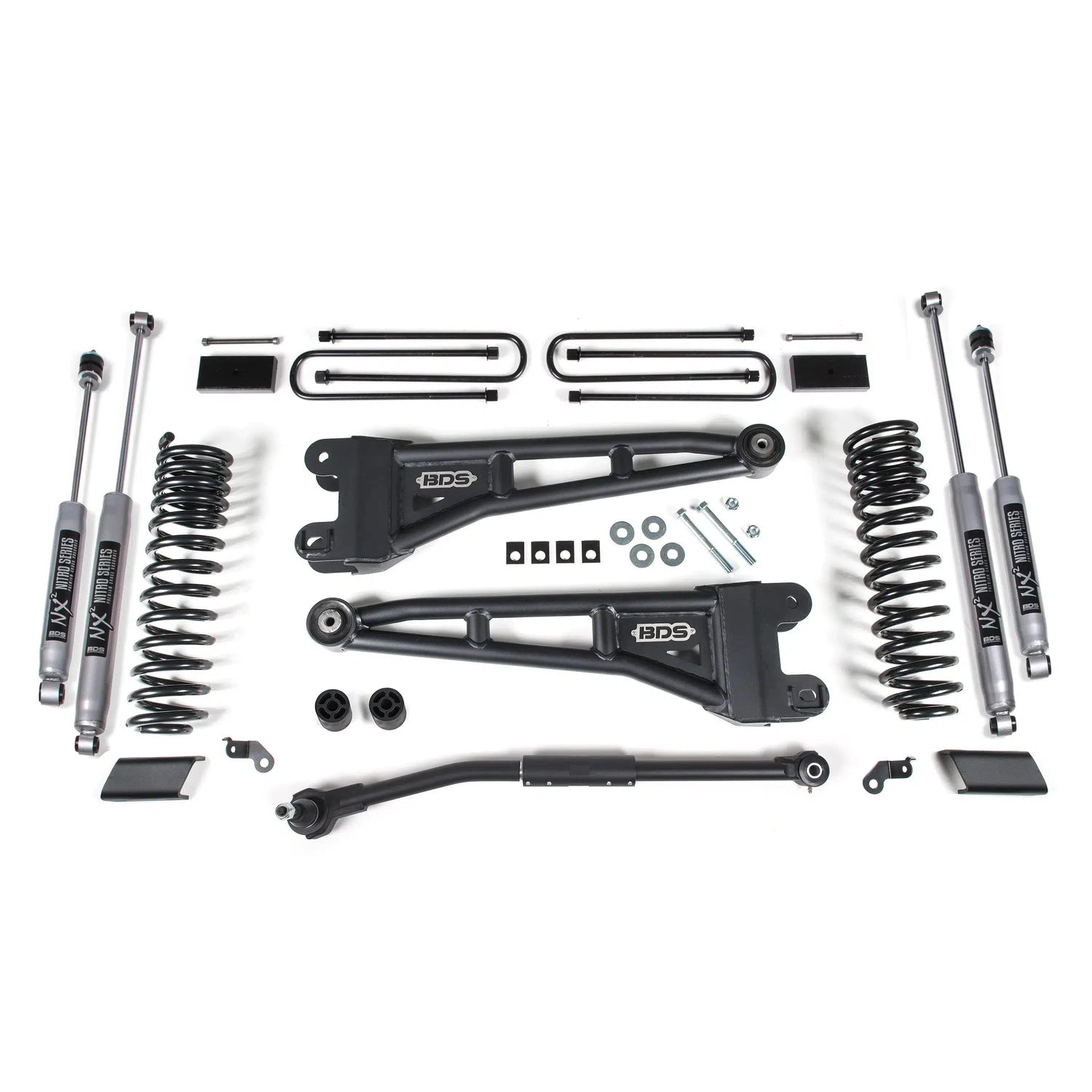

Featuring Pro-Ride coil springs, HD replacement radius arms, high strength 1-3/8" solid steel track bar for steering correction, sway bar relocation, brake line brackets, and precision tuned nitrogen-charged shocks; everything you need to turn your Powerstroke into an absolute off-road unit.

Part Number: BDS2200H

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• NX2 Nitro or Fox shocks with vehicle-specific valving for better control

Tire Fitment:

• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

• Vehicles with radius arm mounted ride height sensors will require BDS123303.
• Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.
