2023-2024 Powerstroke 6" Coil Spring Lift Kit w/ Radius Arms (49-23621)

Fits

For those looking for that perfect mid-level lift kit, you've found it! ReadyLift's 6" Coil Spring Lift Kit. Engineered to be a direct bolt-on kit for easy installation. It features Tubular Radius Arms to strengthen the longitudinal movement of the axle, providing you with better handling and stability with increased camber control to minimize wheel hop and maintain proper wheel alignment. Effectively increasing your truck's handling predictability and giving you that neck-breaking ground clearance that dominates any road or terrain with ease.

Part Number: 49-23621

• Tubular Radius Arms correct the caster angle
• Bolt-on lift kit - no structural modifications required
• Reduction in bump steer
• Ideal alternative over a full lift kit package
• Increased maneuverability & control

Tire Fitment:

• Recommended tire size: 37" - 12.5"
• Recommended wheel: 17" and up x 9" wide, +25 offset / 6" backspacing (minor trimming of the front valance may be necessary)

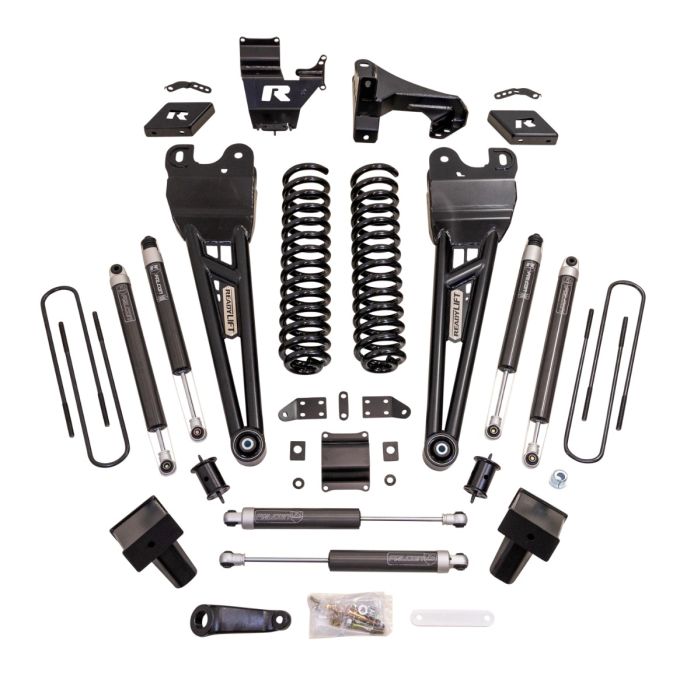

Includes:

• 6" Lift Springs
• Falcon 1.1 Monotube Front and Rear Shocks
• Track Bar Relocation Bracket
• Radius Arm
• Dual Steering Stabilizer
• Sway Bar Drops
• Bump Stop Extensions
• Carrier Bearing Drop
• Front Brake Line Brackets
• Fabricated Rear Lift Blocks
• Hardware Pack

• 2023-2024 Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket. PN: 67-23410
• Does not fit trucks with overload springs
• You will need to source new overload-length U-bolts
• Does not fit Tremor models.  For Tremor models please see 69-23250 or 69-23251.

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
