2022+ 3.0L EcoBoost GT1752S PowerMax Turbocharger Kit (926432-5002S)

Fits

The Garrett 926432-5002S PowerMax is a direct-fit twin-turbo upgrade for the 2022+ Ford Bronco Raptor and Ranger Raptor running the 3.0L EcoBoost. It’s a true bolt-on replacement for the factory turbos, delivering more power and torque, quicker throttle response, and better airflow — no custom work required.

This kit comes with a pair of GT1752S turbos, built with larger compressor wheels and a ball-bearing design for faster spool and added durability. Plus, it’s CARB-certified (EO# D-871-4), so it’s legal to run in all 50 states.

Part Number: 926432-5002S

• Direct-fit, bolt-on twin turbo upgrade.
• Ball-bearing design for superior response and longevity.

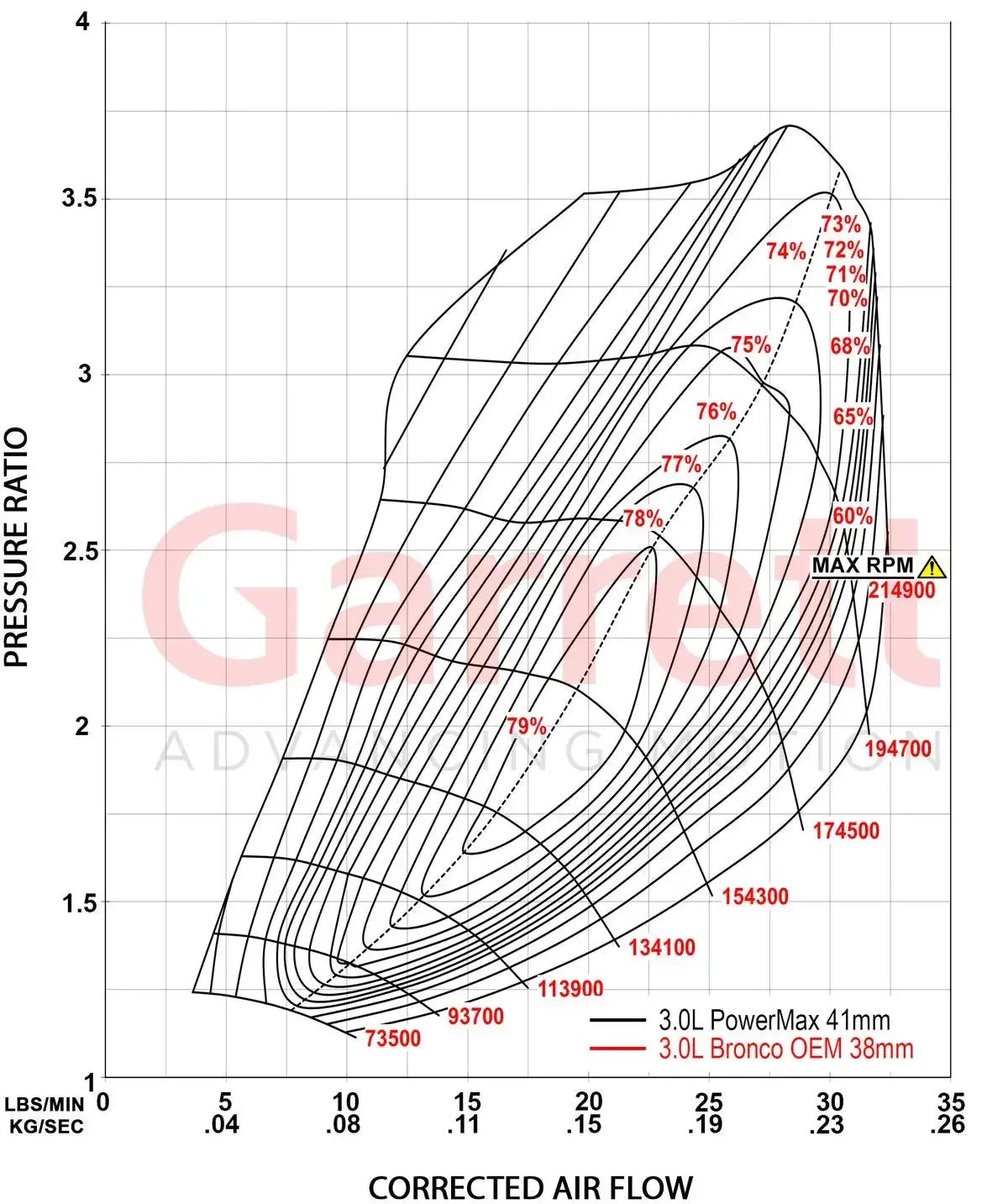

• Larger billet compressor wheels for increased airflow (+18% compressor flow).
• Supports up to 640 BHP with proper tuning and supporting mods.
• CARB-certified for street legal use in all 50 states.
• Stainless steel turbine housing rated up to 950°C.

Includes:

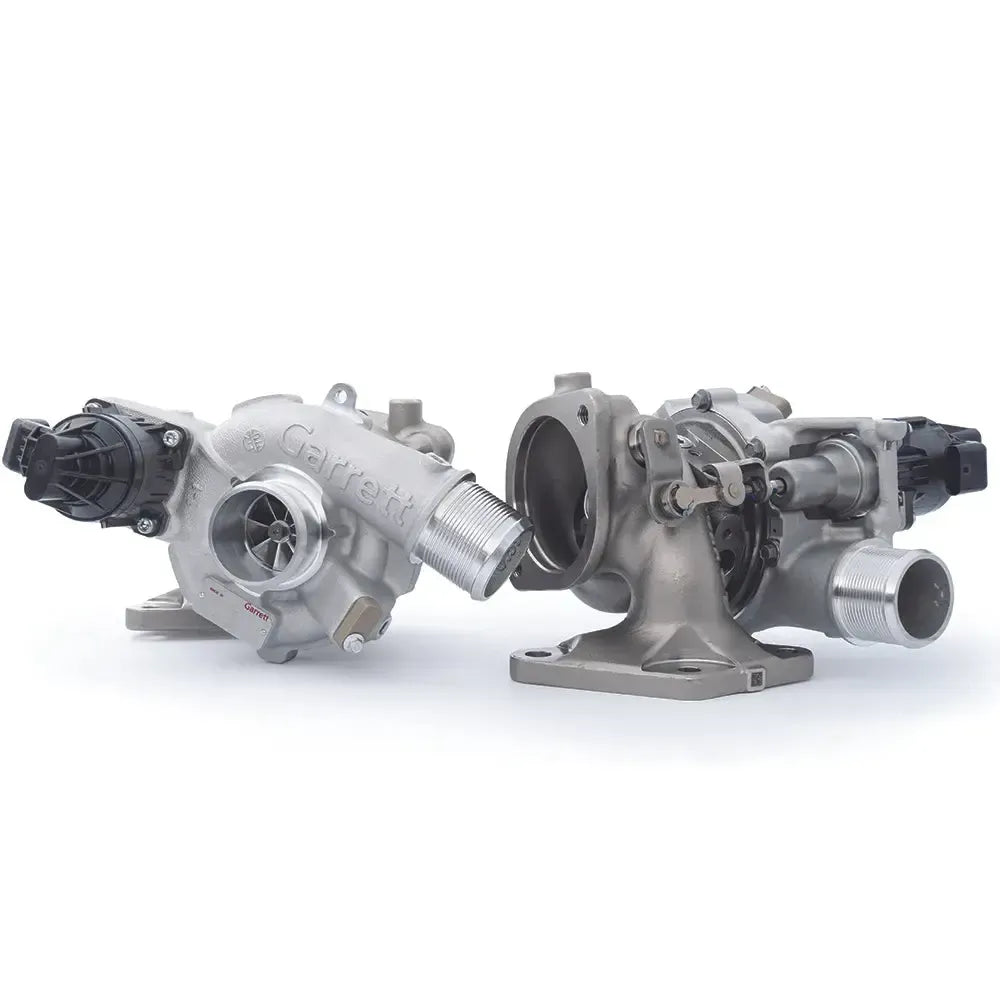

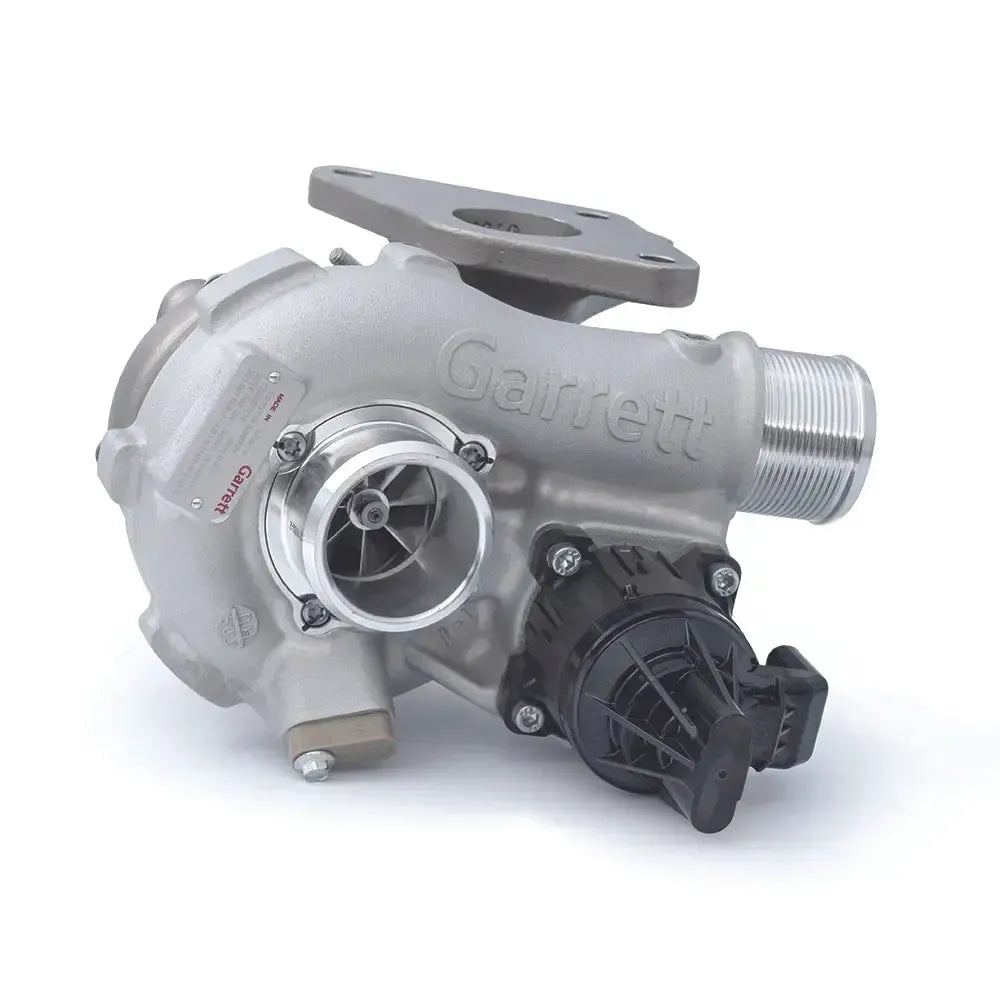

• (1) Left-Hand Garrett PowerMax Turbocharger

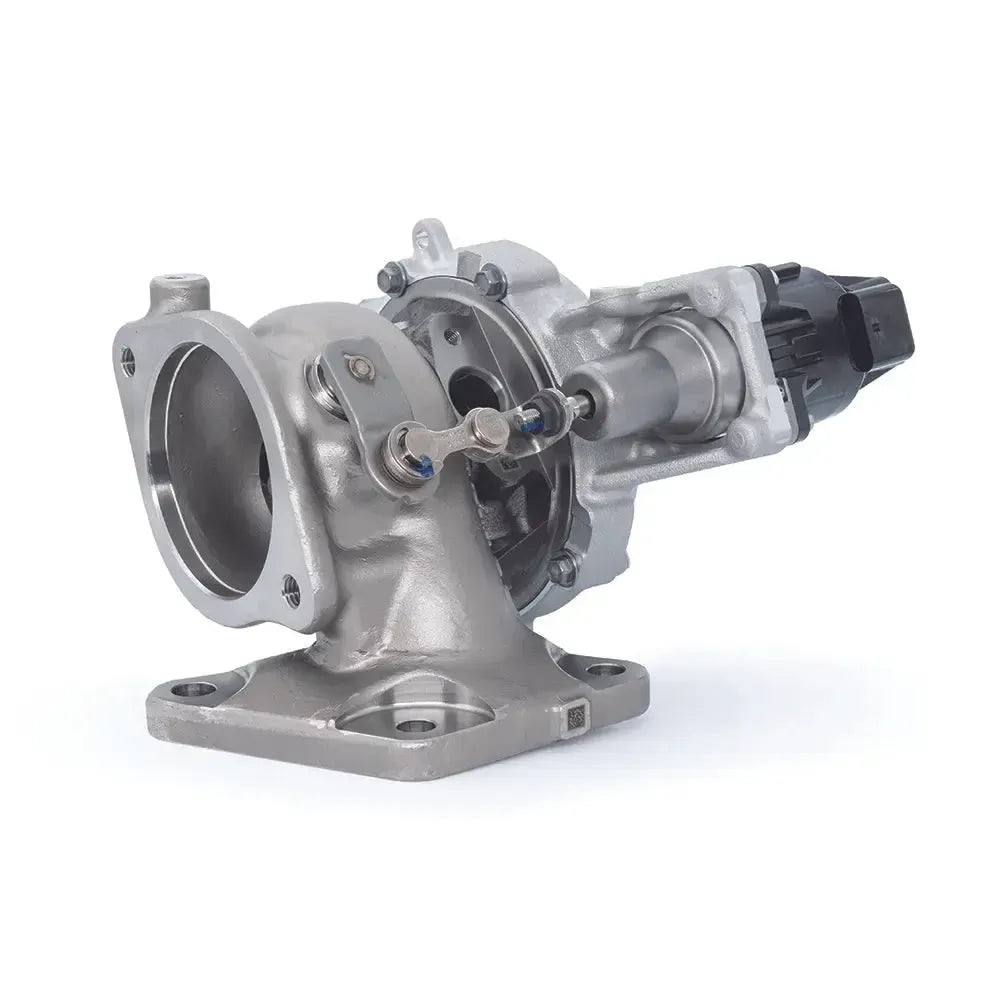

• (1) Right-Hand Garrett PowerMax Turbocharger
• (2) Pre-calibrated electronic actuators
• (2) Check Valves

• Custom tuning is required for optimal performance.
• A high-flow fuel system and other engine modifications are highly recommended for maximum performance gains.
• Professional installation is highly recommended.
