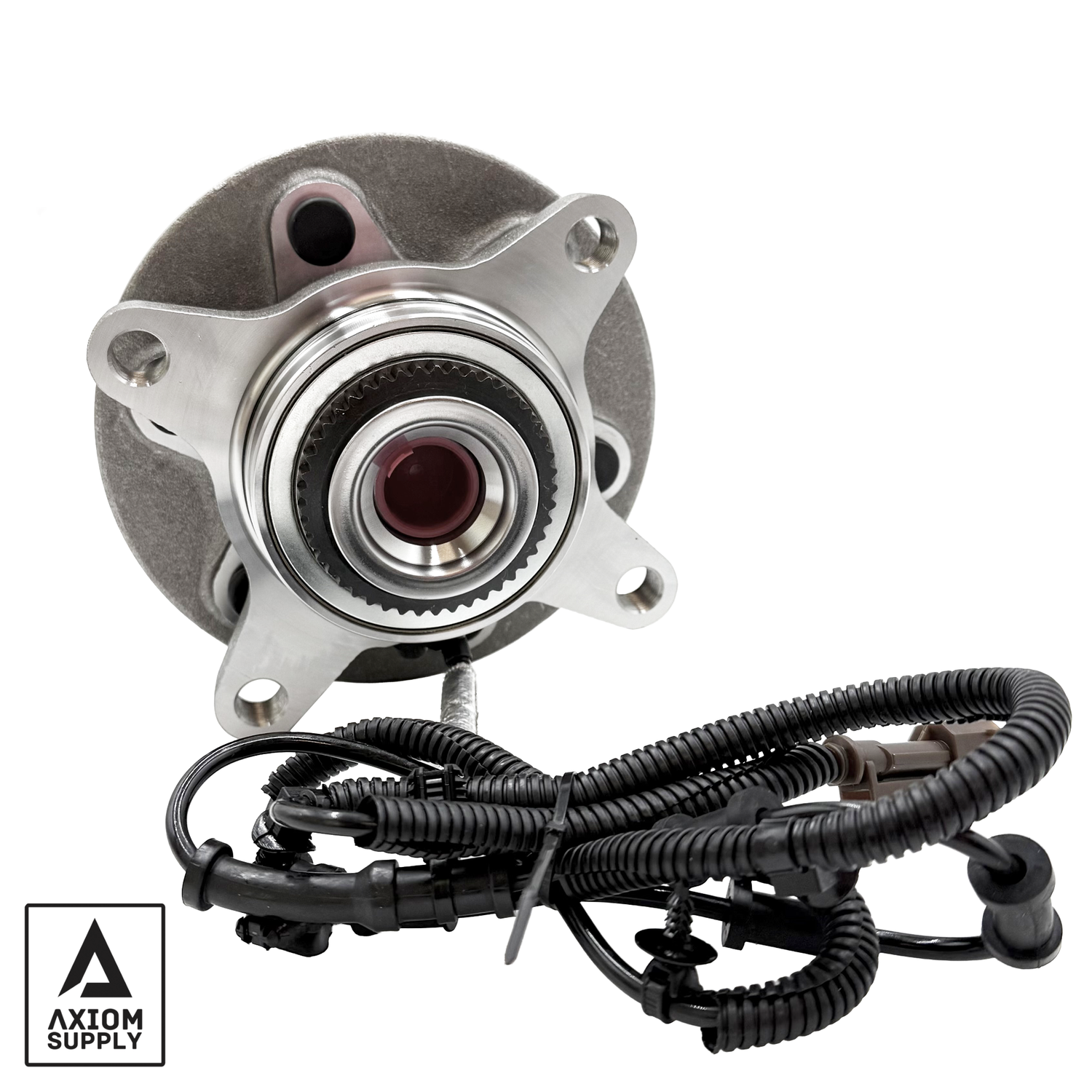

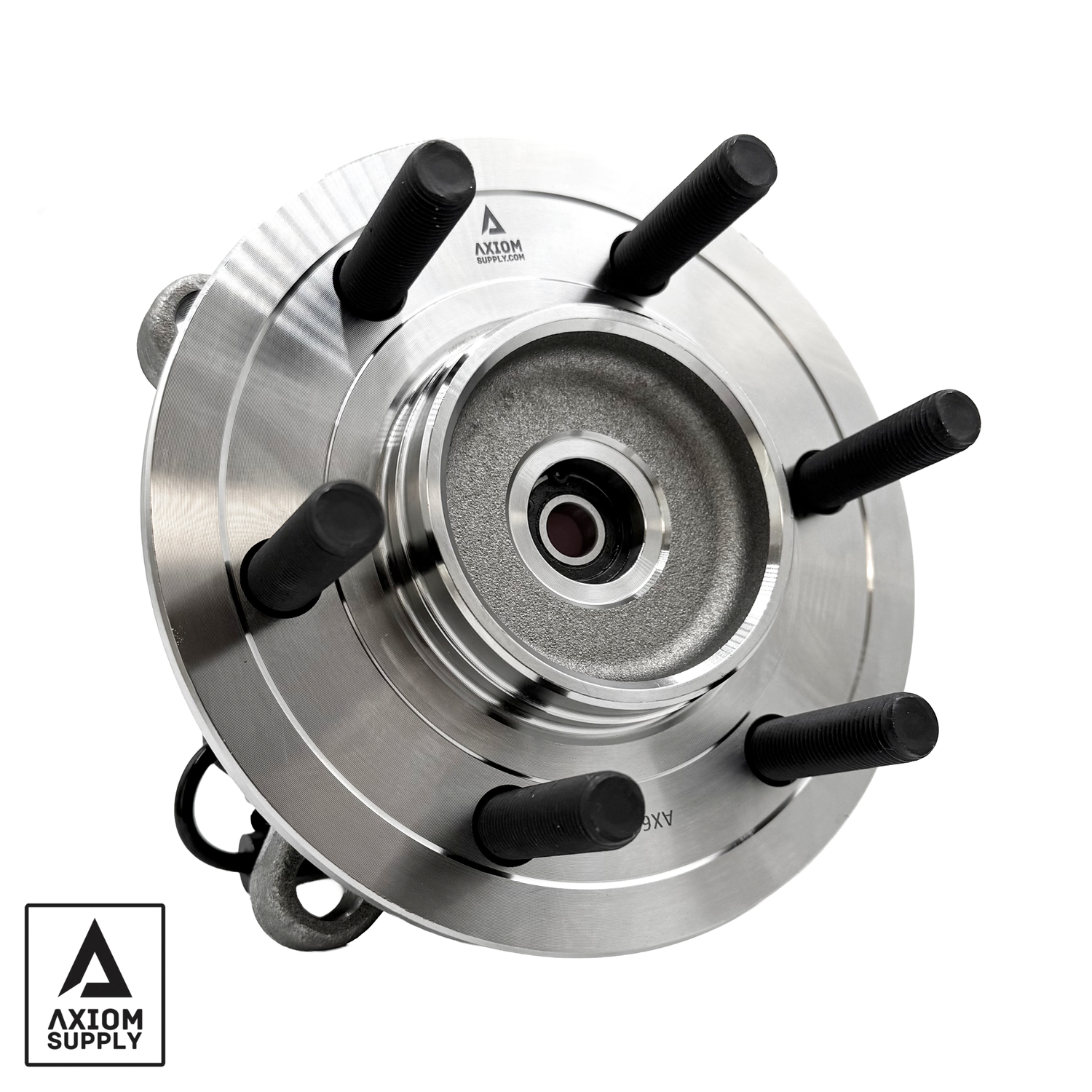

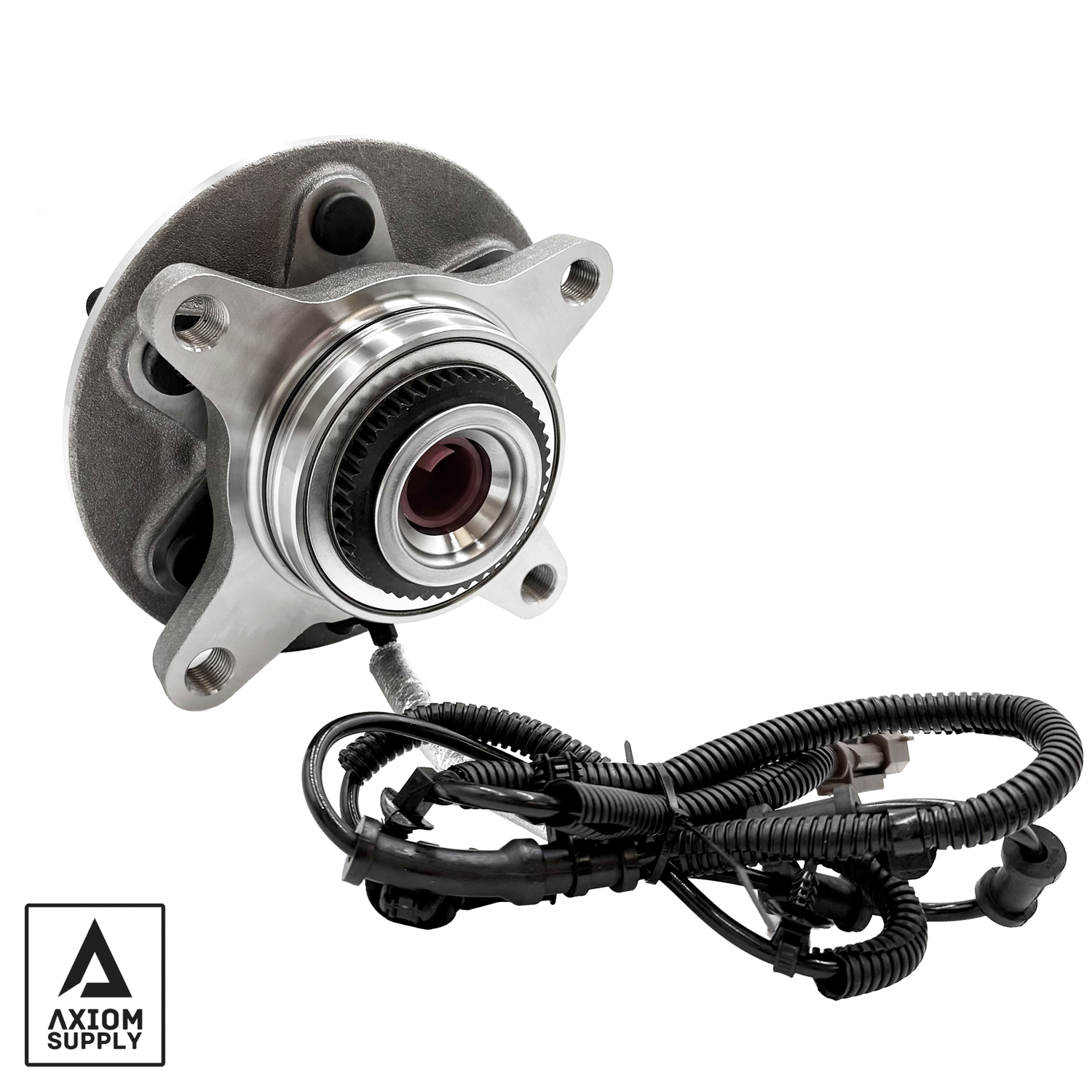

2022-2026 Bronco Raptor Wheel Bearing Assembly (AX600)

The Bronco Raptor punishes front hubs harder than anything else in the lineup, and a worn bearing shows up fast as ABS faults, droning at speed, and vague steering. This Axiom Supply front wheel bearing and hub assembly is a complete bolt-in replacement built specifically for 2022-2026 Bronco Raptor models, with a proprietary bearing and hub structure that reduces hub-face deflection under the load of 37s and hard off-road use. It fits either front position, installs in about 2 hours with no modifications, and interchanges with Ford NB3Z-1104-B, NB3Z-1104-A, and HUB-600.

Part Number: AX600

• Precision tapered roller bearings packed with high performance grease for maintenance-free operation
• Grade 10.9 cold-formed, zinc-plated wheel studs for tensile strength and corrosion protection
• Durable ABS sensor built to maintain accurate signal transmission through heat, mud, and moisture
• Configuration: 6x5.5" (6x139.7) bolt pattern with M14-1.50 lug studs
• Interchanges with Ford NB3Z-1104-B, NB3Z-1104-A, and HUB-600
• Complete bolt-in unit, fits both left and right spindle positions
• Proprietary bearing and hub structure reduces hub-face deflection under load for tighter steering response and improved braking stability

• 1 x Wheel Bearing & Hub Assembly with Integrated ABS Wire

• Fits Bronco Raptor models only, does not fit standard Bronco
• Axle nut torque procedure: 30 lb-ft initial, rotate an additional 90 degrees, then final torque to 221 lb-ft
• Torque specs: spindle bolts 133 lb-ft, main caliper bolts 166 lb-ft, lug nuts 150 lb-ft
• Typical installation time is approximately 2 hours with no special modifications required
