2022-2024 Tundra Leveling/ Big Lift Upper Control Arms (67-52640)

Fits

Part Number: 67-52640

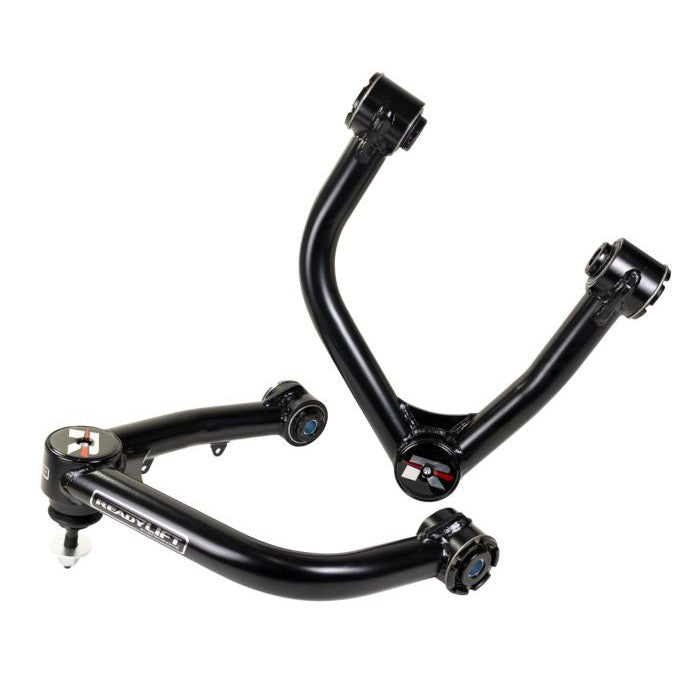

• Includes DOM tube steel upper control arms
• Designed for lift height of 0", 2-3", & 6"
• Compatible with stock wheels and tires
• Terrain Control Technology maintenance-free pivot bushings
• Stock/ Leveled & Big Lift trucks

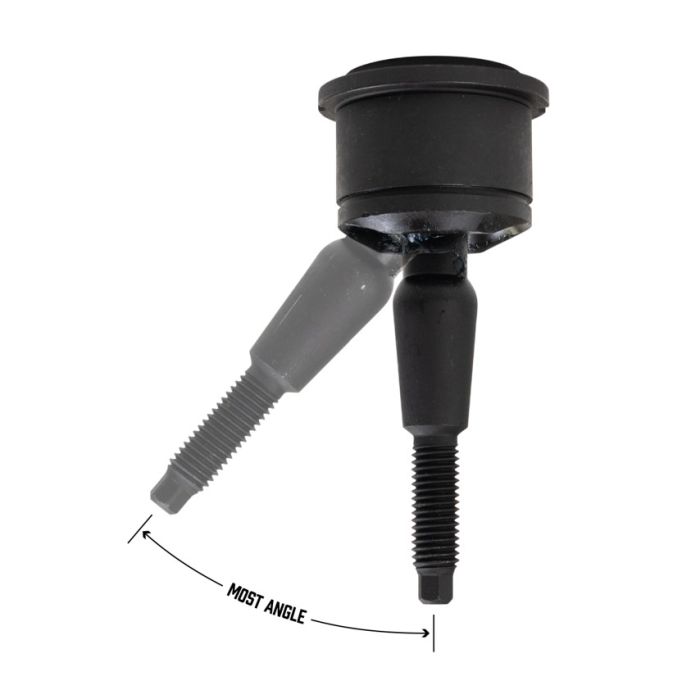

• Proprietary Heavy-Duty High-Angle Ball Joint - Allows for increased strength and angle for greater wheel travel for lifted applications without sacrificing ride quality
• Billet O-Ring Dust Cap and Sealed Ball Joint Assembly - Protects the ball joint assembly from corrosion, dirt, and debris in harsh off-road conditions.
• Gusseted Pivot and Ball Joint Housings
• Designed for maximum clearance and engineered for maximum strength
• Super-durable polyester Black Powder Coat Finish

Includes:

• HD DOM tube steel control arms with corrected ball joint angles
• HD ball joints
• TCT maintenance-free, self-lubricating pivot bushings

• Do NOT exceed an assembled coilover length of 21 3/4 " or binding will occur.
• If using 67-52640 with a non-approved kit, you must cycle to verify nothing will bind. ReadyLIFT will not warranty any non-approved kit combination.

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click Here to view installation instructions
