2022-2025 Tundra 3" Elite Leveling Lift Kit W/ King 2.5 Reservoir Shocks Front & Rear (535-P1227)

Fits

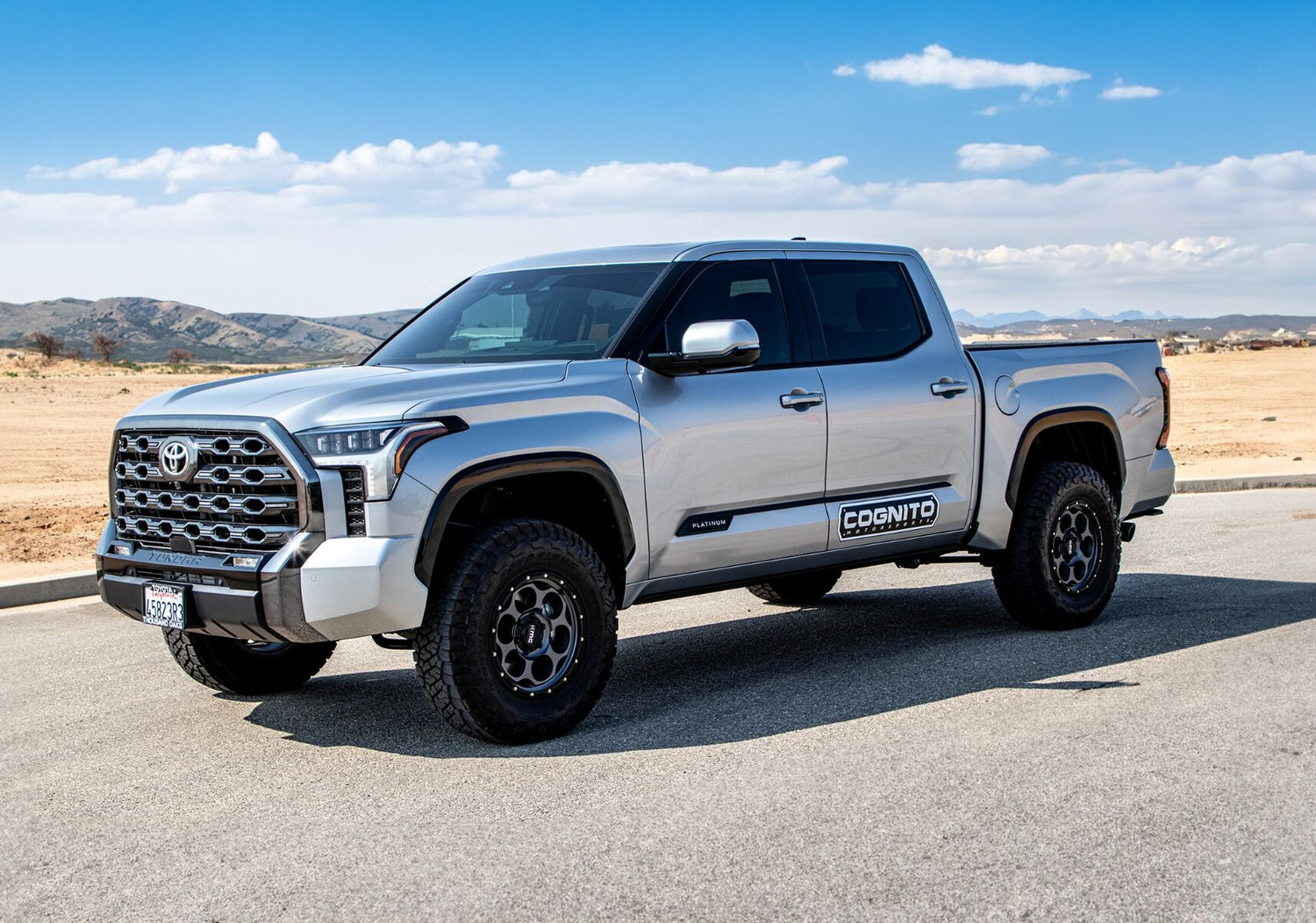

Transform your 2022-2025 Tundra with this premium 3" Elite Leveling Lift Kit featuring King 2.5 Reservoir Shocks. This comprehensive package delivers 3" of front lift with Ball Joint Tubular Upper Control Arms, compression-adjustable reservoir shocks, and optimized ball joint angles. It has been engineered to maintain perfect droop travel for that superior ride quality you deserve.

Part Number: 535-P1227

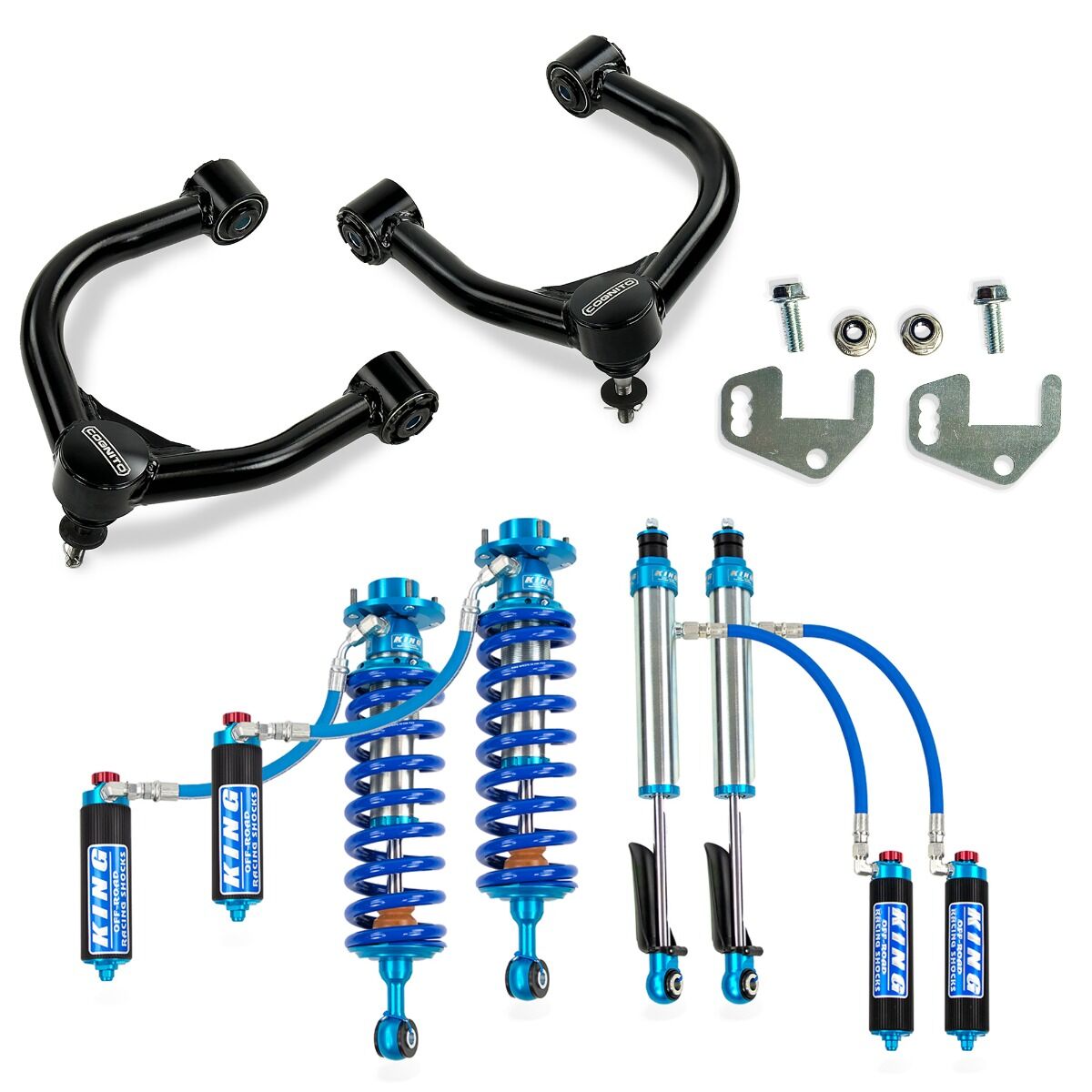

• Yields 3" of front lift
• 1"- 3" adjustable rear height
• Ball Joint Tubular Upper Control Arm Kit
• Rear Ride Height Sensor Brackets
• Brake Line Extension Bracket
• King 2.5 Reservoir Shocks with compression adjusters
• Improved ball joint angle
• Maintains adequate droop travel to optimize ride quality
• Enhances the Trucks Appearance and Reduces the Factory Nose Down Rake
• Made in the USA

• 7-hour DIY install time
• Click Here 7426
• Click Here 7424

• TRD Pro models will have a front height increase of 1"

• 285/75R18 (35x11.5) on 9” wide wheel with +18mm offset will require minimum inner fender well trimming, 0mm offset will require more inner fender liner trimming, negative offset not recommended.


• 295/65R20 (35x11.8) on 9” wide wheel with +18mm offset will require minimum inner fender well trimming, 0mm offset will require more inner fender liner trimming, negative offset not recommended.


• 35x12.5 on 9” wide wheel with +18mm offset will require minimum inner fender well trimming, 0mm offset will require more inner fender liner trimming, negative offset not recommended.


• 295/60R20 (34x11.8) on 9” wide wheel with +18mm offset will require minimal to no inner fender well trimming, 0mm offset will require a little more inner fender liner trimming, negative offset not recommended.


Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
