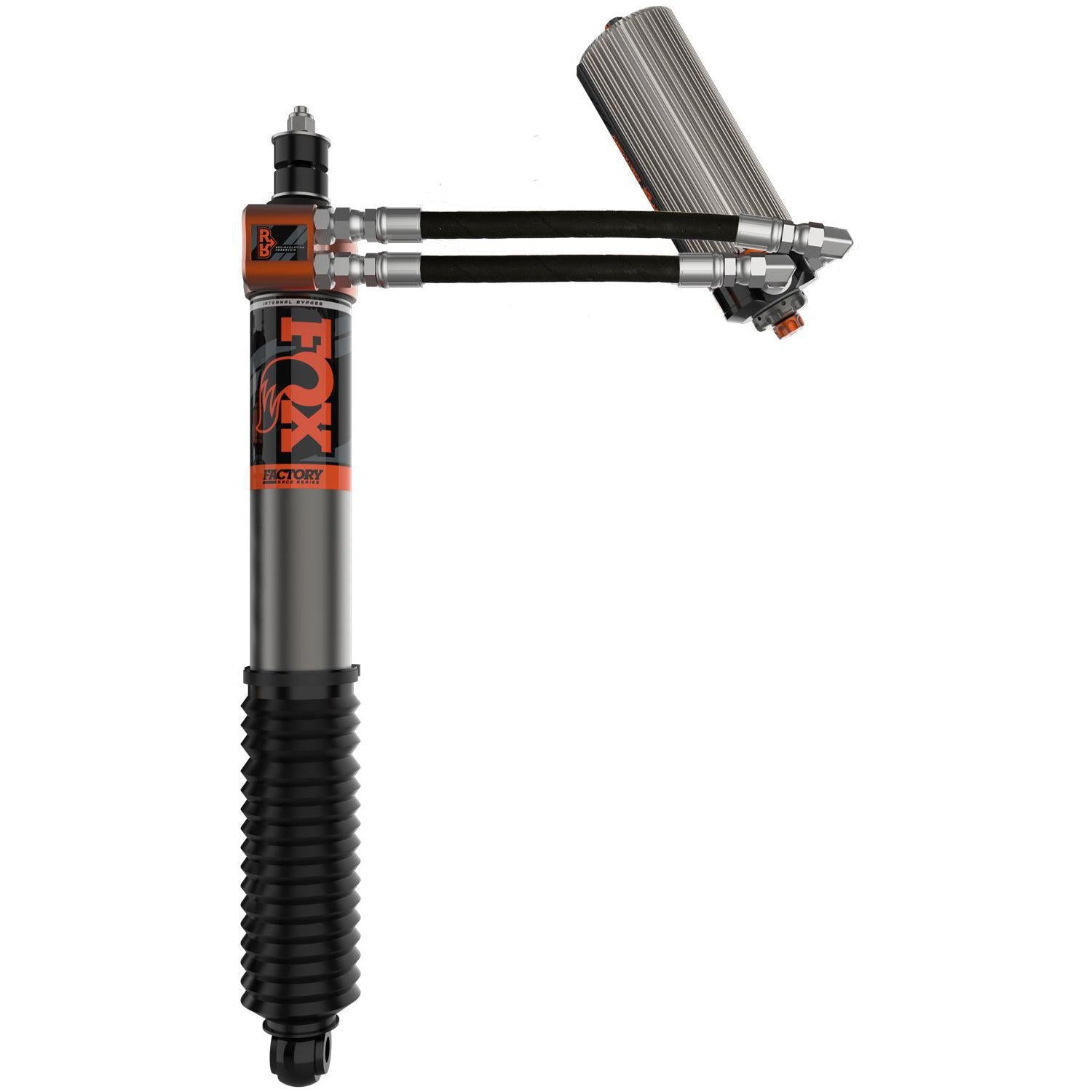

2022-2024 Tundra 3.0 Race Series 1-2" Lift Internal Bypass Rear R/R Shock (883-26-142)

Fits

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing.

Part Number: 883-26-142

• 3" impact-extruded and CNC machined 6061-T6 Type III anodized aluminum Body
• Patented, internal bypass design
• Application-specific springs
• 7/8" hard chrome-plated steel Shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Finned Reservoir with DSC adjuster

Specs:

• Travel: 9.97
• Extended Length: 26.25
• Compressed Length: 16.28
• Top Mount: Stem
• Bottom Mount: Eyelet
• Rear Lift: 1-2"

• Requires extended brake lines
